Panasonic GX80 vs Pentax 645Z
The Panasonic Lumix DMC-GX80 (called Panasonic GX85 in some regions) and the Pentax 645Z are two digital cameras that were announced, respectively, in April 2016 and April 2014. The GX80 is a mirrorless interchangeable lens camera, while the 645Z is a DSLR. The cameras are based on a Four Thirds (GX80) and a medium format (645Z) sensor. The Panasonic has a resolution of 15.8 megapixels, whereas the Pentax provides 51.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GX80 and the Pentax 645Z? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

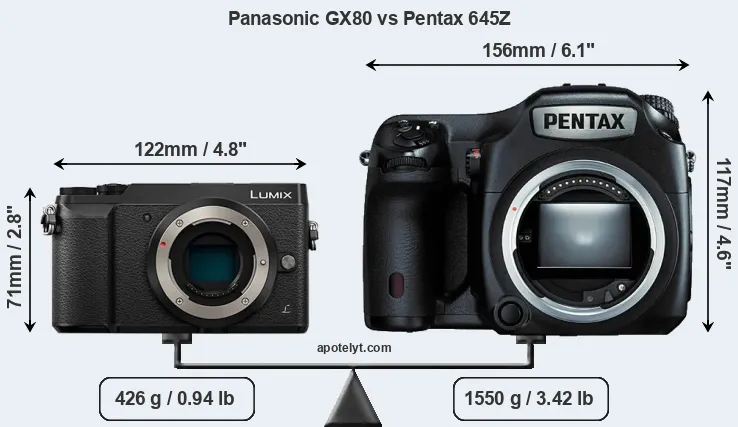

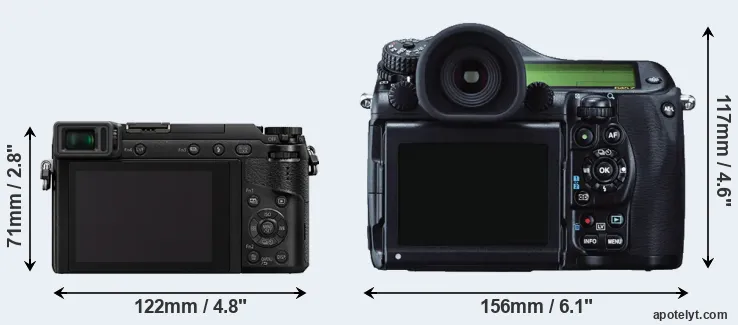

An illustration of the physical size and weight of the Panasonic GX80 and the Pentax 645Z is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The GX80 can be obtained in two different colors (black, silver), while the 645Z is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645Z is considerably larger (111 percent) than the Panasonic GX80. Moreover, the 645Z is substantially heavier (264 percent) than the GX80. It is noteworthy in this context that the 645Z is splash and dust-proof, while the GX80 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the GX80 gets 290 shots out of its DMW-BLG10 battery, while the 645Z can take 650 images on a single charge of its D-LI90 power pack. The power pack in the GX80 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|2.||Pentax 645Z||156 mm||117 mm||123 mm||1550 g||650||Y||Apr 2014||8,499|
|3.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|4.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|5.||Hasselblad X1D||150 mm||98 mm||71 mm||725 g||..||Y||Jun 2016||8,995|
|6.||Leica SL||147 mm||104 mm||39 mm||847 g||400||Y||Oct 2015||7,450|
|7.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|8.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|9.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|10.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|11.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|12.||Panasonic GX9||124 mm||72 mm||47 mm||407 g||260||n||Feb 2018||849|
|13.||Panasonic G80||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899|
|14.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|15.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|16.||Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
|17.||Pentax 645D||156 mm||117 mm||119 mm||1480 g||800||Y||Mar 2010||9,995|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GX80 was launched at a markedly lower price (by 91 percent) than the 645Z, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

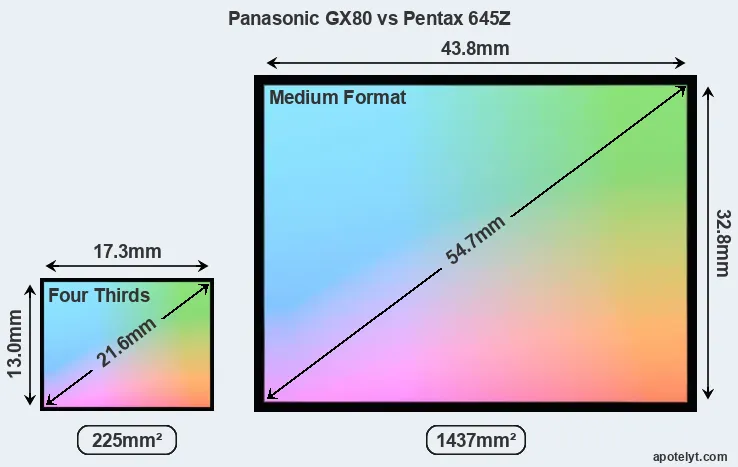

Of the two cameras under consideration, the Panasonic GX80 features a Four Thirds sensor and the Pentax 645Z a medium format sensor. The sensor area in the 645Z is 539 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 0.79. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

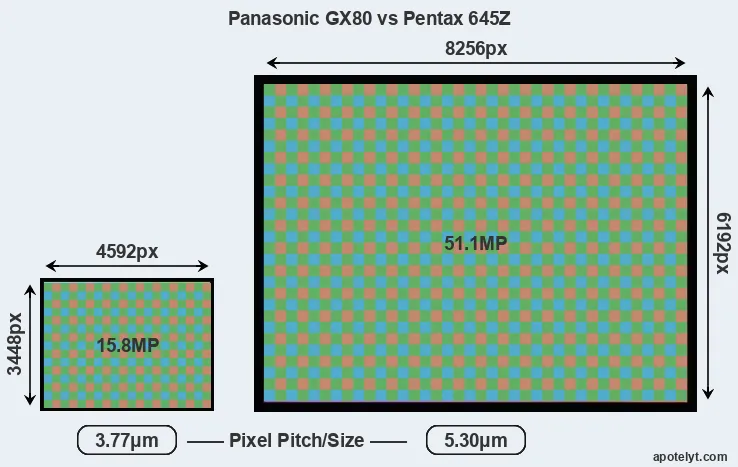

With 51.1MP, the 645Z offers a higher resolution than the GX80 (15.8MP), but the 645Z nevertheless has larger individual pixels (pixel pitch of 5.30μm versus 3.77μm for the GX80) due to its larger sensor. However, the GX80 is a somewhat more recent model (by 1 year and 11 months) than the 645Z, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Pentax 645Z implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645Z for good quality output (200 dots per inch) amounts to 41.3 x 31 inches or 104.9 x 78.6 cm, for very good quality (250 dpi) 33 x 24.8 inches or 83.9 x 62.9 cm, and for excellent quality (300 dpi) 27.5 x 20.6 inches or 69.9 x 52.4 cm. The corresponding values for the Panasonic GX80 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.
The Panasonic Lumix DMC-GX80 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax 645Z are ISO 100 to ISO 204800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the 645Z offers substantially better image quality than the GX80 (overall score 30 points higher). The advantage is based on 3.1 bits higher color depth, 2.1 EV in additional dynamic range, and 2.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|2.||Pentax 645Z||Medium Format||51.1||8256||6192||1080/60i||26.0||14.7||4505||101|
|3.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|4.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|5.||Hasselblad X1D||Medium Format||51.3||8272||6200||1080/25p||26.2||14.8||4489||102|
|6.||Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|7.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|8.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|9.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|10.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|11.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|12.||Panasonic GX9||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|13.||Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|14.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
|15.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|16.||Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
|17.||Pentax 645D||Medium Format||39.5||7264||5440||none||24.6||12.6||1262||82|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GX80 provides a higher video resolution than the 645Z. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/60i.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the GX80 has an electronic viewfinder (2765k dots), while the 645Z has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GX80 offers a wider field of view (100%) than the one in the 645Z (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 645Z has a higher magnification (0.78x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Panasonic GX80, the Pentax 645Z, and comparable cameras.
|4.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|7.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|9.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|10.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The GX80 has one, while the 645Z does not. While the built-in flash of the GX80 is not very powerful, it can at times be useful as a fill-in light.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GX80 and the Pentax 645Z both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the GX80 and the 645Z write their files to SDXC cards. The 645Z features dual card slots, which can be very useful in case a memory card fails. In contrast, the GX80 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GX80 and Pentax 645Z and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|7.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|9.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|10.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the GX80 offers wifi support, while the 645Z does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Pentax 645Z (unlike the GX80) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the GX80 and the 645Z are recent models that are part of the current product line-up. The 645Z replaced the earlier Pentax 645D, while the GX80 followed on from the Panasonic GX7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Panasonic and Pentax websites.
So what conclusions can be drawn? Which of the two cameras – the Panasonic GX80 or the Pentax 645Z – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Panasonic Lumix DMC-GX80:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (122x71mm vs 156x117mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 1124g or 73 percent) and hence easier to carry around.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (91 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 1 year and 11 months after the 645Z).
Arguments in favor of the Pentax 645Z:
- More detail: Has more megapixels (51.1 vs 15.8MP), which boosts linear resolution by 80%.
- Better image quality: Scores substantially higher (30 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (3.1 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.1 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (2.8 stops ISO advantage).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.70x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Longer lasting: Gets more shots (650 versus 290) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in April 2014).
If the count of individual advantages (bullet points above) is taken as a guide, the 645Z comes out slightly ahead of the GX80 (16 : 15 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Panasonic GX80 and the Pentax 645Z place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the GX80 and the 645Z in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Panasonic GX80||4.5/5||+ +||82/100||5/5||5/5||Apr 2016||799|
|2.||Pentax 645Z||5/5||..||..||4.5/5||5/5||Apr 2014||8,499|
|3.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|4.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|5.||Hasselblad X1D||..||o||81/100||..||4/5||Jun 2016||8,995|
|6.||Leica SL||4/5||..||84/100||4.5/5||4/5||Oct 2015||7,450|
|7.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|8.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|9.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|10.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|11.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|12.||Panasonic GX9||4/5||+||84/100||4.5/5||4.5/5||Feb 2018||849|
|13.||Panasonic G80||..||+ +||84/100||5/5||4.5/5||Sep 2016||899|
|14.||Panasonic G7||4/5||+ +||80/100||5/5||4.5/5||May 2015||649|
|15.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|16.||Panasonic GH2||5/5||+ +||79/100||4.5/5||5/5||Sep 2010||899|
|17.||Pentax 645D||5/5||..||..||..||..||Mar 2010||9,995|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Panasonic GX80 vs Pentax 645Z
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Panasonic GX80||Pentax 645Z|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Micro Four Thirds lenses||Pentax 645 mount lenses|
|Launch Date||April 2016||April 2014|
|Launch Price||USD 799||USD 8,499|
|Sensor Specs||Panasonic GX80||Pentax 645Z|
|Sensor Format||Four Thirds Sensor||Medium Format Sensor|
|Sensor Size||17.3 x 13.0 mm||43.8 x 32.8 mm|
|Sensor Area||224.9 mm2||1436.64 mm2|
|Sensor Diagonal||21.6 mm||54.7 mm|
|Sensor Resolution||15.8 Megapixels||51.1 Megapixels|
|Image Resolution||4592 x 3448 pixels||8256 x 6192 pixels|
|Pixel Pitch||3.77 μm||5.30 μm|
|Pixel Density||7.04 MP/cm2||3.56 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/30p Video||1080/60i Video|
|ISO Setting||200 - 25,600 ISO||100 - 204,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||Venus||PRIME III|
|DXO Sensor Quality (score)||71||101|
|DXO Color Depth (bits)||22.9||26.0|
|DXO Dynamic Range (EV)||12.6||14.7|
|DXO Low Light (ISO)||662||4505|
|Screen Specs||Panasonic GX80||Pentax 645Z|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||98%|
|Viewfinder Resolution||2765k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Panasonic GX80||Pentax 645Z|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||8 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Panasonic GX80||Pentax 645Z|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Panasonic GX80||Pentax 645Z|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||290 shots per charge||650 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
122 x 71 x 44 mm
(4.8 x 2.8 x 1.7 in)
156 x 117 x 123 mm
(6.1 x 4.6 x 4.8 in)
|Camera Weight||426 g (15.0 oz)||1550 g (54.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
