Panasonic GX7 vs Sony NEX-5

The Panasonic Lumix DMC-GX7 and the Sony Alpha NEX-5 are two digital cameras that were revealed to the public, respectively, in August 2013 and May 2010. Both the GX7 and the NEX-5 are mirrorless interchangeable lens cameras that are based on a Four Thirds (GX7) and an APS-C (NEX-5) sensor. The Panasonic has a resolution of 15.8 megapixels, whereas the Sony provides 14 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GX7		Sony NEX-5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Sony E mount lenses
15.8 MP – Four Thirds sensor		14 MP – APS-C sensor
1080/60p Video		1080/60i Video
ISO 125-25,600		ISO 200-12,800
Electronic viewfinder (2760k dots)		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Tilting touchscreen		Tilting screen (no touchscreen)
5 shutter flaps per second		7 shutter flaps per second
In-body stabilization		Lens stabilization only
350 shots per battery charge		330 shots per battery charge
123 x 71 x 55 mm, 402 g		111 x 59 x 38 mm, 287 g

Check GX7 offers at
ebay.com
Check NEX-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GX7 and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

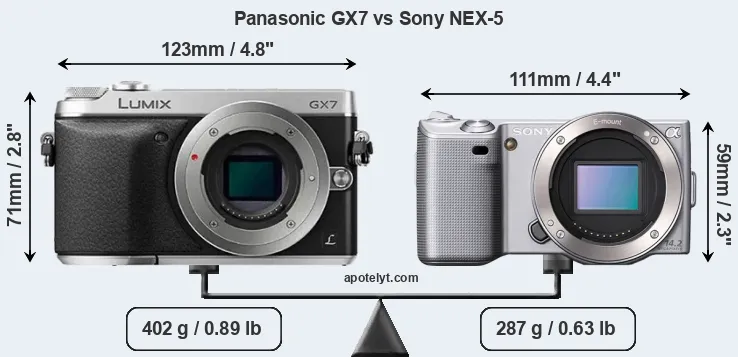

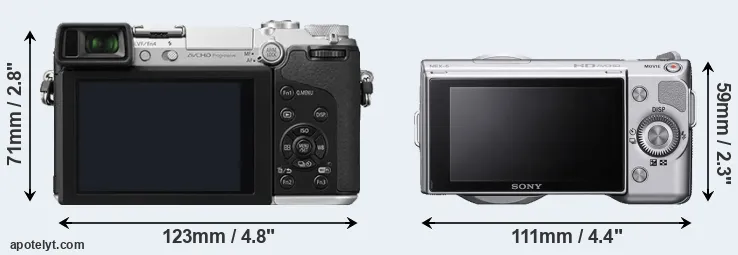

An illustration of the physical size and weight of the Panasonic GX7 and the Sony NEX-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is notably smaller (25 percent) than the Panasonic GX7. Moreover, the NEX-5 is markedly lighter (29 percent) than the GX7. In this context, it is worth noting that neither the GX7 nor the NEX-5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (GX7) and the Sony E-Mount Lens Catalog (NEX-5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the GX7 gets 350 shots out of its Panasonic DMW-BLG10 battery, while the NEX-5 can take 330 images on a single charge of its Sony NP-FW50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
2.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	699	ebay.com
3.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
4.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
5.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
6.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
7.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
8.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	599	ebay.com
9.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	599	ebay.com
10.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	899	ebay.com
11.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
12.		Panasonic GX80	122 mm	71 mm	44 mm	426 g	290	n	Apr 2016	799	amazon.com
13.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
14.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	699	ebay.com
15.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
16.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	599	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NEX-5 was launched at a markedly lower price (by 30 percent) than the GX7, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

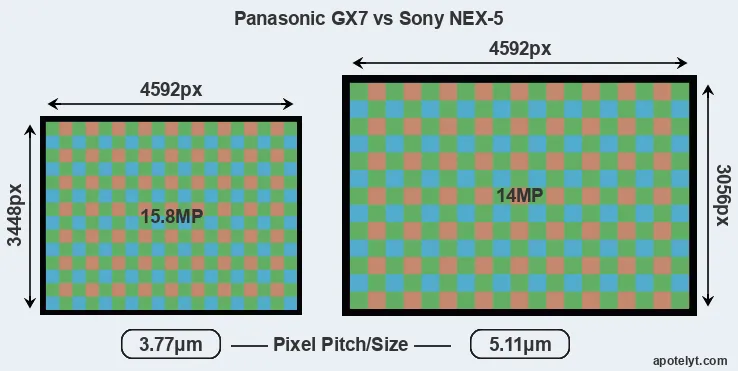

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Panasonic GX7 features a Four Thirds sensor and the Sony NEX-5 an APS-C sensor. The sensor area in the NEX-5 is 62 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the GX7 has a native 4:3 aspect ratio, while the one in the NEX-5 offers a 3:2 aspect.

Despite having a smaller sensor, the Panasonic GX7 offers a higher resolution of 15.8 megapixels, compared with 14 MP of the Sony NEX-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 5.11μm for the NEX-5). However, it should be noted that the GX7 is much more recent (by 3 years and 2 months) than the NEX-5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The Panasonic Lumix DMC-GX7 has a native sensitivity range from ISO 125 to ISO 25600. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
2.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
3.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
4.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
5.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
6.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
7.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
8.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
9.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
10.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
11.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
12.		Panasonic GX80	Four Thirds	15.8	4592	3448	4K/30p	22.9	12.6	662	71
13.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
14.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
15.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
16.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GX7 provides a higher frame rate than the NEX-5. It can shoot video footage at 1080/60p, while the Sony is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the GX7 has an electronic viewfinder (2760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NEX-5 relies on live view and the rear LCD for framing. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The table below summarizes some of the other core capabilities of the Panasonic GX7 and Sony NEX-5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
2.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
3.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
4.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
5.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
6.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
7.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
8.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
9.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
10.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
11.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
12.		Panasonic GX80	2765	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
13.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
14.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
15.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The GX7 has one, while the NEX-5 does not. While the built-in flash of the GX7 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GX7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The GX7 writes its imaging data to SDXC cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The GX7 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GX7 and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic GX80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the GX7 offers wifi support, while the NEX-5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the GX7 and the NEX-5 have been discontinued, but can regularly be found used on ebay. The NEX-5 was replaced by the Sony NEX-5N, while the GX7 was followed by the Panasonic GX85. Further information on the features and operation of the GX7 and NEX-5 can be found, respectively, in the Panasonic GX7 Manual (free pdf) or the online Sony NEX-5 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Panasonic GX7 and the Sony NEX-5? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Panasonic Lumix DMC-GX7:

• Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 3 years and 2 months of technical progress since the NEX-5 launch.

Advantages of the Sony Alpha NEX-5:

• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (111x59mm vs 123x71mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 115g or 29 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in May 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the GX7 is the clear winner of the match-up (13 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GX7 and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the GX7 or the NEX-5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
2.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	699	ebay.com
3.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
4.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
5.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
6.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
7.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
8.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	599	ebay.com
9.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	599	ebay.com
10.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	899	ebay.com
11.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
12.		Panasonic GX80	4.5/5	+ +	..	82/100	5/5	5/5	Apr 2016	799	amazon.com
13.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
14.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	699	ebay.com
15.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
16.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	599	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
