Olympus PEN-F vs XZ-1

The Olympus PEN-F and the Olympus XZ-1 are two digital cameras that were announced, respectively, in January 2016 and January 2011. The PEN-F is a mirrorless interchangeable lens camera, while the XZ-1 is a fixed lens compact. The cameras are based on a Four Thirds (PEN-F) and a 1/1.7-inch (XZ-1) sensor. The PEN-F has a resolution of 20.2 megapixels, whereas the XZ-1 provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus PEN-F
versus
Olympus XZ-1
Olympus PEN-F   Olympus XZ-1
Mirrorless system camera Fixed lens compact camera
Micro Four Thirds lenses 28-112mm f/1.8-2.5
20.2 MP – Four Thirds sensor 10.1 MP – 1/1.7" sensor
1080/60p Video 720/30p Video
ISO 80-25,600 ISO 100-6,400
Electronic viewfinder (2360k dots) Viewfinder optional
3.0" LCD – 1037k dots 3.0" LCD – 614k dots
Swivel touchscreen Fixed screen (not touch-sensitive)
10 shutter flaps per second 2 shutter flaps per second
In-body stabilizationIn-body stabilization
330 shots per battery charge320 shots per battery charge
125 x 72 x 37 mm, 427 g 111 x 65 x 42 mm, 275 g
logo
Check PEN-F offers at
ebay.com
logo
Check XZ-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN-F and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

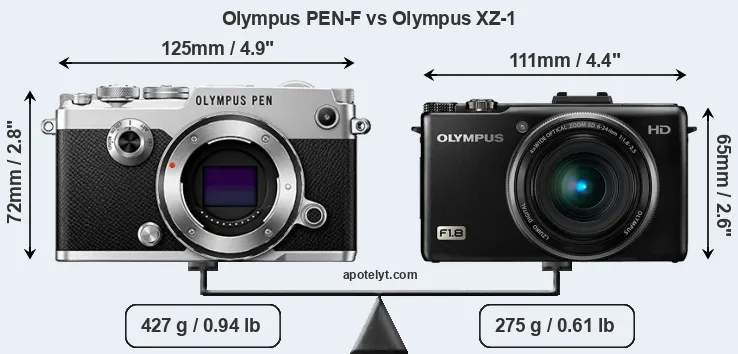

The side-by-side display below illustrates the physical size and weight of the Olympus PEN-F and the Olympus XZ-1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The PEN-F can be obtained in two different colors (black, silver), while the XZ-1 is also available in two color-versions, but different ones (black, white).

Size Olympus PEN-F vs Olympus XZ-1
Compare PEN-F versus XZ-1 top
Comparison PEN-F or XZ-1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-1 is notably smaller (20 percent) than the Olympus PEN-F. In this context, it is worth noting that neither the PEN-F nor the XZ-1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the PEN-F is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the PEN-F and their specifications in the Micro Four Thirds Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 US$ 1 199ebay.com
2.

Olympus XZ-1 111 mm 65 mm 42 mm 275 g 320 n Jan 2011 US$ 499ebay.com
3.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 US$ 1 399ebay.com
4.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 US$ 1 299ebay.com
5.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 US$ 1 099ebay.com
6.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 US$ 649ebay.com
7.

Olympus E-M10 III 122 mm 84 mm 50 mm 410 g 330 n Aug 2017 US$ 649ebay.com
8.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 US$ 999ebay.com
9.

Olympus E-PL1 115 mm 72 mm 42 mm 334 g 290 n Feb 2010 US$ 599ebay.com
10.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 n Jun 2011 US$ 599ebay.com
11.

Olympus E-PL7 115 mm 67 mm 38 mm 357 g 350 n Aug 2014 US$ 599ebay.com
12.

Olympus E-PL8 115 mm 67 mm 38 mm 357 g 350 n Sep 2016 US$ 549ebay.com
13.

Olympus E-PM1 110 mm 64 mm 34 mm 265 g 330 n Jun 2011 US$ 499ebay.com
14.

Olympus XZ-2 113 mm 65 mm 48 mm 346 g 340 n Sep 2012 US$ 599ebay.com
15.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 US$ 999ebay.com
16.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 US$ 1 199ebay.com
17.

Panasonic LX5 110 mm 65 mm 43 mm 271 g 400 n Jul 2010 US$ 499ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XZ-1 was launched at a lower price than the PEN-F, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus PEN-F features a Four Thirds sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 80 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.4. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the PEN-F uses a more advanced image processing engine (TruePic VII) than the XZ-1 (TruePic V), with benefits for noise reduction, color accuracy, and processing speed.

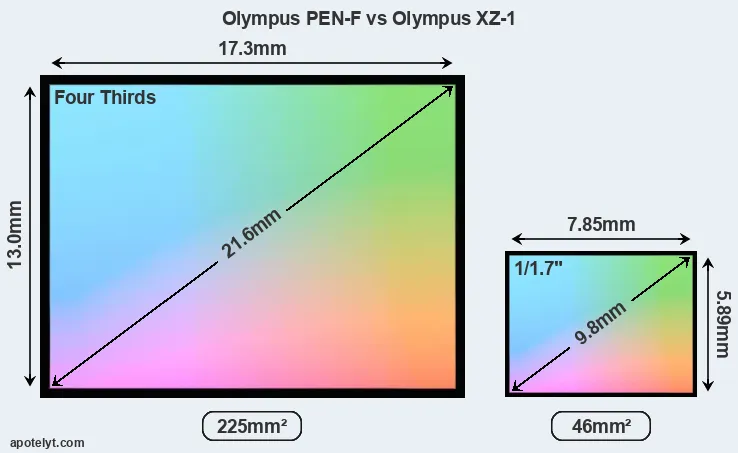

Olympus PEN-F and Olympus XZ-1 sensor measures

With 20.2MP, the PEN-F offers a higher resolution than the XZ-1 (10.1MP), but the PEN-F nevertheless has larger individual pixels (pixel pitch of 3.34μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the PEN-F is a much more recent model (by 5 years) than the XZ-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus PEN-F implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the PEN-F for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.

Unlike the XZ-1, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus PEN-F has a native sensitivity range from ISO 80 to ISO 25600. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the PEN-F is build around a CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

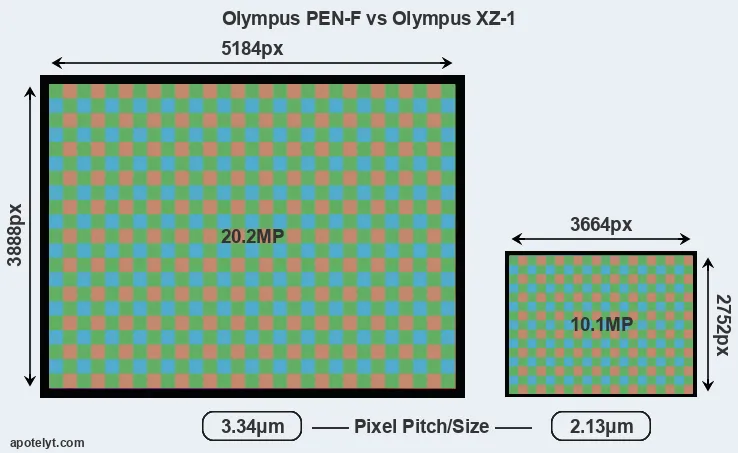

PEN-F versus XZ-1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the PEN-F provides substantially higher image quality than the XZ-1, with an overall score that is 40 points higher. This advantage is based on 4.3 bits higher color depth, 2 EV in additional dynamic range, and 2.9 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
2.

Olympus XZ-1 1/1.7 10.1 3664 2752720/30p18.810.411734
3.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
4.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
5.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
6.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
7.

Olympus E-M10 III Four Thirds 15.9 4608 34564K/30p23.112.8112074
8.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
9.

Olympus E-PL1 Four Thirds 12.2 4032 3024720/30p21.510.148754
10.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.349952
11.

Olympus E-PL7 Four Thirds 15.9 4608 34561080/30p22.712.487372
12.

Olympus E-PL8 Four Thirds 15.9 4608 34561080/30p23.012.6103073
13.

Olympus E-PM1 Four Thirds 12.2 4032 30241080/60i21.010.349952
14.

Olympus XZ-2 1/1.7 11.8 3968 29761080/30p20.411.321649
15.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.271870
16.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
17.

Panasonic LX5 1/1.7 10.0 3648 2736720/60p19.610.813241
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the PEN-F provides a higher video resolution than the XZ-1. It can shoot video footage at 1080/60p, while the XZ-1 is limited to 720/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the PEN-F has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XZ-1 relies on live view and the rear LCD for framing. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Olympus PEN-F and Olympus XZ-1 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
2.

Olympus XZ-1optional n3.0 / 614 fixed n 1/2000s 2.0/s Y Y
3.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
4.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
5.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
6.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
7.

Olympus E-M10 III2360 n3.0 / 1040 tilting Y 1/4000s 8.6/s Y Y
8.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
9.

Olympus E-PL1optional n2.7 / 230 fixed n 1/2000s 3.0/s Y Y
10.

Olympus E-PL3optional n3.0 / 460 tilting n 1/4000s 5.5/s n Y
11.

Olympus E-PL7optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
12.

Olympus E-PL8optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
13.

Olympus E-PM1optional n3.0 / 460 fixed n 1/4000s 5.5/s n Y
14.

Olympus XZ-2optional n3.0 / 920 tilting Y 1/2000s 5.0/s Y Y
15.

Panasonic GX72760 n3.0 / 1040 tilting Y 1/8000s 5.0/s Y Y
16.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
17.

Panasonic LX5optional n3.0 / 460 fixed n 1/4000s 2.5/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The PEN-F has a touchscreen, while the XZ-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The PEN-F has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the XZ-1 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the PEN-F is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus PEN-F and the Olympus XZ-1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the PEN-F and the XZ-1 write their files to SDXC cards. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN-F and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus PEN-FYstereo / mono--micro2.0Y--
2.

Olympus XZ-1Ymono / ---mini2.0---
3.

Olympus E-M1Ystereo / monoY-micro2.0Y--
4.

Olympus E-M5Ystereo / mono--mini2.0---
5.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
6.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
7.

Olympus E-M10 IIIYstereo / mono--micro2.0Y--
8.

Olympus E-P5Ystereo / mono--micro2.0Y--
9.

Olympus E-PL1Ystereo / ---mini2.0---
10.

Olympus E-PL3Ystereo / ---mini2.0---
11.

Olympus E-PL7Ystereo / mono--micro2.0Y--
12.

Olympus E-PL8Ystereo / mono--micro2.0Y--
13.

Olympus E-PM1Ystereo / mono--mini2.0---
14.

Olympus XZ-2Ystereo / mono--mini2.0---
15.

Panasonic GX7Ystereo / mono--mini2.0YY-
16.

Panasonic GX8Ystereo / monoY-micro2.0YY-
17.

Panasonic LX5Ymono / mono--mini2.0---

It is notable that the PEN-F offers wifi support, while the XZ-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the PEN-F and the XZ-1 have been discontinued, but can regularly be found used on ebay. The XZ-1 was replaced by the Olympus XZ-2, while the PEN-F does not have a direct successor. Further information on the features and operation of the PEN-F and XZ-1 can be found, respectively, in the Olympus PEN-F Manual (free pdf) or the online Olympus XZ-1 Manual.

ad

Review summary

So how do things add up? Is there a clear favorite between the Olympus PEN-F and the Olympus XZ-1? Which camera is better? The listing below highlights the relative strengths of the two models.


Reasons to prefer the Olympus PEN-F:

  • More detail: Offers more megapixels (20.2 vs 10.1MP) with a 41% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better image quality: Scores substantially higher (40 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (4.3 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (2 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (2.9 stops ISO advantage).
  • Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic V).
  • Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 614k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 2 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
  • More modern: Reflects 5 years of technical progress since the XZ-1 launch.


Advantages of the Olympus XZ-1:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Ready to shoot: Has an integrated lens, whereas the PEN-F necessitates an extra lens.
  • More compact: Is smaller (111x65mm vs 125x72mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the PEN-F).
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More heavily discounted: Has been around for much longer (launched in January 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the PEN-F is the clear winner of the match-up (21 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

PEN-F 21:07 XZ-1

How about other alternatives? Do the specifications of the Olympus PEN-F and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the PEN-F or the XZ-1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 US$ 1 199ebay.com
2.

Olympus XZ-14/5....74/1004.5/54.5/5 Jan 2011 US$ 499ebay.com
3.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 US$ 1 399ebay.com
4.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 US$ 1 299ebay.com
5.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 US$ 1 099ebay.com
6.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 US$ 649ebay.com
7.

Olympus E-M10 III..+5/580/1004.5/54.5/5 Aug 2017 US$ 649ebay.com
8.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 US$ 999ebay.com
9.

Olympus E-PL1..86/100..69/1004/54.5/5 Feb 2010 US$ 599ebay.com
10.

Olympus E-PL33/5+ +..72/1004.5/54/5 Jun 2011 US$ 599ebay.com
11.

Olympus E-PL74/5+....5/54/5 Aug 2014 US$ 599ebay.com
12.

Olympus E-PL8........4.5/54/5 Sep 2016 US$ 549ebay.com
13.

Olympus E-PM1..86/100..71/1004.5/54.5/5 Jun 2011 US$ 499ebay.com
14.

Olympus XZ-24/5+....4.5/54.5/5 Sep 2012 US$ 599ebay.com
15.

Panasonic GX74/5+..79/1005/55/5 Aug 2013 US$ 999ebay.com
16.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 US$ 1 199ebay.com
17.

Panasonic LX54/5+..73/1004.5/54.5/5 Jul 2010 US$ 499ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check PEN-F offers at
ebay.com
logo
Check XZ-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Olympus PEN-F vs Olympus XZ-1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus PEN-F Olympus XZ-1
    Camera Type Mirrorless system camera Fixed lens compact camera
    Camera Lens Micro Four Thirds lenses 28-112mm f/1.8-2.5
    Launch Date January 2016 January 2011
    Launch Price USD 1,199 USD 499
    Sensor Specs Olympus PEN-F Olympus XZ-1
    Sensor Technology CMOS CCD
    Sensor Format Four Thirds Sensor 1/1.7" Sensor
    Sensor Size 17.3 x 13.0 mm 7.85 x 5.89 mm
    Sensor Area 224.9 mm2 46.2365 mm2
    Sensor Diagonal 21.6 mm 9.8 mm
    Crop Factor 2.0x 4.4x
    Sensor Resolution 20.2 Megapixels 10.1 Megapixels
    Image Resolution 5184 x 3888 pixels 3664 x 2752 pixels
    Pixel Pitch 3.34 μm 2.13 μm
    Pixel Density 8.96 MP/cm2 21.81 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 1080/60p Video 720/30p Video
    ISO Setting 80 - 25,600 ISO 100 - 6,400 ISO
    Image Processor TruePic VII TruePic V
    DXO Sensor Quality (score) 74 34
    DXO Color Depth (bits) 23.1 18.8
    DXO Dynamic Range (EV) 12.4 10.4
    DXO Low Light (ISO) 894 117
    Screen Specs Olympus PEN-F Olympus XZ-1
    Viewfinder Type Electronic viewfinder Viewfinder optional
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.62x
    Viewfinder Resolution 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1037k dots 614k dots
    LCD Attachment Swivel screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Olympus PEN-F Olympus XZ-1
    Focus System Contrast-detect AF Contrast-detect AF
    Manual Focusing AidFocus Peakingno Peaking Feature
    Continuous Shooting 10 shutter flaps/s 2 shutter flaps/s
    Electronic Shutterup to 1/16000sno E-Shutter
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-II no
    Connectivity Specs Olympus PEN-F Olympus XZ-1
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port micro HDMI mini HDMI
    Wifi Support Wifi built-in no Wifi
    Body Specs Olympus PEN-F Olympus XZ-1
    Battery Type Olympus BLN-1 Olympus Li-50B
    Battery Life (CIPA)330 shots per charge320 shots per charge
    Body Dimensions 125 x 72 x 37 mm
    (4.9 x 2.8 x 1.5 in)
    111 x 65 x 42 mm
    (4.4 x 2.6 x 1.7 in)
    Camera Weight 427 g (15.1 oz) 275 g (9.7 oz)
    logo
    Check PEN-F offers at
    ebay.com
    logo
    Check XZ-1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus PEN-F vs Olympus XZ-1
