Olympus E-PL9 vs TG-4

The Olympus PEN E-PL9 and the Olympus Tough TG-4 are two digital cameras that were revealed to the public, respectively, in February 2018 and April 2015. The E-PL9 is a mirrorless interchangeable lens camera, while the TG-4 is a fixed lens compact. The cameras are based on a Four Thirds (E-PL9) and a 1/2.3-inch (TG-4) sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL9		Olympus TG-4
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		25-100mm f/2.0-4.9
15.9 MP – Four Thirds sensor		15.9 MP – 1/2.3" sensor
4K/30p Video		1080/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 100-6,400
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 460k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
8.6 shutter flaps per second		5 shutter flaps per second
In-body stabilization		In-body stabilization
not weather sealed		Waterproof body (15m)
350 shots per battery charge		380 shots per battery charge
117 x 68 x 39 mm, 380 g		112 x 66 x 31 mm, 247 g

Check E-PL9 offers at
ebay.com
Check TG-4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL9 and the Olympus Tough TG-4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

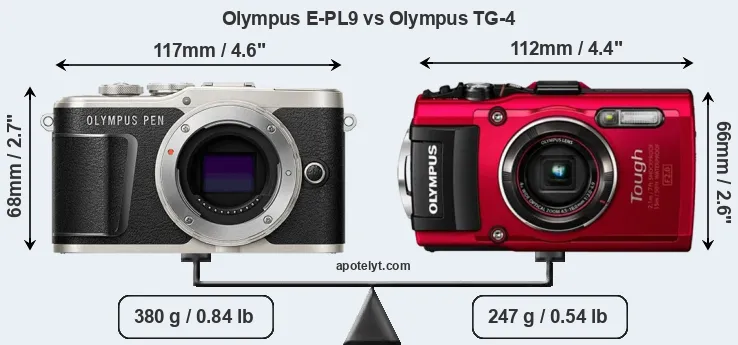

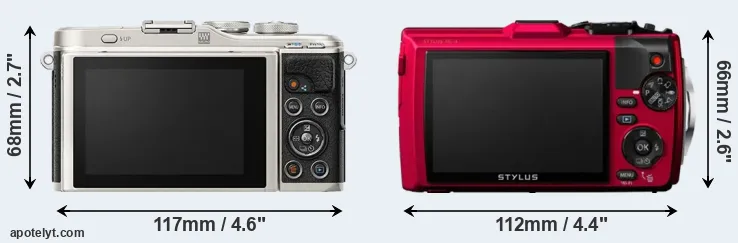

The physical size and weight of the Olympus E-PL9 and the Olympus TG-4 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The E-PL9 can be obtained in four different colors (black, brown, blue, white), while the TG-4 is available in two color-versions (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-4 is notably smaller (7 percent) than the Olympus E-PL9. It is noteworthy in this context that the TG-4 is splash and dust-proof, while the E-PL9 does not feature any corresponding weather-sealing. More than that, the TG-4 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-4 has a lens built in, whereas the E-PL9 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL9 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-PL9 gets 350 shots out of its Olympus BLS-50 battery, while the TG-4 can take 380 images on a single charge of its Olympus LI-92B power pack. The power pack in the TG-4 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
2.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
3.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
4.		Fujifilm XP140	110 mm	71 mm	28 mm	207 g	240	Y	Feb 2019	US$ 229	ebay.com
5.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
6.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
7.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
8.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
9.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
10.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
11.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
12.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
13.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
14.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	US$ 599	ebay.com
15.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
16.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
17.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TG-4 was launched at a lower price than the E-PL9, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

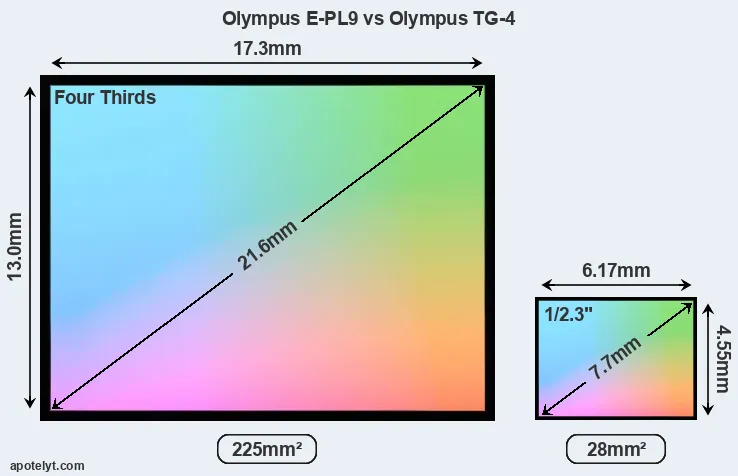

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-PL9 features a Four Thirds sensor and the Olympus TG-4 a 1/2.3-inch sensor. The sensor area in the TG-4 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the E-PL9 uses a more advanced image processing engine (TruePic VIII) than the TG-4 (TruePic VII), with benefits for noise reduction, color accuracy, and processing speed.

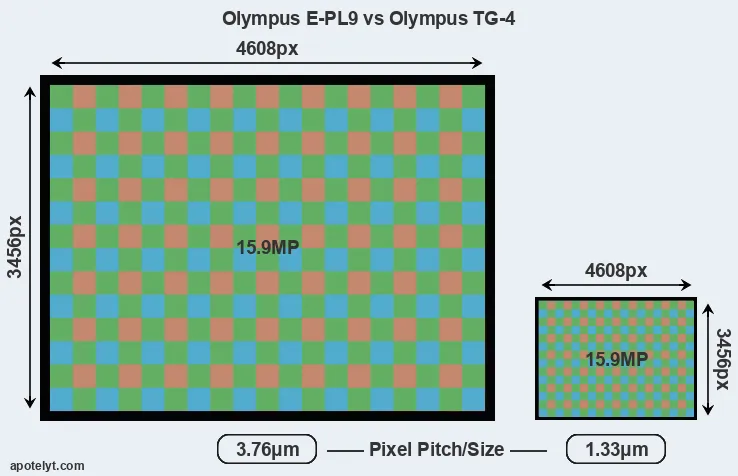

Even though the E-PL9 has a larger sensor, both cameras offer the same resolution of 15.9 megapixels. This implies that the E-PL9 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.76μm versus 1.33μm for the TG-4), which gives it a potential advantage in terms of light gathering capacity. In addition, the E-PL9 is much more recent (by 2 years and 9 months) than the TG-4, and its sensor will have benefitted from technological advances during this time.

The Olympus PEN E-PL9 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus Tough TG-4 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the E-PL9 is build around a CMOS sensor, while the TG-4 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
2.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
3.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
4.		Fujifilm XP140	1/2.3	15.9	4608	3456	4K/15p	20.7	12.2	1102	52
5.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
6.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
7.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
8.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
9.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
10.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
11.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
12.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
13.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
14.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
15.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
16.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
17.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-PL9 provides a higher video resolution than the TG-4. It can shoot video footage at 4K/30p, while the TG-4 is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The E-PL9 and the TG-4 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Olympus E-PL9 and Olympus TG-4 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
2.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
3.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
4.		Fujifilm XP140	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
5.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
6.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
7.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
8.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
9.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
10.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
13.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
15.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
16.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
17.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-PL9 has a touchscreen, while the TG-4 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL9 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-PL9 and the Olympus TG-4 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PL9 and the TG-4 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL9 and Olympus Tough TG-4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
4.		Fujifilm XP140	-	mono / mono	-	-	micro	2.0	Y	-	Y
5.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
6.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the E-PL9 has a hotshoe, while the TG-4 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the TG-4 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the E-PL9 and the TG-4 have been discontinued, but can regularly be found used on ebay. The TG-4 was replaced by the Olympus TG-5, while the E-PL9 was followed by the Olympus E-PL10. Further information on the features and operation of the E-PL9 and TG-4 can be found, respectively, in the Olympus E-PL9 Manual (free pdf) or the online Olympus TG-4 Manual.

Review summary

So how do things add up? Which of the two cameras – the Olympus E-PL9 or the Olympus TG-4 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Olympus PEN E-PL9:

• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic VII).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (8.6 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 2 years and 9 months of technical progress since the TG-4 launch.

Arguments in favor of the Olympus Tough TG-4:

• Ready to shoot: Has an integrated lens, whereas the E-PL9 necessitates an extra lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-PL9).
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in April 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the E-PL9 is the clear winner of the match-up (17 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL9 and the Olympus TG-4 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-PL9 and the TG-4 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
2.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
3.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
4.		Fujifilm XP140	..	+	..	..	3.5/5	4/5	Feb 2019	US$ 229	ebay.com
5.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
6.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
7.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
8.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
9.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
10.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
11.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
12.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
13.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
14.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	US$ 599	ebay.com
15.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
16.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
17.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check E-PL9 offers at
ebay.com
Check TG-4 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check E-PL9 offers at
ebay.com
Check TG-4 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
