Olympus E-PL2 vs Panasonic GX80
The Olympus PEN E-PL2 and the Panasonic Lumix DMC-GX80 (labelled Panasonic GX85 in some countries) are two digital cameras that were revealed to the public, respectively, in January 2011 and April 2016. Both the E-PL2 and the GX80 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL2 and the Panasonic Lumix DMC-GX80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Olympus E-PL2 and the Panasonic GX80. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL2 can be obtained in four different colors (black, silver, red, white), while the GX80 is available in two color-versions (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX80 is notably larger (6 percent) than the Olympus E-PL2. Moreover, the GX80 is markedly heavier (18 percent) than the E-PL2. In this context, it is worth noting that neither the E-PL2 nor the GX80 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Olympus E-PL2||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599|
|Panasonic GX80||4.8 in||2.8 in||1.7 in||15.0 oz||290||n||Apr 2016||799|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-M10||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699|
|Olympus E-PL5||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599|
|Olympus XZ-2||4.4 in||2.6 in||1.9 in||12.2 oz||340||n||Sep 2012||599|
|Olympus E-P3||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799|
|Olympus E-PL3||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599|
|Olympus E-PM1||4.3 in||2.5 in||1.3 in||9.3 oz||330||n||Jun 2011||499|
|Olympus E-PL1||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599|
|Olympus E-P1||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799|
|Olympus E-P2||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799|
|Panasonic GX9||4.9 in||2.8 in||1.9 in||14.4 oz||260||n||Feb 2018||849|
|Panasonic G80||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899|
|Panasonic GX7||4.8 in||2.8 in||2.2 in||14.2 oz||350||n||Aug 2013||999|
|Panasonic G10||4.9 in||3.3 in||2.9 in||13.7 oz||380||n||Mar 2010||499|
|Panasonic GF2||4.4 in||2.7 in||1.3 in||10.9 oz||300||n||Nov 2010||549|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL2 was launched at a somewhat lower price (by 25 percent) than the GX80, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
While the two cameras under review share the same sensor size, the GX80 offers a higher resolution of 15.8 megapixels, compared with 12.2 MP of the E-PL2. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the GX80 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 4.29μm for the E-PL2). However, it should be noted that the GX80 is much more recent (by 5 years and 2 months) than the E-PL2, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the GX80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

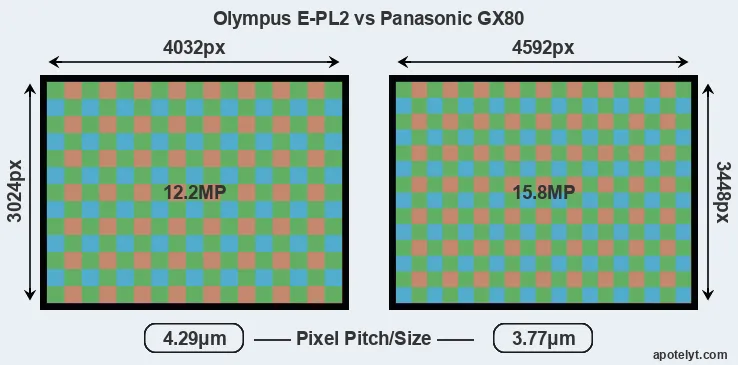

The resolution advantage of the Panasonic GX80 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GX80 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Olympus E-PL2 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Olympus PEN E-PL2 has a native sensitivity range from ISO 200 to ISO 6400. The corresponding ISO settings for the Panasonic Lumix DMC-GX80 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the GX80 offers substantially better image quality than the E-PL2 (overall score 16 points higher). The advantage is based on 1.5 bits higher color depth, 2.4 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|Panasonic GX9||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|Panasonic GF2||Four Thirds||12.0||4000||3000||1080/60i||21.2||10.3||506||54|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GX80 provides a better video resolution than the E-PL2. It can shoot movie footage at 4K/30p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GX80 has an electronic viewfinder (2765k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL2 relies on live view and the rear LCD for framing. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Olympus E-PL2 and Panasonic GX80 along with similar information for a selection of comparators.
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GX80 has a touchscreen, while the E-PL2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GX80 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-PL2 writes its imaging data to SDHC cards, while the GX80 uses SDXC cards. The GX80 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL2 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL2 and Panasonic Lumix DMC-GX80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the GX80 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-PL2 does not provide wifi capability.
The GX80 is a recent model that features in the current product line-up of Panasonic. In contrast, the E-PL2 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL2 was succeeded by the Olympus E-PL3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So what is the bottom line? Is the Olympus E-PL2 better than the Panasonic GX80 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Olympus PEN E-PL2:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Less heavy: Is lighter (by 64g or 15 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in January 2011).
Advantages of the Panasonic Lumix DMC-GX80:
- More detail: Has more megapixels (15.8 vs 12.2MP), which boosts linear resolution by 14%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.5 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.4 EV of extra DR).
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 5 years and 2 months of technical progress since the E-PL2 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the GX80 is the clear winner of the contest (16 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL2 and the Panasonic GX80 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-PL2 or the GX80 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-PL2||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599|
|Panasonic GX80||+ +||82/100||5/5||4.5/5||5/5||Apr 2016||799|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-PL5||+ +||..||4.5/5||4.5/5||4.5/5||Sep 2012||599|
|Olympus XZ-2||+||..||4.5/5||4/5||4.5/5||Sep 2012||599|
|Olympus E-P3||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799|
|Olympus E-PL3||+ +||72/100||4.5/5||..||4/5||Jun 2011||599|
|Olympus E-PM1||86/100||71/100||4.5/5||..||4.5/5||Jun 2011||499|
|Olympus E-PL1||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599|
|Olympus E-P1||+||66/100||4/5||4/5||4.5/5||Jun 2009||799|
|Olympus E-P2||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799|
|Panasonic GX9||+||84/100||4.5/5||4.5/5||4.5/5||Feb 2018||849|
|Panasonic G80||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Panasonic GX7||+||79/100||5/5||4.5/5||5/5||Aug 2013||999|
|Panasonic G10||..||70/100||4/5||..||4/5||Mar 2010||499|
|Panasonic GF2||82/100||70/100||4.5/5||4.5/5||4.5/5||Nov 2010||549|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Fujifilm X-Pro2 vs Panasonic GX80
- Fujifilm XP140 vs Olympus E-PL2
- Leica TL vs Olympus E-PL2
- Leica TL2 vs Olympus E-PL2
- Nikon B500 vs Panasonic GX80
- Nikon D1 vs Panasonic GX80
- Nikon D5000 vs Panasonic GX80
- Olympus E-M1 vs Panasonic GX80
- Olympus E-PL2 vs Olympus E-PL3
- Olympus E-PL2 vs Panasonic GF5
- Olympus E-PL2 vs Sony RX100 III
- Panasonic GX80 vs Panasonic S1
Specifications: Olympus E-PL2 vs Panasonic GX80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL2||Panasonic GX80|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||January 2011||April 2016|
|Launch Price||USD 599||USD 799|
|Sensor Specs||Olympus E-PL2||Panasonic GX80|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||15.8 Megapixels|
|Image Resolution||4032 x 3024 pixels||4592 x 3448 pixels|
|Pixel Pitch||4.29 μm||3.77 μm|
|Pixel Density||5.42 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||720/30p Video||4K/30p Video|
|ISO Setting||200 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||Truepic V||Venus|
|DXO Sensor Quality (score)||55||71|
|DXO Color Depth (bits)||21.4||22.9|
|DXO Dynamic Range (EV)||10.2||12.6|
|DXO Low Light (ISO)||573||662|
|Screen Specs||Olympus E-PL2||Panasonic GX80|
|Viewfinder Type||Viewfinder optional||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2765k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||460k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-PL2||Panasonic GX80|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Olympus E-PL2||Panasonic GX80|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-PL2||Panasonic GX80|
|Battery Life (CIPA)||280 shots per charge||290 shots per charge|
114 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
122 x 71 x 44 mm
(4.8 x 2.8 x 1.7 in)
|Camera Weight||362 g (12.8 oz)||426 g (15.0 oz)|
