Olympus E-PL1 vs E-PL8
The Olympus PEN E-PL1 and the Olympus PEN E-PL8 are two digital cameras that were revealed to the public, respectively, in February 2010 and September 2016. Both the E-PL1 and the E-PL8 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-PL1 has a resolution of 12.2 megapixels, whereas the E-PL8 provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-PL1||Olympus E-PL8|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|12.2 MP, Four Thirds Sensor||15.9 MP, Four Thirds Sensor|
|720/30p Video||1080/30p Video|
|ISO 200-3200||ISO 200-6400 (100-25600)|
|Viewfinder optional||No viewfinder, LCD framing|
|2.7" LCD, 230k dots||3.0" LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|3 shutter flaps per second||8 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|290 shots per battery charge||350 shots per battery charge|
|115 x 72 x 42 mm, 334 g||115 x 67 x 38 mm, 357 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL1 and the Olympus PEN E-PL8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Olympus E-PL1 vs E-PL8

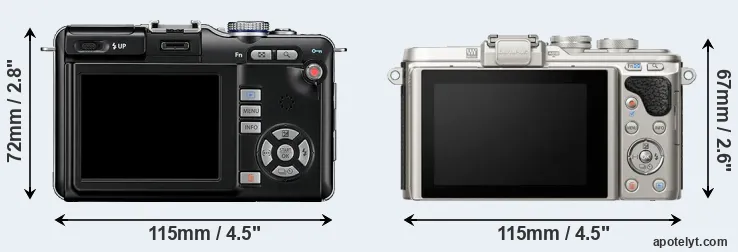

The physical size and weight of the Olympus E-PL1 and the Olympus E-PL8 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the E-PL8 is available in three color-versions (black, brown, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL8 is notably smaller (7 percent) than the Olympus E-PL1. However, the E-PL8 is markedly heavier (7 percent) than the E-PL1. In this context, it is worth noting that neither the E-PL1 nor the E-PL8 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Olympus E-PL1»||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599||-||Olympus E-PL1|
|Olympus E-PL8«||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Sep 2016||549||-||Olympus E-PL8|
|Olympus E-PL9« »||4.6 in||2.7 in||1.5 in||13.4 oz||350||n||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M10 II« »||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-PL7« »||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-P3« »||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-PM1« »||4.3 in||2.5 in||1.3 in||9.3 oz||330||n||Jun 2011||499||-||Olympus E-PM1|
|Olympus E-620« »||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699||-||Olympus E-620|
|Olympus E-P1« »||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799||-||Olympus E-P1|
|Olympus E-P2« »||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799||-||Olympus E-P2|
|Panasonic G7« »||4.9 in||3.4 in||3.0 in||14.5 oz||350||n||May 2015||649||-||Panasonic G7|
|Panasonic G10« »||4.9 in||3.3 in||2.9 in||13.7 oz||380||n||Mar 2010||499||-||Panasonic G10|
|Panasonic GF2« »||4.4 in||2.7 in||1.3 in||10.9 oz||300||n||Nov 2010||549||-||Panasonic GF2|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL8 was somewhat cheaper (by 8 percent) than the E-PL1 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Olympus E-PL1 vs E-PL8
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, the E-PL8 uses a more advanced image processing engine (TruePic VII) than the E-PL1 (Truepic V), with benefits for noise reduction, color accuracy, and processing speed.

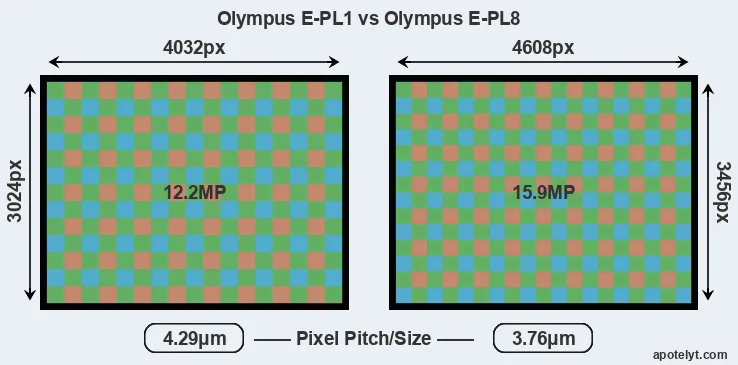

While the two cameras under review share the same sensor size, the E-PL8 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the E-PL1. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-PL8 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.29μm for the E-PL1). However, it should be noted that the E-PL8 is much more recent (by 6 years and 7 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Olympus E-PL8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL8 for good quality output (200 dots per inch) amounts to 23 x 17.3 inch or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inch or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inch or 39 x 29.3 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inch or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inch or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inch or 34.1 x 25.6 cm for excellent quality prints.
The Olympus PEN E-PL1 has a native sensitivity range from ISO 200 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-PL8 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-PL1»||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54||Olympus E-PL1|
|Olympus E-PL8«||Four Thirds||15.9||4608||3456||1080/30p||-||-||-||-||Olympus E-PL8|
|Olympus E-PL9« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-PL9|
|Olympus E-M10 III« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-M10 III|
|Olympus E-M10 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-PL7« »||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-P3« »||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51||Olympus E-P3|
|Olympus E-PL2« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55||Olympus E-PL2|
|Olympus E-PL3« »||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52||Olympus E-PL3|
|Olympus E-PM1« »||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52||Olympus E-PM1|
|Olympus E-620« »||Four Thirds||12.2||4032||3024||-||21.3||10.3||536||55||Olympus E-620|
|Olympus E-P1« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55||Olympus E-P1|
|Olympus E-P2« »||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56||Olympus E-P2|
|Panasonic G7« »||Four Thirds||15.8||4592||3448||4K/30p||-||-||-||-||Panasonic G7|
|Panasonic G10« »||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52||Panasonic G10|
|Panasonic GF2« »||Four Thirds||12.0||4000||3000||1080/60i||21.2||10.3||506||54||Panasonic GF2|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-PL8 provides a better video resolution than the E-PL1. It can shoot movie footage at 1080/30p, while the E-PL1 is limited to 720/30p.
Feature comparison: Olympus E-PL1 vs E-PL8
Apart from body and sensor, cameras can and do differ across a variety of features. The E-PL1 and the E-PL8 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Olympus E-PL1 and Olympus E-PL8 along with similar information for a selection of comparators.
|Olympus E-PL1»||-||n||2.7||230||fixed||n||1/2000s||3.0||Y||Y||Olympus E-PL1|
|Olympus E-PL8«||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL8|
|Olympus E-PL9« »||-||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-PL9|
|Olympus E-M10 III« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-M10 III|
|Olympus E-M10 II« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-PL7« »||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-P3« »||-||n||3.0||614||fixed||Y||1/4000s||3.0||Y||Y||Olympus E-P3|
|Olympus E-PL2« »||-||n||3.0||460||fixed||n||1/4000s||3.0||Y||Y||Olympus E-PL2|
|Olympus E-PL3« »||-||n||3.0||460||tilting||n||1/4000s||5.5||n||Y||Olympus E-PL3|
|Olympus E-PM1« »||-||n||3.0||460||fixed||n||1/4000s||5.5||n||Y||Olympus E-PM1|
|Olympus E-620« »||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-620|
|Olympus E-P1« »||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P1|
|Olympus E-P2« »||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P2|
|Panasonic G7« »||2360||n||3.0||1040||swivel||Y||1/4000s||7.0||Y||n||Panasonic G7|
|Panasonic G10« »||202||n||3.0||460||fixed||n||1/4000s||2.6||Y||n||Panasonic G10|
|Panasonic GF2« »||-||n||3.0||460||fixed||Y||1/4000s||2.6||Y||n||Panasonic GF2|
One difference between the cameras concerns the presence of an on-board flash. The E-PL1 has one, while the E-PL8 does not. While the built-in flash of the E-PL1 is not very powerful, it can at times be useful as a fill-in light.The E-PL8 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-PL1 does not have a selfie-screen.
The Olympus E-PL8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-PL1 writes its imaging data to SDHC cards, while the E-PL8 uses SDXC cards. The E-PL8 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL1 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison: Olympus E-PL1 vs E-PL8
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL1 and Olympus PEN E-PL8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-PL1»||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL1|
|Olympus E-PL8«||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL8|
|Olympus E-PL9« »||Y||stereo||mono||-||-||micro||2.0||Y||-||Y||Olympus E-PL9|
|Olympus E-M10 III« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 III|
|Olympus E-M10 II« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-PL7« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-P3« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P3|
|Olympus E-PL2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL2|
|Olympus E-PL3« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL3|
|Olympus E-PM1« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM1|
|Olympus E-620« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-620|
|Olympus E-P1« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P1|
|Olympus E-P2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P2|
|Panasonic G7« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Panasonic G7|
|Panasonic G10« »||Y||mono||-||-||-||mini||2.0||-||-||-||Panasonic G10|
|Panasonic GF2« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Panasonic GF2|
It is notable that the E-PL8 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-PL1 does not offer wifi capability.
Both the E-PL1 and the E-PL8 have been discontinued, but can regularly be found used on eBay. The E-PL1 was replaced by the Olympus E-PL2, while the E-PL8 was followed by the Olympus E-PL9. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
Review summary: Olympus E-PL1 vs E-PL8
So how do things add up? Is there a clear favorite between the Olympus E-PL1 and the Olympus E-PL8? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Olympus PEN E-PL1:
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in February 2010).
Advantages of the Olympus PEN E-PL8:
- More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 14%.
- Better jpgs: Has a more modern image processing engine (TruePic VII vs Truepic V).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (350 versus 290) out of a single battery charge.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 6 years and 7 months of technical progress since the E-PL1 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL8 is the clear winner of the contest (15 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL1 and the Olympus E-PL8 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-PL1 or the E-PL8 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews: Olympus E-PL1 vs E-PL8
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-PL1»||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599||-||Olympus E-PL1|
|Olympus E-PL8«||-||-||4.5/5||-||4/5||Sep 2016||549||-||Olympus E-PL8|
|Olympus E-PL9« »||+||-||4.5/5||-||4/5||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M10 II« »||+ +||80/100||5/5||5/5||5/5||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-PL7« »||+||-||5/5||4.5/5||4/5||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-P3« »||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||+ +||72/100||4.5/5||-||4/5||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-PM1« »||86/100||71/100||4.5/5||-||4.5/5||Jun 2011||499||-||Olympus E-PM1|
|Olympus E-620« »||88/100||72/100||4.5/5||o||5/5||Feb 2009||699||-||Olympus E-620|
|Olympus E-P1« »||+||66/100||4/5||4/5||4.5/5||Jun 2009||799||-||Olympus E-P1|
|Olympus E-P2« »||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799||-||Olympus E-P2|
|Panasonic G7« »||+ +||80/100||5/5||4.5/5||4.5/5||May 2015||649||-||Panasonic G7|
|Panasonic G10« »||-||70/100||4/5||-||4/5||Mar 2010||499||-||Panasonic G10|
|Panasonic GF2« »||82/100||70/100||4.5/5||4.5/5||4.5/5||Nov 2010||549||-||Panasonic GF2|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 60D vs Olympus E-PL8
- Canon 800D vs Olympus E-PL8
- Leica M9 vs Olympus E-PL8
- Leica Q Typ 116 vs Olympus E-PL8
- Nikon D800 vs Olympus E-PL1
- Nikon D810 vs Olympus E-PL8
- Olympus E-PL1 vs Olympus E-PM1
- Olympus E-PL8 vs Panasonic G80
- Olympus E-PL8 vs Panasonic GF7
- Olympus E-PL8 vs Panasonic GX1
- Olympus E-PL8 vs Panasonic LX100 II
- Olympus E-PL8 vs Sony A7R II
Specifications: Olympus E-PL1 vs Olympus E-PL8
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL1||Olympus E-PL8|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||February 2010||September 2016|
|Launch Price||USD 599||USD 549|
|Sensor Specs||Olympus E-PL1||Olympus E-PL8|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||15.9 Megapixels|
|Image Resolution||4032 x 3024 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.29 μm||3.76 μm|
|Pixel Density||5.42 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||720/30p Video||1080/30p Video|
|ISO Setting||200-3200 ISO||200-6400 ISO|
|ISO Boost||no Enhancement||100-25600 ISO|
|Image Processor||Truepic V||TruePic VII|
|DXO Sensor Quality (score)||54||..|
|DXO Color Depth (bits)||21.5||..|
|DXO Dynamic Range (EV)||10.1||..|
|DXO Low Light (ISO)||487||..|
|Screen Specs||Olympus E-PL1||Olympus E-PL8|
|Viewfinder Type||Viewfinder optional||No viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.7 inch||3.0 inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-PL1||Olympus E-PL8|
|Autofocus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000/s||1/4000/s|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Olympus E-PL1||Olympus E-PL8|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-PL1||Olympus E-PL8|
|Battery Type||BLS-1 power pack||BLS-50 power pack|
|Battery Life (CIPA)||290 shots per charge||350 shots per charge|
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
|Camera Weight||334 g (11.8 oz)||357 g (12.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
