Olympus E-P5 vs Sony HX90V

The Olympus PEN E-P5 and the Sony Cyber-shot DSC-HX90V are two digital cameras that were revealed to the public, respectively, in May 2013 and April 2015. The E-P5 is a mirrorless interchangeable lens camera, while the HX90V is a fixed lens compact. The cameras are based on a Four Thirds (E-P5) and a 1/2.3-inch (HX90V) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Sony provides 18 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-P5		Sony HX90V
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		24-720mm f/3.5-6.4
15.9 MP – Four Thirds sensor		18 MP – 1/2.3" sensor
1080/30p Video		1080/60p Video
ISO 200-25,600		ISO 80-3,200 (80 - 12,800)
Viewfinder optional		Electronic viewfinder (638k dots)
3.0" LCD – 1037k dots		3.0" LCD – 921k dots
Tilting touchscreen		Tilting screen (no touchscreen)
9 shutter flaps per second		10 shutter flaps per second
In-body stabilization		Lens-based stabilization
330 shots per battery charge		360 shots per battery charge
122 x 69 x 37 mm, 420 g		102 x 58 x 36 mm, 245 g

Check E-P5 offers at
ebay.com
Check HX90V offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P5 and the Sony Cyber-shot DSC-HX90V? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

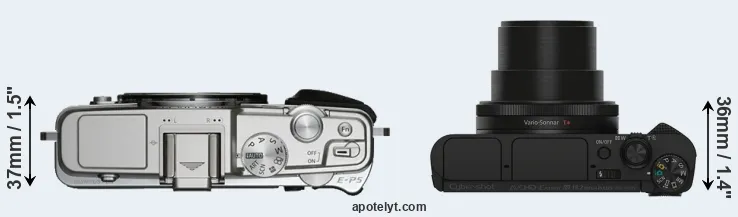

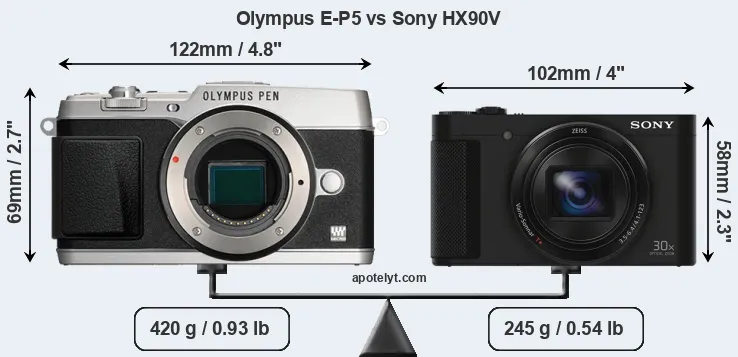

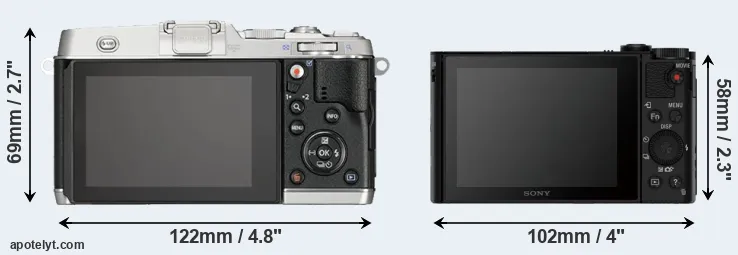

The physical size and weight of the Olympus E-P5 and the Sony HX90V are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-P5 can be obtained in three different colors (black, silver, white), while the HX90V is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX90V is notably smaller (30 percent) than the Olympus E-P5. In this context, it is worth noting that neither the E-P5 nor the HX90V are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the HX90V has a lens built in, whereas the E-P5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-P5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-P5 gets 330 shots out of its Olympus BLN-1 battery, while the HX90V can take 360 images on a single charge of its Sony NP-BX1 power pack. The power pack in the HX90V can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
2.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
3.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	379	ebay.com
4.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	1,399	ebay.com
5.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	1,299	ebay.com
6.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
7.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
8.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	799	ebay.com
9.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
10.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
11.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	499	ebay.com
12.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	1,199	ebay.com
13.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
14.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	429	ebay.com
15.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	449	ebay.com
16.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	499	ebay.com
17.		Sony WX800	102 mm	58 mm	36 mm	233 g	370	n	Oct 2018	399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The HX90V was launched at a lower price than the E-P5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

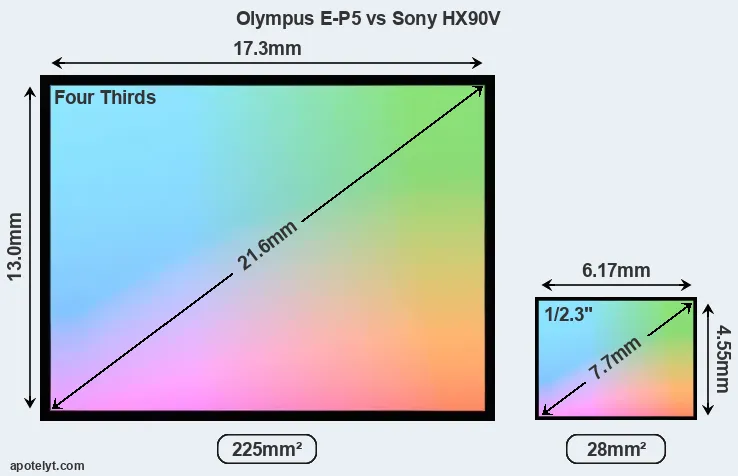

Of the two cameras under consideration, the Olympus E-P5 features a Four Thirds sensor and the Sony HX90V a 1/2.3-inch sensor. The sensor area in the HX90V is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the HX90V offers a higher resolution of 18 megapixels, compared with 15.9 MP of the E-P5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.25μm versus 3.76μm for the E-P5). However, it should be noted that the HX90V is a somewhat more recent model (by 1 year and 11 months) than the E-P5, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the HX90V has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony HX90V implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the HX90V for good quality output (200 dots per inch) amounts to 24.5 x 18.4 inches or 62.2 x 46.6 cm, for very good quality (250 dpi) 19.6 x 14.7 inches or 49.7 x 37.3 cm, and for excellent quality (300 dpi) 16.3 x 12.2 inches or 41.5 x 31.1 cm. The corresponding values for the Olympus E-P5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Olympus PEN E-P5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Cyber-shot DSC-HX90V are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the E-P5 is build around a CMOS sensor, while the HX90V uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
2.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
3.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
4.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
5.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
6.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
7.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
8.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
9.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
10.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
11.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
12.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
13.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
14.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
15.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
16.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
17.		Sony WX800	1/2.3	18.0	4896	3672	4K/30p	20.6	12.2	1070	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the HX90V provides a faster frame rate than the E-P5. It can shoot movie footage at 1080/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the HX90V has an electronic viewfinder (638k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P5 relies on live view and the rear LCD for framing. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Olympus E-P5 and Sony HX90V along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
2.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
3.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
4.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
5.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
6.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
7.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
8.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
9.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
12.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
13.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
14.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
15.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
16.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
17.		Sony WX800	none	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P5 has a touchscreen, while the HX90V has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus E-P5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-P5 writes its imaging data to SDXC cards, while the HX90V uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P5 and Sony Cyber-shot DSC-HX90V and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
15.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
16.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony WX800	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the E-P5 has a hotshoe, while the HX90V does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the HX90V has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the E-P5 and the HX90V have been discontinued, but can regularly be found used on ebay. The E-P5 was replaced by the Olympus E-P7, while the HX90V was followed by the Sony HX99. Further information on the features and operation of the E-P5 and HX90V can be found, respectively, in the Olympus E-P5 Manual (free pdf) or the online Sony HX90V Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-P5 better than the Sony HX90V or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus PEN E-P5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 921k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in May 2013).

Arguments in favor of the Sony Cyber-shot DSC-HX90V:

• More detail: Has more megapixels (18 vs 15.9MP), which boosts linear resolution by 6%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Ready to shoot: Has an integrated lens, whereas the E-P5 necessitates an extra lens.
• More compact: Is smaller (102x58mm vs 122x69mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-P5).
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (1 year and 11 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the HX90V comes out slightly ahead of the E-P5 (13 : 12 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-P5 and the Sony HX90V place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-P5 or the HX90V perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
2.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
3.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	379	ebay.com
4.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	1,399	ebay.com
5.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	1,299	ebay.com
6.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
7.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
8.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	799	ebay.com
9.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
10.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
11.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	499	ebay.com
12.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	1,199	ebay.com
13.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
14.		Sony HX95	..	..	..	..	..	..	Aug 2018	429	ebay.com
15.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	449	ebay.com
16.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	499	ebay.com
17.		Sony WX800	..	..	..	..	..	..	Oct 2018	399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check E-P5 offers at
ebay.com
Check HX90V offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check E-P5 offers at
ebay.com
Check HX90V offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
