Olympus E-P5 vs E-PL5
The Olympus PEN E-P5 and the Olympus PEN E-PL5 are two digital cameras that were officially introduced, respectively, in May 2013 and September 2012. Both the E-P5 and the E-PL5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P5 and the Olympus PEN E-PL5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

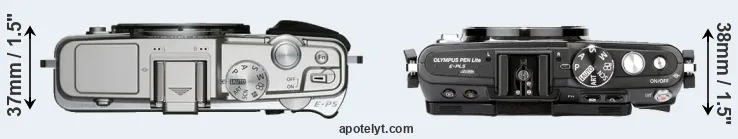

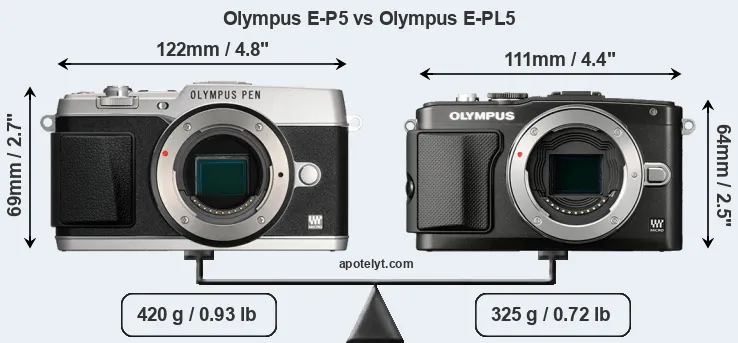

The physical size and weight of the Olympus E-P5 and the Olympus E-PL5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in three different colors (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL5 is notably smaller (16 percent) than the Olympus E-P5. Moreover, the E-PL5 is markedly lighter (23 percent) than the E-P5. In this context, it is worth noting that neither the E-P5 nor the E-PL5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|2.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|3.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|4.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|5.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|6.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|7.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|8.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|9.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|10.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|11.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|12.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|13.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL5 was launched at a markedly lower price (by 40 percent) than the E-P5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

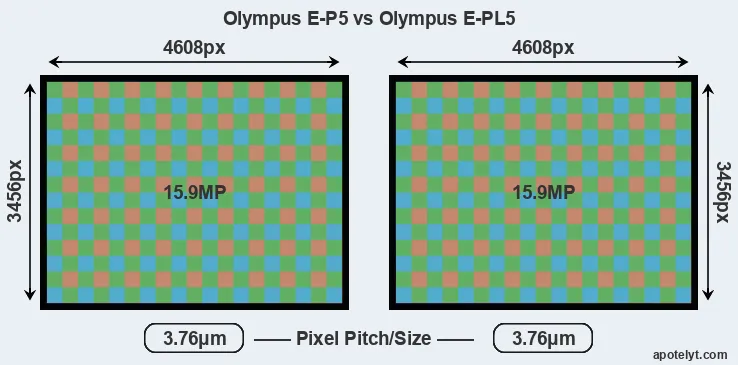

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-P5 and the E-PL5 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-P5 is a somewhat more recent model (by 7 months) than the E-PL5, and its sensor might have benefitted from technological advances during this time.
The Olympus PEN E-P5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL5 are ISO 200 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|2.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|3.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|4.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|5.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|6.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|7.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|8.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||22.5||12.0||717||68|
|9.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|10.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|11.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|12.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|13.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).
Apart from body and sensor, cameras can and do differ across a variety of features. The E-P5 and the E-PL5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-4 for the E-P5 and the VF-3 for the E-PL5 – are available as accessories. The adjacent table lists some of the other core features of the Olympus E-P5 and Olympus E-PL5 along with similar information for a selection of comparators.
|1.||Olympus E-P5||optional||n||3.0 / 1037||tilting||Y||1/8000s||9.0/s||Y||Y|
|2.||Olympus E-PL5||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0/s||n||Y|
|3.||Olympus PEN-F||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0/s||n||Y|
|4.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|5.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||Y||Y|
|6.||Olympus E-PL7||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||n||Y|
|7.||Olympus E-M1||2360||n||3.0 / 1037||tilting||Y||1/8000s||10.0/s||n||Y|
|8.||Olympus E-PL6||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0/s||n||Y|
|9.||Olympus E-M5||1440||n||3.0 / 610||tilting||Y||1/4000s||9.0/s||n||Y|
|10.||Olympus E-PM2||optional||n||3.0 / 460||fixed||Y||1/4000s||8.0/s||n||Y|
|11.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0/s||Y||Y|
|12.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|13.||Panasonic GX7||2760||n||3.0 / 1040||tilting||Y||1/8000s||5.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The E-P5 has one, while the E-PL5 does not. While the built-in flash of the E-P5 is not very powerful, it can at times be useful as a fill-in light.The E-PL5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-P5 does not have a selfie-screen.
The Olympus E-P5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-P5 and the E-PL5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P5 and Olympus PEN E-PL5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Olympus E-P5||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|2.||Olympus E-PL5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Olympus PEN-F||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|4.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|5.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|6.||Olympus E-PL7||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|7.||Olympus E-M1||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|8.||Olympus E-PL6||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Olympus E-M5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|10.||Olympus E-PM2||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|12.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|13.||Panasonic GX7||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
It is notable that the E-P5 offers wifi support, while the E-PL5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the E-P5 and the E-PL5 have been discontinued, but can regularly be found used on eBay. The E-PL5 was replaced by the Olympus E-PL6, while the E-P5 was followed by the Olympus E-P7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So what is the bottom line? Which of the two cameras – the Olympus E-P5 or the Olympus E-PL5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Olympus PEN E-P5:
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 8 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Is somewhat more recent (announced 7 months after the E-PL5).
Advantages of the Olympus PEN E-PL5:
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (111x64mm vs 122x69mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 95g or 23 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in September 2012).
If the count of individual advantages (bullet points above) is taken as a guide, the E-P5 emerges as the winner of the contest (7 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-P5 and the Olympus E-PL5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-P5 and the E-PL5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-P5||5/5||+ +||..||78/100||4.5/5||5/5||May 2013||999|
|2.||Olympus E-PL5||3/5||+ +||..||..||4.5/5||4.5/5||Sep 2012||599|
|3.||Olympus PEN-F||..||..||4/5||82/100||4.5/5||5/5||Jan 2016||1,199|
|4.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649|
|5.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699|
|6.||Olympus E-PL7||4/5||+||..||..||5/5||4/5||Aug 2014||599|
|7.||Olympus E-M1||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|8.||Olympus E-PL6||..||..||..||..||..||..||May 2013||599|
|9.||Olympus E-M5||4/5||+ +||..||80/100||4.5/5||5/5||Feb 2012||1,299|
|10.||Olympus E-PM2||3/5||..||..||77/100||5/5||4.5/5||Sep 2012||499|
|11.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799|
|12.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599|
|13.||Panasonic GX7||4/5||+||..||79/100||5/5||5/5||Aug 2013||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D X vs Olympus E-PL5
- Canon G1 X vs Olympus E-P5
- Canon G16 vs Olympus E-PL5
- Fujifilm XP140 vs Olympus E-P5
- Nikon D3 vs Olympus E-PL5
- Nikon D300 vs Olympus E-P5
- Nikon D5500 vs Olympus E-P5
- Nikon P7800 vs Olympus E-P5
- Olympus E-M1 III vs Olympus E-PL5
- Olympus E-P5 vs Sony A77
- Olympus E-PL5 vs Panasonic G3
- Olympus E-PL5 vs Panasonic G9
Specifications: Olympus E-P5 vs Olympus E-PL5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-P5||Olympus E-PL5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||May 2013||September 2012|
|Launch Price||USD 999||USD 599|
|Sensor Specs||Olympus E-P5||Olympus E-PL5|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||15.9 Megapixels|
|Image Resolution||4608 x 3456 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.76 μm||3.76 μm|
|Pixel Density||7.08 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||200 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||TruePic VI||TruePic VI|
|DXO Sensor Quality (score)||72||72|
|DXO Color Depth (bits)||22.8||22.8|
|DXO Dynamic Range (EV)||12.4||12.3|
|DXO Low Light (ISO)||895||889|
|Screen Specs||Olympus E-P5||Olympus E-PL5|
|Viewfinder Type||Viewfinder optional||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||460k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Shooting Specs||Olympus E-P5||Olympus E-PL5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus E-P5||Olympus E-PL5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Olympus E-P5||Olympus E-PL5|
|Battery Life (CIPA)||330 shots per charge||360 shots per charge|
122 x 69 x 37 mm
(4.8 x 2.7 x 1.5 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||420 g (14.8 oz)||325 g (11.5 oz)|
