Olympus E-M5 vs Panasonic GM5
The Olympus OM-D E-M5 and the Panasonic Lumix DMC-GM5 are two digital cameras that were officially introduced, respectively, in February 2012 and September 2014. Both the E-M5 and the GM5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M5 and the Panasonic Lumix DMC-GM5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

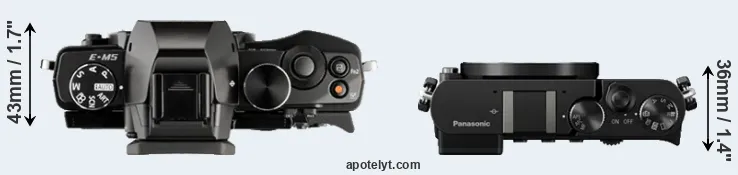

An illustration of the physical size and weight of the Olympus E-M5 and the Panasonic GM5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM5 is considerably smaller (45 percent) than the Olympus E-M5. Moreover, the GM5 is substantially lighter (50 percent) than the E-M5. It is worth mentioning in this context that the E-M5 is splash and dust resistant, while the GM5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|2.||Panasonic GM5||99 mm||60 mm||36 mm||211 g||220||n||Sep 2014||749|
|3.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|4.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|5.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|6.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|7.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|8.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|9.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|10.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|11.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|12.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|13.||Panasonic GM1||99 mm||55 mm||30 mm||204 g||230||n||Oct 2013||749|
|14.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|15.||Panasonic GH3||133 mm||93 mm||82 mm||550 g||540||Y||Sep 2012||1,299|
|16.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|17.||Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GM5 was launched at a markedly lower price (by 42 percent) than the E-M5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of underlying technology, both cameras are build around CMOS sensors.

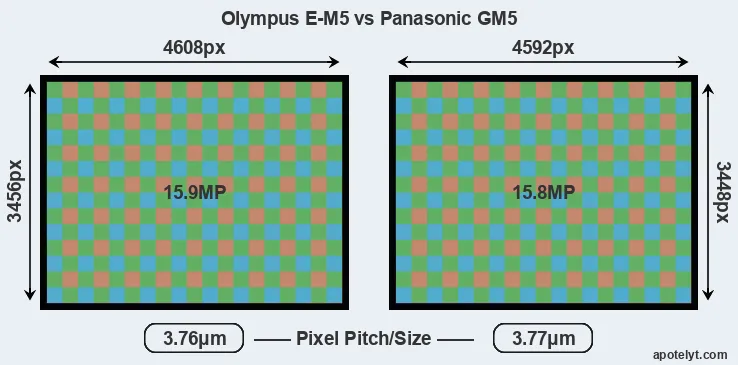

While the two cameras under review share the same sensor size, the E-M5 offers a slightly higher resolution of 15.9 megapixels, compared with 15.8 MP of the GM5. This megapixels advantage translates into a 0.3 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 3.77μm for the GM5). Moreover, it should be noted that the GM5 is much more recent (by 2 years and 7 months) than the E-M5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels.
The Olympus OM-D E-M5 has a native sensitivity range from ISO 200 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DMC-GM5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the E-M5 has a notably higher overall DXO score than the GM5 (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.7 bits higher color depth, 0.6 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|2.||Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66|
|3.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|4.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|5.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|6.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|7.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|8.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|9.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|10.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
|11.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|12.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|13.||Panasonic GM1||Four Thirds||15.8||4592||3448||1080/60i||22.3||11.7||660||66|
|14.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|15.||Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|16.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|17.||Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GM5 provides a faster frame rate than the E-M5. It can shoot movie footage at 1080/60p, while the Olympus is limited to 1080/60i.
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the E-M5 offers a higher resolution than the one in the GM5 (1440k vs 1166k dots). The table below summarizes some of the other core capabilities of the Olympus E-M5 and Panasonic GM5 in connection with corresponding information for a sample of similar cameras.
|4.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One feature that differentiates the E-M5 and the GM5 is in-body image stabilization (IBIS). The E-M5 reduces the risk of handshake-induced blur with all attached lenses, while the GM5 offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GM5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M5 and the GM5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 and Panasonic Lumix DMC-GM5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
It is notable that the GM5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-M5 does not provide wifi capability.
Both the E-M5 and the GM5 have been discontinued, but can regularly be found used on eBay. The E-M5 was replaced by the Olympus E-M5 II, while the GM5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Olympus E-M5 or the Panasonic GM5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Olympus OM-D E-M5:
- Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
- More detailed viewfinder: Has higher resolution electronic viewfinder (1440k vs 1166k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.46x).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/500s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 5.8 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (360 versus 220) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- More heavily discounted: Has been available for much longer (launched in February 2012).
Advantages of the Panasonic Lumix DMC-GM5:
- Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
- More detailed LCD: Has a higher resolution rear screen (921k vs 610k dots).
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (99x60mm vs 122x89mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 214g or 50 percent) and is thus easier to take along.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
- More modern: Reflects 2 years and 7 months of technical progress since the E-M5 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-M5 emerges as the winner of the contest (11 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M5 and the Panasonic GM5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-M5 or the GM5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|2.||Panasonic GM5||3.5/5||+||77/100||5/5||4.5/5||Sep 2014||749|
|3.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|4.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|5.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|6.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|7.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|8.||Olympus E-PL5||3/5||+ +||..||4.5/5||4.5/5||Sep 2012||599|
|9.||Olympus E-PM2||3/5||..||77/100||5/5||4.5/5||Sep 2012||499|
|10.||Panasonic G7||4/5||+ +||80/100||5/5||4.5/5||May 2015||649|
|11.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|12.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|13.||Panasonic GM1||3/5||+||78/100||5/5||4.5/5||Oct 2013||749|
|14.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|15.||Panasonic GH3||5/5||+ +||79/100||4.5/5||4.5/5||Sep 2012||1,299|
|16.||Panasonic GX1||3/5||+||77/100||4.5/5||4.5/5||Nov 2011||699|
|17.||Panasonic GH2||5/5||+ +||79/100||4.5/5||5/5||Sep 2010||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Olympus E-M5 vs Panasonic GM5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M5||Panasonic GM5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||February 2012||September 2014|
|Launch Price||USD 1,299||USD 749|
|Sensor Specs||Olympus E-M5||Panasonic GM5|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||15.8 Megapixels|
|Image Resolution||4608 x 3456 pixels||4592 x 3448 pixels|
|Pixel Pitch||3.76 μm||3.77 μm|
|Pixel Density||7.08 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60i Video||1080/60p Video|
|ISO Setting||200 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||TruePic VI||Venus|
|DXO Sensor Quality (score)||71||66|
|DXO Color Depth (bits)||22.8||22.1|
|DXO Dynamic Range (EV)||12.3||11.7|
|DXO Low Light (ISO)||826||721|
|Screen Specs||Olympus E-M5||Panasonic GM5|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||1440k dots||1166k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||610k dots||921k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Olympus E-M5||Panasonic GM5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/500s|
|Continuous Shooting||9 shutter flaps/s||5.8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus E-M5||Panasonic GM5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-M5||Panasonic GM5|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||360 shots per charge||220 shots per charge|
122 x 89 x 43 mm
(4.8 x 3.5 x 1.7 in)
99 x 60 x 36 mm
(3.9 x 2.4 x 1.4 in)
|Camera Weight||425 g (15.0 oz)||211 g (7.4 oz)|
