Olympus E-M1X vs E-M5 II
The Olympus OM-D E-M1X and the Olympus OM-D E-M5 Mark II are two enthusiast cameras that were officially introduced, respectively, in January 2019 and February 2015. Both the E-M1X and the E-M5 II are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-M1X has a resolution of 20.2 megapixels, whereas the E-M5 II provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-M1X||Olympus E-M5 II|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|20.2 MP, Four Thirds Sensor||15.9 MP, Four Thirds Sensor|
|4K/30p Video||1080/60p Video|
|ISO 200-25600||ISO 200-25600|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (2360k dots)|
|3.0" LCD, 1037k dots||3.0" LCD, 1037k dots|
|Swivel touchscreen||Swivel touchscreen|
|18 shutter flaps per second||10 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|Weathersealed body||Weathersealed body|
|870 shots per battery charge||310 shots per battery charge|
|144 x 147 x 75 mm, 997 g||124 x 85 x 45 mm, 469 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1X and the Olympus OM-D E-M5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

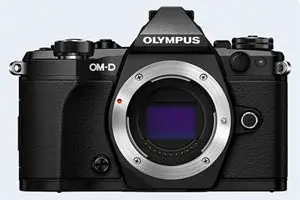

The side-by-side display below illustrates the physical size and weight of the Olympus E-M1X and the Olympus E-M5 II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 II is considerably smaller (50 percent) than the Olympus E-M1X. Moreover, the E-M5 II is substantially lighter (53 percent) than the E-M1X. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the E-M1X gets 870 shots out of its BLH-1 battery, while the E-M5 II can take 310 images on a single charge of its BLN-1 power pack. As can be seen in the images above, the E-M1X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the E-M5 II, Olympus provides the HLD-8 vertical grip as an optional accessory (see here on eBay). The power pack in the E-M1X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Olympus E-M1X»||5.7 in||5.8 in||3.0 in||35.2 oz||870||Y||Jan 2019||2,999||Olympus E-M1X|
|Olympus E-M5 II«||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1 II« »||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999||Olympus E-M1 II|
|Olympus PEN-F« »||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199||Olympus PEN-F|
|Olympus E-M10 II« »||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-M10« »||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699||-||Olympus E-M10|
|Olympus E-M1« »||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-P5« »||4.8 in||2.7 in||1.5 in||14.8 oz||330||n||May 2013||999||-||Olympus E-P5|
|Olympus E-M5« »||4.8 in||3.5 in||1.7 in||15.0 oz||360||Y||Feb 2012||1,299||-||Olympus E-M5|
|Panasonic S1« »||5.9 in||4.3 in||3.8 in||35.9 oz||400||Y||Feb 2019||2,499||Panasonic S1|
|Panasonic G90« »||5.1 in||3.7 in||3.0 in||18.9 oz||290||Y||Apr 2019||999||Panasonic G90|
|Panasonic G95« »||5.1 in||3.7 in||3.0 in||18.9 oz||290||Y||Apr 2019||999||Panasonic G95|
|Panasonic G9« »||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999||Panasonic GH5|
|Panasonic GX8« »||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199||-||Panasonic GX8|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-M5 II was launched at a markedly lower price (by 63 percent) than the E-M1X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of chip-set technology, the E-M1X uses a more advanced image processing engine (Dual TruePic VIII) than the E-M5 II (TruePic VII), with benefits for noise reduction, color accuracy, and processing speed.
While the two cameras under review share the same sensor size, the E-M1X offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the E-M5 II. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M1X has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 3.76μm for the E-M5 II). In this context, it should be noted, however, that the E-M1X is much more recent (by 3 years and 11 months) than the E-M5 II, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M1X has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M1X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1X for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inch or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inch or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inch or 43.9 x 32.9 cm. The corresponding values for the Olympus E-M5 II are 23 x 17.3 inch or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inch or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inch or 39 x 29.3 cm for excellent quality prints.
The E-M1X has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus OM-D E-M1X has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the Olympus OM-D E-M5 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-M1X»||Four Thirds||20.2||5184||3888||4K/30p||-||-||-||-||Olympus E-M1X|
|Olympus E-M5 II«||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73||Olympus E-M5 II|
|Olympus E-M1 II« »||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80||Olympus E-M1 II|
|Olympus PEN-F« »||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74||Olympus PEN-F|
|Olympus E-M10 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-M10« »||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72||Olympus E-M10|
|Olympus E-M1« »||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73||Olympus E-M1|
|Olympus E-P5« »||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72||Olympus E-P5|
|Olympus E-M5« »||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71||Olympus E-M5|
|Panasonic S1« »||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95||Panasonic S1|
|Panasonic G90« »||Four Thirds||20.2||5184||3888||4K/30p||-||-||-||-||Panasonic G90|
|Panasonic G95« »||Four Thirds||20.2||5184||3888||4K/30p||-||-||-||-||Panasonic G95|
|Panasonic G9« »||Four Thirds||20.2||5184||3888||4K/60p||-||-||-||-||Panasonic G9|
|Panasonic GH5« »||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77||Panasonic GH5|
|Panasonic GX8« »||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75||Panasonic GX8|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-M1X provides a higher video resolution than the E-M5 II. It can shoot video footage at 4K/30p, while the E-M5 II is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The E-M1X and the E-M5 II are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The following table reports on some other key feature differences and similarities of the Olympus E-M1X, the Olympus E-M5 II, and comparable cameras.
|Olympus E-M1X»||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1X|
|Olympus E-M5 II«||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus E-M5 II|
|Olympus E-M1 II« »||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1 II|
|Olympus PEN-F« »||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus PEN-F|
|Olympus E-M10 II« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-M10« »||1440||n||3.0||1037||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10|
|Olympus E-M1« »||2360||n||3.0||1037||tilting||Y||1/8000s||10.0||n||Y||Olympus E-M1|
|Olympus E-P5« »||-||n||3.0||1037||tilting||Y||1/8000s||9.0||Y||Y||Olympus E-P5|
|Olympus E-M5« »||1440||n||3.0||610||tilting||Y||1/4000s||9.0||n||Y||Olympus E-M5|
|Panasonic S1« »||5760||Y||3.2||2100||full-flex||Y||1/8000s||9.0||n||Y||Panasonic S1|
|Panasonic G90« »||2360||n||3.0||1240||swivel||Y||1/4000s||9.0||Y||Y||Panasonic G90|
|Panasonic G95« »||2360||n||3.0||1240||swivel||Y||1/4000s||9.0||Y||Y||Panasonic G95|
|Panasonic G9« »||3680||Y||3.0||1040||swivel||Y||1/8000s||20.0||n||Y||Panasonic G9|
|Panasonic GH5« »||3680||n||3.2||1620||swivel||Y||1/8000s||12.0||n||Y||Panasonic GH5|
|Panasonic GX8« »||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y||Panasonic GX8|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1X and the Olympus E-M5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M1X and the E-M5 II write their files to SDXC cards. The E-M1X features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M5 II only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1X and Olympus OM-D E-M5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-M1X»||Y||stereo||mono||Y||Y||micro||3.0||Y||-||Y||Olympus E-M1X|
|Olympus E-M5 II«||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M5 II|
|Olympus E-M1 II« »||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-||Olympus E-M1 II|
|Olympus PEN-F« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus PEN-F|
|Olympus E-M10 II« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-M10« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10|
|Olympus E-M1« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M1|
|Olympus E-P5« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-P5|
|Olympus E-M5« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-M5|
|Panasonic S1« »||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic S1|
|Panasonic G90« »||Y||stereo||mono||Y||Y||micro||2.0||Y||-||Y||Panasonic G90|
|Panasonic G95« »||Y||stereo||mono||Y||Y||micro||2.0||Y||-||Y||Panasonic G95|
|Panasonic G9« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||Y||Panasonic G9|
|Panasonic GH5« »||Y||stereo||mono||Y||Y||full||3.1||Y||-||Y||Panasonic GH5|
|Panasonic GX8« »||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-||Panasonic GX8|
It is notable that the E-M1X has a headphone jack, which is not present on the E-M5 II This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the E-M1X has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the E-M1X and the E-M5 II are recent models that are part of the current product line-up. The E-M5 II replaced the earlier Olympus E-M5, while the E-M1X does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So how do things add up? Which of the two cameras – the Olympus E-M1X or the Olympus E-M5 II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Olympus OM-D E-M1X:
- More detail: Offers more megapixels (20.2 vs 15.9MP) with a 13% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better jpgs: Has a more modern image processing engine (Dual TruePic VIII vs TruePic VII).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.83x vs 0.74x).
- Faster burst: Shoots at higher frequency (18 vs 10 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (870 versus 310) on a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 3 years and 11 months of technical progress since the E-M5 II launch.
Arguments in favor of the Olympus OM-D E-M5 Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (124x85mm vs 144x147mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 528g or 53 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (63 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in February 2015).
If the number of relative strengths (bullet points above) is taken as a guide, the E-M1X is the clear winner of the match-up (15 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1X and the Olympus E-M5 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-M1X or the E-M5 II perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-M1X»||o||-||4.5/5||5/5||-||Jan 2019||2,999||Olympus E-M1X|
|Olympus E-M5 II«||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M1 II« »||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999||Olympus E-M1 II|
|Olympus PEN-F« »||-||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199||Olympus PEN-F|
|Olympus E-M10 II« »||+ +||80/100||5/5||5/5||5/5||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-M10« »||-||80/100||5/5||4.5/5||5/5||Jan 2014||699||-||Olympus E-M10|
|Olympus E-M1« »||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399||-||Olympus E-M1|
|Olympus E-P5« »||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999||-||Olympus E-P5|
|Olympus E-M5« »||+ +||80/100||4.5/5||5/5||5/5||Feb 2012||1,299||-||Olympus E-M5|
|Panasonic S1« »||+ +||88/100||4.5/5||-||4/5||Feb 2019||2,499||Panasonic S1|
|Panasonic G90« »||+||83/100||4.5/5||-||4.5/5||Apr 2019||999||Panasonic G90|
|Panasonic G95« »||+||83/100||4.5/5||-||4.5/5||Apr 2019||999||Panasonic G95|
|Panasonic G9« »||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699||Panasonic G9|
|Panasonic GH5« »||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999||Panasonic GH5|
|Panasonic GX8« »||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199||-||Panasonic GX8|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D X vs Olympus E-M1X
- Canon 350D vs Olympus E-M5 II
- Canon 650D vs Olympus E-M5 II
- Canon RP vs Olympus E-M5 II
- Fujifilm X-A1 vs Olympus E-M1X
- Fujifilm X-T3 vs Olympus E-M5 II
- Nikon D2H vs Olympus E-M5 II
- Nikon D5500 vs Olympus E-M1X
- Olympus E-520 vs Olympus E-M1X
- Olympus E-M1X vs Sony A6500
- Olympus E-M5 II vs Panasonic GF7
- Olympus E-M5 II vs Panasonic GX850
Specifications: Olympus E-M1X vs Olympus E-M5 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M1X||Olympus E-M5 II|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||January 2019||February 2015|
|Launch Price||USD 2999||USD 1099|
|Sensor Specs||Olympus E-M1X||Olympus E-M5 II|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||20.2 Megapixels||15.9 Megapixels|
|Image Resolution||5184 x 3888 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.34 μm||3.76 μm|
|Pixel Density||8.96 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||200-25600 ISO||200-25600 ISO|
|ISO Boost||64-25600 ISO||100-25600 ISO|
|Image Processor||Dual TruePic VIII||TruePic VII|
|DXO Sensor Quality (score)||..||73|
|DXO Color Depth (bits)||..||23.0|
|DXO Dynamic Range (EV)||..||12.5|
|DXO Low Light (ISO)||..||842|
|Screen Specs||Olympus E-M1X||Olympus E-M5 II|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1037k dots||1037k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Olympus E-M1X||Olympus E-M5 II|
|Autofocus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/8000/s|
|Continuous Shooting||18 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||Dual UHS-II||UHS-II|
|Connectivity Specs||Olympus E-M1X||Olympus E-M5 II|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Olympus E-M1X||Olympus E-M5 II|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||870 shots per charge||310 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
144 x 147 x 75 mm
(5.7 x 5.8 x 3.0 in)
124 x 85 x 45 mm
(4.9 x 3.3 x 1.8 in)
|Camera Weight||997 g (35.2 oz)||469 g (16.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
