Olympus E-M10 II versus Canon 760D

The Olympus OM-D E-M10 Mark II and the Canon EOS 760D (labelled Canon T6s in some countries) are two digital cameras that were announced, respectively, in August 2015 and February 2015. The E-M10 II is a mirrorless interchangeable lens camera, while the 760D is a DSLR. The cameras are based on a Four Thirds (E-M10 II) and an APS-C (760D) sensor. The Olympus has a resolution of 15.9 megapixel, whereas the Canon provides 24 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

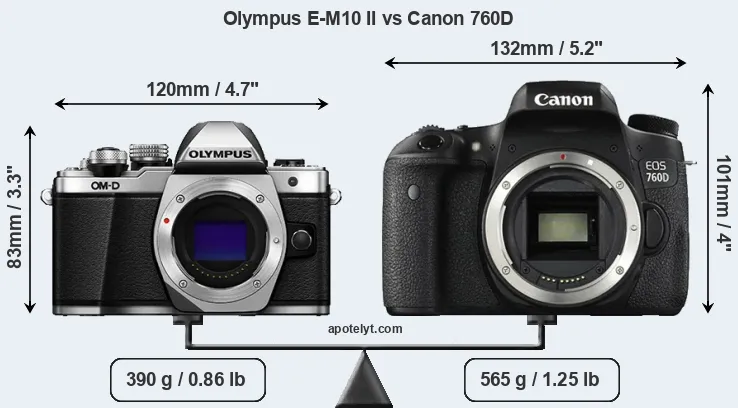

Body comparison: Olympus E-M10 II vs Canon 760D

The physical size and weight of the Olympus E-M10 II and the Canon 760D are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left side – the E-M10 II – represents the basis for the calculations across all the size and weight measures).

Compare Olympus E-M10 II vs Canon 760D

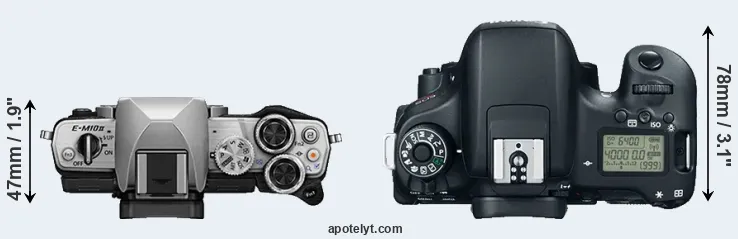

Compare E-M10 II versus 760D top

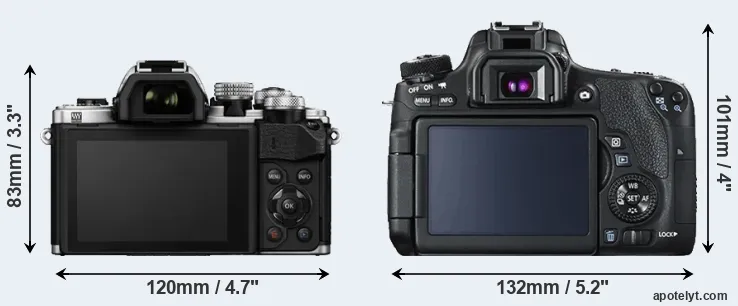

Compare E-M10 II and 760D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 760D is notably larger (34 percent) than the Olympus E-M10 II. Moreover, the 760D is substantially heavier (45 percent) than the E-M10 II. In this context, it is worth noting that neither the E-M10 II nor the 760D are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Micro Four Thirds Lens Catalog (E-M10 II) and the Canon EF Lens Catalog (760D). Mirrorless cameras, such as the Olympus E-M10 II, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

Concerning battery life, the E-M10 II gets 320 shots out of its BLS-50 battery, while the 760D can take 440 images on a single charge of its LP-E17 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Olympus E-M10 II» 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 799- i Olympus E-M10 II
Canon 760D« 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 849- i Canon 760D
Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D
Canon M5« » 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5
Canon 750D« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon 750D
Canon G1 X Mark II« » 4.6 in 2.9 in 2.6 in 19.5 oz 240 n Feb 2014 799 i i Canon G1 X Mark II
Canon G7 X« » 4.1 in 2.4 in 1.6 in 10.7 oz 210 n Sep 2014 699- i Canon G7 X
Olympus E-PL9« » 4.6 in 2.7 in 1.5 in 13.4 oz 350 n Feb 2018 549 i i Olympus E-PL9
Olympus E-M10 III« » 4.8 in 3.3 in 2.0 in 14.5 oz 330 n Aug 2017 649 i i Olympus E-M10 III
Olympus E-PL8« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Sep 2016 549- i Olympus E-PL8
Olympus PEN-F« » 4.9 in 2.8 in 1.5 in 15.1 oz 330 n Jan 2016 1,199 i i Olympus PEN-F
Olympus E-M5 II« » 4.9 in 3.3 in 1.8 in 16.5 oz 310 Y Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M10« » 4.7 in 3.2 in 1.8 in 14.0 oz 320 n Jan 2014 699- i Olympus E-M10
Olympus E-PL7« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Aug 2014 599- i Olympus E-PL7
Olympus E-P5« » 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5
Olympus E-PL5« » 4.4 in 2.5 in 1.5 in 11.5 oz 360 n Sep 2012 599- i Olympus E-PL5
Panasonic GX85« » 4.8 in 2.8 in 1.7 in 15.0 oz 290 n Apr 2016 799 i i Panasonic GX85

The camera’s price is obviously a critical decision-making factor. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M10 II was somewhat cheaper (by 6 percent) than the 760D at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Olympus E-M10 II vs Canon 760D

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-M10 II features a Four Thirds sensor and the Canon 760D an APS-C sensor. The sensor area in the 760D is 48 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.6. The sensor in the E-M10 II has a native 4:3 aspect ratio, while the one in the 760D offers a 3:2 aspect.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

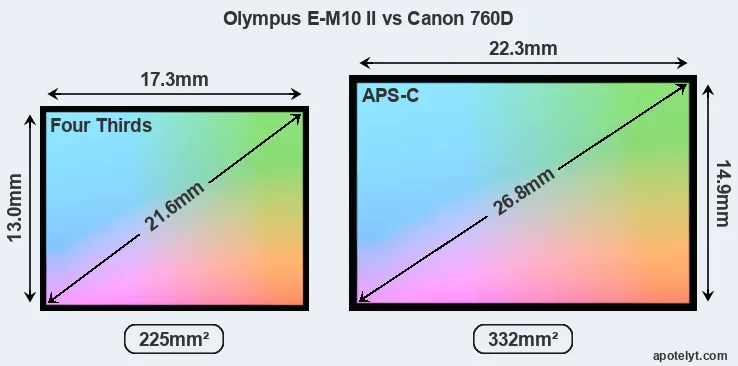

Olympus E-M10 II and Canon 760D sensor measures

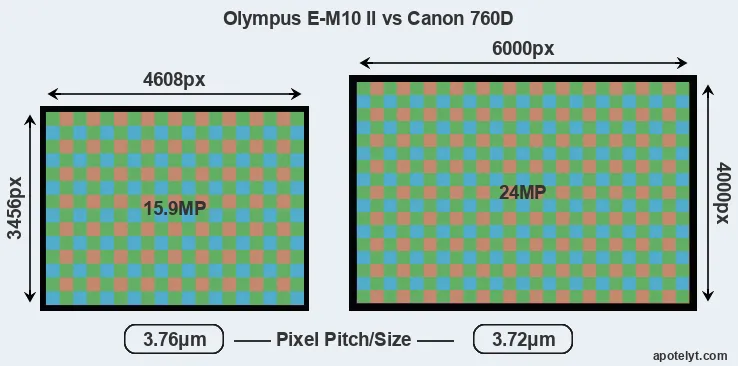

With 24MP, the 760D offers a higher resolution than the E-M10 II (15.9MP), but the 760D has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-M10 II). It is noteworthy in this context that the E-M10 II is a somewhat more recent model (by 6 months) than the 760D, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

E-M10 II versus 760D MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar image quality. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Olympus E-M10 II» Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II
Canon 760D« APS-C 24.0 6000 40001080/30p22.612.091570Canon 760D
Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D
Canon M5« » APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5
Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D
Canon G1 X Mark II« » 1.5-inch 13.0 4160 31201080/30p21.510.858158Canon G1 X Mark II
Canon G7 X« » 1-inch 20.0 5472 36481080/60p23.012.755671Canon G7 X
Olympus E-PL9« » Four Thirds 15.9 4608 34564K/30p----Olympus E-PL9
Olympus E-M10 III« » Four Thirds 15.9 4608 34564K/30p----Olympus E-M10 III
Olympus E-PL8« » Four Thirds 15.9 4608 34561080/30p----Olympus E-PL8
Olympus PEN-F« » Four Thirds 20.2 5184 38881080/60p23.112.489474Olympus PEN-F
Olympus E-M5 II« » Four Thirds 15.9 4608 34561080/60p23.012.584273Olympus E-M5 II
Olympus E-M10« » Four Thirds 15.9 4608 34561080/30p22.812.388472Olympus E-M10
Olympus E-PL7« » Four Thirds 15.9 4608 34561080/30p22.712.487372Olympus E-PL7
Olympus E-P5« » Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5
Olympus E-PL5« » Four Thirds 15.9 4608 34561080/30p22.812.388972Olympus E-PL5
Panasonic GX85« » Four Thirds 15.8 4592 34484K/30p22.912.666271Panasonic GX85

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M10 II provides a higher frame rate than the 760D. It can shoot video footage at 1080/60p, while the Canon is limited to 1080/30p.



Feature comparison: Olympus E-M10 II vs Canon 760D

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), while the 760D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Olympus E-M10 II and Canon 760D in connection with corresponding information for a sample of similar cameras. If needed, the dpreview camera hub, for example, contains further detail on the cameras' specs.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Olympus E-M10 II»2360 n 3.0 1040 tilting Y 4000 8.0 Y Y Olympus E-M10 II
Canon 760D«optical Y 3.0 1040 swivel Y 4000 5.0 Y n Canon 760D
Canon 77D« »optical Y 3.0 1040 swivel Y 4000 6.0 Y n Canon 77D
Canon M5« »2360 n 3.2 1620 tilting Y 4000 9.0 Y n Canon M5
Canon 750D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 750D
Canon G1 X Mark II« »- n 3.0 1040 tilting Y 4000 5.2 Y Y Canon G1 X Mark II
Canon G7 X« »- n 3.0 1040 tilting Y 2000 6.5 Y Y Canon G7 X
Olympus E-PL9« »- n 3.0 1040 tilting Y 4000 8.6 Y Y Olympus E-PL9
Olympus E-M10 III« »2360 n 3.0 1040 tilting Y 4000 8.6 Y Y Olympus E-M10 III
Olympus E-PL8« »- n 3.0 1037 tilting Y 4000 8.0 n Y Olympus E-PL8
Olympus PEN-F« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus PEN-F
Olympus E-M5 II« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus E-M5 II
Olympus E-M10« »1440 n 3.0 1037 tilting Y 4000 8.0 Y Y Olympus E-M10
Olympus E-PL7« »- n 3.0 1037 tilting Y 4000 8.0 n Y Olympus E-PL7
Olympus E-P5« »- n 3.0 1037 tilting Y 8000 9.0 Y Y Olympus E-P5
Olympus E-PL5« »- n 3.0 460 tilting Y 4000 8.0 n Y Olympus E-PL5
Panasonic GX85« »2765 n 3.0 1040 tilting Y 4000 8.0 Y Y Panasonic GX85

One feature that differentiates the E-M10 II and the 760D is in-body image stabilization (IBIS). The E-M10 II reduces the risk of handshake-induced blur with all attached lenses, while the 760D has to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.

Both the E-M10 II and the 760D write their imaging data to SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Olympus E-M10 II»Ystereomono--micro2.0Y--Olympus E-M10 II
Canon 760D«YstereomonoY-mini2.0YY-Canon 760D
Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D
Canon M5« »YstereomonoY-mini2.0YYYCanon M5
Canon 750D« »YstereomonoY-mini2.0YY-Canon 750D
Canon G1 X Mark II« »Ystereomono--mini2.0YY-Canon G1 X Mark II
Canon G7 X« »-stereomono--micro2.0YY-Canon G7 X
Olympus E-PL9« »Ystereomono--micro2.0Y-YOlympus E-PL9
Olympus E-M10 III« »Ystereomono--micro2.0Y--Olympus E-M10 III
Olympus E-PL8« »Ystereomono--micro2.0Y--Olympus E-PL8
Olympus PEN-F« »Ystereomono--micro2.0Y--Olympus PEN-F
Olympus E-M5 II« »YstereomonoY-micro2.0Y--Olympus E-M5 II
Olympus E-M10« »Ystereomono--micro2.0Y--Olympus E-M10
Olympus E-PL7« »Ystereomono--micro2.0Y--Olympus E-PL7
Olympus E-P5« »Ystereomono--micro2.0Y--Olympus E-P5
Olympus E-PL5« »Ystereomono--mini2.0---Olympus E-PL5
Panasonic GX85« »Ystereomono--micro2.0YY-Panasonic GX85

Both the E-M10 II and the 760D have been discontinued, but can regularly be found used on eBay. The 760D was replaced by the Canon 77D, while the E-M10 II was followed by the Olympus E-M10 III.

Review summary: Olympus E-M10 II vs Canon 760D

So what is the bottom line? Is there a clear favorite between the Olympus E-M10 II and the Canon 760D? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Olympus OM-D E-M10 Mark II:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (120x83mm vs 132x101mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 175g or 31 percent) and hence easier to carry around.
  • Sharper images: Has hand-shake reducing image stabilization build-in.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • More modern: Is somewhat more recent (announced 6 months after the 760D).

ilogo

Reasons to prefer the Canon EOS 760D:

  • More detail: Has more megapixels (24 vs 15.9MP), which boosts linear resolution by 25%.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Longer lasting: Gets more shots (440 versus 320) out of a single battery charge.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More heavily discounted: Has been on the market for longer (launched in February 2015).

If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (9 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

E-M10 II 09:09 760D

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-M10 II or the 760D handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why hands-on reviews by experts are important. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Olympus E-M10 II»HiRec80/1005/55/55/5 Aug 2015 799- i Olympus E-M10 II
Canon 760D«Rec77/1004.5/54.5/54.5/5 Feb 2015 849- i Canon 760D
Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D
Canon M5« »Rec82/1004/54.5/54/5 Sep 2016 979 i i Canon M5
Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D
Canon G1 X Mark II« »Rec77/1004/54/54.5/5 Feb 2014 799 i i Canon G1 X Mark II
Canon G7 X« »HiRec77/1004.5/53.5/54.5/5 Sep 2014 699- i Canon G7 X
Olympus E-PL9« »Rec-4.5/5-4/5 Feb 2018 549 i i Olympus E-PL9
Olympus E-M10 III« »Rec80/1004.5/5-4.5/5 Aug 2017 649 i i Olympus E-M10 III
Olympus E-PL8« »--4.5/5-4/5 Sep 2016 549- i Olympus E-PL8
Olympus PEN-F« »-82/1004.5/54.5/55/5 Jan 2016 1,199 i i Olympus PEN-F
Olympus E-M5 II« »HiRec81/1005/54.5/55/5 Feb 2015 1,099 i i Olympus E-M5 II
Olympus E-M10« »-80/1005/54.5/55/5 Jan 2014 699- i Olympus E-M10
Olympus E-PL7« »Rec-5/54.5/54/5 Aug 2014 599- i Olympus E-PL7
Olympus E-P5« »HiRec78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5
Olympus E-PL5« »HiRec-4.5/54.5/54.5/5 Sep 2012 599- i Olympus E-PL5
Panasonic GX85« »HiRec82/1005/54.5/55/5 Apr 2016 799 i i Panasonic GX85

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
