Olympus E-M1 vs E-M10 II
The Olympus OM-D E-M1 and the Olympus OM-D E-M10 Mark II are two digital cameras that were revealed to the public, respectively, in September 2013 and August 2015. Both the E-M1 and the E-M10 II are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-M1||Olympus E-M10 II|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|15.9 MP, Four Thirds Sensor||15.9 MP, Four Thirds Sensor|
|1080/30p Video||1080/60p Video|
|ISO 200-25600||ISO 200-25600|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (2360k dots)|
|3.0" LCD, 1037k dots||3.0" LCD, 1040k dots|
|Tilting touchscreen||Tilting touchscreen|
|10 shutter flaps per second||8 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|Weathersealed body||Not weather sealed|
|350 shots per battery charge||320 shots per battery charge|
|130 x 94 x 63 mm, 497 g||120 x 83 x 47 mm, 390 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

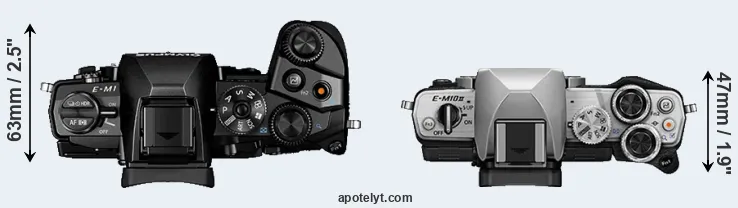

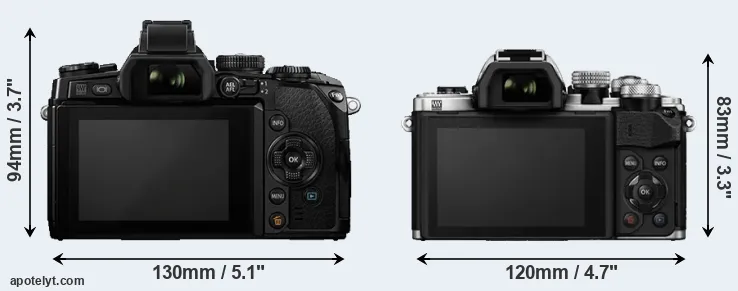

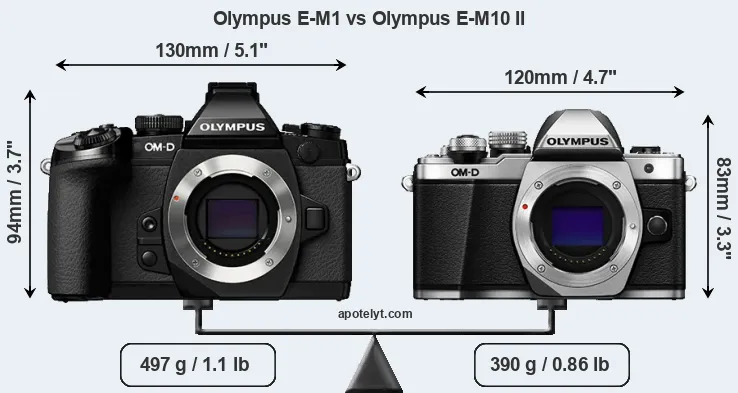

An illustration of the physical size and weight of the Olympus E-M1 and the Olympus E-M10 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M1 can be obtained in two different colors (black, silver), while the E-M10 II is available in three color-versions (black, silver, brown).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is notably smaller (18 percent) than the Olympus E-M1. Moreover, the E-M10 II is markedly lighter (22 percent) than the E-M1. It is worth mentioning in this context that the E-M1 is splash and dust resistant, while the E-M10 II does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Olympus E-M1»||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399||Olympus E-M1|
|Olympus E-M10 II«||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||Olympus E-M10 II|
|Olympus E-M10 III« »||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M1 II« »||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999||Olympus E-M1 II|
|Olympus PEN-F« »||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199||Olympus PEN-F|
|Olympus E-M5 II« »||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099||Olympus E-M5 II|
|Olympus E-M10« »||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699||Olympus E-M10|
|Olympus E-PL7« »||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599||Olympus E-PL7|
|Olympus E-P5« »||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999||Olympus E-P5|
|Olympus E-M5« »||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299||Olympus E-M5|
|Panasonic G80« »||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899||Panasonic G80|
|Panasonic GX80« »||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799||Panasonic GX80|
|Panasonic GX8« »||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199||Panasonic GX8|
|Panasonic GH4« »||133 mm||93 mm||84 mm||560 g||500||Y||Feb 2014||1,499||Panasonic GH4|
|Panasonic GH3« »||133 mm||93 mm||82 mm||550 g||540||Y||Sep 2012||1,299||Panasonic GH3|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M10 II was launched at a markedly lower price (by 54 percent) than the E-M1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

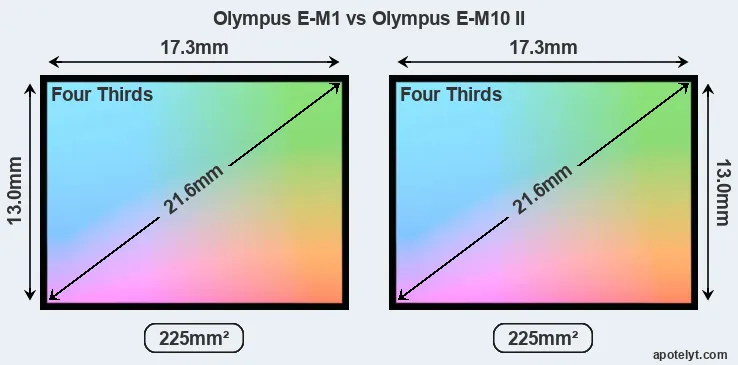

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

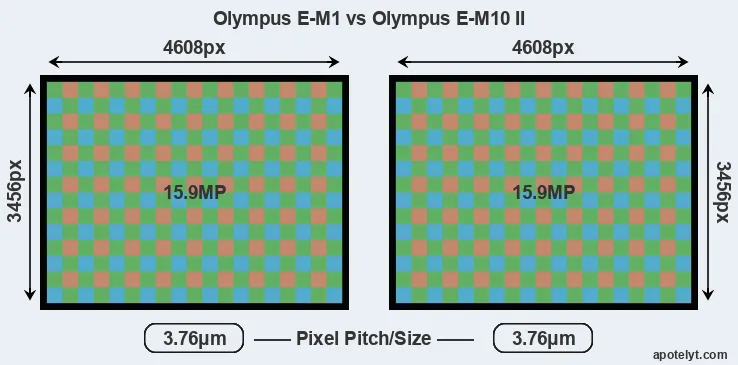

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-M1 and the E-M10 II have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-M10 II is a somewhat more recent model (by 1 year and 11 months) than the E-M1, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The E-M1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Olympus OM-D E-M1 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The Olympus OM-D E-M10 Mark II offers exactly the same ISO settings.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73||Olympus E-M1|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..||Olympus E-M10 III|
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80||Olympus E-M1 II|
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74||Olympus PEN-F|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73||Olympus E-M5 II|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72||Olympus E-M10|
|Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72||Olympus E-P5|
|Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71||Olympus E-M5|
|Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71||Panasonic G80|
|Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71||Panasonic GX80|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75||Panasonic GX8|
|Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74||Panasonic GH4|
|Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71||Panasonic GH3|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M10 II provides a faster frame rate than the E-M1. It can shoot movie footage at 1080/60p, while the E-M1 is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The E-M1 and the E-M10 II are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Olympus E-M1 and Olympus E-M10 II along with similar information for a selection of comparators.
|Olympus E-M1||2360||n||3.0||1037||tilting||Y||1/8000s||10.0||n||Y||Olympus E-M1|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-M10 III|
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y||Olympus E-M1 II|
|Olympus PEN-F||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus PEN-F|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y||Olympus E-M5 II|
|Olympus E-M10||1440||n||3.0||1037||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10|
|Olympus E-PL7||optional||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-P5||optional||n||3.0||1037||tilting||Y||1/8000s||9.0||Y||Y||Olympus E-P5|
|Olympus E-M5||1440||n||3.0||610||tilting||Y||1/4000s||9.0||n||Y||Olympus E-M5|
|Panasonic G80||2360||n||3.0||1040||swivel||Y||1/4000s||9.0||Y||Y||Panasonic G80|
|Panasonic GX80||2765||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Panasonic GX80|
|Panasonic GX8||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y||Panasonic GX8|
|Panasonic GH4||2359||n||3.0||1036||swivel||Y||1/8000s||12.0||Y||n||Panasonic GH4|
|Panasonic GH3||1746||n||3.0||614||swivel||Y||1/4000s||6.0||Y||n||Panasonic GH3|
One difference between the cameras concerns the presence of an on-board flash. The E-M10 II has one, while the E-M1 does not. While the built-in flash of the E-M10 II is not very powerful, it can at times be useful as a fill-in light.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 and the Olympus E-M10 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M1 and the E-M10 II write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-M1||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M1|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 III|
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-||Olympus E-M1 II|
|Olympus PEN-F||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus PEN-F|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Olympus E-M5 II|
|Olympus E-M10||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10|
|Olympus E-PL7||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-P5||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-P5|
|Olympus E-M5||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-M5|
|Panasonic G80||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Panasonic G80|
|Panasonic GX80||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Panasonic GX80|
|Panasonic GX8||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-||Panasonic GX8|
|Panasonic GH4||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-||Panasonic GH4|
|Panasonic GH3||Y||stereo||mono||Y||Y||mini||2.0||Y||-||-||Panasonic GH3|
It is notable that the E-M1 has a microphone port, which is missing on the E-M10 II. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Olympus E-M1 (unlike the E-M10 II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-M1 and the E-M10 II have been discontinued, but can regularly be found used on eBay. The E-M1 was replaced by the Olympus E-M1 II, while the E-M10 II was followed by the Olympus E-M10 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So how do things add up? Is there a clear favorite between the Olympus E-M1 and the Olympus E-M10 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Olympus OM-D E-M1:
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.62x).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been on the market for longer (launched in September 2013).
Advantages of the Olympus OM-D E-M10 Mark II:
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More compact: Is smaller (120x83mm vs 130x94mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 107g or 22 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 11 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 emerges as the winner of the contest (8 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1 and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-M1 or the E-M10 II. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 5DS vs Olympus E-M1
- Canon 6D vs Olympus E-M1 II
- Canon G7 X vs Olympus E-M1 II
- Canon G7 X vs Olympus E-M10 II
- Nikon 1 V3 vs Olympus E-M1 II
- Nikon D500 vs Olympus E-M10 II
- Olympus E-M1 III vs Panasonic G9
- Olympus E-M1 vs Olympus E-M5 II
- Olympus E-M1 vs Samsung NX30
- Olympus E-M1 vs Sony A7
- Olympus E-M10 II vs Panasonic GF3
- Olympus E-M10 II vs Panasonic GH5s
Specifications: Olympus E-M1 vs Olympus E-M10 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M1||Olympus E-M10 II|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2013||August 2015|
|Launch Price||USD 1399||USD 649|
|Sensor Specs||Olympus E-M1||Olympus E-M10 II|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||15.9 Megapixels|
|Image Resolution||4608 x 3456 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.76 μm||3.76 μm|
|Pixel Density||7.08 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||200-25600 ISO||200-25600 ISO|
|ISO Boost||100-25600 ISO||100-25600 ISO|
|Image Processor||TruePIC VII||TruePic VII|
|DXO Sensor Quality (score)||73||73|
|DXO Color Depth (bits)||23.0||23.1|
|DXO Dynamic Range (EV)||12.7||12.5|
|DXO Low Light (ISO)||757||842|
|Screen Specs||Olympus E-M1||Olympus E-M10 II|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1037k dots||1040k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Shooting Specs||Olympus E-M1||Olympus E-M10 II|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000/s||1/4000/s|
|Continuous Shooting||10 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||YES||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus E-M1||Olympus E-M10 II|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Olympus E-M1||Olympus E-M10 II|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||350 shots per charge||320 shots per charge|
130 x 94 x 63 mm
(5.1 x 3.7 x 2.5 in)
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
|Camera Weight||497 g (17.5 oz)||390 g (13.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
