Olympus E-510 vs E-P3
The Olympus E-510 and the Olympus PEN E-P3 are two digital cameras that were officially introduced, respectively, in March 2007 and June 2011. The E-510 is a DSLR, while the E-P3 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-510 has a resolution of 10 megapixels, whereas the E-P3 provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-510||Olympus E-P3|
|Digital single lens reflex||Mirrorless system camera|
|Four Thirds lenses||Micro Four Thirds lenses|
|10 MP, Four Thirds Sensor||12.2 MP, Four Thirds Sensor|
|no Video||1080/60i Video|
|ISO 100-1600||ISO 200-12800|
|Optical viewfinder||Viewfinder optional|
|2.5" LCD, 215k dots||3.0" LCD, 614k dots|
|Fixed screen (not touch-sensitive)||Fixed touchscreen|
|3 shutter flaps per second||3 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|750 shots per battery charge||330 shots per battery charge|
|136 x 92 x 68 mm, 538 g||122 x 69 x 34 mm, 369 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-510 and the Olympus PEN E-P3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

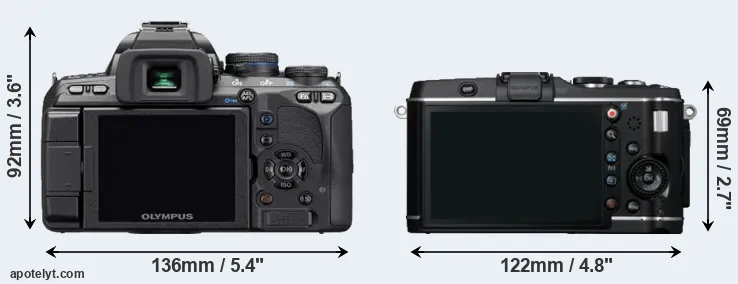

The physical size and weight of the Olympus E-510 and the Olympus E-P3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-P3 can be obtained in three different colors (black, silver, white), while the E-510 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P3 is considerably smaller (33 percent) than the Olympus E-510. Moreover, the E-P3 is markedly lighter (31 percent) than the E-510. In this context, it is worth noting that neither the E-510 nor the E-P3 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-510) and the Micro Four Thirds Lens Catalog (E-P3). Mirrorless cameras, such as the E-P3, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Olympus E-510»||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799||-||Olympus E-510|
|Olympus E-P3«||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-PL1« »||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599||-||Olympus E-PL1|
|Olympus E-600« »||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449||-||Olympus E-600|
|Olympus E-620« »||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699||-||Olympus E-620|
|Olympus E-P1« »||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799||-||Olympus E-P1|
|Olympus E-P2« »||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799||-||Olympus E-P2|
|Olympus E-30« »||5.6 in||4.3 in||3.0 in||24.7 oz||750||n||Nov 2008||1,299||-||Olympus E-30|
|Olympus E-520« »||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699||-||Olympus E-520|
|Olympus E-410« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699||-||Olympus E-410|
|Olympus E-400« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699||-||Olympus E-400|
|Olympus E-500« »||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599||-||Olympus E-500|
|Panasonic L10« »||5.3 in||3.8 in||3.1 in||19.6 oz||450||n||Aug 2007||599||-||Panasonic L10|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

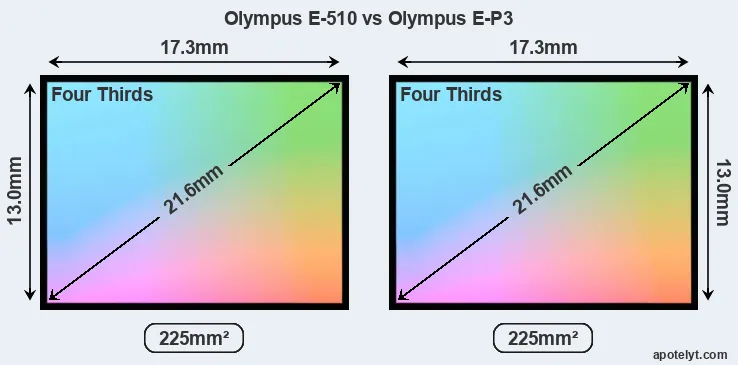

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, the E-P3 uses a more advanced image processing engine (TruePic VI) than the E-510 (TruePic III), with benefits for noise reduction, color accuracy, and processing speed.

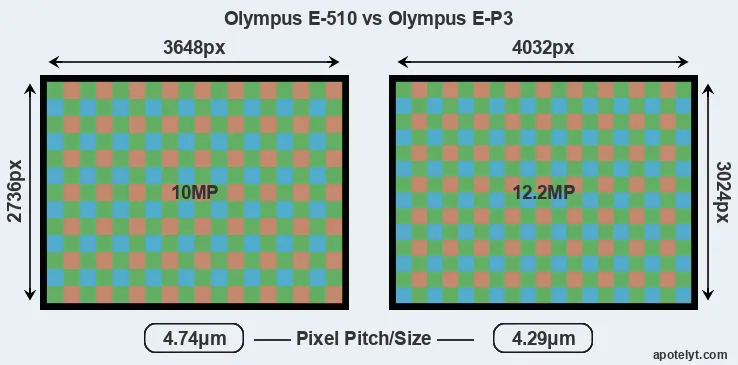

While the two cameras under review share the same sensor size, the E-P3 offers a higher resolution of 12.2 megapixels, compared with 10 MP of the E-510. This megapixels advantage translates into a 11 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-P3 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.29μm versus 4.74μm for the E-510). However, it should be noted that the E-P3 is much more recent (by 4 years and 3 months) than the E-510, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Olympus E-P3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-P3 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inch or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inch or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inch or 34.1 x 25.6 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inch or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inch or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inch or 30.9 x 23.2 cm for excellent quality prints.
The Olympus E-510 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-P3 are ISO 200 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-510»||Four Thirds||10.0||3648||2736||-||21.2||10.0||442||52||Olympus E-510|
|Olympus E-P3«||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51||Olympus E-P3|
|Olympus E-PL2« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55||Olympus E-PL2|
|Olympus E-PL3« »||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52||Olympus E-PL3|
|Olympus E-PL1« »||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54||Olympus E-PL1|
|Olympus E-600« »||Four Thirds||12.2||4032||3024||-||21.5||10.3||541||55||Olympus E-600|
|Olympus E-620« »||Four Thirds||12.2||4032||3024||-||21.3||10.3||536||55||Olympus E-620|
|Olympus E-P1« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55||Olympus E-P1|
|Olympus E-P2« »||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56||Olympus E-P2|
|Olympus E-30« »||Four Thirds||12.2||4032||3024||-||21.3||10.4||530||55||Olympus E-30|
|Olympus E-520« »||Four Thirds||10.0||3648||2736||-||21.4||10.4||548||55||Olympus E-520|
|Olympus E-410« »||Four Thirds||10.0||3648||2736||-||21.1||10.0||494||51||Olympus E-410|
|Olympus E-400« »||Four Thirds||10.0||3648||2736||-||-||-||-||-||Olympus E-400|
|Olympus E-500« »||Four Thirds||8.0||3264||2448||-||-||-||-||-||Olympus E-500|
|Panasonic L10« »||Four Thirds||10.0||3648||2736||-||21.3||10.8||429||55||Panasonic L10|
Many modern cameras are not only capable of taking still images, but can also record movies. The E-P3 indeed provides for movie recording, while the E-510 does not. The highest resolution format that the E-P3 can use is 1080/60i.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-510 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P3 relies on live view and the rear LCD for framing. That said, the E-P3 can be equipped with an optional viewfinder – the VF-3. The adjacent table lists some of the other core features of the Olympus E-510 and Olympus E-P3 along with similar information for a selection of comparators.
|Olympus E-510»||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||Y||Olympus E-510|
|Olympus E-P3«||-||n||3.0||614||fixed||Y||1/4000s||3.0||Y||Y||Olympus E-P3|
|Olympus E-PL2« »||-||n||3.0||460||fixed||n||1/4000s||3.0||Y||Y||Olympus E-PL2|
|Olympus E-PL3« »||-||n||3.0||460||tilting||n||1/4000s||5.5||n||Y||Olympus E-PL3|
|Olympus E-PL1« »||-||n||2.7||230||fixed||n||1/2000s||3.0||Y||Y||Olympus E-PL1|
|Olympus E-600« »||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-600|
|Olympus E-620« »||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-620|
|Olympus E-P1« »||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P1|
|Olympus E-P2« »||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P2|
|Olympus E-30« »||optical||Y||2.7||230||swivel||n||1/8000s||5.0||Y||Y||Olympus E-30|
|Olympus E-520« »||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||Y||Olympus E-520|
|Olympus E-410« »||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-410|
|Olympus E-400« »||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-400|
|Olympus E-500« »||optical||n||2.5||215||fixed||n||1/4000s||2.5||Y||n||Olympus E-500|
|Panasonic L10« »||optical||n||2.5||207||swivel||n||1/4000s||3.0||Y||n||Panasonic L10|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P3 has a touchscreen, while the E-510 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The E-510 writes its imaging data to Compact Flash or xD Picture cards, while the E-P3 uses SDXC cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-P3 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-510 and Olympus PEN E-P3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-510»||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-510|
|Olympus E-P3«||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P3|
|Olympus E-PL2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL2|
|Olympus E-PL3« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL3|
|Olympus E-PL1« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL1|
|Olympus E-600« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-600|
|Olympus E-620« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-620|
|Olympus E-P1« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P1|
|Olympus E-P2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P2|
|Olympus E-30« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-30|
|Olympus E-520« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-520|
|Olympus E-410« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-410|
|Olympus E-400« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-400|
|Olympus E-500« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-500|
|Panasonic L10« »||Y||-||-||-||-||-||2.0||-||-||-||Panasonic L10|
Both the E-510 and the E-P3 have been discontinued, but can regularly be found used on eBay. The E-510 was replaced by the Olympus E-520, while the E-P3 was followed by the Olympus E-P5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So how do things add up? Which of the two cameras – the Olympus E-510 or the Olympus E-P3 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Olympus E-510:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (750 versus 330) on a single battery charge.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in March 2007).
Advantages of the Olympus PEN E-P3:
- More detail: Has more megapixels (12.2 vs 10MP), which boosts linear resolution by 11%.
- Better jpgs: Has a more modern image processing engine (TruePic VI vs TruePic III).
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (614k vs 215k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More compact: Is smaller (122x69mm vs 136x92mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 169g or 31 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More modern: Reflects 4 years and 3 months of technical progress since the E-510 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-P3 is the clear winner of the contest (10 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-510 and the Olympus E-P3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-510 or the E-P3. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-510»||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799||-||Olympus E-510|
|Olympus E-P3«||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||+ +||72/100||4.5/5||-||4/5||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-PL1« »||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599||-||Olympus E-PL1|
|Olympus E-600« »||-||-||-||-||4.5/5||Aug 2009||449||-||Olympus E-600|
|Olympus E-620« »||88/100||72/100||4.5/5||o||5/5||Feb 2009||699||-||Olympus E-620|
|Olympus E-P1« »||+||66/100||4/5||4/5||4.5/5||Jun 2009||799||-||Olympus E-P1|
|Olympus E-P2« »||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799||-||Olympus E-P2|
|Olympus E-30« »||-||71/100||4.5/5||-||4/5||Nov 2008||1,299||-||Olympus E-30|
|Olympus E-520« »||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699||-||Olympus E-520|
|Olympus E-410« »||86/100||+ +||4/5||o||4.5/5||Mar 2007||699||-||Olympus E-410|
|Olympus E-400« »||85/100||-||4/5||-||4/5||Sep 2006||699||-||Olympus E-400|
|Olympus E-500« »||76/100||+ +||-||-||-||Sep 2005||599||-||Olympus E-500|
|Panasonic L10« »||85/100||+||3.5/5||o||4/5||Aug 2007||599||-||Panasonic L10|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1000D vs Olympus E-P3
- Canon 6D Mark II vs Olympus E-P3
- Canon D60 vs Olympus E-510
- Canon D60 vs Olympus E-P3
- Canon M100 vs Olympus E-510
- Canon T6i vs Olympus E-510
- Fujifilm X-T30 vs Olympus E-510
- Olympus E-510 vs Pentax K-1 II
- Olympus E-510 vs Ricoh WG-60
- Olympus E-510 vs Sony A6400
- Olympus E-510 vs Sony A7S II
- Olympus E-510 vs Sony HX400V
Specifications: Olympus E-510 vs Olympus E-P3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-510||Olympus E-P3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||March 2007||June 2011|
|Launch Price||USD 799||USD 799|
|Sensor Specs||Olympus E-510||Olympus E-P3|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||10 Megapixels||12.2 Megapixels|
|Image Resolution||3648 x 2736 pixels||4032 x 3024 pixels|
|Pixel Pitch||4.74 μm||4.29 μm|
|Pixel Density||4.44 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100-1600 ISO||200-12800 ISO|
|Image Processor||TruePic III||TruePic VI|
|DXO Sensor Quality (score)||52||51|
|DXO Color Depth (bits)||21.2||20.8|
|DXO Dynamic Range (EV)||10.0||10.1|
|DXO Low Light (ISO)||442||536|
|Screen Specs||Olympus E-510||Olympus E-P3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.5 inch||3.0 inch|
|LCD Resolution||215k dots||614k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-510||Olympus E-P3|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-510||Olympus E-P3|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Olympus E-510||Olympus E-P3|
|Battery Life (CIPA)||750 shots per charge||330 shots per charge|
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
122 x 69 x 34 mm
(4.8 x 2.7 x 1.3 in)
|Camera Weight||538 g (19.0 oz)||369 g (13.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
