Olympus E-510 vs E-M5

The Olympus E-510 and the Olympus OM-D E-M5 are two digital cameras that were officially introduced, respectively, in March 2007 and February 2012. The E-510 is a DSLR, while the E-M5 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-510 has a resolution of 10 megapixels, whereas the E-M5 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-510   Olympus E-M5
Olympus E-510 Olympus E-M5
Digital single lens reflex Mirrorless system camera
Four Thirds lenses Micro Four Thirds lenses
10 MP, Four Thirds Sensor 15.9 MP, Four Thirds Sensor
no Video 1080/60i Video
ISO 100-1600 ISO 200-25600
Optical viewfinder Electronic viewfinder (1440k dots)
2.5" LCD, 215k dots 3.0" LCD, 610k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
3 shutter flaps per second 9 shutter flaps per second
In-body stabilizationIn-body stabilization
Not weather sealedWeathersealed body
750 shots per battery charge360 shots per battery charge
136 x 92 x 68 mm, 538 g 122 x 89 x 43 mm, 425 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-510 and the Olympus OM-D E-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Olympus E-510 and the Olympus E-M5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The E-M5 can be obtained in two different colors (black, silver), while the E-510 is only available in black.

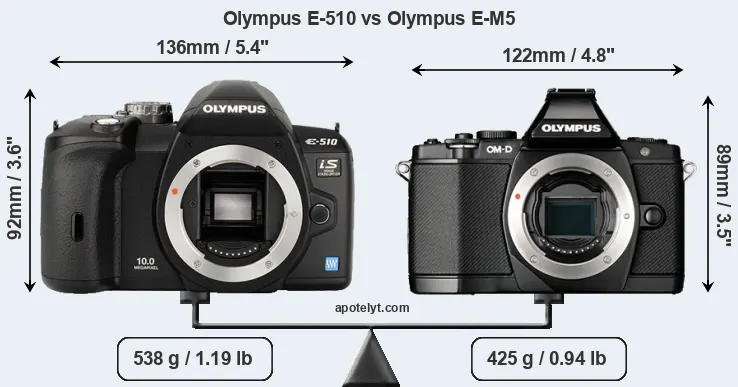

Size Olympus E-510 vs Olympus E-M5

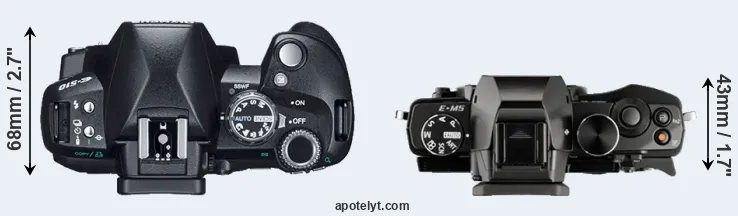

Compare E-510 versus E-M5 top

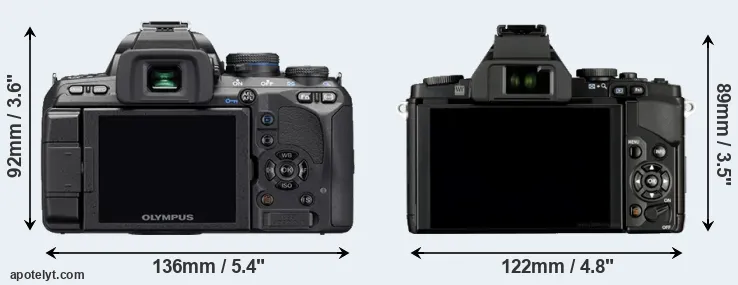

Comparison E-510 or E-M5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 is notably smaller (13 percent) than the Olympus E-510. Moreover, the E-M5 is markedly lighter (21 percent) than the E-510. It is noteworthy in this context that the E-M5 is splash and dust-proof, while the E-510 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-510) and the Micro Four Thirds Lens Catalog (E-M5). Mirrorless cameras, such as the E-M5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-510 gets 750 shots out of its BLM-1 battery, while the E-M5 can take 360 images on a single charge of its BLN-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-510» 5.4 in 3.6 in 2.7 in 19.0 oz 750 n Mar 2007 799- i Olympus E-510

Olympus E-M5« 4.8 in 3.5 in 1.7 in 15.0 oz 360 Y Feb 2012 1,299- i Olympus E-M5

Olympus PEN-F« » 4.9 in 2.8 in 1.5 in 15.1 oz 330 n Jan 2016 1,199 i i Olympus PEN-F

Olympus E-M5 II« » 4.9 in 3.3 in 1.8 in 16.5 oz 310 Y Feb 2015 1,099 i i Olympus E-M5 II

Olympus E-M1« » 5.1 in 3.7 in 2.5 in 17.5 oz 350 Y Sep 2013 1,399- i Olympus E-M1

Olympus E-P5« » 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5

Olympus E-P3« » 4.8 in 2.7 in 1.3 in 13.0 oz 330 n Jun 2011 799- i Olympus E-P3

Olympus E-600« » 5.1 in 3.7 in 2.4 in 18.9 oz 500 n Aug 2009 449- i Olympus E-600

Olympus E-620« » 5.1 in 3.7 in 2.4 in 18.4 oz 500 n Feb 2009 699- i Olympus E-620

Olympus E-P1« » 4.8 in 2.8 in 1.4 in 12.5 oz 300 n Jun 2009 799- i Olympus E-P1

Olympus E-30« » 5.6 in 4.3 in 3.0 in 24.7 oz 750 n Nov 2008 1,299- i Olympus E-30

Olympus E-520« » 5.4 in 3.6 in 2.7 in 18.9 oz 750 n May 2008 699- i Olympus E-520

Olympus E-410« » 5.1 in 3.6 in 2.1 in 15.3 oz 500 n Mar 2007 699- i Olympus E-410

Olympus E-400« » 5.1 in 3.6 in 2.1 in 15.3 oz 500 n Sep 2006 699- i Olympus E-400

Olympus E-500« » 5.1 in 3.7 in 2.6 in 16.9 oz 750 n Sep 2005 599- i Olympus E-500

Panasonic GX7« » 4.8 in 2.8 in 2.2 in 14.2 oz 350 n Aug 2013 999- i Panasonic GX7

Panasonic L10« » 5.3 in 3.8 in 3.1 in 19.6 oz 450 n Aug 2007 599- i Panasonic L10
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-510 was launched at a markedly lower price (by 38 percent) than the E-M5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-M5 uses a more advanced image processing engine (TruePic VI) than the E-510 (TruePic III), with benefits for noise reduction, color accuracy, and processing speed.

Olympus E-510 and Olympus E-M5 sensor measures

While the two cameras under review share the same sensor size, the E-M5 offers a higher resolution of 15.9 megapixels, compared with 10 MP of the E-510. This megapixels advantage translates into a 26 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.74μm for the E-510). However, it should be noted that the E-M5 is much more recent (by 4 years and 11 months) than the E-510, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Olympus E-M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inch or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inch or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inch or 39 x 29.3 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inch or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inch or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inch or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-510 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus OM-D E-M5 are ISO 200 to ISO 25600 (no boost).

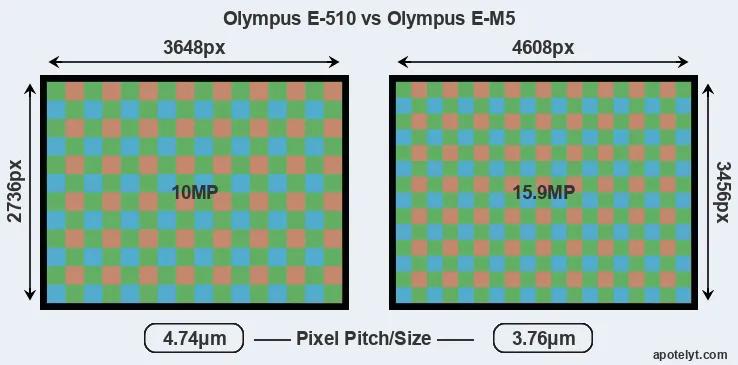

E-510 versus E-M5 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-M5 offers substantially better image quality than the E-510 (overall score 19 points higher). The advantage is based on 1.6 bits higher color depth, 2.3 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Olympus E-510» Four Thirds 10.0 3648 2736-21.210.044252Olympus E-510

Olympus E-M5« Four Thirds 15.9 4608 34561080/60i22.812.382671Olympus E-M5

Olympus PEN-F« » Four Thirds 20.2 5184 38881080/60p23.112.489474Olympus PEN-F

Olympus E-M5 II« » Four Thirds 15.9 4608 34561080/60p23.012.584273Olympus E-M5 II

Olympus E-M1« » Four Thirds 15.9 4608 34561080/30p23.012.775773Olympus E-M1

Olympus E-P5« » Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5

Olympus E-P3« » Four Thirds 12.2 4032 30241080/60i20.810.153651Olympus E-P3

Olympus E-600« » Four Thirds 12.2 4032 3024-21.510.354155Olympus E-600

Olympus E-620« » Four Thirds 12.2 4032 3024-21.310.353655Olympus E-620

Olympus E-P1« » Four Thirds 12.2 4032 3024720/30p21.410.453655Olympus E-P1

Olympus E-30« » Four Thirds 12.2 4032 3024-21.310.453055Olympus E-30

Olympus E-520« » Four Thirds 10.0 3648 2736-21.410.454855Olympus E-520

Olympus E-410« » Four Thirds 10.0 3648 2736-21.110.049451Olympus E-410

Olympus E-400« » Four Thirds 10.0 3648 2736-----Olympus E-400

Olympus E-500« » Four Thirds 8.0 3264 2448-----Olympus E-500

Panasonic GX7« » Four Thirds 15.8 4592 34481080/60p22.612.271870Panasonic GX7

Panasonic L10« » Four Thirds 10.0 3648 2736-21.310.842955Panasonic L10

Many modern cameras cannot only take still pictures, but also record videos. The E-M5 indeed provides for movie recording, while the E-510 does not. The highest resolution format that the E-M5 can use is 1080/60i.



Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M5 has an electronic viewfinder (1440k dots), while the E-510 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M5 offers a wider field of view (100%) than the one in the E-510 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M5 has a higher magnification (0.58x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-510 and Olympus E-M5 along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Olympus E-510»optical n 2.5 215 fixed n 1/4000s 3.0 Y Y Olympus E-510

Olympus E-M5«1440 n 3.0 610 tilting Y 1/4000s 9.0 n Y Olympus E-M5

Olympus PEN-F« »2360 n 3.0 1037 swivel Y 1/8000s 10.0 n Y Olympus PEN-F

Olympus E-M5 II« »2360 n 3.0 1037 swivel Y 1/8000s 10.0 n Y Olympus E-M5 II

Olympus E-M1« »2360 n 3.0 1037 tilting Y 1/8000s 10.0 n Y Olympus E-M1

Olympus E-P5« »- n 3.0 1037 tilting Y 1/8000s 9.0 Y Y Olympus E-P5

Olympus E-P3« »- n 3.0 614 fixed Y 1/4000s 3.0 Y Y Olympus E-P3

Olympus E-600« »optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-600

Olympus E-620« »optical n 2.7 230 swivel n 1/4000s 4.0 Y Y Olympus E-620

Olympus E-P1« »- n 3.0 230 fixed n 1/4000s 3.0 n Y Olympus E-P1

Olympus E-30« »optical Y 2.7 230 swivel n 1/8000s 5.0 Y Y Olympus E-30

Olympus E-520« »optical n 2.7 215 fixed n 1/4000s 3.5 Y Y Olympus E-520

Olympus E-410« »optical n 2.5 215 fixed n 1/4000s 3.0 Y n Olympus E-410

Olympus E-400« »optical n 2.5 215 fixed n 1/4000s 3.0 Y n Olympus E-400

Olympus E-500« »optical n 2.5 215 fixed n 1/4000s 2.5 Y n Olympus E-500

Panasonic GX7« »2760 n 3.0 1040 tilting Y 1/8000s 5.0 Y Y Panasonic GX7

Panasonic L10« »optical n 2.5 207 swivel n 1/4000s 3.0 Y n Panasonic L10

One difference between the cameras concerns the presence of an on-board flash. The E-510 has one, while the E-M5 does not. While the built-in flash of the E-510 is not very powerful, it can at times be useful as a fill-in light.

The E-510 writes its imaging data to Compact Flash or xD Picture cards, while the E-M5 uses SDXC cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M5 only has one slot.



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-510 and Olympus OM-D E-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Olympus E-510»Y-----2.0---Olympus E-510

Olympus E-M5«Ystereomono--mini2.0---Olympus E-M5

Olympus PEN-F« »Ystereomono--micro2.0Y--Olympus PEN-F

Olympus E-M5 II« »YstereomonoY-micro2.0Y--Olympus E-M5 II

Olympus E-M1« »YstereomonoY-micro2.0Y--Olympus E-M1

Olympus E-P5« »Ystereomono--micro2.0Y--Olympus E-P5

Olympus E-P3« »Ystereo---mini2.0---Olympus E-P3

Olympus E-600« »Y-----2.0---Olympus E-600

Olympus E-620« »Y-----2.0---Olympus E-620

Olympus E-P1« »Ystereo---mini2.0---Olympus E-P1

Olympus E-30« »Y-----2.0---Olympus E-30

Olympus E-520« »Y-----2.0---Olympus E-520

Olympus E-410« »Y-----2.0---Olympus E-410

Olympus E-400« »Y-----2.0---Olympus E-400

Olympus E-500« »Y-----2.0---Olympus E-500

Panasonic GX7« »Ystereomono--mini2.0YY-Panasonic GX7

Panasonic L10« »Y-----2.0---Panasonic L10

Both the E-510 and the E-M5 have been discontinued, but can regularly be found used on eBay. The E-510 was replaced by the Olympus E-520, while the E-M5 was followed by the Olympus E-M5 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.


Review summary

So what is the bottom line? Which of the two cameras – the Olympus E-510 or the Olympus E-M5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.


Advantages of the Olympus E-510:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (750 versus 360) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in March 2007).


Arguments in favor of the Olympus OM-D E-M5:

  • More detail: Has more megapixels (15.9 vs 10MP), which boosts linear resolution by 26%.
  • Better image quality: Scores substantially higher (19 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.3 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (0.9 stops ISO advantage).
  • Better jpgs: Has a more modern image processing engine (TruePic VI vs TruePic III).
  • Broader imaging potential: Can capture not only stills but also 1080/60i video.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.46x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (610k vs 215k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (9 vs 3 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (122x89mm vs 136x92mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 113g or 21 percent) and is thus easier to take along.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More modern: Reflects 4 years and 11 months of technical progress since the E-510 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 is the clear winner of the contest (20 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-510 06:20 E-M5

How about other alternatives? Do the specifications of the Olympus E-510 and the Olympus E-M5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-510 or the E-M5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Olympus E-510»89/100+ +3.5/5o4.5/5 Mar 2007 799- i Olympus E-510

Olympus E-M5«+ +80/1004.5/55/55/5 Feb 2012 1,299- i Olympus E-M5

Olympus PEN-F« »-82/1004.5/54.5/55/5 Jan 2016 1,199 i i Olympus PEN-F

Olympus E-M5 II« »+ +81/1005/54.5/55/5 Feb 2015 1,099 i i Olympus E-M5 II

Olympus E-M1« »+ +84/1004.5/54.5/54.5/5 Sep 2013 1,399- i Olympus E-M1

Olympus E-P5« »+ +78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5

Olympus E-P3« »83/10074/1004.5/54.5/54.5/5 Jun 2011 799- i Olympus E-P3

Olympus E-600« »----4.5/5 Aug 2009 449- i Olympus E-600

Olympus E-620« »88/10072/1004.5/5o5/5 Feb 2009 699- i Olympus E-620

Olympus E-P1« »+66/1004/54/54.5/5 Jun 2009 799- i Olympus E-P1

Olympus E-30« »-71/1004.5/5-4/5 Nov 2008 1,299- i Olympus E-30

Olympus E-520« »87/100+ +4.5/54/54.5/5 May 2008 699- i Olympus E-520

Olympus E-410« »86/100+ +4/5o4.5/5 Mar 2007 699- i Olympus E-410

Olympus E-400« »85/100-4/5-4/5 Sep 2006 699- i Olympus E-400

Olympus E-500« »76/100+ +--- Sep 2005 599- i Olympus E-500

Panasonic GX7« »+79/1005/54.5/55/5 Aug 2013 999- i Panasonic GX7

Panasonic L10« »85/100+3.5/5o4/5 Aug 2007 599- i Panasonic L10
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Olympus E-510:
Check Ebay offers
Olympus E-M5:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Olympus E-510 vs Olympus E-M5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-510 Olympus E-M5
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Four Thirds lenses Micro Four Thirds lenses
    Launch Date March 2007 February 2012
    Launch Price USD 799 USD 1299
    Sensor Specs Olympus E-510 Olympus E-M5
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 10 Megapixels 15.9 Megapixels
    Image Resolution 3648 x 2736 pixels 4608 x 3456 pixels
    Pixel Pitch 4.74 μm 3.76 μm
    Pixel Density 4.44 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video 1080/60i Video
    ISO Setting 100-1600 ISO 200-25600 ISO
    Image Processor TruePic III TruePic VI
    DXO Sensor Quality (score) 52 71
    DXO Color Depth (bits) 21.2 22.8
    DXO Dynamic Range (EV) 10.0 12.3
    DXO Low Light (ISO) 442 826
    Screen Specs Olympus E-510 Olympus E-M5
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.46x 0.58x
    Viewfinder Resolution 1440k dots
    LCD Framing Live View Live View
    Rear LCD Size 2.5 inch 3.0 inch
    LCD Resolution 215k dots 610k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-510 Olympus E-M5
    Autofocus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 3 shutter flaps/s 9 shutter flaps/s
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash Build-in Flash no On-Board Flash
    Storage Medium CF or XD cards SDXC cards
    Second Storage Option Dual card slots Single card slot
    Connectivity Specs Olympus E-510 Olympus E-M5
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI mini HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Olympus E-510 Olympus E-M5
    Environmental SealingNot weather sealedWeathersealed body
    Battery Type BLM-1 BLN-1
    Battery Life (CIPA)750 shots per charge360 shots per charge
    Body Dimensions 136 x 92 x 68 mm
    (5.4 x 3.6 x 2.7 in)
    122 x 89 x 43 mm
    (4.8 x 3.5 x 1.7 in)
    Camera Weight 538 g (19.0 oz) 425 g (15.0 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-510 vs Olympus E-M5
