Olympus E-5 vs E-PL2

The Olympus E-5 and the Olympus PEN E-PL2 are two digital cameras that were announced, respectively, in September 2010 and January 2011. The E-5 is a DSLR, while the E-PL2 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. Both cameras offer a resolution of 12.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-5		Olympus E-PL2
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
12.2 MP – Four Thirds sensor		12.2 MP – Four Thirds sensor
720/30p Video		720/30p Video
ISO 100-6,400		ISO 200-6,400
Optical viewfinder		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		3 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		not weather sealed
750 shots per battery charge		280 shots per battery charge
142 x 117 x 75 mm, 873 g		114 x 72 x 42 mm, 362 g

Check E-5 offers at
ebay.com
Check E-PL2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-5 and the Olympus PEN E-PL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

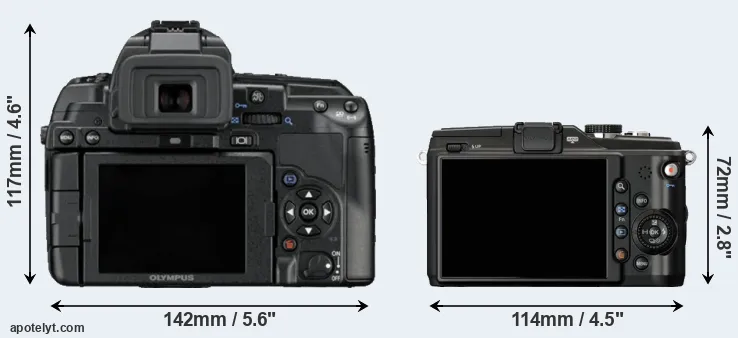

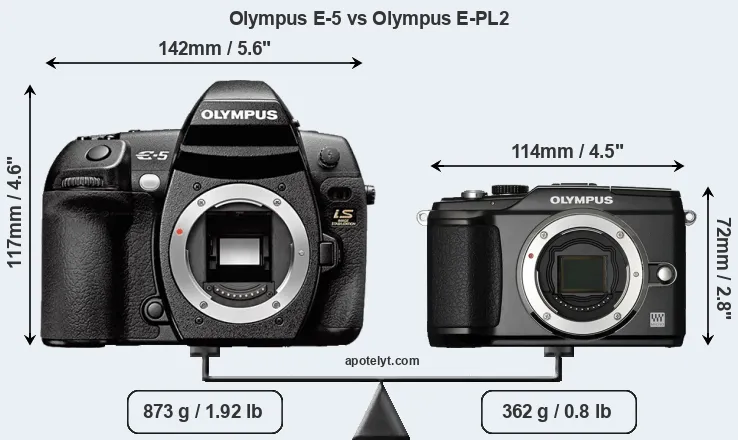

An illustration of the physical size and weight of the Olympus E-5 and the Olympus E-PL2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL2 can be obtained in four different colors (black, silver, red, white), while the E-5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL2 is considerably smaller (51 percent) than the Olympus E-5. Moreover, the E-PL2 is substantially lighter (59 percent) than the E-5. It is worth mentioning in this context that the E-5 is splash and dust resistant, while the E-PL2 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-5) and the Micro Four Thirds Lens Catalog (E-PL2). Mirrorless cameras, such as the E-PL2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-5 gets 750 shots out of its Olympus BLM-5 battery, while the E-PL2 can take 280 images on a single charge of its Olympus BLS-5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	US$ 1 699	ebay.com
2.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
3.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	US$ 1 699	ebay.com
4.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
5.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
6.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
7.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
8.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
10.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
11.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
12.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
13.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
15.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL2 was launched at a markedly lower price (by 65 percent) than the E-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

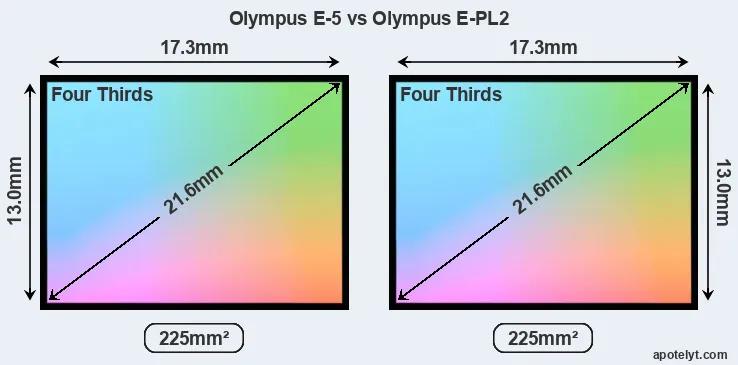

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the E-5 uses a more advanced image processing engine (TruePic V+) than the E-PL2 (Truepic V), with benefits for noise reduction, color accuracy, and processing speed.

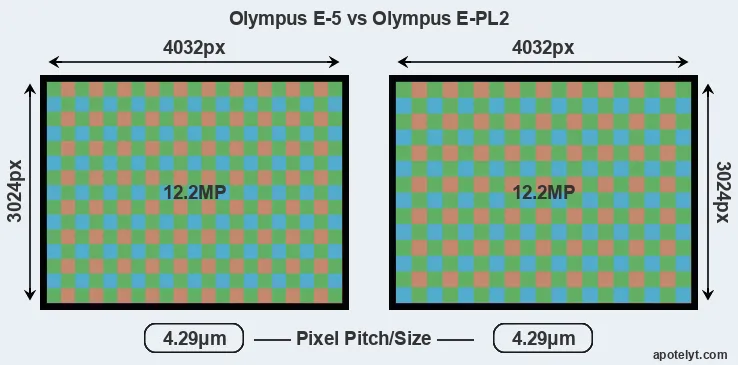

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 12.2 megapixels. This similarity in sensor specs implies that both the E-5 and the E-PL2 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-PL2 is a somewhat more recent model (by 3 months) than the E-5, and its sensor might have benefitted from technological advances during this time.

The Olympus E-5 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Olympus PEN E-PL2 are ISO 200 to ISO 6400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
2.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
3.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
4.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
5.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
6.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
7.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
8.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
9.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
10.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
11.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
12.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
13.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
14.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
15.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (720/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL2 relies on live view and the rear LCD for framing. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Olympus E-5, the Olympus E-PL2, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
2.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
3.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
4.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
5.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
6.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
7.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
8.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
9.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
11.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
13.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
14.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
15.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-5, but is missing on the E-PL2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-5 writes its imaging data to Compact Flash or xD Picture cards, while the E-PL2 uses SDHC cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL2 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-5 and Olympus PEN E-PL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Olympus E-5 (unlike the E-PL2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-5 and the E-PL2 have been discontinued, but can regularly be found used on ebay. The E-PL2 was replaced by the Olympus E-PL3, while the E-5 does not have a direct successor. Further information on the features and operation of the E-5 and E-PL2 can be found, respectively, in the Olympus E-5 Manual (free pdf) or the online Olympus E-PL2 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Olympus E-5 and the Olympus E-PL2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Olympus E-5:

• Better jpgs: Has a more modern image processing engine (TruePic V+ vs Truepic V).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (750 versus 280) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been on the market for longer (launched in September 2010).

Arguments in favor of the Olympus PEN E-PL2:

• More compact: Is smaller (114x72mm vs 142x117mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 511g or 59 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
• More modern: Was introduced somewhat (3 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the E-5 is the clear winner of the match-up (13 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-5 and the Olympus E-PL2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-5 or the E-PL2. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	US$ 1 699	ebay.com
2.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
3.		Olympus E-1	..	..	..	+	o	..	Jun 2003	US$ 1 699	ebay.com
4.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
5.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
6.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
7.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
8.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
10.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
11.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
12.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
13.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
15.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
