Olympus E-1 vs E-PL8
The Olympus E-1 and the Olympus PEN E-PL8 are two digital cameras that were announced, respectively, in June 2003 and September 2016. The E-1 is a DSLR, while the E-PL8 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-1 has a resolution of 4.9 megapixels, whereas the E-PL8 provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-1||Olympus E-PL8|
|Digital single lens reflex||Mirrorless system camera|
|Four Thirds lenses||Micro Four Thirds lenses|
|4.9 MP, Four Thirds Sensor||15.9 MP, Four Thirds Sensor|
|no Video||1080/30p Video|
|ISO 100-800 (100-3200)||ISO 200-6400 (100-25600)|
|Optical viewfinder||No viewfinder, LCD framing|
|1.8" LCD, 134k dots||3.0" LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|3 shutter flaps per second||8 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Not weather sealed|
|750 shots per battery charge||350 shots per battery charge|
|141 x 104 x 81 mm, 738 g||115 x 67 x 38 mm, 357 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-1 and the Olympus PEN E-PL8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Olympus E-1 vs E-PL8

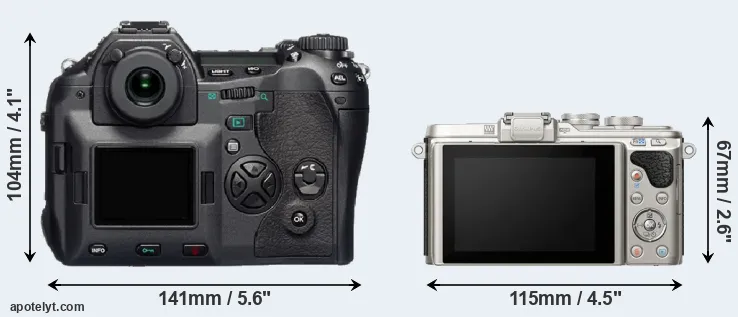

The side-by-side display below illustrates the physical size and weight of the Olympus E-1 and the Olympus E-PL8. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL8 can be obtained in three different colors (black, brown, white), while the E-1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL8 is considerably smaller (47 percent) than the Olympus E-1. Moreover, the E-PL8 is substantially lighter (52 percent) than the E-1. It is worth mentioning in this context that the E-1 is splash and dust resistant, while the E-PL8 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-1) and the Micro Four Thirds Lens Catalog (E-PL8). Mirrorless cameras, such as the E-PL8, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Olympus E-1»||5.6 in||4.1 in||3.2 in||26.0 oz||750||Y||Jun 2003||1,699||-||Olympus E-1|
|Olympus E-PL8«||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Sep 2016||549||-||Olympus E-PL8|
|Canon 6D Mark II« »||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||-||Canon 7D|
|Leica Digilux 3« »||5.7 in||3.4 in||3.0 in||21.4 oz||750||n||Sep 2006||1,499||-||Leica Digilux 3|
|Nikon D500« »||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999||Nikon D500|
|Nikon D610« »||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999||Nikon D610|
|Nikon D7000« »||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499||-||Nikon D7000|
|Olympus E-PL9« »||4.6 in||2.7 in||1.5 in||13.4 oz||350||n||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M10 II« »||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-PL7« »||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-5« »||5.6 in||4.6 in||3.0 in||30.8 oz||750||Y||Sep 2010||1,699||-||Olympus E-5|
|Olympus E-3« »||5.6 in||4.6 in||3.0 in||30.9 oz||750||Y||Oct 2007||1,699||-||Olympus E-3|
|Olympus E-330« »||5.5 in||3.4 in||2.8 in||22.5 oz||750||n||Jan 2006||999||-||Olympus E-330|
|Olympus E-300« »||5.8 in||3.3 in||2.5 in||22.0 oz||750||n||Sep 2004||799||-||Olympus E-300|
|Panasonic G7« »||4.9 in||3.4 in||3.0 in||14.5 oz||350||n||May 2015||649||-||Panasonic G7|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL8 was launched at a markedly lower price (by 68 percent) than the E-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

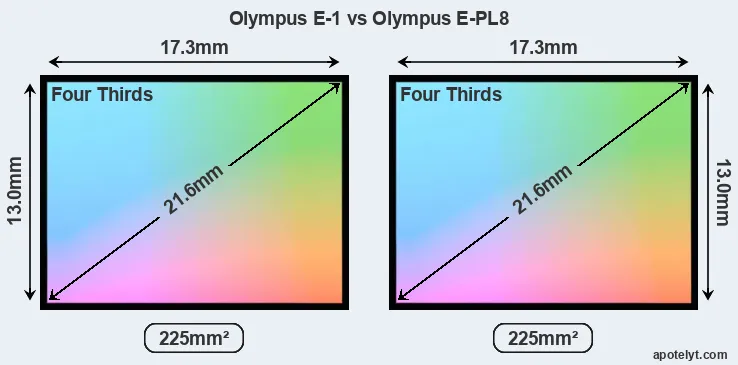

Sensor comparison: Olympus E-1 vs E-PL8
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, the E-PL8 uses a more advanced image processing engine (TruePic VII) than the E-1 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.
While the two cameras under review share the same sensor size, the E-PL8 offers a higher resolution of 15.9 megapixels, compared with 4.9 MP of the E-1. This megapixels advantage translates into a 80 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-PL8 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 6.78μm for the E-1). However, it should be noted that the E-PL8 is much more recent (by 13 years and 2 months) than the E-1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Olympus E-PL8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL8 for good quality output (200 dots per inch) amounts to 23 x 17.3 inch or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inch or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inch or 39 x 29.3 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inch or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inch or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inch or 21.7 x 16.3 cm for excellent quality prints.
The Olympus E-1 has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus PEN E-PL8 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Olympus E-1»||Four Thirds||4.9||2560||1920||-||-||-||-||-||Olympus E-1|
|Olympus E-PL8«||Four Thirds||15.9||4608||3456||1080/30p||-||-||-||-||Olympus E-PL8|
|Canon 6D Mark II« »||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 7D« »||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Leica Digilux 3« »||Four Thirds||7.4||3136||2352||-||-||-||-||-||Leica Digilux 3|
|Nikon D500« »||APS-C||20.7||5568||3712||4K/30p||24.0||14.0||1324||83||Nikon D500|
|Nikon D610« »||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94||Nikon D610|
|Nikon D7000« »||APS-C||16.1||4928||3264||10800/24p||23.5||13.9||1167||80||Nikon D7000|
|Olympus E-PL9« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-PL9|
|Olympus E-M10 III« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-M10 III|
|Olympus E-M10 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-PL7« »||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-5« »||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56||Olympus E-5|
|Olympus E-3« »||Four Thirds||10.0||3648||2736||-||21.6||10.5||571||56||Olympus E-3|
|Olympus E-330« »||Four Thirds||7.4||3136||2352||-||-||-||-||-||Olympus E-330|
|Olympus E-300« »||Four Thirds||8.0||3264||2448||-||-||-||-||-||Olympus E-300|
|Panasonic G7« »||Four Thirds||15.8||4592||3448||4K/30p||-||-||-||-||Panasonic G7|
Many modern cameras cannot only take still pictures, but also record videos. The E-PL8 indeed provides for movie recording, while the E-1 does not. The highest resolution format that the E-PL8 can use is 1080/30p.
Feature comparison: Olympus E-1 vs E-PL8
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL8 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Olympus E-1 and Olympus E-PL8 in connection with corresponding information for a sample of similar cameras.
|Olympus E-1»||optical||Y||1.8||134||fixed||n||1/4000s||3.0||n||n||Olympus E-1|
|Olympus E-PL8«||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL8|
|Canon 6D Mark II« »||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 7D« »||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Leica Digilux 3« »||optical||n||2.5||207||fixed||n||1/4000s||3.0||Y||n||Leica Digilux 3|
|Nikon D500« »||optical||Y||3.2||2359||tilting||Y||1/8000s||10.0||n||n||Nikon D500|
|Nikon D610« »||optical||Y||3.2||921||fixed||n||1/4000s||6.0||Y||n||Nikon D610|
|Nikon D7000« »||optical||Y||3.0||921||fixed||n||1/8000s||6.0||Y||n||Nikon D7000|
|Olympus E-PL9« »||-||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-PL9|
|Olympus E-M10 III« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-M10 III|
|Olympus E-M10 II« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-PL7« »||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-5« »||optical||Y||3.0||920||swivel||n||1/8000s||5.0||Y||Y||Olympus E-5|
|Olympus E-3« »||optical||Y||2.5||230||swivel||n||1/8000s||5.0||Y||Y||Olympus E-3|
|Olympus E-330« »||optical||n||2.5||215||tilting||n||1/4000s||3.0||Y||n||Olympus E-330|
|Olympus E-300« »||optical||n||1.8||134||fixed||n||1/4000s||2.5||Y||n||Olympus E-300|
|Panasonic G7« »||2360||n||3.0||1040||swivel||Y||1/4000s||7.0||Y||n||Panasonic G7|
One feature that is present on the E-1, but is missing on the E-PL8 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The E-PL8 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-1 does not have a selfie-screen.
The Olympus E-PL8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-1 writes its imaging data to Compact Flash or xD Picture cards, while the E-PL8 uses SDXC cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL8 only has one slot.
Connectivity comparison: Olympus E-1 vs E-PL8
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-1 and Olympus PEN E-PL8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-1»||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-1|
|Olympus E-PL8«||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL8|
|Canon 6D Mark II« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 7D« »||Y||mono||-||Y||-||mini||2.0||-||-||-||Canon 7D|
|Leica Digilux 3« »||Y||stereo||mono||-||-||-||2.0||-||-||-||Leica Digilux 3|
|Nikon D500« »||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D500|
|Nikon D610« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D610|
|Nikon D7000« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Nikon D7000|
|Olympus E-PL9« »||Y||stereo||mono||-||-||micro||2.0||Y||-||Y||Olympus E-PL9|
|Olympus E-M10 III« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 III|
|Olympus E-M10 II« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-PL7« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-5« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-5|
|Olympus E-3« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-3|
|Olympus E-330« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-330|
|Olympus E-300« »||Y||-||-||-||-||-||2.0||-||-||-||Olympus E-300|
|Panasonic G7« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Panasonic G7|
It is notable that the E-PL8 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-1 does not offer wifi capability.
Studio photographers will appreciate that the Olympus E-1 (unlike the E-PL8) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-1 and the E-PL8 have been discontinued, but can regularly be found used on eBay. The E-1 was replaced by the Olympus E-3, while the E-PL8 was followed by the Olympus E-PL9. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
Review summary: Olympus E-1 vs E-PL8
So how do things add up? Is there a clear favorite between the Olympus E-1 and the Olympus E-PL8? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Olympus E-1:
- Easier framing: Has an optical viewfinder for image framing and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Longer lasting: Can take more shots (750 versus 350) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in June 2003).
Advantages of the Olympus PEN E-PL8:
- More detail: Has more megapixels (15.9 vs 4.9MP), which boosts linear resolution by 80%.
- Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 134k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (115x67mm vs 141x104mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 381g or 52 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (68 percent cheaper at launch).
- More modern: Reflects 13 years and 2 months of technical progress since the E-1 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL8 is the clear winner of the contest (17 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-1 and the Olympus E-PL8 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-1 or the E-PL8. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews: Olympus E-1 vs E-PL8
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-1»||-||+||o||o||-||Jun 2003||1,699||-||Olympus E-1|
|Olympus E-PL8«||-||-||4.5/5||-||4/5||Sep 2016||549||-||Olympus E-PL8|
|Canon 6D Mark II« »||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999||Canon 6D Mark II|
|Canon 7D« »||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699||-||Canon 7D|
|Leica Digilux 3« »||-||-||-||-||-||Sep 2006||1,499||-||Leica Digilux 3|
|Nikon D500« »||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999||Nikon D500|
|Nikon D610« »||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999||Nikon D610|
|Nikon D7000« »||-||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499||-||Nikon D7000|
|Olympus E-PL9« »||+||-||4.5/5||-||4/5||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649||Olympus E-M10 III|
|Olympus E-M10 II« »||+ +||80/100||5/5||5/5||5/5||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-PL7« »||+||-||5/5||4.5/5||4/5||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-5« »||-||75/100||4/5||-||4.5/5||Sep 2010||1,699||-||Olympus E-5|
|Olympus E-3« »||88/100||+ +||o||o||4/5||Oct 2007||1,699||-||Olympus E-3|
|Olympus E-330« »||-||+||o||3.5/5||-||Jan 2006||999||-||Olympus E-330|
|Olympus E-300« »||-||+||o||o||4.5/5||Sep 2004||799||-||Olympus E-300|
|Panasonic G7« »||+ +||80/100||5/5||4.5/5||4.5/5||May 2015||649||-||Panasonic G7|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D X Mark II vs Olympus E-PL8
- Canon 6D Mark II vs Olympus E-1
- Canon 7D II vs Olympus E-PL8
- Canon 80D vs Olympus E-PL8
- Canon G16 vs Olympus E-PL8
- Canon SX60 vs Olympus E-1
- Fujifilm X-E1 vs Olympus E-PL8
- Fujifilm X-Pro2 vs Olympus E-PL8
- Olympus E-1 vs Panasonic GF7
- Olympus E-M5 II vs Olympus E-PL8
- Olympus E-PL8 vs Panasonic FZ330
- Olympus E-PL8 vs Sony RX100 IV
Specifications: Olympus E-1 vs Olympus E-PL8
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-1||Olympus E-PL8|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||June 2003||September 2016|
|Launch Price||USD 1699||USD 549|
|Sensor Specs||Olympus E-1||Olympus E-PL8|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||4.9 Megapixels||15.9 Megapixels|
|Image Resolution||2560 x 1920 pixels||4608 x 3456 pixels|
|Pixel Pitch||6.78 μm||3.76 μm|
|Pixel Density||2.19 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-800 ISO||200-6400 ISO|
|ISO Boost||100-3200 ISO||100-25600 ISO|
|Image Processor||TruePic||TruePic VII|
|Screen Specs||Olympus E-1||Olympus E-PL8|
|Viewfinder Type||Optical viewfinder||No viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||1.8 inch||3.0 inch|
|LCD Resolution||134k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-1||Olympus E-PL8|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000/s||1/4000/s|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-1||Olympus E-PL8|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-1||Olympus E-PL8|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Type||BLM-1 power pack||BLS-50 power pack|
|Battery Life (CIPA)||750 shots per charge||350 shots per charge|
141 x 104 x 81 mm
(5.6 x 4.1 x 3.2 in)
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
|Camera Weight||738 g (26.0 oz)||357 g (12.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
