Nikon D7500 vs Olympus E-PL1
The Nikon D7500 and the Olympus PEN E-PL1 are two digital cameras that were announced, respectively, in April 2017 and February 2010. The D7500 is a DSLR, while the E-PL1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D7500) and a Four Thirds (E-PL1) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Nikon D7500||Olympus E-PL1|
|Digital single lens reflex||Mirrorless system camera|
|Nikon F mount lenses||Micro Four Thirds lenses|
|20.7 MP, APS-C Sensor||12.2 MP, Four Thirds Sensor|
|4K/30p Video||720/30p Video|
|ISO 100-51200 (50-1640000)||ISO 200-3200|
|Optical viewfinder||Viewfinder optional|
|3.2" LCD, 922k dots||2.7" LCD, 230k dots|
|Tilting touchscreen||Fixed screen (not touch-sensitive)|
|8 shutter flaps per second||3 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Not weather sealed|
|950 shots per battery charge||290 shots per battery charge|
|136 x 104 x 73 mm, 720 g||115 x 72 x 42 mm, 334 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D7500 and the Olympus PEN E-PL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

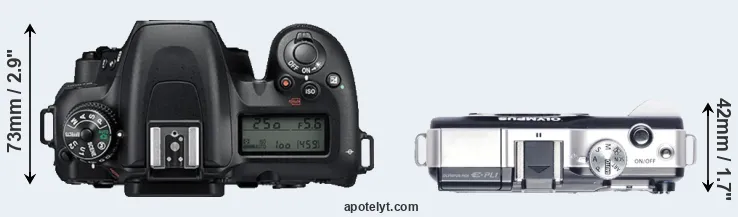

An illustration of the physical size and weight of the Nikon D7500 and the Olympus E-PL1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the D7500 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL1 is considerably smaller (41 percent) than the Nikon D7500. Moreover, the E-PL1 is substantially lighter (54 percent) than the D7500. It is worth mentioning in this context that the D7500 is splash and dust resistant, while the E-PL1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D7500) and the Micro Four Thirds Lens Catalog (E-PL1). Mirrorless cameras, such as the E-PL1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Nikon D7500»||5.4 in||4.1 in||2.9 in||25.4 oz||950||Y||Apr 2017||1,299||Nikon D7500|
|Olympus E-PL1«||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599||-||Olympus E-PL1|
|Canon 80D« »||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199||-||Canon 80D|
|Nikon D5600« »||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699||Nikon D5600|
|Nikon D5« »||6.3 in||6.3 in||3.6 in||49.9 oz||3780||Y||Jan 2016||6,499||Nikon D5|
|Nikon D500« »||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999||Nikon D500|
|Nikon D3400« »||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499||-||Nikon D3400|
|Nikon D7200« »||5.4 in||4.2 in||3.0 in||27.0 oz||1110||Y||Mar 2015||1,199||-||Nikon D7200|
|Nikon D7100« »||5.4 in||4.2 in||3.0 in||27.0 oz||950||Y||Feb 2013||1,199||-||Nikon D7100|
|Nikon D610« »||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999||Nikon D610|
|Nikon D7000« »||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499||-||Nikon D7000|
|Nikon D90« »||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299||-||Nikon D90|
|Olympus E-P3« »||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-P1« »||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799||-||Olympus E-P1|
|Olympus E-P2« »||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799||-||Olympus E-P2|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL1 was launched at a markedly lower price (by 54 percent) than the D7500, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D7500 features an APS-C sensor and the Olympus E-PL1 a Four Thirds sensor. The sensor area in the E-PL1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D7500 has a native 3:2 aspect ratio, while the one in the E-PL1 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 20.7MP, the D7500 offers a higher resolution than the E-PL1 (12.2MP), but the D7500 has marginally smaller individual pixels (pixel pitch of 4.22μm versus 4.29μm for the E-PL1). However, the D7500 is a much more recent model (by 7 years and 2 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D7500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D7500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D7500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inch or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inch or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inch or 47.1 x 31.4 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inch or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inch or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inch or 34.1 x 25.6 cm for excellent quality prints.
The Nikon D7500 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-1640000. The corresponding ISO settings for the Olympus PEN E-PL1 are ISO 200 to ISO 3200 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D7500 provides substantially higher image quality than the E-PL1, with an overall score that is 32 points higher. This advantage is based on 2.8 bits higher color depth, 3.9 EV in additional dynamic range, and 1.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Nikon D7500»||APS-C||20.7||5568||3712||4K/30p||24.3||14.0||1483||86||Nikon D7500|
|Olympus E-PL1«||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54||Olympus E-PL1|
|Canon 80D« »||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Nikon D5600« »||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1306||84||Nikon D5600|
|Nikon D5« »||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88||Nikon D5|
|Nikon D500« »||APS-C||20.7||5568||3712||4K/30p||24.0||14.0||1324||83||Nikon D500|
|Nikon D3400« »||APS-C||24.0||6000||4000||1080/60p||24.8||13.9||1192||86||Nikon D3400|
|Nikon D7200« »||APS-C||24.0||6000||4000||1080/60p||24.5||14.6||1333||87||Nikon D7200|
|Nikon D7100« »||APS-C||24.0||6000||4000||1080/60p||24.2||13.7||1256||83||Nikon D7100|
|Nikon D610« »||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94||Nikon D610|
|Nikon D7000« »||APS-C||16.1||4928||3264||10800/24p||23.5||13.9||1167||80||Nikon D7000|
|Nikon D90« »||APS-C||12.2||4288||2848||720/24p||22.7||12.5||977||73||Nikon D90|
|Olympus E-P3« »||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51||Olympus E-P3|
|Olympus E-PL2« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55||Olympus E-PL2|
|Olympus E-PL3« »||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52||Olympus E-PL3|
|Olympus E-P1« »||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55||Olympus E-P1|
|Olympus E-P2« »||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56||Olympus E-P2|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D7500 provides a higher video resolution than the E-PL1. It can shoot video footage at 4K/30p, while the Olympus is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the D7500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Nikon D7500 and Olympus E-PL1 in connection with corresponding information for a sample of similar cameras.
|Nikon D7500»||optical||Y||3.2||922||tilting||Y||1/8000s||8.0||Y||n||Nikon D7500|
|Olympus E-PL1«||-||n||2.7||230||fixed||n||1/2000s||3.0||Y||Y||Olympus E-PL1|
|Canon 80D« »||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Nikon D5600« »||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5600|
|Nikon D5« »||optical||Y||3.2||2359||fixed||Y||1/8000s||14.0||n||n||Nikon D5|
|Nikon D500« »||optical||Y||3.2||2359||tilting||Y||1/8000s||10.0||n||n||Nikon D500|
|Nikon D3400« »||optical||n||3.0||921||fixed||n||1/4000s||5.0||Y||n||Nikon D3400|
|Nikon D7200« »||optical||Y||3.2||1229||fixed||n||1/8000s||6.0||Y||n||Nikon D7200|
|Nikon D7100« »||optical||Y||3.2||1229||fixed||n||1/8000s||6.0||Y||n||Nikon D7100|
|Nikon D610« »||optical||Y||3.2||921||fixed||n||1/4000s||6.0||Y||n||Nikon D610|
|Nikon D7000« »||optical||Y||3.0||921||fixed||n||1/8000s||6.0||Y||n||Nikon D7000|
|Nikon D90« »||optical||Y||3.0||920||fixed||n||1/4000s||4.5||Y||n||Nikon D90|
|Olympus E-P3« »||-||n||3.0||614||fixed||Y||1/4000s||3.0||Y||Y||Olympus E-P3|
|Olympus E-PL2« »||-||n||3.0||460||fixed||n||1/4000s||3.0||Y||Y||Olympus E-PL2|
|Olympus E-PL3« »||-||n||3.0||460||tilting||n||1/4000s||5.5||n||Y||Olympus E-PL3|
|Olympus E-P1« »||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P1|
|Olympus E-P2« »||-||n||3.0||230||fixed||n||1/4000s||3.0||n||Y||Olympus E-P2|
One feature that is present on the D7500, but is missing on the E-PL1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D7500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D7500 writes its imaging data to SDXC cards, while the E-PL1 uses SDHC cards. The D7500 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D7500 and Olympus PEN E-PL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Nikon D7500»||Y||stereo||mono||Y||Y||mini||2.0||Y||-||Y||Nikon D7500|
|Olympus E-PL1«||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL1|
|Canon 80D« »||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Nikon D5600« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Nikon D5600|
|Nikon D5« »||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Nikon D5|
|Nikon D500« »||Y||stereo||mono||Y||Y||mini||3.0||Y||Y||Y||Nikon D500|
|Nikon D3400« »||Y||mono||mono||-||-||mini||2.0||-||-||Y||Nikon D3400|
|Nikon D7200« »||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Nikon D7200|
|Nikon D7100« »||Y||stereo||mono||Y||Y||mini||2.0||-||-||-||Nikon D7100|
|Nikon D610« »||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Nikon D610|
|Nikon D7000« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Nikon D7000|
|Nikon D90« »||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D90|
|Olympus E-P3« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P3|
|Olympus E-PL2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL2|
|Olympus E-PL3« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-PL3|
|Olympus E-P1« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P1|
|Olympus E-P2« »||Y||stereo||-||-||-||mini||2.0||-||-||-||Olympus E-P2|
It is notable that the D7500 has a microphone port, which is missing on the E-PL1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
The D7500 is a recent model that features in the current product line-up of Nikon. In contrast, the E-PL1 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL1 was succeeded by the Olympus E-PL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is the Nikon D7500 better than the Olympus E-PL1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Nikon D7500:
- More detail: Offers more megapixels (20.7 vs 12.2MP) with a 33% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (32 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.8 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (3.9 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.6 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (950 versus 290) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 7 years and 2 months of technical progress since the E-PL1 launch.
Reasons to prefer the Olympus PEN E-PL1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (115x72mm vs 136x104mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 386g or 54 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in February 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the D7500 is the clear winner of the match-up (24 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D7500 and the Olympus E-PL1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D7500 or the E-PL1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D7500»||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299||Nikon D7500|
|Olympus E-PL1«||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599||-||Olympus E-PL1|
|Canon 80D« »||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199||-||Canon 80D|
|Nikon D5600« »||-||79/100||4.5/5||4.5/5||4/5||Nov 2016||699||Nikon D5600|
|Nikon D5« »||-||89/100||4.5/5||5/5||5/5||Jan 2016||6,499||Nikon D5|
|Nikon D500« »||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999||Nikon D500|
|Nikon D3400« »||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499||-||Nikon D3400|
|Nikon D7200« »||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199||-||Nikon D7200|
|Nikon D7100« »||+ +||85/100||4.5/5||5/5||4.5/5||Feb 2013||1,199||-||Nikon D7100|
|Nikon D610« »||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999||Nikon D610|
|Nikon D7000« »||-||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499||-||Nikon D7000|
|Nikon D90« »||+ +||+ +||4/5||5/5||4.5/5||Aug 2008||1,299||-||Nikon D90|
|Olympus E-P3« »||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799||-||Olympus E-P3|
|Olympus E-PL2« »||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599||-||Olympus E-PL2|
|Olympus E-PL3« »||+ +||72/100||4.5/5||-||4/5||Jun 2011||599||-||Olympus E-PL3|
|Olympus E-P1« »||+||66/100||4/5||4/5||4.5/5||Jun 2009||799||-||Olympus E-P1|
|Olympus E-P2« »||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799||-||Olympus E-P2|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon G1 X Mark III vs Olympus E-PL1
- Canon SX50 vs Olympus E-PL1
- Fujifilm X-T10 vs Olympus E-PL1
- Fujifilm X-T30 vs Nikon D7500
- Leica M Typ 262 vs Nikon D7500
- Leica S Typ 007 vs Nikon D7500
- Nikon B700 vs Nikon D7500
- Nikon D4S vs Olympus E-PL1
- Nikon D5 vs Olympus E-PL1
- Nikon D7500 vs Sony A7S II
- Olympus E-PL1 vs Pentax 645Z
- Olympus E-PL1 vs Sony A7R IV
Specifications: Nikon D7500 vs Olympus E-PL1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D7500||Olympus E-PL1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||April 2017||February 2010|
|Launch Price||USD 1299||USD 599|
|Sensor Specs||Nikon D7500||Olympus E-PL1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.7 mm||17.3 x 13.0 mm|
|Sensor Area||368.95 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||20.7 Megapixels||12.2 Megapixels|
|Image Resolution||5568 x 3712 pixels||4032 x 3024 pixels|
|Pixel Pitch||4.22 μm||4.29 μm|
|Pixel Density||5.60 MP/cm2||5.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||720/30p Video|
|ISO Setting||100-51200 ISO||200-3200 ISO|
|ISO Boost||50-1640000 ISO||no Enhancement|
|Image Processor||EXPEED 5||Truepic V|
|DXO Sensor Quality (score)||86||54|
|DXO Color Depth (bits)||24.3||21.5|
|DXO Dynamic Range (EV)||14.0||10.1|
|DXO Low Light (ISO)||1483||487|
|Screen Specs||Nikon D7500||Olympus E-PL1|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2 inch||2.7 inch|
|LCD Resolution||922k dots||230k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Nikon D7500||Olympus E-PL1|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||8 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Nikon D7500||Olympus E-PL1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Nikon D7500||Olympus E-PL1|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||950 shots per charge||290 shots per charge|
136 x 104 x 73 mm
(5.4 x 4.1 x 2.9 in)
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||720 g (25.4 oz)||334 g (11.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
