Nikon D300S vs Olympus PEN-F

The Nikon D300S and the Olympus PEN-F are two enthusiast cameras that were officially introduced, respectively, in July 2009 and January 2016. The D300S is a DSLR, while the PEN-F is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D300S) and a Four Thirds (PEN-F) sensor. The Nikon has a resolution of 12.2 megapixels, whereas the Olympus provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D300S
versus
Olympus PEN-F
Nikon D300S   Olympus PEN-F
Digital single lens reflex Mirrorless system camera
Nikon F mount lenses Micro Four Thirds lenses
12.2 MP – APS-C sensor 20.2 MP – Four Thirds sensor
720/24p Video 1080/60p Video
ISO 200-3,200 (100 - 6,400) ISO 80-25,600
Optical viewfinder Electronic viewfinder (2360k dots)
3.0" LCD – 920k dots 3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive) Swivel touchscreen
7 shutter flaps per second 10 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodynot weather sealed
950 shots per battery charge330 shots per battery charge
147 x 115 x 81 mm, 938 g 125 x 72 x 37 mm, 427 g
logo
Check D300S offers at
ebay.com
logo
Check PEN-F offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D300S and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Nikon D300S and the Olympus PEN-F. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The PEN-F can be obtained in two different colors (black, silver), while the D300S is only available in black.

Size Nikon D300S vs Olympus PEN-F
Compare D300S versus PEN-F top
Comparison D300S or PEN-F rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is considerably smaller (47 percent) than the Nikon D300S. Moreover, the PEN-F is substantially lighter (54 percent) than the D300S. It is worth mentioning in this context that the D300S is splash and dust resistant, while the PEN-F does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D300S) and the Micro Four Thirds Lens Catalog (PEN-F). Mirrorless cameras, such as the PEN-F, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D300S gets 950 shots out of its Nikon EN-EL3e battery, while the PEN-F can take 330 images on a single charge of its Olympus BLN-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Nikon D300S 147 mm 115 mm 81 mm 938 g 950 Y Jul 2009 US$ 1 799ebay.com
2.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 US$ 1 199ebay.com
3.

Nikon D2X 158 mm 150 mm 86 mm 1252 g 3800 Y Sep 2004 US$ 4 999ebay.com
4.

Nikon D2Xs 158 mm 150 mm 86 mm 1252 g 3800 Y Jun 2006 US$ 4 699ebay.com
5.

Nikon D60 126 mm 94 mm 64 mm 522 g 500 n Jan 2008 US$ 629ebay.com
6.

Nikon D200 147 mm 113 mm 74 mm 920 g 400 Y Nov 2005 US$ 1 699ebay.com
7.

Nikon D300 147 mm 114 mm 74 mm 925 g 1000 Y Aug 2007 US$ 1 799ebay.com
8.

Nikon D500 147 mm 115 mm 81 mm 860 g 1240 Y Jan 2016 US$ 1 999ebay.com
9.

Nikon D700 147 mm 123 mm 77 mm 1074 g 1000 Y Jul 2008 US$ 2 999ebay.com
10.

Nikon D3100 124 mm 96 mm 75 mm 505 g 550 n Aug 2010 US$ 599ebay.com
11.

Nikon D5000 127 mm 104 mm 80 mm 590 g 510 n Apr 2009 US$ 749ebay.com
12.

Nikon D7000 132 mm 105 mm 77 mm 780 g 1050 Y Sep 2010 US$ 1 499ebay.com
13.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 US$ 1 399ebay.com
14.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 US$ 1 099ebay.com
15.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 US$ 649ebay.com
16.

Olympus E-M10 III 122 mm 84 mm 50 mm 410 g 330 n Aug 2017 US$ 649ebay.com
17.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 US$ 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The PEN-F was launched at a markedly lower price (by 33 percent) than the D300S, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D300S features an APS-C sensor and the Olympus PEN-F a Four Thirds sensor. The sensor area in the PEN-F is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D300S has a native 3:2 aspect ratio, while the one in the PEN-F offers a 4:3 aspect.

Nikon D300S and Olympus PEN-F sensor measures

Despite having a smaller sensor, the PEN-F offers a higher resolution of 20.2 megapixels, compared with 12.2 MP of the D300S. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 5.53μm for the D300S). However, it should be noted that the PEN-F is much more recent (by 6 years and 5 months) than the D300S, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus PEN-F implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the PEN-F for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Nikon D300S are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.

Unlike the D300S, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Nikon D300S has a native sensitivity range from ISO 200 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

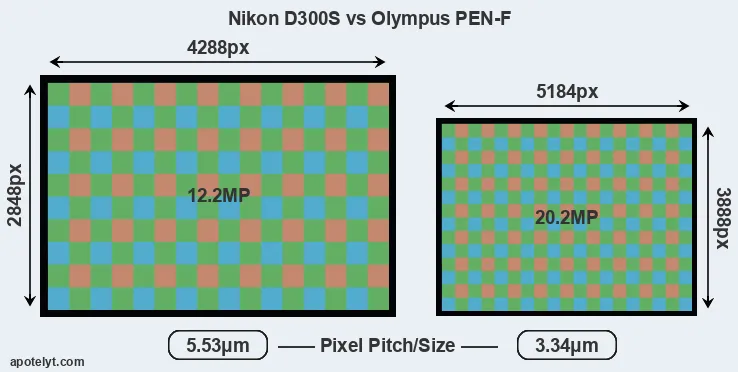

D300S versus PEN-F MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the PEN-F has a markedly higher DXO score than the D300S (overall score 4 points higher), which will translate into better image quality. The advantage is based on 0.6 bits higher color depth, 0.2 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon D300S APS-C 12.2 4288 2848720/24p22.512.278770
2.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
3.

Nikon D2X APS-C 12.2 4288 2848none22.110.947659
4.

Nikon D2Xs APS-C 12.2 4288 2848none22.210.948959
5.

Nikon D60 APS-C 10.0 3872 2592none22.511.456265
6.

Nikon D200 APS-C 10.0 3872 2592none22.311.558364
7.

Nikon D300 APS-C 12.2 4288 2848none22.112.067967
8.

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.0132483
9.

Nikon D700 Full Frame 12.1 4256 2832none23.512.2230380
10.

Nikon D3100 APS-C 14.2 4608 30721080/24p22.511.391967
11.

Nikon D5000 APS-C 12.2 4288 2848720/24p22.712.586872
12.

Nikon D7000 APS-C 16.1 4928 32641080/24p23.513.9116780
13.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
14.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
15.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
16.

Olympus E-M10 III Four Thirds 15.9 4608 34564K/30p23.112.8112074
17.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the PEN-F provides a better video resolution than the D300S. It can shoot movie footage at 1080/60p, while the Nikon is limited to 720/24p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the PEN-F has an electronic viewfinder (2360k dots), while the D300S has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D300S has a higher magnification than the one of the PEN-F (0.63x vs 0.62x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D300S and Olympus PEN-F along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon D300Soptical Y3.0 / 920 fixed n 1/8000s 7.0/s Y n
2.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
3.

Nikon D2Xoptical Y2.5 / 235 fixed n 1/8000s 5.0/s n n
4.

Nikon D2Xsoptical Y2.5 / 230 fixed n 1/8000s 5.0/s n n
5.

Nikon D60optical n2.5 / 230 fixed n 1/4000s 3.0/s Y n
6.

Nikon D200optical Y2.5 / 230 fixed n 1/8000s 5.0/s Y n
7.

Nikon D300optical Y3.0 / 922 fixed n 1/8000s 6.0/s Y n
8.

Nikon D500optical Y3.2 / 2359 tilting Y 1/8000s 10.0/s n n
9.

Nikon D700optical Y3.0 / 922 fixed n 1/8000s 8.0/s Y n
10.

Nikon D3100optical n3.0 / 230 fixed n 1/4000s 3.0/s Y n
11.

Nikon D5000optical n2.7 / 230 full-flex n 1/4000s 4.0/s Y n
12.

Nikon D7000optical Y3.0 / 921 fixed n 1/8000s 6.0/s Y n
13.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
14.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
15.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
16.

Olympus E-M10 III2360 n3.0 / 1040 tilting Y 1/4000s 8.6/s Y Y
17.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D300S has one, while the PEN-F does not. While the built-in flash of the D300S is not very powerful, it can at times be useful as a fill-in light.

The PEN-F has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D300S does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the PEN-F is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon D300S and the Olympus PEN-F both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D300S writes its imaging data to Compact Flash or SDXC cards, while the PEN-F uses SDXC cards. The D300S features dual card slots, which can be very useful in case a memory card fails. In contrast, the PEN-F only has one slot. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D300S cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D300S and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon D300SYstereo / monoY-mini2.0---
2.

Olympus PEN-FYstereo / mono--micro2.0Y--
3.

Nikon D2XY- / ----2.0---
4.

Nikon D2XsY- / ----2.0---
5.

Nikon D60Y- / ----2.0---
6.

Nikon D200Y- / ----2.0---
7.

Nikon D300Y- / ---mini2.0---
8.

Nikon D500Ystereo / monoYYmini3.0YYY
9.

Nikon D700Y- / ---mini2.0---
10.

Nikon D3100Ymono / mono--mini2.0---
11.

Nikon D5000Ymono / mono--mini2.0---
12.

Nikon D7000Ymono / monoY-mini2.0---
13.

Olympus E-M1Ystereo / monoY-micro2.0Y--
14.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
15.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
16.

Olympus E-M10 IIIYstereo / mono--micro2.0Y--
17.

Olympus E-P5Ystereo / mono--micro2.0Y--

It is notable that the D300S has a microphone port, which is missing on the PEN-F. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Nikon D300S (unlike the PEN-F) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D300S and the PEN-F have been discontinued, but can regularly be found used on ebay. The D300S was replaced by the Nikon D500, while the PEN-F does not have a direct successor. Further information on the features and operation of the D300S and PEN-F can be found, respectively, in the Nikon D300S Manual (free pdf) or the online Olympus PEN-F Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon D300S and the Olympus PEN-F? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Nikon D300S:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.62x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Longer lasting: Can take more shots (950 versus 330) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been available for much longer (launched in July 2009).

ilogo

Arguments in favor of the Olympus PEN-F:

  • More detail: Has more megapixels (20.2 vs 12.2MP), which boosts linear resolution by 26%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better image quality: Scores markedly higher (4 points) in the DXO overall evaluation.
  • Better video: Provides higher definition movie capture (1080/60p vs 720/24p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (125x72mm vs 147x115mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 511g or 54 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
  • More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
  • More modern: Reflects 6 years and 5 months of technical progress since the D300S launch.

If the count of individual advantages (bullet points above) is taken as a guide, the PEN-F is the clear winner of the contest (20 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D300S 11:20 PEN-F

How about other alternatives? Do the specifications of the Nikon D300S and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D300S or the PEN-F perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Nikon D300S5/5+ +..82/1004/54.5/5 Jul 2009 US$ 1 799ebay.com
2.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 US$ 1 199ebay.com
3.

Nikon D2X......+ +.... Sep 2004 US$ 4 999ebay.com
4.

Nikon D2Xs............ Jun 2006 US$ 4 699ebay.com
5.

Nikon D60..80/100..+ +4/54.5/5 Jan 2008 US$ 629ebay.com
6.

Nikon D200..+ +..+ +o.. Nov 2005 US$ 1 699ebay.com
7.

Nikon D300..+ +..+ +5/54.5/5 Aug 2007 US$ 1 799ebay.com
8.

Nikon D5005/5+ +4.7/591/1004.5/55/5 Jan 2016 US$ 1 999ebay.com
9.

Nikon D700..89/100..+ +4.5/54.5/5 Jul 2008 US$ 2 999ebay.com
10.

Nikon D31005/5+ +..72/1004.5/54.5/5 Aug 2010 US$ 599ebay.com
11.

Nikon D5000..+ +..75/1004/54.5/5 Apr 2009 US$ 749ebay.com
12.

Nikon D70004/5....80/1004.5/54.5/5 Sep 2010 US$ 1 499ebay.com
13.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 US$ 1 399ebay.com
14.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 US$ 1 099ebay.com
15.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 US$ 649ebay.com
16.

Olympus E-M10 III..+5/580/1004.5/54.5/5 Aug 2017 US$ 649ebay.com
17.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 US$ 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check D300S offers at
ebay.com
logo
Check PEN-F offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Nikon D300S vs Olympus PEN-F

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D300S Olympus PEN-F
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Nikon F mount lenses Micro Four Thirds lenses
    Launch Date July 2009 January 2016
    Launch Price USD 1,799 USD 1,199
    Sensor Specs Nikon D300S Olympus PEN-F
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 23.6 x 15.8 mm 17.3 x 13.0 mm
    Sensor Area 372.88 mm2 224.9 mm2
    Sensor Diagonal 28.4 mm 21.6 mm
    Crop Factor 1.5x 2.0x
    Sensor Resolution 12.2 Megapixels 20.2 Megapixels
    Image Resolution 4288 x 2848 pixels 5184 x 3888 pixels
    Pixel Pitch 5.53 μm 3.34 μm
    Pixel Density 3.28 MP/cm2 8.96 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 720/24p Video 1080/60p Video
    ISO Setting 200 - 3,200 ISO 80 - 25,600 ISO
    ISO Boost 100 - 6,400 ISO no Enhancement
    Image Processor EXPEED TruePic VII
    DXO Sensor Quality (score) 70 74
    DXO Color Depth (bits) 22.5 23.1
    DXO Dynamic Range (EV) 12.2 12.4
    DXO Low Light (ISO) 787 894
    Screen Specs Nikon D300S Olympus PEN-F
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.63x 0.62x
    Viewfinder Resolution 2360k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 920k dots 1037k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Nikon D300S Olympus PEN-F
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 7 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium CF or SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support no UHS-II
    Connectivity Specs Nikon D300S Olympus PEN-F
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support no Wifi Wifi built-in
    Body Specs Nikon D300S Olympus PEN-F
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type Nikon EN-EL3e Olympus BLN-1
    Battery Life (CIPA)950 shots per charge330 shots per charge
    Body Dimensions 147 x 115 x 81 mm
    (5.8 x 4.5 x 3.2 in)
    125 x 72 x 37 mm
    (4.9 x 2.8 x 1.5 in)
    Camera Weight 938 g (33.1 oz) 427 g (15.1 oz)
    logo
    Check D300S offers at
    ebay.com
    logo
    Check PEN-F offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D300S vs Olympus PEN-F
