Nikon D300S vs Olympus E-PL1
The Nikon D300S and the Olympus PEN E-PL1 are two digital cameras that were officially introduced, respectively, in July 2009 and February 2010. The D300S is a DSLR, while the E-PL1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D300S) and a Four Thirds (E-PL1) sensor. Both cameras offer a resolution of 12.2 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D300S and the Olympus PEN E-PL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

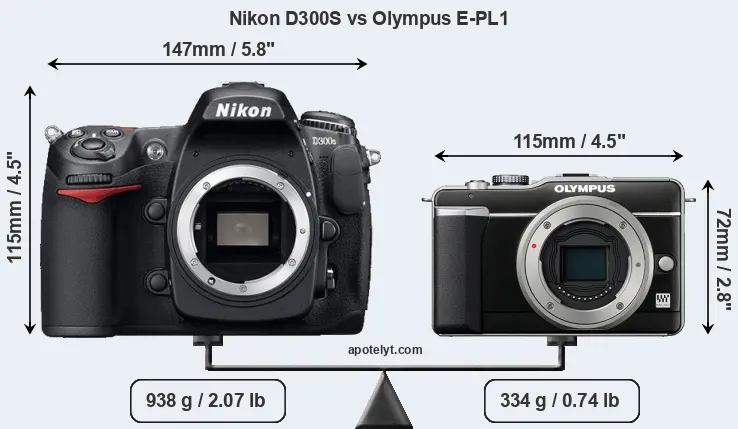

An illustration of the physical size and weight of the Nikon D300S and the Olympus E-PL1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the D300S is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL1 is considerably smaller (51 percent) than the Nikon D300S. Moreover, the E-PL1 is substantially lighter (64 percent) than the D300S. It is worth mentioning in this context that the D300S is splash and dust resistant, while the E-PL1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D300S) and the Micro Four Thirds Lens Catalog (E-PL1). Mirrorless cameras, such as the E-PL1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
|2.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|3.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|4.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|5.||Nikon D3100||124 mm||96 mm||75 mm||505 g||550||n||Aug 2010||599|
|6.||Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|7.||Nikon D60||126 mm||94 mm||64 mm||522 g||500||n||Jan 2008||629|
|8.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|9.||Nikon D300||147 mm||114 mm||74 mm||925 g||1000||Y||Aug 2007||1,799|
|10.||Nikon D2Xs||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699|
|11.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699|
|12.||Nikon D2X||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999|
|13.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|14.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|16.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|17.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL1 was launched at a markedly lower price (by 67 percent) than the D300S, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D300S features an APS-C sensor and the Olympus E-PL1 a Four Thirds sensor. The sensor area in the E-PL1 is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D300S has a native 3:2 aspect ratio, while the one in the E-PL1 offers a 4:3 aspect.
Even though the D300S has a larger sensor, both cameras offer the same resolution of 12.2 megapixels. This implies that the D300S has a lower pixel density and larger individual pixels (with a pixel pitch of 5.53μm versus 4.29μm for the E-PL1), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the E-PL1 is a somewhat more recent model (by 6 months) than the D300S, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.
The Nikon D300S has a native sensitivity range from ISO 200 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Olympus PEN E-PL1 are ISO 200 to ISO 3200 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D300S provides substantially higher image quality than the E-PL1, with an overall score that is 16 points higher. This advantage is based on 1 bits higher color depth, 2.1 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|8.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|13.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|14.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|17.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-PL1 provides a faster frame rate than the D300S. It can shoot movie footage at 720/30p, while the Nikon is limited to 720/24p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D300S has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Nikon D300S, the Olympus E-PL1, and comparable cameras.
|1.||Nikon D300S||optical||Y||3.0 / 920||fixed||n||1/8000s||7.0/s||Y||n|
|2.||Olympus E-PL1||optional||n||2.7 / 230||fixed||n||1/2000s||3.0/s||Y||Y|
|3.||Nikon D500||optical||Y||3.2 / 2359||tilting||Y||1/8000s||10.0/s||n||n|
|4.||Nikon D7000||optical||Y||3.0 / 921||fixed||n||1/8000s||6.0/s||Y||n|
|5.||Nikon D3100||optical||n||3.0 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Nikon D5000||optical||n||2.7 / 230||full-flex||n||1/4000s||4.0/s||Y||n|
|7.||Nikon D60||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|8.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0/s||Y||n|
|9.||Nikon D300||optical||Y||3.0 / 922||fixed||n||1/8000s||6.0/s||Y||n|
|10.||Nikon D2Xs||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||n||n|
|11.||Nikon D200||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|12.||Nikon D2X||optical||Y||2.5 / 235||fixed||n||1/8000s||5.0/s||n||n|
|13.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0/s||Y||Y|
|14.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||Y|
|15.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|16.||Olympus E-P1||none||n||3.0 / 230||fixed||n||1/4000s||3.0/s||n||Y|
|17.||Olympus E-P2||optional||n||3.0 / 230||fixed||n||1/4000s||3.0/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the D300S, but is missing on the E-PL1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D300S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D300S writes its imaging data to Compact Flash or SDXC cards, while the E-PL1 uses SDHC cards. The D300S features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL1 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D300S and Olympus PEN E-PL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D300S||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus E-PL1||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Nikon D500||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|4.||Nikon D7000||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|5.||Nikon D3100||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Nikon D5000||Y||mono / mono||-||-||mini||2.0||-||-||-|
|7.||Nikon D60||Y||- / -||-||-||-||2.0||-||-||-|
|8.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|9.||Nikon D300||Y||- / -||-||-||mini||2.0||-||-||-|
|10.||Nikon D2Xs||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Nikon D200||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Nikon D2X||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Olympus E-P1||Y||stereo / -||-||-||mini||2.0||-||-||-|
|17.||Olympus E-P2||Y||stereo / -||-||-||mini||2.0||-||-||-|
It is notable that the D300S has a microphone port, which is missing on the E-PL1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Nikon D300S (unlike the E-PL1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D300S and the E-PL1 have been discontinued, but can regularly be found used on eBay. The D300S was replaced by the Nikon D500, while the E-PL1 was followed by the Olympus E-PL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Nikon D300S and the Olympus E-PL1? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Nikon D300S:
- Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (2.1 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (950 versus 290) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in July 2009).
Reasons to prefer the Olympus PEN E-PL1:
- Better video: Provides higher movie framerates (720/30p versus 720/24p).
- More compact: Is smaller (115x72mm vs 147x115mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 604g or 64 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
- More modern: Was introduced somewhat (6 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the D300S is the clear winner of the match-up (16 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D300S and the Olympus E-PL1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the D300S and the E-PL1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D300S||5/5||+ +||..||82/100||4/5||4.5/5||Jul 2009||1,799|
|2.||Olympus E-PL1||..||86/100||..||69/100||4/5||4.5/5||Feb 2010||599|
|3.||Nikon D500||5/5||+ +||4.7/5||91/100||4.5/5||5/5||Jan 2016||1,999|
|4.||Nikon D7000||4/5||..||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|5.||Nikon D3100||5/5||+ +||..||72/100||4.5/5||4.5/5||Aug 2010||599|
|6.||Nikon D5000||..||+ +||..||75/100||4/5||4.5/5||Apr 2009||749|
|7.||Nikon D60||..||80/100||..||+ +||4/5||4.5/5||Jan 2008||629|
|8.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|9.||Nikon D300||..||+ +||..||+ +||5/5||4.5/5||Aug 2007||1,799|
|10.||Nikon D2Xs||..||..||..||..||..||..||Jun 2006||4,699|
|11.||Nikon D200||..||+ +||..||+ +||o||..||Nov 2005||1,699|
|12.||Nikon D2X||..||..||..||+ +||..||..||Sep 2004||4,999|
|13.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799|
|14.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599|
|15.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599|
|16.||Olympus E-P1||..||+||..||66/100||4/5||4.5/5||Jun 2009||799|
|17.||Olympus E-P2||3/5||+||..||69/100||4/5||4.5/5||Nov 2009||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1Ds Mark III vs Olympus E-PL1
- Canon D30 vs Nikon D300S
- Fujifilm X-E4 vs Olympus E-PL1
- Fujifilm X-T10 vs Nikon D300S
- Fujifilm X20 vs Nikon D300S
- Nikon D300S vs Olympus TG-6
- Nikon D300S vs Panasonic GF6
- Nikon D300S vs Sony RX1R II
- Nikon D750 vs Olympus E-PL1
- Olympus E-420 vs Olympus E-PL1
- Olympus E-PL1 vs Olympus E-PL6
- Olympus E-PL1 vs Panasonic GF1
Specifications: Nikon D300S vs Olympus E-PL1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D300S||Olympus E-PL1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||July 2009||February 2010|
|Launch Price||USD 1,799||USD 599|
|Sensor Specs||Nikon D300S||Olympus E-PL1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.8 mm||17.3 x 13.0 mm|
|Sensor Area||372.88 mm2||224.9 mm2|
|Sensor Diagonal||28.4 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||12.2 Megapixels|
|Image Resolution||4288 x 2848 pixels||4032 x 3024 pixels|
|Pixel Pitch||5.53 μm||4.29 μm|
|Pixel Density||3.28 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||720/24p Video||720/30p Video|
|ISO Setting||200 - 3,200 ISO||200 - 3,200 ISO|
|ISO Boost||100 - 6,400 ISO||no Enhancement|
|Image Processor||EXPEED||Truepic V|
|DXO Sensor Quality (score)||70||54|
|DXO Color Depth (bits)||22.5||21.5|
|DXO Dynamic Range (EV)||12.2||10.1|
|DXO Low Light (ISO)||787||487|
|Screen Specs||Nikon D300S||Olympus E-PL1|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||920k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Nikon D300S||Olympus E-PL1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||7 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF or SDXC cards||SDHC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Nikon D300S||Olympus E-PL1|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Nikon D300S||Olympus E-PL1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||950 shots per charge||290 shots per charge|
147 x 115 x 81 mm
(5.8 x 4.5 x 3.2 in)
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||938 g (33.1 oz)||334 g (11.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
