Fujifilm X70 vs Olympus PEN-F
The Fujifilm X70 and the Olympus PEN-F are two digital cameras that were officially introduced in January 2016. The X70 is a fixed lens compact, while the PEN-F is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (X70) and a Four Thirds (PEN-F) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Fujifilm X70||Olympus PEN-F|
|Fixed lens compact camera||Mirrorless system camera|
|28mm f/2.8-16||Micro Four Thirds lenses|
|16 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|1080/60p Video||1080/60p Video|
|ISO 100-6,400 (100 - 51,200)||ISO 80-25,600|
|Viewfinder optional||Electronic viewfinder (2360k dots)|
|3.0 LCD, 1040k dots||3.0 LCD, 1037k dots|
|Tilting touchscreen||Swivel touchscreen|
|8 shutter flaps per second||10 shutter flaps per second|
|no shake reduction||In-body stabilization|
|330 shots per battery charge||330 shots per battery charge|
|113 x 64 x 44 mm, 340 g||125 x 72 x 37 mm, 427 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X70 and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

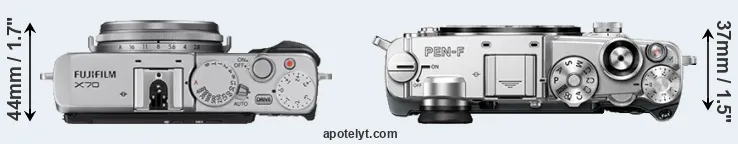

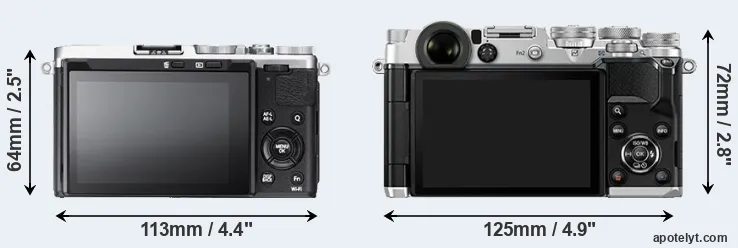

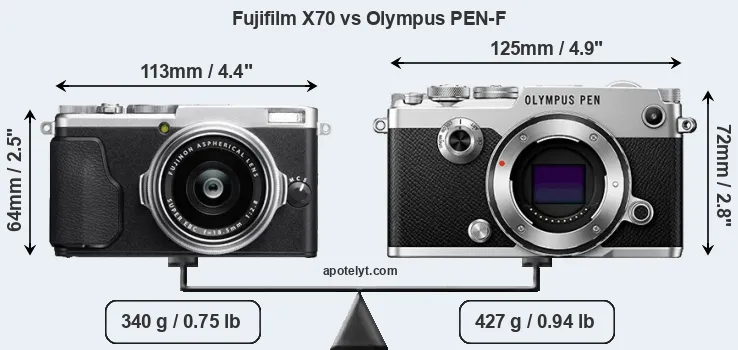

The side-by-side display below illustrates the physical size and weight of the Fujifilm X70 and the Olympus PEN-F. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is notably larger (24 percent) than the Fujifilm X70. In this context, it is worth noting that neither the X70 nor the PEN-F are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X70 has a lens built in, whereas the PEN-F is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the PEN-F and their specifications in the Micro Four Thirds Lens Catalog.
The power pack in the X70 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Fujifilm X70||4.4 in||2.5 in||1.7 in||12.0 oz||330||n||Jan 2016||799|
|Olympus PEN-F||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199|
|Canon G5 X||4.4 in||3.0 in||1.7 in||12.5 oz||210||n||Oct 2015||799|
|Fujifilm XF10||4.4 in||2.5 in||1.6 in||9.8 oz||330||n||Jul 2018||499|
|Fujifilm X-E3||4.8 in||2.9 in||1.7 in||11.9 oz||350||n||Sep 2017||899|
|Fujifilm X-T20||4.6 in||3.3 in||1.6 in||13.5 oz||350||n||Jan 2017||899|
|Fujifilm X-A10||4.6 in||2.6 in||1.6 in||11.7 oz||410||n||Dec 2016||399|
|Fujifilm X-E2S||5.1 in||3.0 in||1.5 in||12.3 oz||350||n||Jan 2016||699|
|Fujifilm X-A2||4.6 in||2.6 in||1.6 in||12.3 oz||410||n||Jan 2015||399|
|Fujifilm X-T10||4.6 in||3.3 in||1.6 in||13.4 oz||350||n||May 2015||799|
|Fujifilm X-M1||4.6 in||2.6 in||1.5 in||11.6 oz||350||n||Jun 2013||699|
|Olympus E-M10 III||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649|
|Olympus E-M5 II||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-M1||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399|
|Olympus E-P5||4.8 in||2.7 in||1.5 in||14.8 oz||330||n||May 2013||999|
|Ricoh GR II||4.6 in||2.5 in||1.4 in||8.9 oz||320||n||Jun 2015||699|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X70 was launched at a lower price than the PEN-F, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

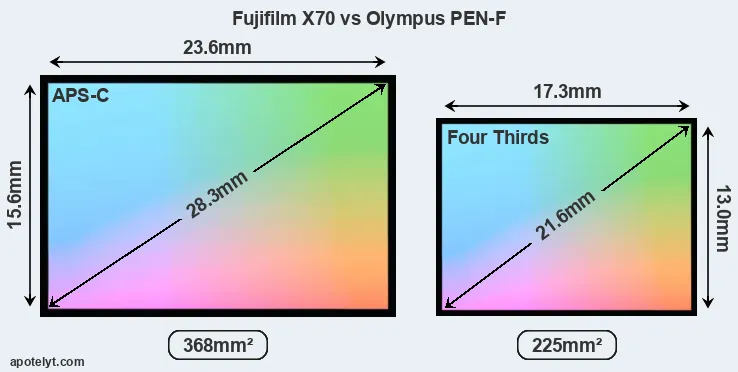

Of the two cameras under consideration, the Fujifilm X70 features an APS-C sensor and the Olympus PEN-F a Four Thirds sensor. The sensor area in the PEN-F is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X70 has a native 3:2 aspect ratio, while the one in the PEN-F offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

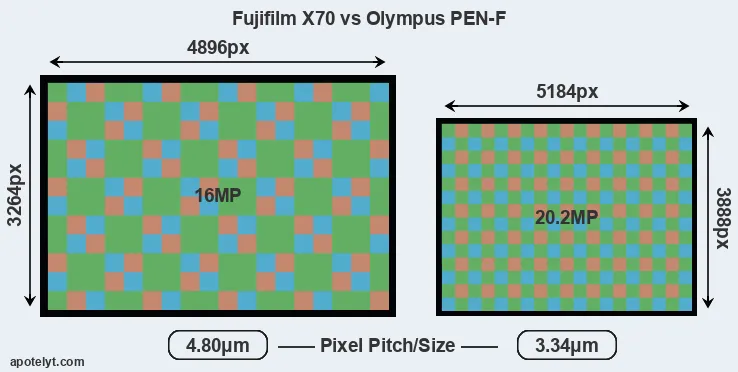

Despite having a smaller sensor, the PEN-F offers a higher resolution of 20.2 megapixels, compared with 16 MP of the X70. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 4.80μm for the X70). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Olympus PEN-F implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the PEN-F for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Fujifilm X70 are 24.5 x 16.3 inches or 62.2 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.7 x 33.2 cm for very good quality, and 16.3 x 10.9 inches or 41.5 x 27.6 cm for excellent quality prints.
The X70 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the X70, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Fujifilm X70 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|Ricoh GR II||APS-C||16.1||4928||3264||1080/30p||23.6||13.7||1078||80|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).
Apart from body and sensor, cameras can and do differ across a range of features. For example, the PEN-F has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the X70 relies on live view and the rear LCD for framing. That said, the X70 can be equipped with an optional viewfinder – the VF-X21. The table below summarizes some of the other core capabilities of the Fujifilm X70 and Olympus PEN-F in connection with corresponding information for a sample of similar cameras.
|Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|Ricoh GR II||optional||n||3.0||1230||fixed||n||1/4000s||4.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The X70 has one, while the PEN-F does not. While the built-in flash of the X70 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X70 and the Olympus PEN-F both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X70 and the PEN-F write their files to SDXC cards. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X70 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X70 and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|Ricoh GR II||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the X70 has a microphone port, which is missing on the PEN-F. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the X70 and the PEN-F have been discontinued, but can regularly be found used on eBay. The X70 was replaced by the Fujifilm XF10, while the PEN-F does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So what conclusions can be drawn? Is the Fujifilm X70 better than the Olympus PEN-F or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Fujifilm X70:
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Ready to shoot: Has a lens built-in, whereas the PEN-F requires a separate lens.
- More compact: Is smaller (113x64mm vs 125x72mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the PEN-F).
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
Reasons to prefer the Olympus PEN-F:
- More detail: Has more megapixels (20.2 vs 16MP), which boosts linear resolution by 10%.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
If the number of relative strengths (bullet points above) is taken as a guide, the X70 emerges as the winner of the contest (11 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X70 and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the X70 or the PEN-F perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Fujifilm X70||..||76/100||4.5/5||4/5||4.5/5||Jan 2016||799|
|Olympus PEN-F||..||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199|
|Canon G5 X||+ +||78/100||4.5/5||4/5||4.5/5||Oct 2015||799|
|Fujifilm XF10||..||75/100||4/5||..||4.5/5||Jul 2018||499|
|Fujifilm X-E3||+||84/100||4.5/5||4.5/5||4.5/5||Sep 2017||899|
|Fujifilm X-T20||+ +||82/100||5/5||..||4.5/5||Jan 2017||899|
|Fujifilm X-A10||..||..||4/5||..||4/5||Dec 2016||399|
|Fujifilm X-E2S||..||77/100||4.5/5||..||4.5/5||Jan 2016||699|
|Fujifilm X-A2||..||..||4.5/5||4/5||4.5/5||Jan 2015||399|
|Fujifilm X-T10||+ +||80/100||5/5||4/5||5/5||May 2015||799|
|Fujifilm X-M1||+||77/100||4.5/5||..||4.5/5||Jun 2013||699|
|Olympus E-M10 III||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Olympus E-P5||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999|
|Ricoh GR II||..||..||4.5/5||4.5/5||4.5/5||Jun 2015||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D C vs Fujifilm X70
- Canon 1Ds Mark II vs Olympus PEN-F
- Fujifilm X-T30 vs Olympus PEN-F
- Fujifilm X70 vs Fujifilm XQ2
- Fujifilm X70 vs Hasselblad X1D
- Fujifilm X70 vs Hasselblad X1D II
- Fujifilm X70 vs Olympus E-P1
- Fujifilm X70 vs Panasonic FZ2500
- Fujifilm X70 vs Panasonic FZ330
- Nikon D4S vs Olympus PEN-F
- Nikon D780 vs Olympus PEN-F
- Olympus PEN-F vs Sony RX1R
Specifications: Fujifilm X70 vs Olympus PEN-F
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X70||Olympus PEN-F|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||28mm f/2.8-16||Micro Four Thirds lenses|
|Launch Date||January 2016||January 2016|
|Launch Price||USD 799||USD 1,199|
|Sensor Specs||Fujifilm X70||Olympus PEN-F|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16 Megapixels||20.2 Megapixels|
|Image Resolution||4896 x 3264 pixels||5184 x 3888 pixels|
|Pixel Pitch||4.80 μm||3.34 μm|
|Pixel Density||4.34 MP/cm2||8.96 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||100 - 6,400 ISO||80 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||no Enhancement|
|Image Processor||EXR Processor II||TruePic VII|
|DXO Sensor Quality (score)||..||74|
|DXO Color Depth (bits)||..||23.1|
|DXO Dynamic Range (EV)||..||12.4|
|DXO Low Light (ISO)||..||894|
|Screen Specs||Fujifilm X70||Olympus PEN-F|
|Viewfinder Type||Viewfinder optional||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Fujifilm X70||Olympus PEN-F|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||8 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||no shake reduction||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Fujifilm X70||Olympus PEN-F|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Fujifilm X70||Olympus PEN-F|
|Battery Life (CIPA)||330 shots per charge||330 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
113 x 64 x 44 mm
(4.4 x 2.5 x 1.7 in)
125 x 72 x 37 mm
(4.9 x 2.8 x 1.5 in)
|Camera Weight||340 g (12.0 oz)||427 g (15.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
