Fujifilm X20 vs Olympus E-PL1

The Fujifilm X20 and the Olympus PEN E-PL1 are two digital cameras that were announced, respectively, in January 2013 and February 2010. The X20 is a fixed lens compact, while the E-PL1 is a mirrorless interchangeable lens camera. The cameras are based on a 2/3 (X20) and a Four Thirds (E-PL1) sensor. The Fujifilm has a resolution of 12 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X20		Olympus E-PL1
Fixed lens compact camera		Mirrorless system camera
28-112mm f/2.0-2.8		Micro Four Thirds lenses
12 MP – Two Thirds sensor		12.2 MP – Four Thirds sensor
1080/60p Video		720/30p Video
ISO 100-12,800		ISO 200-3,200
Optical viewfinder		Viewfinder optional
2.8" LCD – 460k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
12 shutter flaps per second		3 shutter flaps per second
Lens-based stabilization		In-body stabilization
270 shots per battery charge		290 shots per battery charge
117 x 70 x 57 mm, 353 g		115 x 72 x 42 mm, 334 g

Check X20 offers at
ebay.com
Check E-PL1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X20 and the Olympus PEN E-PL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

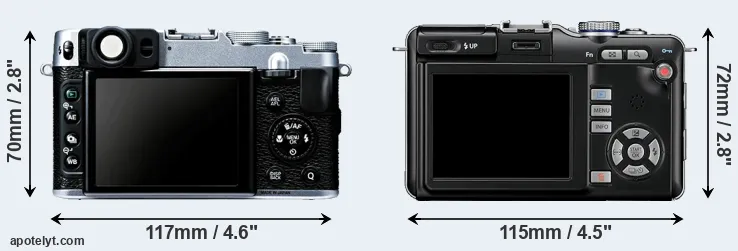

The physical size and weight of the Fujifilm X20 and the Olympus E-PL1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The X20 can be obtained in two different colors (black, silver), while the E-PL1 is available in four color-versions (black, blue, yellow, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL1 is somewhat larger (1 percent) than the Fujifilm X20. In this context, it is worth noting that neither the X20 nor the E-PL1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X20 has a lens built in, whereas the E-PL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the X20 gets 270 shots out of its Fujifilm NP-50 battery, while the E-PL1 can take 290 images on a single charge of its Olympus BLS-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
2.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
5.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
6.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
7.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
8.		Fujifilm XQ1	100 mm	59 mm	33 mm	206 g	240	n	Oct 2013	US$ 499	ebay.com
9.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
10.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
11.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
12.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
13.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
14.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
15.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
16.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

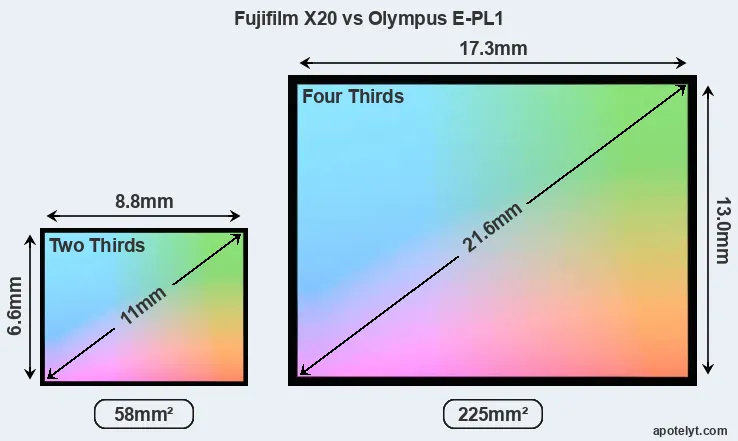

Of the two cameras under consideration, the Fujifilm X20 features a 2/3 sensor and the Olympus E-PL1 a Four Thirds sensor. The sensor area in the E-PL1 is 288 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 3.9 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

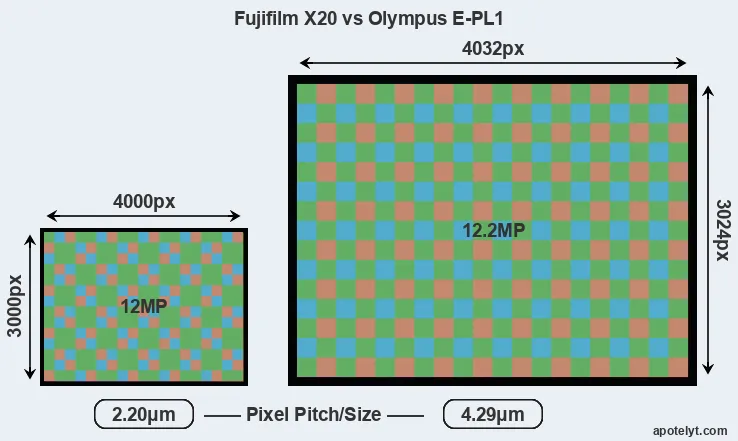

With 12.2MP, the E-PL1 offers a higher resolution than the X20 (12MP), but the E-PL1 nevertheless has larger individual pixels (pixel pitch of 4.29μm versus 2.20μm for the X20) due to its larger sensor. However, the X20 is a much more recent model (by 2 years and 11 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The X20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Fujifilm X20 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Olympus PEN E-PL1 are ISO 200 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X20 uses Fujifilm's X-Trans layout of photosites, while the E-PL1 employs the more common Bayer array.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
2.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
5.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
6.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
7.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
8.		Fujifilm XQ1	2/3	12.0	4000	3000	1080/60p	20.3	11.0	-390	47
9.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
10.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
11.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
12.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
13.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
14.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
15.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
16.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X20 provides a higher video resolution than the E-PL1. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X20 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Fujifilm X20, the Olympus E-PL1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
2.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
5.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
6.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
7.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
8.		Fujifilm XQ1	none	n	3.0 / 920	fixed	n	1/4000s	12.0/s	Y	Y
9.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
10.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
11.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
13.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
14.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
15.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
16.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The X20 writes its imaging data to SDXC cards, while the E-PL1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X20 and Olympus PEN E-PL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
2.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Fujifilm XQ1	-	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the X20 and the E-PL1 have been discontinued, but can regularly be found used on ebay. The E-PL1 was replaced by the Olympus E-PL2, while the X20 was followed by the Fujifilm X30. Further information on the features and operation of the X20 and E-PL1 can be found, respectively, in the Fujifilm X20 Manual (free pdf) or the online Olympus E-PL1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Fujifilm X20 and the Olympus E-PL1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Fujifilm X20:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (2.8" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has a lens built-in, whereas the E-PL1 requires a separate lens.
• More modern: Reflects 2 years and 11 months of technical progress since the E-PL1 launch.

Arguments in favor of the Olympus PEN E-PL1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More heavily discounted: Has been around for much longer (launched in February 2010).

If the count of relative strengths (bullet points above) is taken as a measure, the X20 emerges as the winner of the contest (10 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X20 and the Olympus E-PL1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the X20 or the E-PL1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
2.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
5.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
6.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
7.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
8.		Fujifilm XQ1	..	..	..	..	4.5/5	4.5/5	Oct 2013	US$ 499	ebay.com
9.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
10.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
11.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
12.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
13.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
14.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
15.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
16.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
