Canon M100 vs Olympus E-PL1

The Canon EOS M100 and the Olympus PEN E-PL1 are two digital cameras that were officially introduced, respectively, in August 2017 and February 2010. Both the M100 and the E-PL1 are mirrorless interchangeable lens cameras that are based on an APS-C (M100) and a Four Thirds (E-PL1) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M100		Olympus E-PL1
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Micro Four Thirds lenses
24 MP – APS-C sensor		12.2 MP – Four Thirds sensor
1080/60p Video		720/30p Video
ISO 100-25,600		ISO 200-3,200
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1040k dots		2.7" LCD – 230k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
6.1 shutter flaps per second		3 shutter flaps per second
Lens stabilization only		In-body stabilization
295 shots per battery charge		290 shots per battery charge
108 x 67 x 35 mm, 302 g		115 x 72 x 42 mm, 334 g

Check M100 offers at
ebay.com
Check E-PL1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the Olympus PEN E-PL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

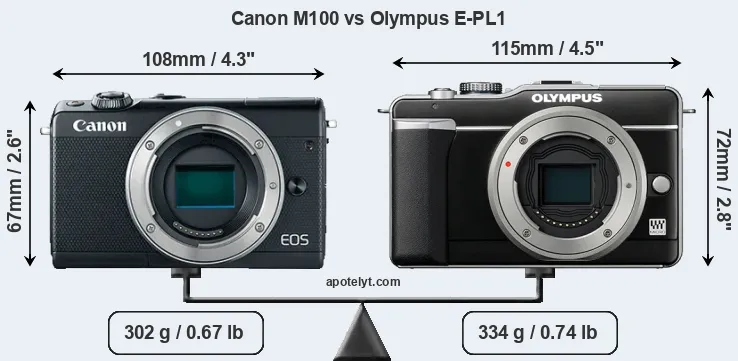

The physical size and weight of the Canon M100 and the Olympus E-PL1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The M100 can be obtained in two different colors (black, white), while the E-PL1 is available in four color-versions (black, blue, yellow, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL1 is notably larger (14 percent) than the Canon M100. Moreover, the E-PL1 is markedly heavier (11 percent) than the M100. In this context, it is worth noting that neither the M100 nor the E-PL1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M100 gets 295 shots out of its Canon LP-E12 battery, while the E-PL1 can take 290 images on a single charge of its Olympus BLS-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
2.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	599	ebay.com
3.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	549	ebay.com
4.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
5.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
6.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
7.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
9.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
10.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
11.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
12.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
13.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	799	ebay.com
14.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	599	ebay.com
15.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
16.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	799	ebay.com
17.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M100 was launched at a somewhat lower price (by 17 percent) than the E-PL1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M100 features an APS-C sensor and the Olympus E-PL1 a Four Thirds sensor. The sensor area in the E-PL1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M100 has a native 3:2 aspect ratio, while the one in the E-PL1 offers a 4:3 aspect.

With 24MP, the M100 offers a higher resolution than the E-PL1 (12.2MP), but the M100 has smaller individual pixels (pixel pitch of 3.72μm versus 4.29μm for the E-PL1). However, the M100 is a much more recent model (by 7 years and 6 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-PL1 are ISO 200 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the M100 provides substantially higher image quality than the E-PL1, with an overall score that is 24 points higher. This advantage is based on 2 bits higher color depth, 2.8 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
2.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
3.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
4.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
5.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
6.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
10.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
11.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
12.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
13.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
14.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
15.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
16.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
17.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M100 provides a higher video resolution than the E-PL1. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The M100 and the E-PL1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon M100 and Olympus E-PL1 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
2.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
3.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
4.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
11.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
12.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
13.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
14.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
15.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
16.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
17.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M100 has a touchscreen, while the E-PL1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The M100 writes its imaging data to SDXC cards, while the E-PL1 uses SDHC cards. The M100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and Olympus PEN E-PL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
17.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-

It is notable that the M100 offers wifi support, while the E-PL1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the M100 and the E-PL1 have been discontinued, but can regularly be found used on ebay. The E-PL1 was replaced by the Olympus E-PL2, while the M100 was followed by the Canon M200. Further information on the features and operation of the M100 and E-PL1 can be found, respectively, in the Canon M100 Manual (free pdf) or the online Olympus E-PL1 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon M100 or the Olympus E-PL1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS M100:

• More detail: Offers more megapixels (24 vs 12.2MP) with a 43% higher linear resolution.
• Better image quality: Scores substantially higher (24 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (2.8 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (6.1 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (108x67mm vs 115x72mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 32g or 10 percent) and hence easier to carry around.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced segment (17 percent cheaper at launch).
• More modern: Reflects 7 years and 6 months of technical progress since the E-PL1 launch.

Advantages of the Olympus PEN E-PL1:

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in February 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the M100 is the clear winner of the match-up (22 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M100 and the Olympus E-PL1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M100 or the E-PL1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
2.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	599	ebay.com
3.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	549	ebay.com
4.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
5.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
6.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
7.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
9.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
10.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
11.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
12.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
13.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	799	ebay.com
14.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	599	ebay.com
15.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
16.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	799	ebay.com
17.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
