Fujifilm X-T20 vs Olympus E-PM1
The Fujifilm X-T20 and the Olympus PEN E-PM1 are two digital cameras that were officially introduced, respectively, in January 2017 and June 2011. Both the X-T20 and the E-PM1 are mirrorless interchangeable lens cameras that are based on an APS-C (X-T20) and a Four Thirds (E-PM1) sensor. The Fujifilm has a resolution of 24 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-T20 and the Olympus PEN E-PM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Fujifilm X-T20 and the Olympus E-PM1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The X-T20 can be obtained in two different colors (black, silver), while the E-PM1 is available in six color-versions (black, silver, brown, pink, purple, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM1 is notably smaller (28 percent) than the Fujifilm X-T20. Moreover, the E-PM1 is markedly lighter (31 percent) than the X-T20. In this context, it is worth noting that neither the X-T20 nor the E-PM1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-T20) and the Micro Four Thirds Lens Catalog (E-PM1). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the X-T20 gets 350 shots out of its NP-W126S battery, while the E-PM1 can take 330 images on a single charge of its BLS-5 power pack. The power pack in the X-T20 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|2.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|3.||Fujifilm X-E4||121 mm||73 mm||33 mm||364 g||380||n||Jan 2021||849|
|4.||Fujifilm X-T30||118 mm||83 mm||47 mm||383 g||380||n||Feb 2019||899|
|5.||Fujifilm X-A5||117 mm||68 mm||40 mm||361 g||450||n||Jan 2018||399|
|6.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599|
|7.||Fujifilm X-E3||121 mm||74 mm||43 mm||337 g||350||n||Sep 2017||899|
|8.||Fujifilm X70||113 mm||64 mm||44 mm||340 g||330||n||Jan 2016||799|
|9.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399|
|10.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|11.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|12.||Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999|
|13.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|14.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|16.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|17.||Panasonic G2||124 mm||84 mm||74 mm||428 g||360||n||Mar 2010||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PM1 was launched at a markedly lower price (by 44 percent) than the X-T20, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

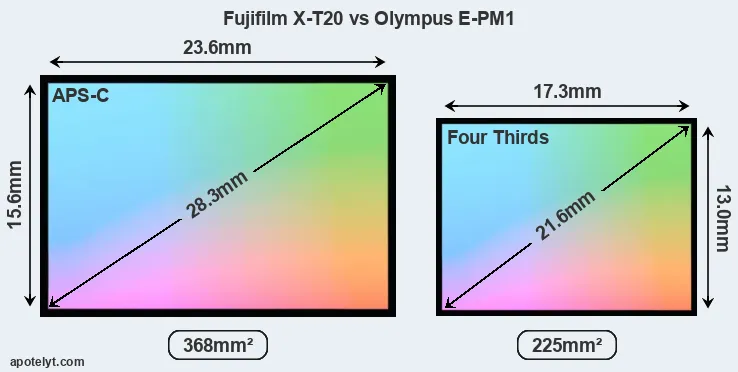

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Fujifilm X-T20 features an APS-C sensor and the Olympus E-PM1 a Four Thirds sensor. The sensor area in the E-PM1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-T20 has a native 3:2 aspect ratio, while the one in the E-PM1 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.

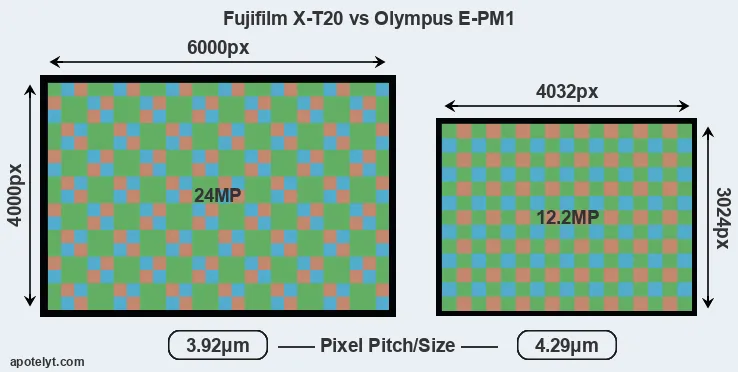

With 24MP, the X-T20 offers a higher resolution than the E-PM1 (12.2MP), but the X-T20 has smaller individual pixels (pixel pitch of 3.92μm versus 4.29μm for the E-PM1). However, the X-T20 is a much more recent model (by 5 years and 6 months) than the E-PM1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-T20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-T20 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T20 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PM1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The X-T20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Fujifilm X-T20 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN E-PM1 are ISO 100 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|13.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|14.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|17.||Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-T20 provides a higher video resolution than the E-PM1. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the X-T20 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PM1 relies on live view and the rear LCD for framing. That said, the E-PM1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Fujifilm X-T20 and Olympus E-PM1 in connection with corresponding information for a sample of similar cameras.
One difference between the cameras concerns the presence of an on-board flash. The X-T20 has one, while the E-PM1 does not. While the built-in flash of the X-T20 is not very powerful, it can at times be useful as a fill-in light.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T20 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T20 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X-T20 and the E-PM1 write their files to SDXC cards. The X-T20 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PM1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T20 and Olympus PEN E-PM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the X-T20 has a microphone port, which is missing on the E-PM1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the X-T20 and the E-PM1 have been discontinued, but can regularly be found used on eBay. The E-PM1 was replaced by the Olympus E-PM2, while the X-T20 was followed by the Fujifilm X-T100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So how do things add up? Is there a clear favorite between the Fujifilm X-T20 and the Olympus E-PM1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Fujifilm X-T20:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 43% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (8 vs 5.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 5 years and 6 months of technical progress since the E-PM1 launch.
Advantages of the Olympus PEN E-PM1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (110x64mm vs 118x83mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 118g or 31 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in June 2011).
If the number of relative strengths (bullet points above) is taken as a guide, the X-T20 is the clear winner of the match-up (21 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-T20 and the Olympus E-PM1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X-T20 or the E-PM1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Fujifilm X-T20||5/5||+ +||82/100||5/5||4.5/5||Jan 2017||899|
|2.||Olympus E-PM1||..||86/100||71/100||4.5/5||4.5/5||Jun 2011||499|
|3.||Fujifilm X-E4||4/5||..||..||..||..||Jan 2021||849|
|4.||Fujifilm X-T30||5/5||+ +||84/100||4.5/5||4.5/5||Feb 2019||899|
|5.||Fujifilm X-A5||..||+||..||4/5||3.5/5||Jan 2018||399|
|6.||Fujifilm X-T100||4/5||+||79/100||4/5||4.5/5||May 2018||599|
|7.||Fujifilm X-E3||4.5/5||+||84/100||4.5/5||4.5/5||Sep 2017||899|
|8.||Fujifilm X70||4.5/5||..||76/100||4.5/5||4.5/5||Jan 2016||799|
|9.||Fujifilm X-A3||..||..||74/100||4.5/5||4/5||Aug 2016||399|
|10.||Fujifilm X-E2S||4.5/5||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|11.||Fujifilm X-T10||4.5/5||+ +||80/100||5/5||5/5||May 2015||799|
|12.||Fujifilm X-E2||4/5||..||80/100||4.5/5||5/5||Oct 2013||999|
|13.||Olympus E-PM2||3/5||..||77/100||5/5||4.5/5||Sep 2012||499|
|14.||Olympus E-PL2||3/5||83/100||71/100||4.5/5||4.5/5||Jan 2011||599|
|15.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|16.||Olympus E-PL1||..||86/100||69/100||4/5||4.5/5||Feb 2010||599|
|17.||Panasonic G2||..||..||72/100||4/5||4.5/5||Mar 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Fujifilm X-T20 vs Olympus E-PM1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-T20||Olympus E-PM1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Fujifilm X mount lenses||Micro Four Thirds lenses|
|Launch Date||January 2017||June 2011|
|Launch Price||USD 899||USD 499|
|Sensor Specs||Fujifilm X-T20||Olympus E-PM1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4032 x 3024 pixels|
|Pixel Pitch||3.92 μm||4.29 μm|
|Pixel Density||6.52 MP/cm2||5.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/60i Video|
|ISO Setting||200 - 12,800 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 51,200 ISO||no Enhancement|
|Image Processor||X-Processor Pro2||TruePic VI|
|DXO Sensor Quality (score)||..||52|
|DXO Color Depth (bits)||..||21.0|
|DXO Dynamic Range (EV)||..||10.3|
|DXO Low Light (ISO)||..||499|
|Screen Specs||Fujifilm X-T20||Olympus E-PM1|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Fujifilm X-T20||Olympus E-PM1|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||8 shutter flaps/s||5.5 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Fujifilm X-T20||Olympus E-PM1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Fujifilm X-T20||Olympus E-PM1|
|Battery Life (CIPA)||350 shots per charge||330 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
118 x 83 x 41 mm
(4.6 x 3.3 x 1.6 in)
110 x 64 x 34 mm
(4.3 x 2.5 x 1.3 in)
|Camera Weight||383 g (13.5 oz)||265 g (9.3 oz)|
