Fujifilm X-T20 vs Olympus E-P5
The Fujifilm X-T20 and the Olympus PEN E-P5 are two digital cameras that were revealed to the public, respectively, in January 2017 and May 2013. Both the X-T20 and the E-P5 are mirrorless interchangeable lens cameras that are based on an APS-C (X-T20) and a Four Thirds (E-P5) sensor. The Fujifilm has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-T20 and the Olympus PEN E-P5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Fujifilm X-T20 and the Olympus E-P5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The X-T20 can be obtained in two different colors (black, silver), while the E-P5 is available in three color-versions (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P5 is notably smaller (14 percent) than the Fujifilm X-T20. However, the E-P5 is markedly heavier (10 percent) than the X-T20. In this context, it is worth noting that neither the X-T20 nor the E-P5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-T20) and the Micro Four Thirds Lens Catalog (E-P5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the X-T20 gets 350 shots out of its NP-W126S battery, while the E-P5 can take 330 images on a single charge of its BLN-1 power pack. The power pack in the X-T20 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|2.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|3.||Fujifilm X-E4||121 mm||73 mm||33 mm||364 g||380||n||Jan 2021||849|
|4.||Fujifilm X-T30||118 mm||83 mm||47 mm||383 g||380||n||Feb 2019||899|
|5.||Fujifilm X-A5||117 mm||68 mm||40 mm||361 g||450||n||Jan 2018||399|
|6.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599|
|7.||Fujifilm X-E3||121 mm||74 mm||43 mm||337 g||350||n||Sep 2017||899|
|8.||Fujifilm X70||113 mm||64 mm||44 mm||340 g||330||n||Jan 2016||799|
|9.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399|
|10.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|11.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|12.||Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999|
|13.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|14.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|17.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-T20 was somewhat cheaper (by 10 percent) than the E-P5 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

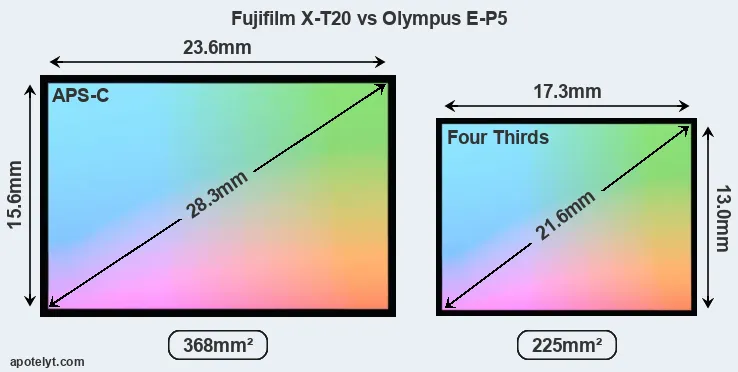

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Fujifilm X-T20 features an APS-C sensor and the Olympus E-P5 a Four Thirds sensor. The sensor area in the E-P5 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-T20 has a native 3:2 aspect ratio, while the one in the E-P5 offers a 4:3 aspect.
With 24MP, the X-T20 offers a higher resolution than the E-P5 (15.9MP), but the X-T20 nevertheless has larger individual pixels (pixel pitch of 3.92μm versus 3.76μm for the E-P5) due to its larger sensor. Moreover, the X-T20 is a much more recent model (by 3 years and 8 months) than the E-P5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-T20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-T20 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T20 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-P5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The X-T20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Fujifilm X-T20 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN E-P5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|13.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|14.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|17.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X-T20 provides a higher video resolution than the E-P5. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the X-T20 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P5 relies on live view and the rear LCD for framing. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Fujifilm X-T20 and Olympus E-P5 in connection with corresponding information for a sample of similar cameras.
|14.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One feature that differentiates the E-P5 and the X-T20 is in-body image stabilization (IBIS). The E-P5 reduces the risk of handshake-induced blur with all attached lenses, while the X-T20 offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T20 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T20 and the Olympus E-P5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X-T20 and the E-P5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T20 and Olympus PEN E-P5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|14.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the X-T20 has a microphone port, which is missing on the E-P5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the X-T20 and the E-P5 have been discontinued, but can regularly be found used on eBay. The X-T20 was replaced by the Fujifilm X-T100, while the E-P5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Fujifilm X-T20 and the Olympus E-P5? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Fujifilm X-T20:
- More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- More modern: Reflects 3 years and 8 months of technical progress since the E-P5 launch.
Advantages of the Olympus PEN E-P5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 8 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (122x69mm vs 118x83mm) and will fit more readily into a bag.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More heavily discounted: Has been around for much longer (launched in May 2013).
If the number of relative strengths (bullet points above) is taken as a guide, the X-T20 is the clear winner of the match-up (13 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-T20 and the Olympus E-P5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the X-T20 and the E-P5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Fujifilm X-T20||5/5||+ +||82/100||5/5||4.5/5||Jan 2017||899|
|2.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|3.||Fujifilm X-E4||..||..||..||..||..||Jan 2021||849|
|4.||Fujifilm X-T30||5/5||+ +||84/100||4.5/5||4.5/5||Feb 2019||899|
|5.||Fujifilm X-A5||..||+||..||4/5||3.5/5||Jan 2018||399|
|6.||Fujifilm X-T100||4/5||+||79/100||4/5||4.5/5||May 2018||599|
|7.||Fujifilm X-E3||4.5/5||+||84/100||4.5/5||4.5/5||Sep 2017||899|
|8.||Fujifilm X70||4.5/5||..||76/100||4.5/5||4.5/5||Jan 2016||799|
|9.||Fujifilm X-A3||..||..||74/100||4.5/5||4/5||Aug 2016||399|
|10.||Fujifilm X-E2S||4.5/5||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|11.||Fujifilm X-T10||4.5/5||+ +||80/100||5/5||5/5||May 2015||799|
|12.||Fujifilm X-E2||4/5||..||80/100||4.5/5||5/5||Oct 2013||999|
|13.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|14.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|15.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|17.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Fujifilm X-T20 vs Olympus E-P5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-T20||Olympus E-P5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Fujifilm X mount lenses||Micro Four Thirds lenses|
|Launch Date||January 2017||May 2013|
|Launch Price||USD 899||USD 999|
|Sensor Specs||Fujifilm X-T20||Olympus E-P5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.92 μm||3.76 μm|
|Pixel Density||6.52 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/30p Video|
|ISO Setting||200 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 25,600 ISO|
|Image Processor||X-Processor Pro2||TruePic VI|
|DXO Sensor Quality (score)||..||72|
|DXO Color Depth (bits)||..||22.8|
|DXO Dynamic Range (EV)||..||12.4|
|DXO Low Light (ISO)||..||895|
|Screen Specs||Fujifilm X-T20||Olympus E-P5|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Shooting Specs||Fujifilm X-T20||Olympus E-P5|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||8 shutter flaps/s||9 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Fujifilm X-T20||Olympus E-P5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Fujifilm X-T20||Olympus E-P5|
|Battery Life (CIPA)||350 shots per charge||330 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
118 x 83 x 41 mm
(4.6 x 3.3 x 1.6 in)
122 x 69 x 37 mm
(4.8 x 2.7 x 1.5 in)
|Camera Weight||383 g (13.5 oz)||420 g (14.8 oz)|
