Fujifilm X-T1 vs Olympus E-510
The Fujifilm X-T1 and the Olympus E-510 are two digital cameras that were announced, respectively, in January 2014 and March 2007. The X-T1 is a mirrorless interchangeable lens camera, while the E-510 is a DSLR. The cameras are based on an APS-C (X-T1) and a Four Thirds (E-510) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Fujifilm X-T1||Olympus E-510|
|Mirrorless system camera||Digital single lens reflex|
|Fujifilm X mount lenses||Four Thirds lenses|
|16 MP, APS-C Sensor||10 MP, Four Thirds Sensor|
|1080/60p Video||no Video|
|ISO 200-6,400 (100 - 51,200)||ISO 100-1,600|
|Electronic viewfinder (2360k dots)||Optical viewfinder|
|3.0 LCD, 1040k dots||2.5 LCD, 215k dots|
|Tilting screen (no touchscreen)||Fixed screen (not touch-sensitive)|
|8 shutter flaps per second||3 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||not weather sealed|
|350 shots per battery charge||750 shots per battery charge|
|129 x 90 x 47 mm, 440 g||136 x 92 x 68 mm, 538 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-T1 and the Olympus E-510? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

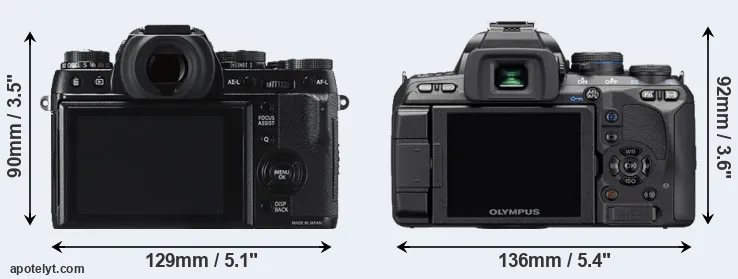

The physical size and weight of the Fujifilm X-T1 and the Olympus E-510 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The X-T1 can be obtained in two different colors (black, silver), while the E-510 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-510 is notably larger (8 percent) than the Fujifilm X-T1. Moreover, the E-510 is markedly heavier (22 percent) than the X-T1. It is worth mentioning in this context that the X-T1 is splash and dust resistant, while the E-510 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-T1) and the Four Thirds Lens Catalog (E-510). Mirrorless cameras, such as the Fujifilm X-T1, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Fujifilm X-T1||5.1 in||3.5 in||1.9 in||15.5 oz||350||Y||Jan 2014||1,299|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
|Fujifilm X-Pro2||5.6 in||3.3 in||1.8 in||17.5 oz||350||Y||Jan 2016||1,699|
|Fujifilm X-T2||5.2 in||3.6 in||1.9 in||17.9 oz||340||Y||Jul 2016||1,599|
|Fujifilm X-A2||4.6 in||2.6 in||1.6 in||12.3 oz||410||n||Jan 2015||399|
|Fujifilm X-T10||4.6 in||3.3 in||1.6 in||13.4 oz||350||n||May 2015||799|
|Fujifilm X100T||5.0 in||2.9 in||2.0 in||15.5 oz||330||n||Sep 2014||1,299|
|Fujifilm X100S||5.0 in||2.9 in||2.1 in||15.7 oz||330||n||Jan 2013||1,299|
|Fujifilm X-A1||4.6 in||2.6 in||1.5 in||11.6 oz||350||n||Sep 2013||399|
|Fujifilm X-E2||5.1 in||3.0 in||1.5 in||12.3 oz||350||n||Oct 2013||999|
|Fujifilm X-M1||4.6 in||2.6 in||1.5 in||11.6 oz||350||n||Jun 2013||699|
|Fujifilm X-Pro1||5.5 in||3.2 in||1.7 in||15.9 oz||300||n||Jan 2012||1,699|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-400||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699|
|Olympus E-500||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-510 was launched at a markedly lower price (by 38 percent) than the X-T1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Fujifilm X-T1 features an APS-C sensor and the Olympus E-510 a Four Thirds sensor. The sensor area in the E-510 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-T1 has a native 3:2 aspect ratio, while the one in the E-510 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 16MP, the X-T1 offers a higher resolution than the E-510 (10MP), but the X-T1 nevertheless has marginally larger individual pixels (pixel pitch of 4.80μm versus 4.74μm for the E-510) due to its larger sensor. Moreover, the X-T1 is a much more recent model (by 6 years and 10 months) than the E-510, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-T1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-T1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T1 for good quality output (200 dots per inch) amounts to 24.5 x 16.3 inches or 62.2 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.7 x 33.2 cm, and for excellent quality (300 dpi) 16.3 x 10.9 inches or 41.5 x 27.6 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The X-T1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Fujifilm X-T1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus E-510 are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..|
|Olympus E-500||Four Thirds||8.0||3264||2448||none||..||..||..||..|
Many modern cameras are not only capable of taking still images, but can also record movies. The X-T1 indeed provides movie recording capabilities, while the E-510 does not. The highest resolution format that the X-T1 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-T1 has an electronic viewfinder (2360k dots), while the E-510 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-T1 offers a wider field of view (100%) than the one in the E-510 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-T1 has a higher magnification (0.77x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Fujifilm X-T1 and Olympus E-510 along with similar information for a selection of comparators.
One feature that differentiates the E-510 and the X-T1 is in-body image stabilization (IBIS). The E-510 reduces the risk of handshake-induced blur with all attached lenses, while the X-T1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-T1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The X-T1 writes its imaging data to SDXC cards, while the E-510 uses Compact Flash or xD Picture cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X-T1 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T1 and Olympus E-510 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the X-T1 offers wifi support, while the E-510 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Fujifilm X-T1 (unlike the E-510) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the X-T1 and the E-510 have been discontinued, but can regularly be found used on eBay. The E-510 was replaced by the Olympus E-520, while the X-T1 was followed by the Fujifilm X-T2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So what is the bottom line? Is the Fujifilm X-T1 better than the Olympus E-510 or vice versa? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Fujifilm X-T1:
- More detail: Offers more megapixels (16 vs 10MP) with a 29% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.77x vs 0.46x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Is lighter (by 98g or 18 percent) and hence easier to carry around.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 6 years and 10 months of technical progress since the E-510 launch.
Advantages of the Olympus E-510:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Gets more shots (750 versus 350) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2007).
If the count of relative strengths (bullet points above) is taken as a measure, the X-T1 is the clear winner of the match-up (23 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-T1 and the Olympus E-510 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-T1 or the E-510. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Fujifilm X-T1||+ +||84/100||5/5||4/5||5/5||Jan 2014||1,299|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Fujifilm X-Pro2||+||83/100||4.5/5||4.5/5||4.5/5||Jan 2016||1,699|
|Fujifilm X-T2||+ +||86/100||4.5/5||5/5||5/5||Jul 2016||1,599|
|Fujifilm X-A2||..||..||4.5/5||4/5||4.5/5||Jan 2015||399|
|Fujifilm X-T10||+ +||80/100||5/5||4/5||5/5||May 2015||799|
|Fujifilm X100T||+||81/100||4.5/5||4.5/5||5/5||Sep 2014||1,299|
|Fujifilm X100S||+ +||81/100||4.5/5||4/5||5/5||Jan 2013||1,299|
|Fujifilm X-A1||..||..||4.5/5||..||4.5/5||Sep 2013||399|
|Fujifilm X-E2||..||80/100||4.5/5||..||5/5||Oct 2013||999|
|Fujifilm X-M1||+||77/100||4.5/5||..||4.5/5||Jun 2013||699|
|Fujifilm X-Pro1||+ +||79/100||4.5/5||4/5||4.5/5||Jan 2012||1,699|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-400||85/100||..||4/5||..||4/5||Sep 2006||699|
|Olympus E-500||76/100||+ +||..||..||..||Sep 2005||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 30D vs Olympus E-510
- Canon 90D vs Fujifilm X-T1
- Canon G15 vs Olympus E-510
- Fujifilm X-T1 vs Fujifilm X-T20
- Fujifilm X-T1 vs Leica Q2
- Fujifilm X-T1 vs Pentax 645D
- Fujifilm X-T1 vs Pentax K-1
- Fujifilm X-T1 vs Sony A5000
- Kodak AZ901 vs Olympus E-510
- Nikon 1 V2 vs Olympus E-510
- Olympus E-510 vs Olympus E-M10 II
- Olympus E-510 vs Sony A6100
Specifications: Fujifilm X-T1 vs Olympus E-510
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-T1||Olympus E-510|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Fujifilm X mount lenses||Four Thirds lenses|
|Launch Date||January 2014||March 2007|
|Launch Price||USD 1,299||USD 799|
|Sensor Specs||Fujifilm X-T1||Olympus E-510|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16 Megapixels||10 Megapixels|
|Image Resolution||4896 x 3264 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.80 μm||4.74 μm|
|Pixel Density||4.34 MP/cm2||4.44 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||200 - 6,400 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 51,200 ISO||no Enhancement|
|Image Processor||EXR Processor II||TruePic III|
|DXO Sensor Quality (score)||..||52|
|DXO Color Depth (bits)||..||21.2|
|DXO Dynamic Range (EV)||..||10.0|
|DXO Low Light (ISO)||..||442|
|Screen Specs||Fujifilm X-T1||Olympus E-510|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.5inch|
|LCD Resolution||1040k dots||215k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Fujifilm X-T1||Olympus E-510|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||8 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||YES||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Fujifilm X-T1||Olympus E-510|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Fujifilm X-T1||Olympus E-510|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||350 shots per charge||750 shots per charge|
129 x 90 x 47 mm
(5.1 x 3.5 x 1.9 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||440 g (15.5 oz)||538 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
