Fujifilm X-E1 vs Nikon D5300

The Fujifilm X-E1 and the Nikon D5300 are two digital cameras that were officially introduced, respectively, in September 2012 and October 2013. The X-E1 is a mirrorless interchangeable lens camera, while the D5300 is a DSLR. Both cameras are equipped with an APS-C sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Nikon provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-E1		Nikon D5300
Mirrorless system camera		Digital single lens reflex
Fujifilm X mount lenses		Nikon F mount lenses
16 MP – APS-C sensor		24 MP – APS-C sensor
1080/24p Video		1080/60p Video
ISO 200-6,400 (100 - 25,600)		ISO 100-12,800 (100 - 25,600)
Electronic viewfinder (2360k dots)		Optical viewfinder
2.8" LCD – 460k dots		3.2" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
6 shutter flaps per second		5 shutter flaps per second
350 shots per battery charge		600 shots per battery charge
129 x 75 x 38 mm, 350 g		125 x 98 x 76 mm, 480 g

Check X-E1 offers at
ebay.com
Check D5300 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-E1 and the Nikon D5300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

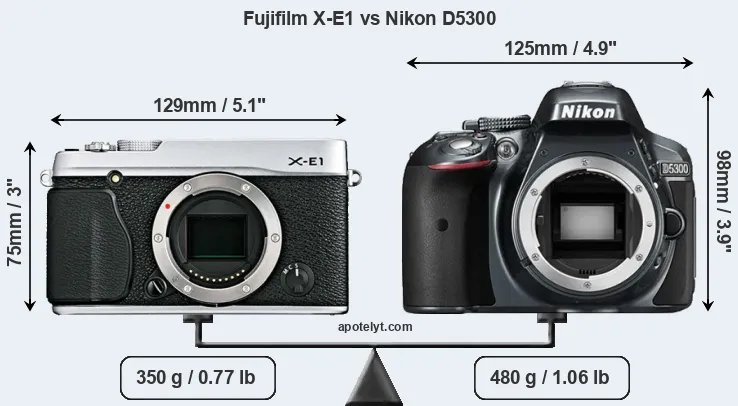

Body comparison

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-E1 and the Nikon D5300. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The X-E1 can be obtained in two different colors (black, silver), while the D5300 is available in three color-versions (black, grey, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5300 is notably larger (27 percent) than the Fujifilm X-E1. Moreover, the D5300 is substantially heavier (37 percent) than the X-E1. In this context, it is worth noting that neither the X-E1 nor the D5300 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-E1) and the Nikon Lens Catalog (D5300). Mirrorless cameras, such as the Fujifilm X-E1, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

Concerning battery life, the X-E1 gets 350 shots out of its Fujifilm NP-W126 battery, while the D5300 can take 600 images on a single charge of its Nikon EN-EL14a power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-E1	129 mm	75 mm	38 mm	350 g	350	n	Sep 2012	US$ 999	ebay.com
2.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
3.		Fujifilm X-A1	117 mm	67 mm	39 mm	330 g	350	n	Sep 2013	US$ 399	ebay.com
4.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	US$ 399	ebay.com
5.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	US$ 399	ebay.com
6.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	US$ 999	ebay.com
7.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	US$ 699	ebay.com
8.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
9.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
10.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
11.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
12.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	US$ 599	ebay.com
13.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
14.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	US$ 749	ebay.com
15.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
16.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
17.		Sony NEX-6	120 mm	67 mm	43 mm	345 g	360	n	Sep 2012	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5300 was launched at a somewhat lower price (by 20 percent) than the X-E1, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

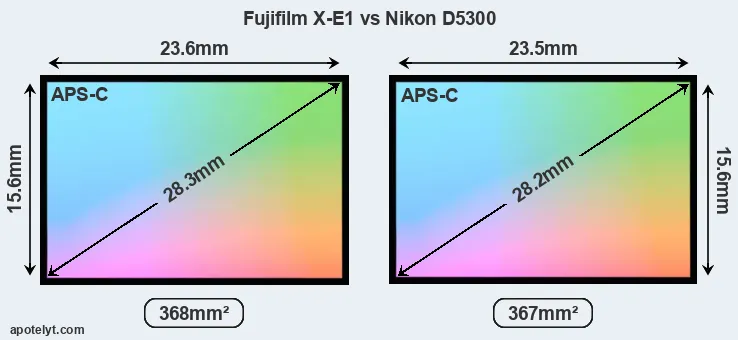

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a slightly smaller sensor, the D5300 offers a higher resolution of 24 megapixels, compared with 16 MP of the X-E1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 4.80μm for the X-E1). However, it should be noted that the D5300 is a somewhat more recent model (by 1 year and 1 month) than the X-E1, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon D5300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Fujifilm X-E1 are 24.5 x 16.3 inches or 62.2 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.7 x 33.2 cm for very good quality, and 16.3 x 10.9 inches or 41.5 x 27.6 cm for excellent quality prints.

The Fujifilm X-E1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D5300 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X-E1 uses Fujifilm's X-Trans layout of photosites, while the D5300 employs the more common Bayer array.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-E1	APS-C	16.0	4896	3264	1080/24p	23.2	12.4	1298	75
2.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
3.		Fujifilm X-A1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1390	76
4.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
5.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
6.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
7.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
8.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
9.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
10.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
11.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
12.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
13.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
14.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
15.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
16.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
17.		Sony NEX-6	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	1018	78
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D5300 provides a faster frame rate than the X-E1. It can shoot movie footage at 1080/60p, while the Fujifilm is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the X-E1 has an electronic viewfinder (2360k dots), while the D5300 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Fujifilm X-E1, the Nikon D5300, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-E1	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
2.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
3.		Fujifilm X-A1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
4.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
5.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
6.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
7.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
8.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
9.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
10.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
11.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
12.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
13.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
14.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
15.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
16.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
17.		Sony NEX-6	2359	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Nikon D5300 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-E1 and the D5300 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-E1 and Nikon D5300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-E1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
3.		Fujifilm X-A1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
14.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
16.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
17.		Sony NEX-6	Y	stereo / mono	-	-	mini	2.0	Y	-	-

It is notable that the D5300 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the X-E1 does not provide wifi capability.

Travel and landscape photographers will find it useful that the D5300 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the X-E1 and the D5300 have been discontinued, but can regularly be found used on ebay. The X-E1 was replaced by the Fujifilm X-E2, while the D5300 was followed by the Nikon D5500. Further information on the features and operation of the X-E1 and D5300 can be found, respectively, in the Fujifilm X-E1 Manual (free pdf) or the online Nikon D5300 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Fujifilm X-E1 and the Nikon D5300? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Fujifilm X-E1:

• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (129x75mm vs 125x98mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 130g or 27 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• More heavily discounted: Has been on the market for longer (launched in September 2012).

Reasons to prefer the Nikon D5300:

• More detail: Has more megapixels (24 vs 16MP), which boosts linear resolution by 23%.
• Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.2" vs 2.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (600 versus 350) out of a single battery charge.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was released into a lower priced segment (20 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 1 month) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the D5300 is the clear winner of the contest (13 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-E1 and the Nikon D5300 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the X-E1 and the D5300 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-E1	4/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	US$ 999	ebay.com
2.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
3.		Fujifilm X-A1	..	..	..	..	4.5/5	4.5/5	Sep 2013	US$ 399	ebay.com
4.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	US$ 399	ebay.com
5.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	US$ 399	ebay.com
6.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	US$ 999	ebay.com
7.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
8.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
9.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
10.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
11.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
12.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	US$ 599	ebay.com
13.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
14.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	US$ 749	ebay.com
15.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
16.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
17.		Sony NEX-6	5/5	+ +	..	78/100	4.5/5	4.5/5	Sep 2012	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
