Canon XTi vs Olympus E-P5
The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Olympus PEN E-P5 are two digital cameras that were revealed to the public, respectively, in August 2006 and May 2013. The XTi is a DSLR, while the E-P5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (XTi) and a Four Thirds (E-P5) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Olympus PEN E-P5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

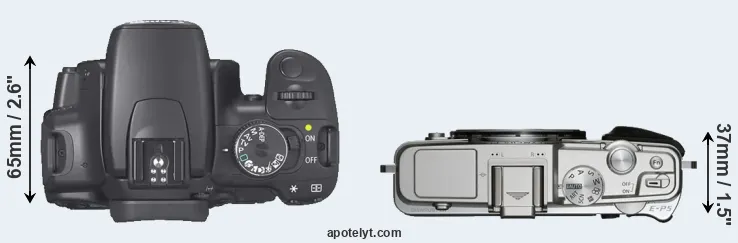

An illustration of the physical size and weight of the Canon XTi and the Olympus E-P5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-P5 can be obtained in three different colors (black, silver, white), while the XTi is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P5 is notably smaller (21 percent) than the Canon XTi. Moreover, the E-P5 is markedly lighter (24 percent) than the XTi. In this context, it is worth noting that neither the XTi nor the E-P5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XTi) and the Micro Four Thirds Lens Catalog (E-P5). Mirrorless cameras, such as the E-P5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|2.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|3.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|12.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|13.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|14.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|17.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XTi was launched at a somewhat lower price (by 20 percent) than the E-P5, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XTi features an APS-C sensor and the Olympus E-P5 a Four Thirds sensor. The sensor area in the E-P5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XTi has a native 3:2 aspect ratio, while the one in the E-P5 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
Despite having a smaller sensor, the E-P5 offers a higher resolution of 15.9 megapixels, compared with 10.1 MP of the XTi. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.71μm for the XTi). However, it should be noted that the E-P5 is much more recent (by 6 years and 8 months) than the XTi, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-P5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-P5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-P5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the E-P5 has a markedly higher DXO score than the XTi (overall score 10 points higher), which will translate into better image quality. The advantage is based on 0.7 bits higher color depth, 1.4 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|13.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|14.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|17.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-P5 indeed provides for movie recording, while the XTi does not. The highest resolution format that the E-P5 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the XTi has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P5 relies on live view and the rear LCD for framing. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Canon XTi and Olympus E-P5 along with similar information for a selection of comparators.
|1.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|2.||Olympus E-P5||optional||n||3.0 / 1037||tilting||Y||1/8000s||9.0||Y||Y|
|3.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|4.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|6.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|7.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7||Y||n|
|8.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|9.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5||Y||n|
|10.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5||Y||n|
|11.||Canon XT||optical||n||1.8 / 115||fixed||n||1/4000s||3.0||Y||n|
|12.||Canon Rebel||optical||n||1.8 / 118||fixed||n||1/4000s||2.5||Y||n|
|13.||Olympus PEN-F||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0||n||Y|
|14.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0||Y||Y|
|15.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0||Y||Y|
|16.||Olympus E-M1||2360||n||3.0 / 1037||tilting||Y||1/8000s||10.0||n||Y|
|17.||Panasonic GX7||2760||n||3.0 / 1040||tilting||Y||1/8000s||5.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P5 has a touchscreen, while the XTi has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Olympus E-P5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XTi writes its imaging data to Compact Flash cards, while the E-P5 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Olympus PEN E-P5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Olympus E-P5||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|6.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|7.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|8.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|10.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Canon XT||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon Rebel||Y||- / -||-||-||-||1.1||-||-||-|
|13.||Olympus PEN-F||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|14.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus E-M1||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|17.||Panasonic GX7||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
It is notable that the E-P5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XTi does not provide wifi capability.
Both the XTi and the E-P5 have been discontinued, but can regularly be found used on eBay. The XTi was replaced by the Canon Xsi, while the E-P5 was followed by the Olympus E-P7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Which of the two cameras – the Canon XTi or the Olympus E-P5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel XTi:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (370 versus 330) on a single battery charge.
- More affordable: Was introduced into a lower priced segment (20 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2006).
Arguments in favor of the Olympus PEN E-P5:
- More detail: Has more megapixels (15.9 vs 10.1MP), which boosts linear resolution by 23%.
- Better image quality: Scores markedly higher (10 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (122x69mm vs 127x84mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 136g or 24 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 6 years and 8 months of technical progress since the XTi launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-P5 is the clear winner of the contest (18 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XTi and the Olympus E-P5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the XTi or the E-P5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|2.||Olympus E-P5||5/5||+ +||..||78/100||4.5/5||5/5||May 2013||999|
|3.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon XT||..||80/100||..||+ +||o||..||Feb 2005||899|
|12.||Canon Rebel||..||..||..||+ +||..||..||Aug 2003||899|
|13.||Olympus PEN-F||..||..||4/5||82/100||4.5/5||5/5||Jan 2016||1,199|
|14.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649|
|15.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-M1||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|17.||Panasonic GX7||4/5||+||..||79/100||5/5||5/5||Aug 2013||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 30D vs Canon XTi
- Canon G7 X vs Olympus E-P5
- Canon XTi vs Leica X1
- Canon XTi vs Nikon B700
- Canon XTi vs Nikon D5500
- Canon XTi vs Panasonic GH5s
- Canon XTi vs Panasonic TS7
- Fujifilm X-A5 vs Olympus E-P5
- Fujifilm X-Pro2 vs Olympus E-P5
- Nikon Z6 vs Olympus E-P5
- Olympus E-P5 vs Panasonic GF1
- Olympus E-P5 vs Sony H200
Specifications: Canon XTi vs Olympus E-P5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XTi||Olympus E-P5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2006||May 2013|
|Launch Price||USD 799||USD 999|
|Sensor Specs||Canon XTi||Olympus E-P5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.2 x 14.8 mm||17.3 x 13.0 mm|
|Sensor Area||328.56 mm2||224.9 mm2|
|Sensor Diagonal||26.7 mm||21.6 mm|
|Sensor Resolution||10.1 Megapixels||15.9 Megapixels|
|Image Resolution||3888 x 2592 pixels||4608 x 3456 pixels|
|Pixel Pitch||5.71 μm||3.76 μm|
|Pixel Density||3.07 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC II||TruePic VI|
|DXO Sensor Quality (score)||62||72|
|DXO Color Depth (bits)||22.1||22.8|
|DXO Dynamic Range (EV)||11.0||12.4|
|DXO Low Light (ISO)||664||895|
|Screen Specs||Canon XTi||Olympus E-P5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon XTi||Olympus E-P5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||3 shutter flaps/s||9 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XTi||Olympus E-P5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon XTi||Olympus E-P5|
|Battery Life (CIPA)||370 shots per charge||330 shots per charge|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
122 x 69 x 37 mm
(4.8 x 2.7 x 1.5 in)
|Camera Weight||556 g (19.6 oz)||420 g (14.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
