Canon XT vs Olympus TG-4

The Canon EOS Rebel XT (called Canon 350D in some regions) and the Olympus Tough TG-4 are two digital cameras that were officially introduced, respectively, in February 2005 and April 2015. The XT is a DSLR, while the TG-4 is a fixed lens compact. The cameras are based on an APS-C (XT) and a 1/2.3-inch (TG-4) sensor. The Canon has a resolution of 8 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XT		Olympus TG-4
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		25-100mm f/2.0-4.9
8 MP – APS-C sensor		15.9 MP – 1/2.3" sensor
no Video		1080/30p Video
ISO 100-1,600		ISO 100-6,400
Optical viewfinder		No viewfinder, LCD framing
1.8" LCD – 115k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Waterproof body (15m)
400 shots per battery charge		380 shots per battery charge
127 x 94 x 64 mm, 540 g		112 x 66 x 31 mm, 247 g

Check XT offers at
ebay.com
Check TG-4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XT and the Olympus Tough TG-4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

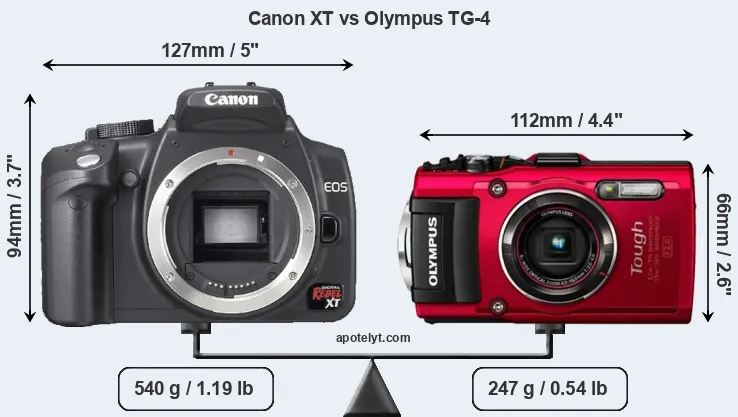

The side-by-side display below illustrates the physical size and weight of the Canon XT and the Olympus TG-4. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The XT can be obtained in two different colors (black, silver), while the TG-4 is also available in two color-versions, but different ones (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-4 is considerably smaller (38 percent) than the Canon XT. It is noteworthy in this context that the TG-4 is splash and dust-proof, while the XT does not feature any corresponding weather-sealing. More than that, the TG-4 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-4 has a lens built in, whereas the XT is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the XT and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the XT gets 400 shots out of its Canon NB-2LH battery, while the TG-4 can take 380 images on a single charge of its Olympus LI-92B power pack. The power pack in the TG-4 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
2.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
3.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
4.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
5.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
6.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
7.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
8.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
9.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
10.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
11.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
12.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	US$ 799	ebay.com
13.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
14.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
15.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
16.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
17.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TG-4 was launched at a lower price than the XT, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

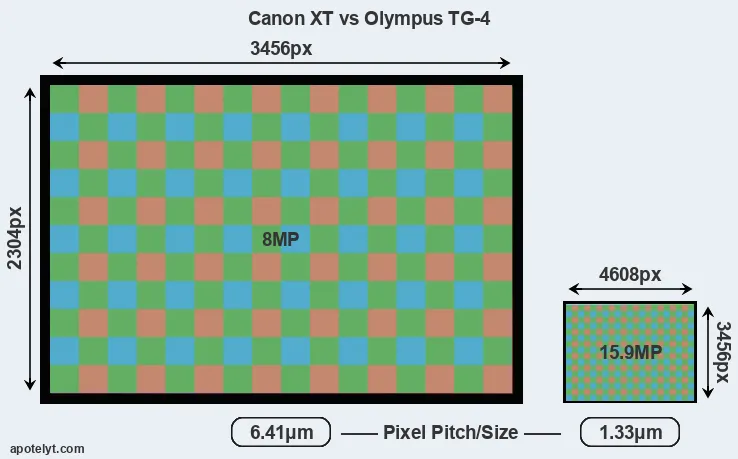

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon XT features an APS-C sensor and the Olympus TG-4 a 1/2.3-inch sensor. The sensor area in the TG-4 is 91 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the XT has a native 3:2 aspect ratio, while the one in the TG-4 offers a 4:3 aspect.

Despite having a smaller sensor, the TG-4 offers a higher resolution of 15.9 megapixels, compared with 8 MP of the XT. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 6.41μm for the XT). However, it should be noted that the TG-4 is much more recent (by 10 years and 1 month) than the XT, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Olympus TG-4 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TG-4 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon XT are 17.3 x 11.5 inches or 43.9 x 29.3 cm for good quality, 13.8 x 9.2 inches or 35.1 x 23.4 cm for very good quality, and 11.5 x 7.7 inches or 29.3 x 19.5 cm for excellent quality prints.

The Canon EOS Rebel XT has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus Tough TG-4 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the XT is build around a CMOS sensor, while the TG-4 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
2.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
3.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
4.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
5.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
6.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
7.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
8.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
9.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
10.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
11.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
12.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
13.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
14.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
15.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
16.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
17.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The TG-4 indeed provides for movie recording, while the XT does not. The highest resolution format that the TG-4 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the XT has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-4 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon XT, the Olympus TG-4, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
3.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
4.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
7.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
8.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
12.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
14.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
15.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
16.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
17.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus TG-4 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XT writes its imaging data to Compact Flash cards, while the TG-4 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XT and Olympus Tough TG-4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
7.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
12.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
13.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
14.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
16.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the XT has a hotshoe, while the TG-4 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the TG-4 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the XT and the TG-4 have been discontinued, but can regularly be found used on ebay. The XT was replaced by the Canon Xti, while the TG-4 was followed by the Olympus TG-5. Further information on the features and operation of the XT and TG-4 can be found, respectively, in the Canon XT Manual (free pdf) or the online Olympus TG-4 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon XT or the Olympus TG-4 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS Rebel XT:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in February 2005).

Arguments in favor of the Olympus Tough TG-4:

• More detail: Has more megapixels (15.9 vs 8MP), which boosts linear resolution by 39%.
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 115k dots).
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the XT requires a separate lens.
• More compact: Is smaller (112x66mm vs 127x94mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the XT).
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 10 years and 1 month of technical progress since the XT launch.

If the number of relative strengths (bullet points above) is taken as a guide, the TG-4 is the clear winner of the contest (17 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XT and the Olympus TG-4 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XT or the TG-4. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
2.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
3.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
4.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
5.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
6.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
7.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
8.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
9.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
10.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
11.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
12.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	US$ 799	ebay.com
13.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
14.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
15.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
16.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
17.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
