Canon XT vs Leica M10
The Canon EOS Rebel XT (called Canon 350D in some regions) and the Leica M10 (Typ 3656) are two digital cameras that were officially introduced, respectively, in February 2005 and January 2017. The XT is a DSLR, while the M10 is a rangefinder-style mirrorless camera. The cameras are based on an APS-C (XT) and a full frame (M10) sensor. The Canon has a resolution of 8 megapixels, whereas the Leica provides 23.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XT and the Leica M10 (Typ 3656)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

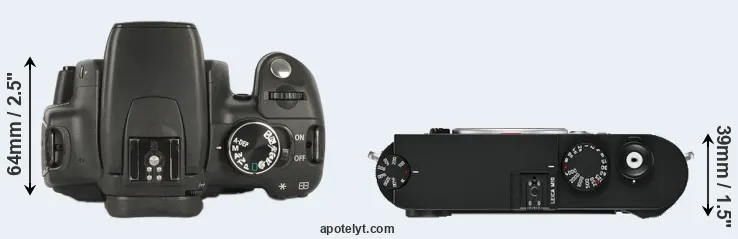

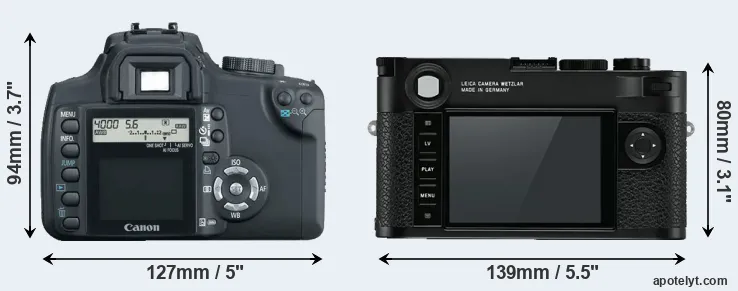

The physical size and weight of the Canon XT and the Leica M10 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M10 is notably smaller (7 percent) than the Canon XT. However, the M10 is markedly heavier (22 percent) than the XT. It is noteworthy in this context that the M10 is splash and dust-proof, while the XT does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XT) and the Leica M Lens Catalog (M10).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|2.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|5.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|6.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|7.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|8.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|9.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|10.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|11.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|12.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|13.||Leica M-E Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Jun 2019||3,999|
|14.||Leica M10-P||139 mm||80 mm||39 mm||660 g||210||Y||Aug 2018||7,995|
|15.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195|
|16.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249|
|17.||Leica M Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XT was launched at a markedly lower price (by 86 percent) than the M10, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XT features an APS-C sensor and the Leica M10 a full frame sensor. The sensor area in the M10 is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 23.8MP, the M10 offers a higher resolution than the XT (8MP), but the M10 has smaller individual pixels (pixel pitch of 6.00μm versus 6.41μm for the XT). Yet, the M10 is a much more recent model (by 11 years and 11 months) than the XT, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the M10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10 for good quality output (200 dots per inch) amounts to 29.8 x 20 inches or 75.6 x 50.7 cm, for very good quality (250 dpi) 23.8 x 16 inches or 60.5 x 40.6 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.8 cm. The corresponding values for the Canon XT are 17.3 x 11.5 inches or 43.9 x 29.3 cm for good quality, 13.8 x 9.2 inches or 35.1 x 23.4 cm for very good quality, and 11.5 x 7.7 inches or 29.3 x 19.5 cm for excellent quality prints.
The Canon EOS Rebel XT has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Leica M10 (Typ 3656) are ISO 100 to ISO 50000 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the M10 offers substantially better image quality than the XT (overall score 26 points higher). The advantage is based on 2.6 bits higher color depth, 2.4 EV in additional dynamic range, and 1.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|13.||Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||..||..||..||..|
|14.||Leica M10-P||Full Frame||23.8||5952||3992||none||..||..||..||..|
|15.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..|
|16.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|17.||Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
Beyond body and sensor, cameras can and do differ across a range of features. The XT and the M10 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M10 offers a wider field of view (100%) than the one in the XT (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M10 has a higher magnification (0.73x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon XT, the Leica M10, and comparable cameras.
|13.||Leica M-E Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
|15.||Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n|
|16.||Leica Q Typ 116||3680||n||3.0||1040||fixed||Y||1/2000s||10.0||n||Y|
|17.||Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The XT has one, while the M10 does not. While the built-in flash of the XT is not very powerful, it can at times be useful as a fill-in light.
The Leica M10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XT writes its imaging data to Compact Flash cards, while the M10 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XT and Leica M10 (Typ 3656) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|13.||Leica M-E Typ 240||Y||mono||-||-||-||-||2.0||-||-||-|
|15.||Leica M Typ 262||Y||-||-||-||-||-||2.0||-||-||-|
|16.||Leica Q Typ 116||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
|17.||Leica M Typ 240||Y||stereo||mono||-||-||-||2.0||-||-||-|
It is notable that the M10 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XT does not provide wifi capability.
The M10 is a recent model that features in the current product line-up of Leica. In contrast, the XT has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the XT was succeeded by the Canon Xti. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what is the bottom line? Is there a clear favorite between the Canon XT and the Leica M10? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS Rebel XT:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Less heavy: Is lighter (by 120g or 18 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (400 versus 210) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in February 2005).
Arguments in favor of the Leica M10 (Typ 3656):
- More detail: Has more megapixels (23.8 vs 8MP), which boosts linear resolution by 73%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (26 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.7 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.49x).
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 115k dots).
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 11 years and 11 months of technical progress since the XT launch.
If the count of relative strengths (bullet points above) is taken as a measure, the M10 is the clear winner of the contest (16 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XT or the M10. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|2.||Leica M10||4.5/5||..||..||4/5||4.5/5||Jan 2017||6,595|
|3.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|5.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|6.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|7.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|8.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|9.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|10.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|11.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|12.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|13.||Leica M-E Typ 240||..||..||..||..||..||Jun 2019||3,999|
|14.||Leica M10-P||..||..||..||..||4/5||Aug 2018||7,995|
|15.||Leica M Typ 262||..||..||..||..||..||Nov 2015||5,195|
|16.||Leica Q Typ 116||5/5||..||80/100||4.5/5||4.5/5||Jun 2015||4,249|
|17.||Leica M Typ 240||4/5||..||..||4/5||..||Sep 2012||6,950|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon XT vs Leica M10
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XT||Leica M10|
|Camera Type||Digital single lens reflex||Rangefinder camera|
|Camera Lens||Canon EF mount lenses||Leica M mount lenses|
|Launch Date||February 2005||January 2017|
|Launch Price||USD 899||USD 6,595|
|Sensor Specs||Canon XT||Leica M10|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.2 x 14.8 mm||35.8 x 23.9 mm|
|Sensor Area||328.56 mm2||855.62 mm2|
|Sensor Diagonal||26.7 mm||43 mm|
|Sensor Resolution||8 Megapixels||23.8 Megapixels|
|Image Resolution||3456 x 2304 pixels||5952 x 3992 pixels|
|Pixel Pitch||6.41 μm||6.00 μm|
|Pixel Density||2.42 MP/cm2||2.78 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100 - 1,600 ISO||100 - 50,000 ISO|
|Image Processor||DIGIC II||Maestro II|
|DXO Sensor Quality (score)||60||86|
|DXO Color Depth (bits)||21.8||24.4|
|DXO Dynamic Range (EV)||10.8||13.2|
|DXO Low Light (ISO)||637||2133|
|Screen Specs||Canon XT||Leica M10|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.0inch|
|LCD Resolution||115k dots||1037k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon XT||Leica M10|
|Focus System||Phase-detect AF||Manual Focus|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XT||Leica M10|
|USB Connector||USB 2.0||no USB|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon XT||Leica M10|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||400 shots per charge||210 shots per charge|
127 x 94 x 64 mm
(5.0 x 3.7 x 2.5 in)
139 x 80 x 39 mm
(5.5 x 3.1 x 1.5 in)
|Camera Weight||540 g (19.0 oz)||660 g (23.3 oz)|
