Leica M10 vs Nikon D5500

The Leica M10 (Typ 3656) and the Nikon D5500 are two digital cameras that were officially introduced, respectively, in January 2017 and January 2015. The M10 is a rangefinder-style mirrorless camera, while the D5500 is a DSLR. The cameras are based on a full frame (M10) and an APS-C (D5500) sensor. The Leica has a resolution of 23.8 megapixels, whereas the Nikon provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Leica M10 versus Nikon D5500
Leica M10 Nikon D5500
Rangefinder camera Digital single lens reflex
Leica M mount lenses Nikon F mount lenses
23.8 MP, Full Frame Sensor 24 MP, APS-C Sensor
no Video 1080/60p Video
ISO 100-50,000 ISO 100-25,600
Optical viewfinder Optical viewfinder
3.0 LCD, 1037k dots 3.2 LCD, 1037k dots
Fixed screen (not touch-sensitive) Swivel touchscreen
5 shutter flaps per second 5 shutter flaps per second
Weathersealed bodynot weather sealed
210 shots per battery charge820 shots per battery charge
139 x 80 x 39 mm, 660 g 124 x 97 x 70 mm, 420 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10 (Typ 3656) and the Nikon D5500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Leica M10 and the Nikon D5500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, silver), while the D5500 is also available in two color-versions, but different ones (black, red).

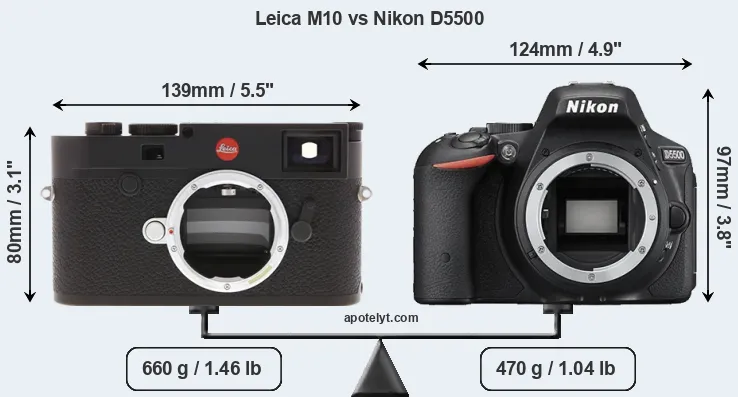

Size Leica M10 vs Nikon D5500

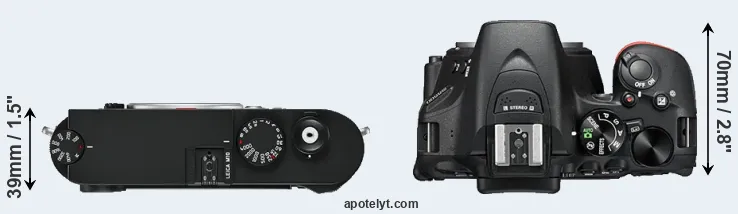

Compare M10 versus D5500 top
Comparison M10 or D5500 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5500 is notably larger (8 percent) than the Leica M10. However, the D5500 is substantially lighter (36 percent) than the M10. It is worth mentioning in this context that the M10 is splash and dust resistant, while the D5500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (M10) and the Nikon Lens Catalog (D5500).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Leica M10 5.5 in 3.1 in 1.5 in 23.3 oz 210 Y Jan 2017 6,595 i

Nikon D5500 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899i

Canon 6D Mark II 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i

Canon 1D X Mark II 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999i

Leica M-E Typ 240 5.5 in 3.1 in 1.7 in 24.0 oz .. Y Jun 2019 3,999 i

Leica M10-P 5.5 in 3.1 in 1.5 in 23.3 oz 210 Y Aug 2018 7,995 i

Leica M Typ 262 5.5 in 3.1 in 1.7 in 24.0 oz .. Y Nov 2015 5,195i

Leica Q Typ 116 5.1 in 3.1 in 3.7 in 22.6 oz 300 n Jun 2015 4,249i

Leica SL 5.8 in 4.1 in 1.5 in 29.9 oz 400 Y Oct 2015 7,450i

Leica M Typ 240 5.5 in 3.1 in 1.7 in 24.0 oz .. Y Sep 2012 6,950i

Leica M8 5.5 in 3.1 in 1.5 in 20.8 oz .. n Sep 2006 5,499i

Nikon D5600 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i

Nikon D5 6.3 in 6.3 in 3.6 in 49.9 oz 3780 Y Jan 2016 6,499i

Nikon D3400 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499i

Nikon D3300 4.9 in 3.9 in 3.0 in 15.2 oz 700 n Jan 2014 499i

Nikon D5300 4.9 in 3.9 in 3.0 in 16.9 oz 600 n Oct 2013 799i

Samsung NX30 5.0 in 3.8 in 2.3 in 13.2 oz 360 n Jan 2014 999i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5500 was launched at a markedly lower price (by 86 percent) than the M10, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica M10 features a full frame sensor and the Nikon D5500 an APS-C sensor. The sensor area in the D5500 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

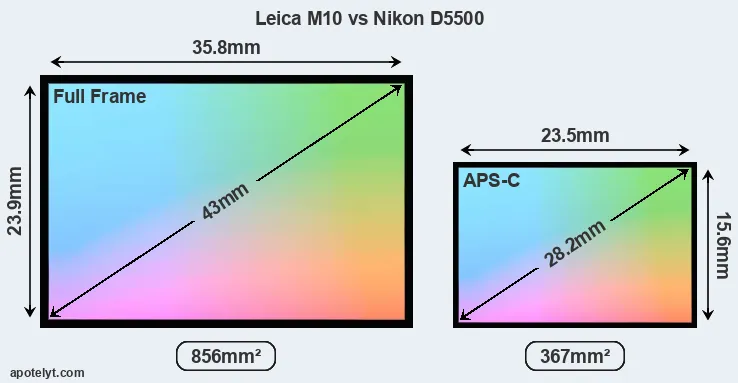

Leica M10 and Nikon D5500 sensor measures

Despite having a smaller sensor, the D5500 offers a slightly higher resolution of 24 megapixels, compared with 23.8 MP of the M10. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 6.00μm for the M10). Moreover, it should be noted that the M10 is much more recent (by 2 years) than the D5500, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Leica M10 (Typ 3656) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Nikon D5500 are ISO 100 to ISO 25600 (no boost).

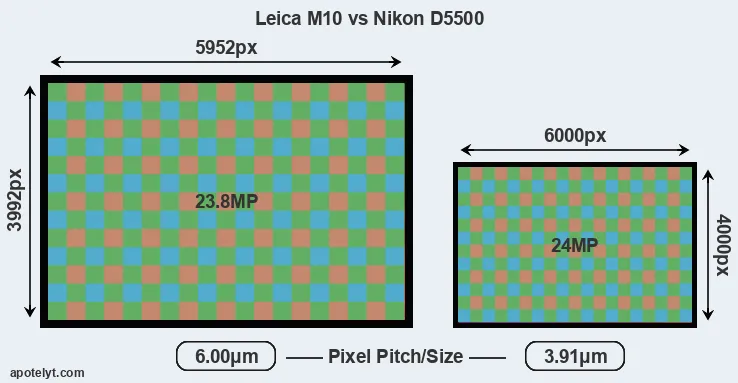

M10 versus D5500 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Leica M10 Full Frame 23.8 5952 3992none24.413.2213386

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788

Leica M-E Typ 240 Full Frame 23.7 5952 39761080/25p........

Leica M10-P Full Frame 23.8 5952 3992none........

Leica M Typ 262 Full Frame 23.7 5952 3976none........

Leica Q Typ 116 Full Frame 24.0 6000 40001080/60p24.312.7222185

Leica SL Full Frame 24.0 6000 40004K/30p25.013.4182188

Leica M Typ 240 Full Frame 23.7 5952 39761080/25p24.013.3186084

Leica M8 APS-H 10.4 3936 2630none21.111.366359

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684

Nikon D5 Full Frame 20.7 5588 37124K/30p25.112.3234388

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286

Nikon D3300 APS-C 24.0 6000 40001080/60p24.312.8138582

Nikon D5300 APS-C 24.0 6000 40001080/60p24.013.9133883

Samsung NX30 APS-C 20.0 5472 36481080/60p23.512.4101476

Many modern cameras are not only capable of taking still images, but can also record movies. The D5500 indeed provides for movie recording, while the M10 does not. The highest resolution format that the D5500 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The M10 and the D5500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M10 offers a wider field of view (100%) than the one in the D5500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M10 has a higher magnification (0.73x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica M10 and Nikon D5500 along with similar information for a selection of comparators.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Leica M10optical n 3.0 1037 fixed n 1/4000s 5.0 n n

Nikon D5500optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n

Canon 6D Mark IIoptical Y 3.0 1040 swivel Y 1/4000s 6.5 n n

Canon 1D X Mark IIoptical Y 3.2 1620 fixed Y 1/8000s 16.0 n n

Leica M-E Typ 240optical n 3.0 920 fixed n 1/4000s 3.0 n n

Leica M10-Poptical n 3.0 1037 fixed Y 1/4000s 5.0 n n

Leica M Typ 262optical n 3.0 921 fixed n 1/4000s 3.0 n n

Leica Q Typ 1163680 n 3.0 1040 fixed Y 1/2000s 10.0 n Y

Leica SL4400 Y 3.0 1040 fixed Y 1/8000s 11.0 n n

Leica M Typ 240optical n 3.0 920 fixed n 1/4000s 3.0 n n

Leica M8optical n 2.5 230 fixed n 1/8000s 2.0 n n

Nikon D5600optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n

Nikon D5optical Y 3.2 2359 fixed Y 1/8000s 14.0 n n

Nikon D3400optical n 3.0 921 fixed n 1/4000s 5.0 Y n

Nikon D3300optical n 3.0 921 fixed n 1/4000s 5.0 Y n

Nikon D5300optical n 3.2 1037 swivel n 1/4000s 5.0 Y n

Samsung NX302359 n 3.0 1036 swivel Y 1/8000s 9.0 Y n

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5500 has a touchscreen, while the M10 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The D5500 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the M10 does not have a selfie-screen.

The Leica M10 and the Nikon D5500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M10 and the D5500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10 (Typ 3656) and Nikon D5500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Leica M10Y------Y--

Nikon D5500YstereomonoY-mini2.0Y--

Canon 6D Mark IIYstereomonoY-mini2.0YYY

Canon 1D X Mark IIYmonomonoYYmini3.0---

Leica M-E Typ 240Ymono----2.0---

Leica M10-PY------Y--

Leica M Typ 262Y-----2.0---

Leica Q Typ 116Ystereomono--micro2.0YY-

Leica SLYstereomonoYYfull3.0Y--

Leica M Typ 240Ystereomono---2.0---

Leica M8Y-----2.0---

Nikon D5600YstereomonoY-mini2.0YYY

Nikon D5YstereomonoYYmini3.0---

Nikon D3400Ymonomono--mini2.0--Y

Nikon D3300YmonomonoY-mini2.0---

Nikon D5300YstereomonoY-mini2.0Y--

Samsung NX30Ystereomono--micro2.0YY-

The M10 is a recent model that features in the current product line-up of Leica. In contrast, the D5500 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D5500 was succeeded by the Nikon D5600. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Nikon websites.

Review summary

So what is the bottom line? Is the Leica M10 better than the Nikon D5500 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Leica M10 (Typ 3656):

  • Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.57x).
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
  • More modern: Reflects 2 years of technical progress since the D5500 launch.

ilogo

Advantages of the Nikon D5500:

  • More dynamic range: Captures a broader range of light and dark details (0.8 EV of extra DR).
  • Broader imaging potential: Can capture not only stills but also 1080/60p video.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Less heavy: Has a lower weight (by 240g or 36 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (820 versus 210) out of a single battery charge.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in January 2015).

If the number of relative strengths (bullet points above) is taken as a guide, the D5500 is the clear winner of the contest (11 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

M10 06:11 D5500

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M10 or the D5500 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Leica M10....4/5..4.5/5 Jan 2017 6,595 i

Nikon D5500+79/1004.5/55/54.5/5 Jan 2015 899i

Canon 6D Mark II+80/1004.5/54/54/5 Jun 2017 1,999 i

Canon 1D X Mark II..89/1004.5/55/54.5/5 Feb 2016 5,999i

Leica M-E Typ 240.......... Jun 2019 3,999 i

Leica M10-P........4/5 Aug 2018 7,995 i

Leica M Typ 262.......... Nov 2015 5,195i

Leica Q Typ 116..80/1004.5/5..4.5/5 Jun 2015 4,249i

Leica SL..84/1004.5/54/54/5 Oct 2015 7,450i

Leica M Typ 240....4/5.... Sep 2012 6,950i

Leica M8..+ +...... Sep 2006 5,499i

Nikon D5600..79/1004.5/54.5/54/5 Nov 2016 699 i

Nikon D5..89/1004.5/55/55/5 Jan 2016 6,499i

Nikon D3400+76/1004/54.5/54.5/5 Aug 2016 499i

Nikon D3300+77/1004.5/54.5/54.5/5 Jan 2014 499i

Nikon D5300+ +79/1004.5/54.5/54.5/5 Oct 2013 799i

Samsung NX30..77/1004.5/54/54.5/5 Jan 2014 999i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Leica M10:
Check Amazon price
Nikon D5500:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Leica M10 vs Nikon D5500

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Leica M10 Nikon D5500
    Camera Type Rangefinder camera Digital single lens reflex
    Camera Lens Leica M mount lenses Nikon F mount lenses
    Launch Date January 2017 January 2015
    Launch Price USD 6,595 USD 899
    Sensor Specs Leica M10 Nikon D5500
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor APS-C Sensor
    Sensor Size 35.8 x 23.9 mm 23.5 x 15.6 mm
    Sensor Area 855.62 mm2 366.6 mm2
    Sensor Diagonal 43 mm 28.2 mm
    Crop Factor 1.0x 1.5x
    Sensor Resolution 23.8 Megapixels 24 Megapixels
    Image Resolution 5952 x 3992 pixels 6000 x 4000 pixels
    Pixel Pitch 6.00 μm 3.91 μm
    Pixel Density 2.78 MP/cm2 6.55 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability no Video 1080/60p Video
    ISO Setting 100 - 50,000 ISO 100 - 25,600 ISO
    Image Processor Maestro II EXPEED 4
    DXO Sensor Quality (score) 86 84
    DXO Color Depth (bits) 24.4 24.1
    DXO Dynamic Range (EV) 13.2 14.0
    DXO Low Light (ISO) 2133 1438
    Screen Specs Leica M10 Nikon D5500
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 95%
    Viewfinder Magnification 0.73x 0.57x
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1037k dots 1037k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Leica M10 Nikon D5500
    Focus System Manual Focus Phase-detect AF
    Manual Focusing AidFocus Peakingno Peaking Feature
    Continuous Shooting 5 shutter flaps/s 5 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Fill Flash no On-Board Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Leica M10 Nikon D5500
    External Flash Hotshoe Hotshoe
    USB Connector no USB USB 2.0
    HDMI Port no HDMI mini HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Body Specs Leica M10 Nikon D5500
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type BP-SCL5 EN-EL14a
    Battery Life (CIPA)210 shots per charge820 shots per charge
    Body Dimensions 139 x 80 x 39 mm
    (5.5 x 3.1 x 1.5 in)
    124 x 97 x 70 mm
    (4.9 x 3.8 x 2.8 in)
    Camera Weight 660 g (23.3 oz) 420 g (14.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Leica M10 vs Nikon D5500

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
