Canon XC10 vs Leica D-LUX Typ 109

The Canon XC10 and the Leica D-LUX (Typ 109) are two enthusiast cameras that were revealed to the public, respectively, in April 2015 and September 2014. Both the XC10 and the D-LUX Typ 109 are fixed lens compact cameras that are based on an one-inch (XC10) and a Four Thirds (D-LUX Typ 109) sensor. The Canon has a resolution of 12 megapixels, whereas the Leica provides 12.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XC10		Leica D-LUX Typ 109
Fixed lens compact camera		Fixed lens compact camera
24-240mm f/2.8-5.6		24-75mm f/1.7-2.8
12 MP – 1" sensor		12.7 MP – Four Thirds sensor
4K/30p Video		4K/30p Video
ISO 160-20,000		ISO 200-12,500 (100 - 25,600)
No viewfinder, LCD framing		Electronic viewfinder (2764k dots)
3.0" LCD – 1030k dots		3.0" LCD – 921k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
3.8 shutter flaps per second		11 shutter flaps per second
370 shots per battery charge		300 shots per battery charge
125 x 102 x 122 mm, 1040 g		118 x 66 x 55 mm, 405 g

Check XC10 offers at
ebay.com
Check D-LUX Typ 109 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon XC10 and the Leica D-LUX (Typ 109)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

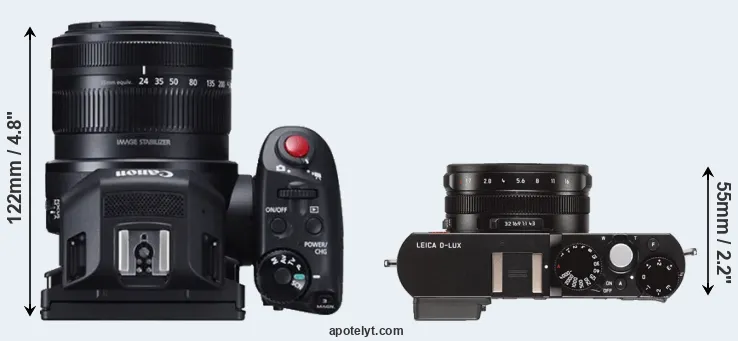

The physical size and weight of the Canon XC10 and the Leica D-LUX Typ 109 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The D-LUX Typ 109 can be obtained in two different colors (black, grey), while the XC10 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX Typ 109 is considerably smaller (39 percent) than the Canon XC10. Moreover, the D-LUX Typ 109 is substantially lighter (61 percent) than the XC10. In this context, it is worth noting that neither the XC10 nor the D-LUX Typ 109 are weather-sealed.

Concerning battery life, the XC10 gets 370 shots out of its Canon LP-E6N battery, while the D-LUX Typ 109 can take 300 images on a single charge of its Leica BP-DC15 power pack. The power pack in the XC10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	2,499	ebay.com
2.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	1,195	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	799	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
8.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
9.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
10.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
11.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	1,299	ebay.com
12.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	1,299	ebay.com
13.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	1,195	ebay.com
14.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	2,295	ebay.com
15.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	599	ebay.com
16.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	1,199	amazon.com
17.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D-LUX Typ 109 was launched at a markedly lower price (by 52 percent) than the XC10, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon XC10 features an one-inch sensor and the Leica D-LUX Typ 109 a Four Thirds sensor. The sensor area in the D-LUX Typ 109 is 50 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.75 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

With 12.7MP, the D-LUX Typ 109 offers a higher resolution than the XC10 (12MP), but the D-LUX Typ 109 nevertheless has larger individual pixels (pixel pitch of 3.82μm versus 3.20μm for the XC10) due to its larger sensor. However, the XC10 is a somewhat more recent model (by 6 months) than the D-LUX Typ 109, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The Canon XC10 has a native sensitivity range from ISO 160 to ISO 20000. The corresponding ISO settings for the Leica D-LUX (Typ 109) are ISO 200 to ISO 12500, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
2.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
9.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
10.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
11.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
12.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
13.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
14.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
15.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
16.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
17.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D-LUX Typ 109 has an electronic viewfinder (2764k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon XC10 and Leica D-LUX Typ 109 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
2.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
9.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
10.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
11.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
12.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
13.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
14.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
15.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
16.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
17.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The XC10 has a touchscreen, while the D-LUX Typ 109 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the D-LUX Typ 109 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon XC10 and the Leica D-LUX Typ 109 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the XC10 and the D-LUX Typ 109 have zoom lenses built in. The XC10 has a 24-240mm f/2.8-5.6 optic and the D-LUX Typ 109 offers a 24-75mm f/1.7-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon and Leica provide the same view at the wide-angle end, but the Leica has less tele-photo reach at the long end. The D-LUX Typ 109 offers the faster maximum aperture.

The XC10 writes its imaging data to CFast or SDXC cards, while the D-LUX Typ 109 uses SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D-LUX Typ 109 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon XC10 and Leica D-LUX (Typ 109) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
9.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
12.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
17.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the XC10 has a microphone port, which is missing on the D-LUX Typ 109. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the XC10 and the D-LUX Typ 109 have been discontinued, but can regularly be found used on ebay. The D-LUX Typ 109 was replaced by the Leica D-LUX 7, while the XC10 was followed by the Canon XC15. Further information on the features and operation of the XC10 and D-LUX Typ 109 can be found, respectively, in the Canon XC10 Manual (free pdf) or the online Leica D-LUX Typ 109 Manual.

Review summary

So what conclusions can be drawn? Is the Canon XC10 better than the Leica D-LUX Typ 109 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon XC10:

• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed LCD: Has a higher resolution rear screen (1030k vs 921k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Longer lasting: Can take more shots (370 versus 300) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Is somewhat more recent (announced 6 months after the D-LUX Typ 109).

Advantages of the Leica D-LUX (Typ 109):

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 3.8 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.7 vs f/2.8).
• More compact: Is smaller (118x66mm vs 125x102mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 635g or 61 percent) and is thus easier to take along.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More affordable: Was introduced into a lower priced category (52 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in September 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the D-LUX Typ 109 is the clear winner of the contest (15 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XC10 and the Leica D-LUX Typ 109 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XC10 or the D-LUX Typ 109. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	2,499	ebay.com
2.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	1,195	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	799	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
8.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
9.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
10.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
11.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	1,299	ebay.com
12.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	1,299	ebay.com
13.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	1,195	ebay.com
14.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	2,295	ebay.com
15.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	599	ebay.com
16.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	1,199	amazon.com
17.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
