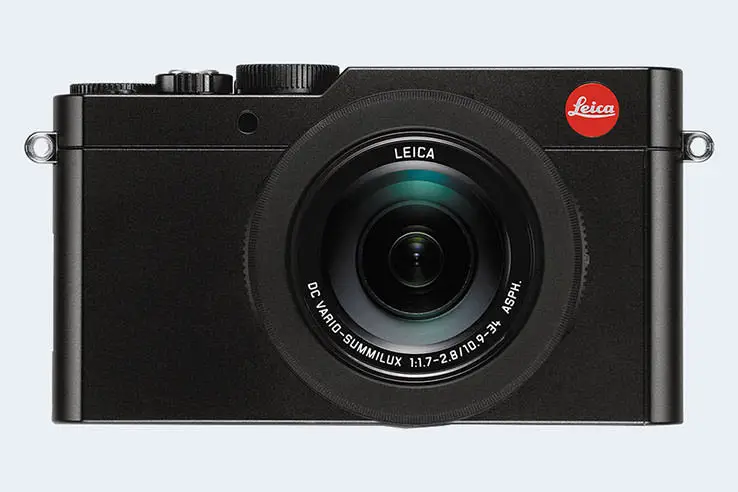

Leica D-LUX Typ 109 Comparison Review
The Leica D-LUX (Typ 109) is a fixed lens compact camera that was revealed to the public in September 2014 and is equipped with a Four Thirds sensor. It offers a resolution of 12.7 megapixel.
Is the Leica D-LUX Typ 109 a good camera? The D-LUX Typ 109 has a Camera Elo of 2019. This rating puts the D-LUX Typ 109 among the top 50 percent of all travel zoom compact cameras. In terms of its sensor size category (Four Thirds cameras), the D-LUX Typ 109 also ranks among the top 50 percent. Based on its within category standings, the camera earns a 3-star performance rating.
|Leica D-LUX Typ 109|
|Fixed lens compact camera|
|12.7 MP, Four Thirds Sensor|
|ISO 200 - 12 500 (100 - 25 600)|
|Electronic viewfinder (2764k dots)|
|3.0 LCD, 921k dots|
|Fixed screen (not touch-sensitive)|
|11 shutter flaps per second|
|300 shots per battery charge|
|118 x 66 x 55 mm, 405 g|
Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.
Body comparison with a credit card
The physical dimensions of the Leica D-LUX Typ 109 relative to a credit card are illustrated in the side-by-side display below. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The table below summarizes the key physical specs of the Leica D-LUX Typ 109 alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.
|1.||Leica D-LUX Typ 109||118 mm||66 mm||55 mm||405 g||300||n||Sep 2014||1,195||ebay.com|
|2.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549||ebay.com|
|3.||Fujifilm X30||119 mm||72 mm||60 mm||423 g||470||n||Aug 2014||599||ebay.com|
|4.||Fujifilm X100T||127 mm||74 mm||52 mm||440 g||330||n||Sep 2014||1,299||ebay.com|
|5.||Fujifilm X20||117 mm||70 mm||57 mm||353 g||270||n||Jan 2013||599||ebay.com|
|6.||Fujifilm X100S||127 mm||74 mm||54 mm||445 g||330||n||Jan 2013||1,299||ebay.com|
|7.||Leica D-LUX 7||115 mm||66 mm||65 mm||392 g||300||n||Nov 2018||1,195||amazon.com|
|8.||Leica V-LUX Typ 114||137 mm||99 mm||131 mm||830 g||360||n||Sep 2014||1,349||ebay.com|
|9.||Leica X Typ 113||133 mm||73 mm||78 mm||486 g||350||n||Sep 2014||2,295||ebay.com|
|10.||Leica D-LUX 6||111 mm||68 mm||46 mm||298 g||330||n||Sep 2012||699||ebay.com|
|11.||Panasonic LX100||115 mm||66 mm||55 mm||393 g||300||n||Sep 2014||899||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Leica D-LUX Typ 109 was launched in the US market at a price of $1,195. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison with a 35mm slide
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
The Leica D-LUX Typ 109 features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Leica D-LUX Typ 109 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|1.||Leica D-LUX Typ 109||Four Thirds||12.7||4112||3088||4K/30p||22.4||12.1||607||67|
|7.||Leica D-LUX 7||Four Thirds||16.8||4736||3552||4K/30p||22.9||12.8||1002||72|
|8.||Leica V-LUX Typ 114||1-inch||20.0||5472||3648||4K/30p||21.6||11.7||127||60|
|9.||Leica X Typ 113||APS-C||16.1||4928||3264||1080/30p||23.6||12.8||1491||78|
|10.||Leica D-LUX 6||1/1.7||10.0||3648||2736||1080/60p||19.8||10.8||-303||43|
|11.||Panasonic LX100||Four Thirds||12.7||4112||3088||4K/30p||22.3||12.5||553||67|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The D-LUX Typ 109 indeed provides movie recording capabilities. The highest resolution format that the D-LUX Typ 109 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D-LUX Typ 109 has an electronic viewfinder with a resolution of 2764k dots. The viewfinder offers a field of view of 100% and a magnification of 0.70x. The adjacent tables list some of the other core features of the Leica D-LUX Typ 109 along with similar information for a selection of comparators.
|1.||Leica D-LUX Typ 109||2764||n||3.0 / 921||fixed||n||1/4000s||11.0/s||n||Y|
|2.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|3.||Fujifilm X30||2360||n||3.0 / 920||tilting||n||1/4000s||12.0/s||Y||Y|
|4.||Fujifilm X100T||2360||n||3.0 / 1040||fixed||n||1/4000s||6.0/s||Y||n|
|5.||Fujifilm X20||optical||n||2.8 / 460||fixed||n||1/4000s||12.0/s||Y||Y|
|6.||Fujifilm X100S||2360||n||2.8 / 460||fixed||n||1/4000s||6.0/s||Y||n|
|7.||Leica D-LUX 7||2764||n||3.0 / 1240||fixed||Y||1/4000s||11.0/s||n||Y|
|8.||Leica V-LUX Typ 114||2359||n||3.0 / 921||swivel||n||1/4000s||12.0/s||Y||Y|
|9.||Leica X Typ 113||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|10.||Leica D-LUX 6||optional||n||3.0 / 920||fixed||n||1/4000s||11.0/s||Y||Y|
|11.||Panasonic LX100||2764||n||3.0 / 921||fixed||n||1/4000s||11.0/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX (Typ 109) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica D-LUX Typ 109||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|2.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|3.||Fujifilm X30||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|4.||Fujifilm X100T||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|5.||Fujifilm X20||Y||stereo / mono||-||-||micro||2.0||-||-||-|
|6.||Fujifilm X100S||Y||stereo / mono||-||-||micro||2.0||-||-||-|
|7.||Leica D-LUX 7||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|8.||Leica V-LUX Typ 114||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
|9.||Leica X Typ 113||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|10.||Leica D-LUX 6||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Panasonic LX100||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
It is notable that the D-LUX Typ 109 offers wifi support. Wifi can be a very convenient means to transfer image data to an off-camera location.
The D-LUX Typ 109 has a zoom lens built in (10.9-34mm f/1.7-2.8), which, in full frame equivalent terms, provides a focal length range from 24 to 75mm. The camera is, hence, ready to shoot, while remaining more compact in size than an interchangeable lens camera with an optic that offers similar focal length and aperture specifications.
While the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the D-LUX Typ 109 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).
|1.||Leica D-LUX Typ 109||..||..||..||..||4.5/5||4.5/5||Sep 2014||1,195||ebay.com|
|2.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549||ebay.com|
|3.||Fujifilm X30||4/5||..||..||76/100||4.5/5||4.5/5||Aug 2014||599||ebay.com|
|4.||Fujifilm X100T||5/5||+||..||81/100||4.5/5||5/5||Sep 2014||1,299||ebay.com|
|5.||Fujifilm X20||4/5||+ +||..||77/100||4.5/5||5/5||Jan 2013||599||ebay.com|
|6.||Fujifilm X100S||5/5||+ +||..||81/100||4.5/5||5/5||Jan 2013||1,299||ebay.com|
|7.||Leica D-LUX 7||..||..||..||..||..||4.5/5||Nov 2018||1,195||amazon.com|
|8.||Leica V-LUX Typ 114||..||..||..||..||..||5/5||Sep 2014||1,349||ebay.com|
|9.||Leica X Typ 113||3.5/5||..||..||..||3.5/5||4/5||Sep 2014||2,295||ebay.com|
|10.||Leica D-LUX 6||..||..||..||..||4/5||4/5||Sep 2012||699||ebay.com|
|11.||Panasonic LX100||5/5||+ +||..||85/100||5/5||5/5||Sep 2014||899||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Leica D-LUX Typ 109 FAQ
Below are some additional questions and answers concerning some particular features of the D-LUX Typ 109.
What type of imaging sensor is used in the Leica D-LUX Typ 109?
The camera features a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.
What is the ISO sensitivity range of the Leica D-LUX Typ 109?
The camera has a native sensitivity range from ISO 200 to ISO 12500, which can be extended to ISO 100-25600.
How do I find the shutter count on my Leica D-LUX Typ 109?
Leica embeds the number of shutter actuations in hidden menus. You can check the number of shots that your D-LUX Typ 109 has taken up to now by carefully following the steps described on the Leica D-LUX Typ 109 shutter count page.
Is completely silent shooting possible with the Leica D-LUX Typ 109?
The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.
Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Leica D-LUX Typ 109?
No, the Leica D-LUX (Typ 109) has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.
Is it difficult to use manual focus lenses with the Leica D-LUX Typ 109?
The D-LUX Typ 109 offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.
Does the Leica D-LUX Typ 109 feature an autofocus assist light?
Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.
Does the Leica D-LUX Typ 109 support the Ultra High Speed (UHS) bus interface for SD cards?
Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).
Camera to camera comparisons
In case you would like to check on the differences and similarities with other camera models, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 4000D vs Leica D-LUX Typ 109
- Canon T3i vs Leica D-LUX Typ 109
- Canon XS vs Leica D-LUX Typ 109
- Leica D-LUX Typ 109 vs Leica M10
- Leica D-LUX Typ 109 vs Leica M10-P
- Leica D-LUX Typ 109 vs Nikon D5200
- Leica D-LUX Typ 109 vs Nikon D70s
- Leica D-LUX Typ 109 vs Olympus E-P2
- Leica D-LUX Typ 109 vs Olympus E-PL10
- Leica D-LUX Typ 109 vs Panasonic GH5s
- Leica D-LUX Typ 109 vs Panasonic ZS80
- Leica D-LUX Typ 109 vs Sony ZV-1
|Camera Model||Leica D-LUX Typ 109|
|Camera Type||Fixed lens compact camera|
|Camera Lens||24-75mm f/1.7-2.8|
|Launch Date||September 2014|
|Launch Price||USD 1 195|
|Sensor Format||Four Thirds Sensor|
|Sensor Size||15.7 x 11.8 mm|
|Sensor Area||185 mm2|
|Sensor Diagonal||19.6 mm|
|Sensor Resolution||12.7 Megapixels|
|Image Resolution||4 112 x 3 088 pixels|
|Pixel Pitch||3.82 μm|
|Pixel Density||6.85 MP/cm2|
|Moiré control||Anti-Alias filter|
|Movie Capability||4K/30p Video|
|ISO Setting||200 - 12 500 ISO|
|ISO Boost||100 - 25 600 ISO|
|Viewfinder Type||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2764k dots|
|Top-Level Screen||no Top Display|
|LCD Framing||Live View|
|LCD Size||3.0 inch|
|LCD Resolution||921k dots|
|LCD Attachment||Fixed screen|
|Touch Input||No touchscreen|
|Focus System||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking|
|Maximum Shutter Speed||1/4000s|
|Continuous Shooting||11 shutter flaps/s|
|Silent Shooting||Electronic Shutter|
|Time Lapse Photography||Intervalometer Built-in|
|Fill Flash||no On-Board Flash|
|Storage Medium||SDXC cards|
|Single or Dual Card Slots||Single card slot|
|UHS card support||UHS-I|
|USB Connector||USB 2.0|
|HDMI Port||micro HDMI|
|Wifi Support||Wifi built-in|
|Near-Field Communication||NFC built-in|
|Battery Type||BP-DC15 power pack|
|Battery Life (CIPA)||300 shots per charge|
118 x 66 x 55 mm
(4.6 x 2.6 x 2.2 in)
|Camera Weight||405 g (14.3 oz)|
