Canon SX720 vs Olympus E-PL1
The Canon PowerShot SX720 HS and the Olympus PEN E-PL1 are two digital cameras that were announced, respectively, in February 2016 and February 2010. The SX720 is a fixed lens compact, while the E-PL1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX720) and a Four Thirds (E-PL1) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon SX720||Olympus E-PL1|
|Fixed lens compact camera||Mirrorless system camera|
|24-960mm f/3.3-6.9||Micro Four Thirds lenses|
|20.2 MP, 1/2.3" Sensor||12.2 MP, Four Thirds Sensor|
|1080/60p Video||720/30p Video|
|ISO 80-3,200||ISO 200-3,200|
|No viewfinder, LCD framing||Viewfinder optional|
|3.0 LCD, 922k dots||2.7 LCD, 230k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|5.9 shutter flaps per second||3 shutter flaps per second|
|Lens-based stabilization||In-body stabilization|
|250 shots per battery charge||290 shots per battery charge|
|110 x 64 x 36 mm, 270 g||115 x 72 x 42 mm, 334 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX720 HS and the Olympus PEN E-PL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

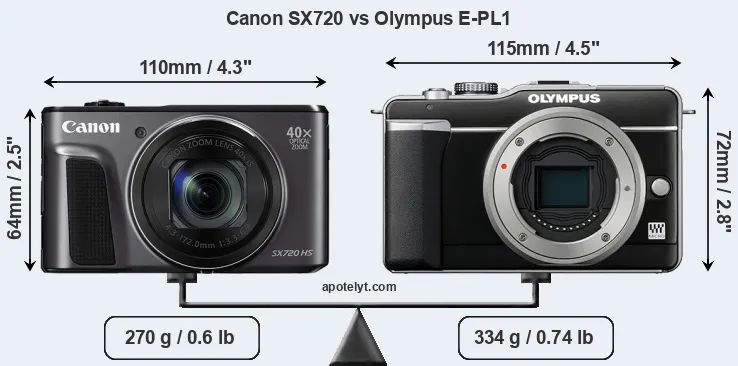

The physical size and weight of the Canon SX720 and the Olympus E-PL1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The SX720 can be obtained in two different colors (black, red), while the E-PL1 is available in four color-versions (black, blue, yellow, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL1 is notably larger (18 percent) than the Canon SX720. In this context, it is worth noting that neither the SX720 nor the E-PL1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX720 has a lens built in, whereas the E-PL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL1 and their specifications in the Micro Four Thirds Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon SX720||4.3 in||2.5 in||1.4 in||9.5 oz||250||n||Feb 2016||379|
|Olympus E-PL1||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599|
|Canon SX740||4.3 in||2.5 in||1.6 in||10.5 oz||265||n||Jul 2018||399|
|Canon SX730||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399|
|Canon G7 X Mark II||4.2 in||2.4 in||1.7 in||11.3 oz||265||n||Feb 2016||699|
|Canon SX420||4.1 in||2.7 in||3.3 in||11.5 oz||195||n||Jan 2016||299|
|Canon SX540||4.7 in||3.2 in||3.6 in||15.6 oz||205||n||Jan 2016||399|
|Canon SX410||4.1 in||2.7 in||3.3 in||11.5 oz||185||n||Feb 2015||279|
|Canon SX710||4.4 in||2.6 in||1.4 in||9.5 oz||230||n||Jan 2015||349|
|Olympus E-P3||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799|
|Olympus E-PL2||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599|
|Olympus E-PL3||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599|
|Olympus E-P1||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799|
|Olympus E-P2||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799|
|Panasonic ZS70||4.4 in||2.6 in||1.6 in||11.4 oz||380||n||Apr 2017||449|
|Sony HX80||4.0 in||2.3 in||1.4 in||8.6 oz||390||n||Mar 2016||349|
|Sony HX90V||4.0 in||2.3 in||1.4 in||8.6 oz||360||n||Apr 2015||429|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX720 was launched at a lower price than the E-PL1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SX720 features a 1/2.3-inch sensor and the Olympus E-PL1 a Four Thirds sensor. The sensor area in the E-PL1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Despite having a smaller sensor, the Canon SX720 offers a higher resolution of 20.2 megapixels, compared with 12.2 MP of the Olympus E-PL1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.29μm for the E-PL1). However, it should be noted that the SX720 is much more recent (by 6 years) than the E-PL1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX720 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX720 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX720 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Canon PowerShot SX720 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-PL1 are ISO 200 to ISO 3200 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX720 provides a higher video resolution than the E-PL1. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The SX720 and the E-PL1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Canon SX720 and Olympus E-PL1 along with similar information for a selection of comparators.
|Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
The SX720 writes its imaging data to SDXC cards, while the E-PL1 uses SDHC cards. The SX720 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX720 HS and Olympus PEN E-PL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the SX720 offers wifi support, while the E-PL1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the SX720 and the E-PL1 have been discontinued, but can regularly be found used on eBay. The E-PL1 was replaced by the Olympus E-PL2, while the SX720 was followed by the Canon SX730. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Which of the two cameras – the Canon SX720 or the Olympus E-PL1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon PowerShot SX720 HS:
- More detail: Offers more megapixels (20.2 vs 12.2MP) with a 29% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (5.9 vs 3 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has a lens built-in, whereas the E-PL1 requires a separate lens.
- More compact: Is smaller (110x64mm vs 115x72mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-PL1).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years of technical progress since the E-PL1 launch.
Advantages of the Olympus PEN E-PL1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (290 versus 250) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been around for much longer (launched in February 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the SX720 is the clear winner of the match-up (15 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX720 and the Olympus E-PL1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX720 or the E-PL1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon SX720||+||..||4/5||..||4.5/5||Feb 2016||379|
|Olympus E-PL1||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599|
|Canon SX740||+||..||4/5||..||4/5||Jul 2018||399|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon G7 X Mark II||+ +||81/100||4.5/5||4/5||4.5/5||Feb 2016||699|
|Canon SX420||..||..||..||..||3/5||Jan 2016||299|
|Canon SX540||..||..||..||..||..||Jan 2016||399|
|Canon SX410||o||..||..||..||..||Feb 2015||279|
|Canon SX710||+||..||4/5||..||3.5/5||Jan 2015||349|
|Olympus E-P3||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799|
|Olympus E-PL2||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599|
|Olympus E-PL3||+ +||72/100||4.5/5||..||4/5||Jun 2011||599|
|Olympus E-P1||+||66/100||4/5||4/5||4.5/5||Jun 2009||799|
|Olympus E-P2||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799|
|Panasonic ZS70||+ +||..||4/5||..||4/5||Apr 2017||449|
|Sony HX80||..||..||..||..||..||Mar 2016||349|
|Sony HX90V||+ +||..||4/5||..||4.5/5||Apr 2015||429|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1D vs Olympus E-PL1
- Canon 40D vs Olympus E-PL1
- Canon 760D vs Olympus E-PL1
- Canon 80D vs Canon SX720
- Canon 80D vs Olympus E-PL1
- Canon SX720 vs Fujifilm X-A10
- Canon SX720 vs Nikon 1 J4
- Canon SX720 vs Panasonic G6
- Canon SX720 vs Samsung NX500
- Nikon D2H vs Olympus E-PL1
- Olympus E-PL1 vs Samsung NX1
- Olympus E-PL1 vs Sony NEX-5T
Specifications: Canon SX720 vs Olympus E-PL1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX720||Olympus E-PL1|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-960mm f/3.3-6.9||Micro Four Thirds lenses|
|Launch Date||February 2016||February 2010|
|Launch Price||USD 379||USD 599|
|Sensor Specs||Canon SX720||Olympus E-PL1|
|Sensor Format||1/2.3" Sensor||Four Thirds Sensor|
|Sensor Size||6.17 x 4.55 mm||17.3 x 13.0 mm|
|Sensor Area||28.0735 mm2||224.9 mm2|
|Sensor Diagonal||7.7 mm||21.6 mm|
|Sensor Resolution||20.2 Megapixels||12.2 Megapixels|
|Image Resolution||5184 x 3888 pixels||4032 x 3024 pixels|
|Pixel Pitch||1.18 μm||4.29 μm|
|Pixel Density||71.80 MP/cm2||5.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||720/30p Video|
|ISO Setting||80 - 3,200 ISO||200 - 3,200 ISO|
|Image Processor||DIGIC 6||Truepic V|
|DXO Sensor Quality (score)||..||54|
|DXO Color Depth (bits)||..||21.5|
|DXO Dynamic Range (EV)||..||10.1|
|DXO Low Light (ISO)||..||487|
|Screen Specs||Canon SX720||Olympus E-PL1|
|Viewfinder Type||no viewfinder||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||922k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon SX720||Olympus E-PL1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||5.9 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon SX720||Olympus E-PL1|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX720||Olympus E-PL1|
|Battery Life (CIPA)||250 shots per charge||290 shots per charge|
110 x 64 x 36 mm
(4.3 x 2.5 x 1.4 in)
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||270 g (9.5 oz)||334 g (11.8 oz)|
