Canon M50 vs SX540

The Canon EOS M50 and the Canon PowerShot SX540 HS are two digital cameras that were officially introduced, respectively, in February 2018 and January 2016. The M50 is a mirrorless interchangeable lens camera, while the SX540 is a fixed lens compact. The cameras are based on an APS-C (M50) and a 1/2.3-inch (SX540) sensor. The M50 has a resolution of 24 megapixels, whereas the SX540 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M50		Canon SX540
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		24-1200mm f/3.4-6.5
24 MP – APS-C sensor		20.2 MP – 1/2.3" sensor
4K/24p Video		1080/60p Video
ISO 100-25,600 (100 - 51,200)		ISO 80-3,200
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 461k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
10 shutter flaps per second		5.9 shutter flaps per second
235 shots per battery charge		205 shots per battery charge
116 x 88 x 59 mm, 390 g		120 x 82 x 92 mm, 442 g

Check M50 offers at
ebay.com
Check SX540 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M50 and the Canon PowerShot SX540 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

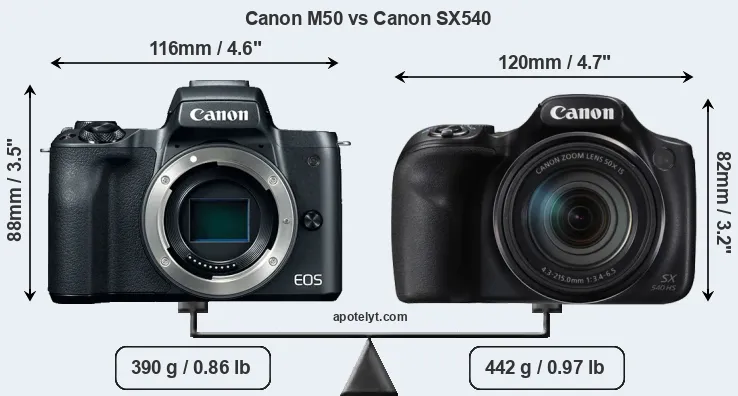

The physical size and weight of the Canon M50 and the Canon SX540 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M50 can be obtained in two different colors (black, white), while the SX540 is only available in black.

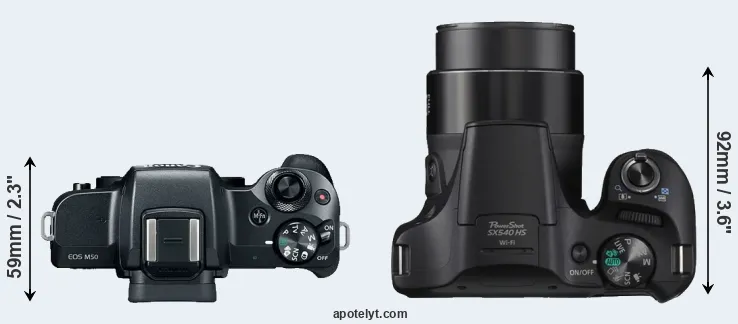

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX540 is somewhat smaller (4 percent) than the Canon M50. In this context, it is worth noting that neither the M50 nor the SX540 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the M50 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the M50 gets 235 shots out of its Canon LP-E12 battery, while the SX540 can take 205 images on a single charge of its Canon NB-6LH power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	EUR 779	ebay.com
2.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	EUR 369	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	EUR 449	ebay.com
5.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	EUR 789	ebay.com
6.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	EUR 929	ebay.com
7.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	EUR 749	ebay.com
8.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	EUR 1 129	ebay.com
9.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
10.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	EUR 929	ebay.com
11.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	EUR 599	ebay.com
12.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	EUR 479	ebay.com
13.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	EUR 379	ebay.com
14.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	EUR 299	ebay.com
15.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	EUR 329	ebay.com
16.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	EUR 399	ebay.com
17.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	EUR 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX540 was launched at a lower price than the M50, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M50 features an APS-C sensor and the Canon SX540 a 1/2.3-inch sensor. The sensor area in the SX540 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M50 has a native 3:2 aspect ratio, while the one in the SX540 offers a 4:3 aspect.

In terms of chip-set technology, the M50 uses a more advanced image processing engine (DIGIC 8) than the SX540 (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.

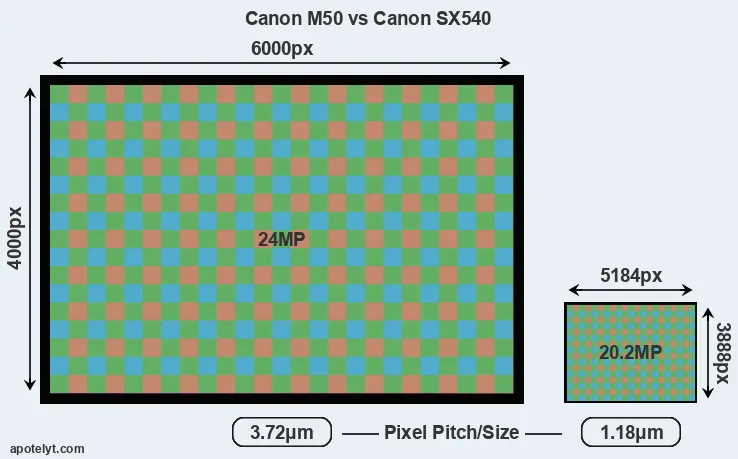

With 24MP, the M50 offers a higher resolution than the SX540 (20.2MP), but the M50 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.18μm for the SX540) due to its larger sensor. Moreover, the M50 is a much more recent model (by 2 years and 1 month) than the SX540, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M50 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M50 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX540 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The M50 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M50 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon PowerShot SX540 HS are ISO 80 to ISO 3200 (no boost).

In terms of underlying technology, the M50 is build around a CMOS sensor, while the SX540 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
2.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
6.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
7.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
8.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
9.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
10.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
11.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
12.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
13.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
14.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
15.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
16.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
17.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M50 provides a higher video resolution than the SX540. It can shoot video footage at 4K/24p, while the SX540 is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the M50 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M50 and Canon SX540 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
2.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
6.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
7.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
8.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
11.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
12.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
13.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
14.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
15.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
16.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
17.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M50 has a touchscreen, while the SX540 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon M50 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M50 and the SX540 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M50 and Canon PowerShot SX540 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
7.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
13.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y

It is notable that the M50 has a hotshoe, while the SX540 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the M50 and the SX540 have been discontinued, but can regularly be found used on ebay. The M50 was replaced by the Canon M50 Mark II, while the SX540 does not have a direct successor. Further information on the features and operation of the M50 and SX540 can be found, respectively, in the Canon M50 Manual (free pdf) or the online Canon SX540 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon M50 and the Canon SX540? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M50:

• More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 6).
• Better video: Provides higher definition movie capture (4K/24p vs 1080/60p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 5.9 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (235 versus 205) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 2 years and 1 month of technical progress since the SX540 launch.

Reasons to prefer the Canon PowerShot SX540 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has an integrated lens, whereas the M50 necessitates an extra lens.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in January 2016).

If the count of individual advantages (bullet points above) is taken as a guide, the M50 is the clear winner of the match-up (23 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M50 and the Canon SX540 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M50 or the SX540 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	EUR 779	ebay.com
2.		Canon SX540	..	..	..	..	..	..	Jan 2016	EUR 369	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	EUR 449	ebay.com
5.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	EUR 789	ebay.com
6.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	EUR 929	ebay.com
7.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	EUR 749	ebay.com
8.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	EUR 1 129	ebay.com
9.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
10.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	EUR 929	ebay.com
11.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	EUR 599	ebay.com
12.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	EUR 479	ebay.com
13.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	EUR 379	ebay.com
14.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	EUR 299	ebay.com
15.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	EUR 329	ebay.com
16.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	EUR 399	ebay.com
17.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	EUR 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check M50 offers at
ebay.com
Check SX540 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M50 offers at
ebay.com
Check SX540 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
