Canon M5 vs Nikon D40
The Canon EOS M5 and the Nikon D40 are two digital cameras that were officially introduced, respectively, in September 2016 and November 2006. The M5 is a mirrorless interchangeable lens camera, while the D40 is a DSLR. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Nikon D40? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

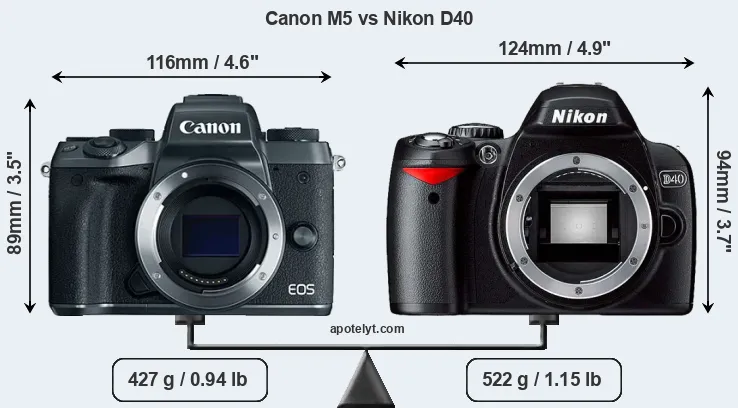

An illustration of the physical size and weight of the Canon M5 and the Nikon D40 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D40 is notably larger (13 percent) than the Canon M5. Moreover, the D40 is markedly heavier (22 percent) than the M5. In this context, it is worth noting that neither the M5 nor the D40 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the D40 can take 470 images on a single charge of its Nikon EN-EL9 power pack.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M5 | 116 mm | 89 mm | 61 mm | 427 g | 295 | n | Sep 2016 | US$ 979 | ebay.com | |
2. | Nikon D40 | 124 mm | 94 mm | 64 mm | 522 g | 470 | n | Nov 2006 | US$ 499 | ebay.com | |
3. | Canon 77D | 131 mm | 100 mm | 76 mm | 540 g | 600 | n | Feb 2017 | US$ 899 | ebay.com | |
4. | Canon 200D | 122 mm | 93 mm | 70 mm | 453 g | 650 | n | Jun 2017 | US$ 549 | ebay.com | |
5. | Canon 760D | 132 mm | 101 mm | 78 mm | 565 g | 440 | n | Feb 2015 | US$ 649 | ebay.com | |
6. | Canon G9 X Mark II | 98 mm | 58 mm | 31 mm | 206 g | 235 | n | Jan 2017 | US$ 529 | ebay.com | |
7. | Canon M3 | 111 mm | 68 mm | 44 mm | 366 g | 250 | n | Feb 2015 | US$ 679 | ebay.com | |
8. | Canon M6 | 112 mm | 68 mm | 45 mm | 390 g | 295 | n | Feb 2017 | US$ 779 | ebay.com | |
9. | Canon M100 | 108 mm | 67 mm | 35 mm | 302 g | 295 | n | Aug 2017 | US$ 499 | ebay.com | |
10. | Fujifilm X-T20 | 118 mm | 83 mm | 41 mm | 383 g | 350 | n | Jan 2017 | US$ 899 | ebay.com | |
11. | Nikon D40X | 124 mm | 94 mm | 64 mm | 522 g | 520 | n | Mar 2007 | US$ 729 | ebay.com | |
12. | Nikon D50 | 133 mm | 102 mm | 76 mm | 620 g | 400 | n | Apr 2005 | US$ 749 | ebay.com | |
13. | Nikon D70s | 140 mm | 111 mm | 78 mm | 679 g | 500 | n | Apr 2005 | US$ 899 | ebay.com | |
14. | Nikon D3000 | 126 mm | 97 mm | 64 mm | 536 g | 500 | n | Jul 2009 | US$ 599 | ebay.com | |
15. | Nikon D3100 | 124 mm | 96 mm | 75 mm | 505 g | 550 | n | Aug 2010 | US$ 599 | ebay.com | |
16. | Nikon D5500 | 124 mm | 97 mm | 70 mm | 470 g | 820 | n | Jan 2015 | US$ 899 | ebay.com | |
17. | Nikon D5600 | 124 mm | 97 mm | 70 mm | 465 g | 970 | n | Nov 2016 | US$ 699 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D40 was launched at a markedly lower price (by 49 percent) than the M5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D40 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

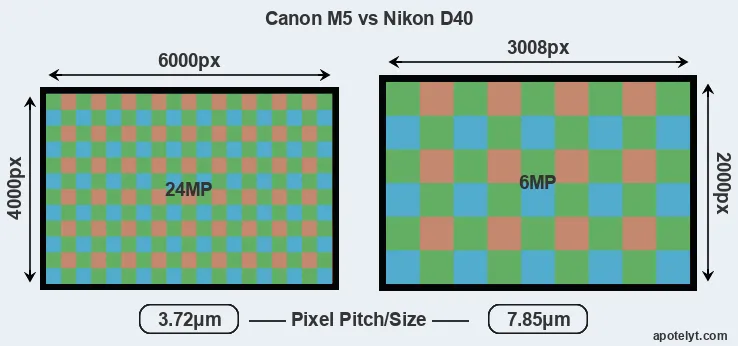

Despite having a smaller sensor, the Canon M5 offers a higher resolution of 24 megapixels, compared with 6 MP of the Nikon D40. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 7.85μm for the D40). However, it should be noted that the M5 is much more recent (by 9 years and 10 months) than the D40, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D40 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Nikon D40 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-3200.
In terms of underlying technology, the M5 is build around a CMOS sensor, while the D40 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the M5 provides substantially higher image quality than the D40, with an overall score that is 21 points higher. This advantage is based on 2.4 bits higher color depth, 1.4 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M5 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.4 | 12.4 | 1262 | 77 | |
2. | Nikon D40 | APS-C | 6.0 | 3008 | 2000 | none | 21.0 | 11.0 | 561 | 56 | |
3. | Canon 77D | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.6 | 13.3 | 971 | 78 | |
4. | Canon 200D | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.6 | 13.4 | 1041 | 79 | |
5. | Canon 760D | APS-C | 24.0 | 6000 | 4000 | 1080/30p | 22.6 | 12.0 | 915 | 70 | |
6. | Canon G9 X Mark II | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.9 | 12.5 | 522 | 65 | |
7. | Canon M3 | APS-C | 24.0 | 6000 | 4000 | 1080/30p | 22.8 | 11.8 | 1169 | 72 | |
8. | Canon M6 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.4 | 12.6 | 1317 | 78 | |
9. | Canon M100 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.5 | 12.9 | 1272 | 78 | |
10. | Fujifilm X-T20 | APS-C | 24.0 | 6000 | 4000 | 4K/30p | 23.9 | 13.2 | 1704 | 81 | |
11. | Nikon D40X | APS-C | 10.0 | 3872 | 2592 | none | 22.4 | 11.4 | 516 | 63 | |
12. | Nikon D50 | APS-C | 6.0 | 3008 | 2000 | none | 20.9 | 10.8 | 560 | 55 | |
13. | Nikon D70s | APS-C | 6.0 | 3008 | 2000 | none | 20.4 | 10.3 | 529 | 50 | |
14. | Nikon D3000 | APS-C | 10.0 | 3872 | 2592 | none | 22.3 | 11.1 | 563 | 62 | |
15. | Nikon D3100 | APS-C | 14.2 | 4608 | 3072 | 1080/24p | 22.5 | 11.3 | 919 | 67 | |
16. | Nikon D5500 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.1 | 14.0 | 1438 | 84 | |
17. | Nikon D5600 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.1 | 14.0 | 1306 | 84 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but can also record movies. The M5 indeed provides movie recording capabilities, while the D40 does not. The highest resolution format that the M5 can use is 1080/60p.
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the D40 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon M5, the Nikon D40, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M5 | 2360 | n | 3.2 / 1620 | tilting | Y | 1/4000s | 9.0/s | Y | n | |
2. | Nikon D40 | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 2.5/s | Y | n | |
3. | Canon 77D | optical | Y | 3.0 / 1040 | swivel | Y | 1/4000s | 6.0/s | Y | n | |
4. | Canon 200D | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
5. | Canon 760D | optical | Y | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
6. | Canon G9 X Mark II | none | n | 3.0 / 1040 | fixed | Y | 1/2000s | 8.2/s | Y | Y | |
7. | Canon M3 | optional | n | 3.0 / 1040 | tilting | Y | 1/4000s | 4.2/s | Y | n | |
8. | Canon M6 | optional | n | 3.0 / 1040 | tilting | Y | 1/4000s | 9.0/s | Y | n | |
9. | Canon M100 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 6.1/s | Y | n | |
10. | Fujifilm X-T20 | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | n | |
11. | Nikon D40X | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
12. | Nikon D50 | optical | n | 2.0 / 130 | fixed | n | 1/4000s | 2.5/s | Y | n | |
13. | Nikon D70s | optical | n | 2.0 / 130 | fixed | n | 1/8000s | 3.0/s | Y | n | |
14. | Nikon D3000 | optical | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
15. | Nikon D3100 | optical | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
16. | Nikon D5500 | optical | n | 3.2 / 1037 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
17. | Nikon D5600 | optical | n | 3.2 / 1037 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the D40 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The M5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D40 does not have a selfie-screen.The M5 writes its imaging data to SDXC cards, while the D40 uses SDHC cards. The M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D40 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Nikon D40 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M5 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
2. | Nikon D40 | Y | - / - | - | - | - | 2.0 | - | - | - | |
3. | Canon 77D | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
4. | Canon 200D | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
5. | Canon 760D | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
6. | Canon G9 X Mark II | - | stereo / mono | - | - | micro | 2.0 | Y | Y | Y | |
7. | Canon M3 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
8. | Canon M6 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
9. | Canon M100 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | Y | |
10. | Fujifilm X-T20 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
11. | Nikon D40X | Y | - / - | - | - | - | 2.0 | - | - | - | |
12. | Nikon D50 | Y | - / - | - | - | - | 2.0 | - | - | - | |
13. | Nikon D70s | Y | - / - | - | - | - | 2.0 | - | - | - | |
14. | Nikon D3000 | Y | - / - | - | - | - | 2.0 | - | - | - | |
15. | Nikon D3100 | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
16. | Nikon D5500 | Y | stereo / mono | Y | - | mini | 2.0 | Y | - | - | |
17. | Nikon D5600 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y |
It is notable that the M5 offers wifi support, while the D40 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the M5 and the D40 have been discontinued, but can regularly be found used on ebay. The D40 was replaced by the Nikon D40X, while the M5 does not have a direct successor. Further information on the features and operation of the M5 and D40 can be found, respectively, in the Canon M5 Manual (free pdf) or the online Nikon D40 Manual.
Review summary
So what is the bottom line? Is there a clear favorite between the Canon M5 and the Nikon D40? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 6MP) with a 100% higher linear resolution.
- Better image quality: Scores substantially higher (21 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.4 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.2 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (9 vs 2.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (116x89mm vs 124x94mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 95g or 18 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 9 years and 10 months of technical progress since the D40 launch.
Arguments in favor of the Nikon D40:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Gets more shots (470 versus 295) out of a single battery charge.
- More affordable: Was introduced into a lower priced category (49 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2006).
If the count of relative strengths (bullet points above) is taken as a measure, the M5 is the clear winner of the match-up (22 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Nikon D40 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M5 and the D40 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon M5 | 4/5 | + | 4/5 | 82/100 | 4/5 | 4/5 | Sep 2016 | US$ 979 | ebay.com | |
2. | Nikon D40 | .. | 81/100 | .. | + + | o | 4.5/5 | Nov 2006 | US$ 499 | ebay.com | |
3. | Canon 77D | 4.5/5 | .. | 4/5 | 82/100 | 4.5/5 | 4/5 | Feb 2017 | US$ 899 | ebay.com | |
4. | Canon 200D | 4/5 | + + | 4/5 | 78/100 | 4.5/5 | 4.5/5 | Jun 2017 | US$ 549 | ebay.com | |
5. | Canon 760D | 5/5 | + | .. | 77/100 | 4.5/5 | 4.5/5 | Feb 2015 | US$ 649 | ebay.com | |
6. | Canon G9 X Mark II | 4/5 | .. | 4/5 | 75/100 | 4.5/5 | 4.5/5 | Jan 2017 | US$ 529 | ebay.com | |
7. | Canon M3 | 4/5 | o | .. | 75/100 | 4.5/5 | 4/5 | Feb 2015 | US$ 679 | ebay.com | |
8. | Canon M6 | .. | .. | .. | 80/100 | 4/5 | 4/5 | Feb 2017 | US$ 779 | ebay.com | |
9. | Canon M100 | 3/5 | + | .. | .. | 4/5 | 3.5/5 | Aug 2017 | US$ 499 | ebay.com | |
10. | Fujifilm X-T20 | 5/5 | + + | 5/5 | 82/100 | 5/5 | 4.5/5 | Jan 2017 | US$ 899 | ebay.com | |
11. | Nikon D40X | .. | 79/100 | .. | + + | 4/5 | 4/5 | Mar 2007 | US$ 729 | ebay.com | |
12. | Nikon D50 | .. | 78/100 | .. | + + | 4/5 | 4.5/5 | Apr 2005 | US$ 749 | ebay.com | |
13. | Nikon D70s | .. | .. | .. | .. | .. | 5/5 | Apr 2005 | US$ 899 | ebay.com | |
14. | Nikon D3000 | .. | + | .. | 72/100 | 4/5 | 4.5/5 | Jul 2009 | US$ 599 | ebay.com | |
15. | Nikon D3100 | 5/5 | + + | .. | 72/100 | 4.5/5 | 4.5/5 | Aug 2010 | US$ 599 | ebay.com | |
16. | Nikon D5500 | 5/5 | + | .. | 79/100 | 4.5/5 | 4.5/5 | Jan 2015 | US$ 899 | ebay.com | |
17. | Nikon D5600 | 4/5 | .. | 4/5 | 79/100 | 4.5/5 | 4/5 | Nov 2016 | US$ 699 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon M5 vs Nikon D40
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon M5 | Nikon D40 |
---|---|---|
Camera Type | Mirrorless system camera | Digital single lens reflex |
Camera Lens | Canon EF-M mount lenses | Nikon F mount lenses |
Launch Date | September 2016 | November 2006 |
Launch Price | USD 979 | USD 499 |
Sensor Specs | Canon M5 | Nikon D40 |
Sensor Technology | CMOS | CCD |
Sensor Format | APS-C Sensor | APS-C Sensor |
Sensor Size | 22.3 x 14.9 mm | 23.7 x 15.6 mm |
Sensor Area | 332.27 mm2 | 369.72 mm2 |
Sensor Diagonal | 26.8 mm | 28.4 mm |
Crop Factor | 1.6x | 1.5x |
Sensor Resolution | 24 Megapixels | 6 Megapixels |
Image Resolution | 6000 x 4000 pixels | 3008 x 2000 pixels |
Pixel Pitch | 3.72 μm | 7.85 μm |
Pixel Density | 7.22 MP/cm2 | 1.63 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | 1080/60p Video | no Video |
ISO Setting | 100 - 25,600 ISO | 200 - 1,600 ISO |
ISO Boost | no Enhancement | 200 - 3,200 ISO |
DXO Sensor Quality (score) | 77 | 56 |
DXO Color Depth (bits) | 23.4 | 21.0 |
DXO Dynamic Range (EV) | 12.4 | 11.0 |
DXO Low Light (ISO) | 1262 | 561 |
Screen Specs | Canon M5 | Nikon D40 |
Viewfinder Type | Electronic viewfinder | Optical viewfinder |
Viewfinder Field of View | 100% | 95% |
Viewfinder Magnification | .. x | 0.53x |
Viewfinder Resolution | 2360k dots | |
LCD Framing | Live View | |
Rear LCD Size | 3.2inch | 2.5inch |
LCD Resolution | 1620k dots | 230k dots |
LCD Attachment | Tilting screen | Fixed screen |
Touch Input | Touchscreen | no Touchscreen |
Shooting Specs | Canon M5 | Nikon D40 |
Focus System | On-Sensor Phase-detect | Phase-detect AF |
Manual Focusing Aid | Focus Peaking | no Peaking Feature |
Continuous Shooting | 9 shutter flaps/s | 2.5 shutter flaps/s |
Shutter Life Expectancy | 100 000 actuations | 50 000 actuations |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDHC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | UHS-I | no |
Connectivity Specs | Canon M5 | Nikon D40 |
External Flash | Hotshoe | Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | no HDMI |
Microphone Port | External MIC port | no MIC socket |
Wifi Support | Wifi built-in | no Wifi |
Near-Field Communication | NFC built-in | no NFC |
Bluetooth Support | Bluetooth built-in | no Bluetooth |
Body Specs | Canon M5 | Nikon D40 |
Battery Type | Canon LP-E17 | Nikon EN-EL9 |
Battery Life (CIPA) | 295 shots per charge | 470 shots per charge |
Body Dimensions |
116 x 89 x 61 mm (4.6 x 3.5 x 2.4 in) |
124 x 94 x 64 mm (4.9 x 3.7 x 2.5 in) |
Camera Weight | 427 g (15.1 oz) | 522 g (18.4 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
