Canon M5 vs Nikon D3400

The Canon EOS M5 and the Nikon D3400 are two digital cameras that were announced, respectively, in September 2016 and August 2016. The M5 is a mirrorless interchangeable lens camera, while the D3400 is a DSLR. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Nikon D3400
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Nikon F mount lenses
24 MP – APS-C sensor		24 MP – APS-C sensor
1080/60p Video		1080/60p Video
ISO 100-25,600		ISO 100-25,600
Electronic viewfinder (2360k dots)		Optical viewfinder
3.2" LCD – 1620k dots		3.0" LCD – 921k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
9 shutter flaps per second		5 shutter flaps per second
295 shots per battery charge		1200 shots per battery charge
116 x 89 x 61 mm, 427 g		124 x 98 x 76 mm, 445 g

Check M5 offers at
ebay.com
Check D3400 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Nikon D3400? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

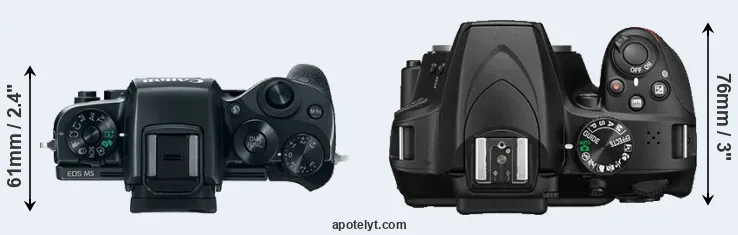

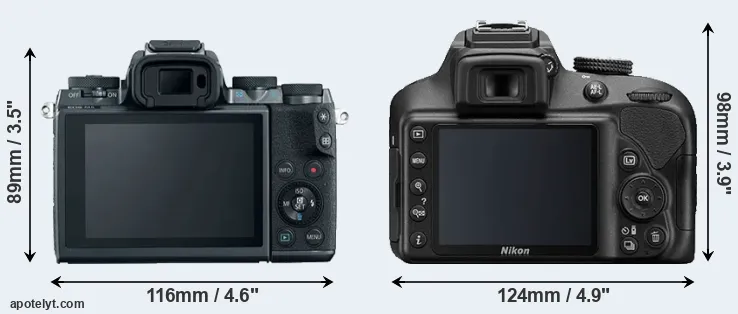

An illustration of the physical size and weight of the Canon M5 and the Nikon D3400 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The D3400 can be obtained in two different colors (black, red), while the M5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3400 is notably larger (18 percent) than the Canon M5. Moreover, the D3400 is slightly heavier (4 percent) than the M5. In this context, it is worth noting that neither the M5 nor the D3400 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the D3400 can take 1200 images on a single charge of its Nikon EN-EL14a power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
2.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
5.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
7.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
9.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
10.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
11.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	US$ 599	ebay.com
12.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
13.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
14.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
15.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D3400 was launched at a markedly lower price (by 49 percent) than the M5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

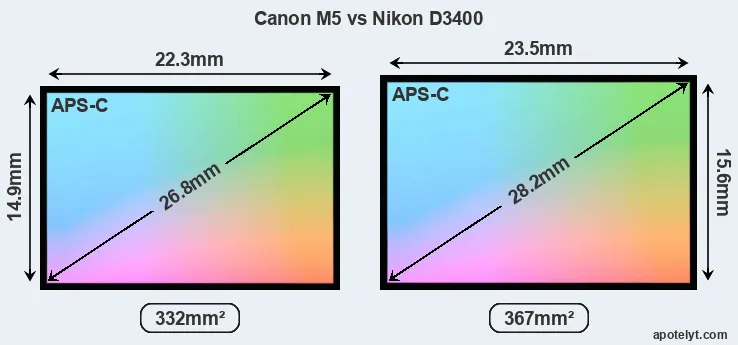

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D3400 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the D3400 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the D3400 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.91μm versus 3.72μm for the M5), which gives it a potential advantage in terms of light gathering capacity. The two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the D3400 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The Nikon D3400 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D3400 has a markedly higher DXO score than the M5 (overall score 9 points higher), which will translate into better image quality. The advantage is based on 1.4 bits higher color depth, 1.5 EV in additional dynamic range, and 0.1 stops of reduced low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
10.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
11.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
12.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
13.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
14.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
15.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the D3400 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon M5 and Nikon D3400 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
12.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
13.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
14.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the D3400 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the M5 and the D3400 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Nikon D3400 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
14.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

It is notable that the M5 has a microphone port, which is missing on the D3400. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the M5 and the D3400 have been discontinued, but can regularly be found used on ebay. The D3400 was replaced by the Nikon D3500, while the M5 does not have a direct successor. Further information on the features and operation of the M5 and D3400 can be found, respectively, in the Canon M5 Manual (free pdf) or the online Nikon D3400 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon M5 and the Nikon D3400? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS M5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 921k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (116x89mm vs 124x98mm) and thus needs less room in the bag.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.

Arguments in favor of the Nikon D3400:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Gets more shots (1200 versus 295) out of a single battery charge.
• More affordable: Was introduced into a lower priced category (49 percent cheaper at launch).

If the number of relative strengths (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (14 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Nikon D3400 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M5 and the D3400 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
2.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
5.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
7.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
9.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
10.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
11.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	US$ 599	ebay.com
12.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
13.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
14.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
15.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
