Canon M5 vs M50

The Canon EOS M5 and the Canon EOS M50 are two digital cameras that were revealed to the public, respectively, in September 2016 and February 2018. Both the M5 and the M50 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon M5   Canon M50
Canon M5 Canon M50
Mirrorless system camera Mirrorless system camera
Canon EF-M mount lenses Canon EF-M mount lenses
24 MP, APS-C Sensor 24 MP, APS-C Sensor
1080/60p Video 4K/24p Video
ISO 100-25600 ISO 100-25600 (100-51200)
Electronic viewfinder (2360k dots) Electronic viewfinder (2360k dots)
3.2" LCD, 1620k dots 3.0" LCD, 1040k dots
Tilting touchscreen Swivel touchscreen
9 shutter flaps per second 10 shutter flaps per second
295 shots per battery charge235 shots per battery charge
116 x 89 x 61 mm, 427 g 116 x 88 x 59 mm, 390 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Canon EOS M50? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Canon M5 vs M50

The side-by-side display below illustrates the physical size and weight of the Canon M5 and the Canon M50. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The M50 can be obtained in two different colors (black, white), while the M5 is only available in black.

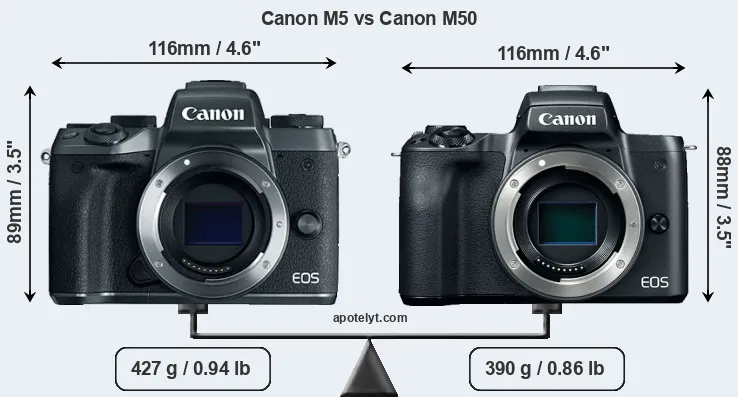

Size Canon M5 vs Canon M50

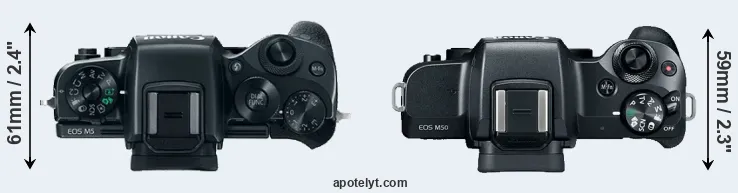

Compare M5 versus M50 top

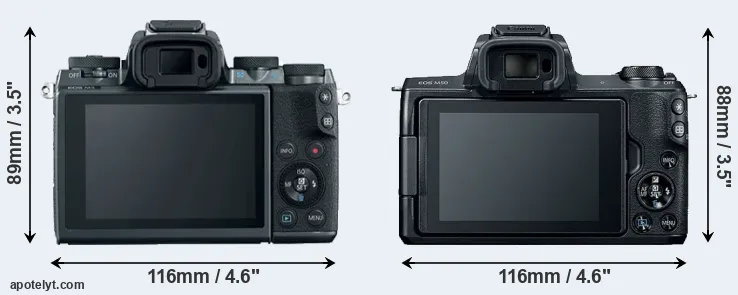

Comparison M5 or M50 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M50 is somewhat smaller (1 percent) than the Canon M5. Moreover, the M50 is markedly lighter (9 percent) than the M5. In this context, it is worth noting that neither the M5 nor the M50 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its LP-E17 battery, while the M50 can take 235 images on a single charge of its LP-E12 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon M5» 4.6 in 3.5 in 2.4 in 15.1 oz 295 n Sep 2016 979 i i Canon M5

Canon M50« 4.6 in 3.5 in 2.3 in 13.8 oz 235 n Feb 2018 779 i i Canon M50

Canon SL3« » 4.8 in 3.7 in 2.8 in 15.8 oz 1070 n Apr 2019 599 i i Canon SL3

Canon T7« » 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i i Canon T7

Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D

Canon M6« » 4.4 in 2.7 in 1.8 in 13.8 oz 295 n Feb 2017 779 i i Canon M6

Canon M100« » 4.3 in 2.6 in 1.4 in 10.7 oz 295 n Aug 2017 499 i i Canon M100

Canon SL2« » 4.8 in 3.7 in 2.8 in 16.0 oz 650 n Jun 2017 549- i Canon SL2

Canon M3« » 4.4 in 2.7 in 1.7 in 12.9 oz 250 n Feb 2015 679- i Canon M3

Canon M10« » 4.3 in 2.6 in 1.4 in 10.6 oz 255 n Oct 2015 499- i Canon M10

Canon T6i« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon T6i

Canon T6s« » 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 649- i Canon T6s

Nikon D5500« » 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899- i Nikon D5500
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M50 was launched at a somewhat lower price (by 20 percent) than the M5, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon M5 vs M50

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the M50 uses a more advanced image processing engine (DIGIC 8) than the M5 (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

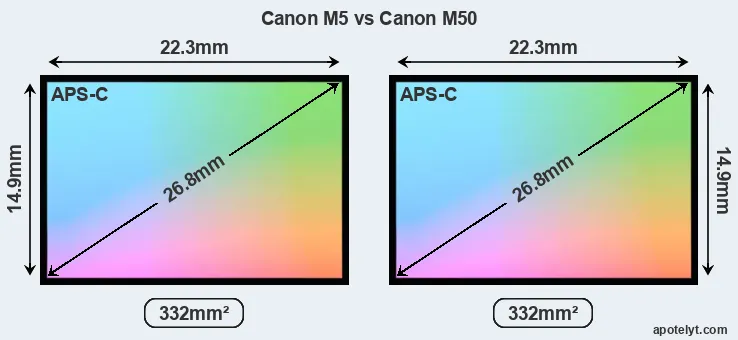

Canon M5 and Canon M50 sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 24 megapixels. This similarity in sensor specs implies that both the M5 and the M50 have the same pixel density, as well as the same pixel size. It should, however, be noted that the M50 is a somewhat more recent model (by 1 year and 5 months) than the M5, and its sensor might have benefitted from technological advances during this time.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon EOS M50 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

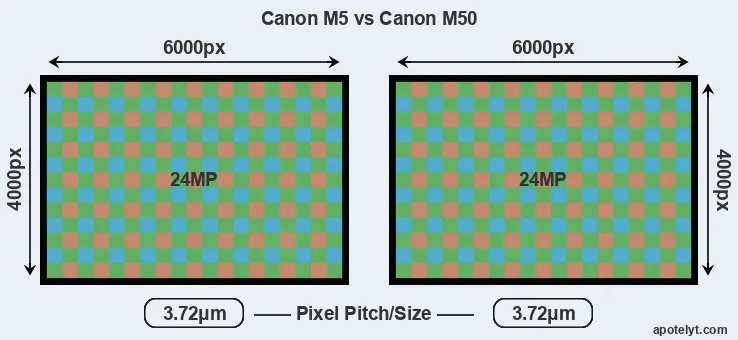

M5 versus M50 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon M5» APS-C 24.0 6000 40001080/60p23.412.4126277Canon M5

Canon M50« APS-C 24.0 6000 40004K/24p----Canon M50

Canon SL3« » APS-C 24.0 6000 40004K/25p----Canon SL3

Canon T7« » APS-C 24.0 6000 40001080/30p----Canon T7

Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D

Canon M6« » APS-C 24.0 6000 40001080/60p----Canon M6

Canon M100« » APS-C 24.0 6000 40001080/60p23.512.9127278Canon M100

Canon SL2« » APS-C 24.0 6000 40001080/60p23.613.4104179Canon SL2

Canon M3« » APS-C 24.0 6000 40001080/30p22.811.8116972Canon M3

Canon M10« » APS-C 17.9 5184 34561080/30p22.211.475365Canon M10

Canon T6i« » APS-C 24.0 6000 40001080/60p22.712.091971Canon T6i

Canon T6s« » APS-C 24.0 6000 40001080/30p22.612.091570Canon T6s

Nikon D5500« » APS-C 24.0 6000 40001080/60p24.114.0143884Nikon D5500

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M50 provides a better video resolution than the M5. It can shoot movie footage at 4K/24p, while the M5 is limited to 1080/60p.



Feature comparison: Canon M5 vs M50

Apart from body and sensor, cameras can and do differ across a range of features. The M5 and the M50 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The following table reports on some other key feature differences and similarities of the Canon M5, the Canon M50, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon M5»2360 n 3.2 1620 tilting Y 1/4000s 9.0 Y n Canon M5

Canon M50«2360 n 3.0 1040 swivel Y 1/4000s 10.0 Y n Canon M50

Canon SL3« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL3

Canon T7« »optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon T7

Canon 77D« »optical Y 3.0 1040 swivel Y 1/4000s 6.0 Y n Canon 77D

Canon M6« »- n 3.0 1040 tilting Y 1/4000s 9.0 Y n Canon M6

Canon M100« »- n 3.0 1040 tilting Y 1/4000s 6.1 Y n Canon M100

Canon SL2« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon SL2

Canon M3« »- n 3.0 1040 tilting Y 1/4000s 4.2 Y n Canon M3

Canon M10« »- n 3.0 1040 tilting Y 1/4000s 4.6 Y n Canon M10

Canon T6i« »optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon T6i

Canon T6s« »optical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n Canon T6s

Nikon D5500« »optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n Nikon D5500
Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

Concerning the storage of imaging data, both the M5 and the M50 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.



Connectivity comparison: Canon M5 vs M50

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Canon EOS M50 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon M5»YstereomonoY-mini2.0YYYCanon M5

Canon M50«YstereomonoY-micro2.0YYYCanon M50

Canon SL3« »YstereomonoY-mini2.0Y-YCanon SL3

Canon T7« »Ymonomono--mini2.0YY-Canon T7

Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D

Canon M6« »YstereomonoY-mini2.0YYYCanon M6

Canon M100« »-stereomono--mini2.0YYYCanon M100

Canon SL2« »YstereomonoY-mini2.0YYYCanon SL2

Canon M3« »YstereomonoY-mini2.0YY-Canon M3

Canon M10« »-stereomono--mini2.0YY-Canon M10

Canon T6i« »YstereomonoY-mini2.0YY-Canon T6i

Canon T6s« »YstereomonoY-mini2.0YY-Canon T6s

Nikon D5500« »YstereomonoY-mini2.0Y--Nikon D5500

Both the M5 and the M50 are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.


Review summary: Canon M5 vs M50

So what is the bottom line? Is there a clear favorite between the Canon M5 and the Canon M50? Which camera is better? The listing below highlights the relative strengths of the two models.


Arguments in favor of the Canon EOS M5:

  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
  • Longer lasting: Can take more shots (295 versus 235) on a single battery charge.
  • More heavily discounted: Has been on the market for longer (launched in September 2016).


Reasons to prefer the Canon EOS M50:

  • Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 7).
  • Better video: Provides higher definition movie capture (4K/24p vs 1080/60p).
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • More affordable: Was released into a lower priced segment (20 percent cheaper at launch).
  • More modern: Was introduced somewhat (1 year and 5 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the M50 comes out slightly ahead of the M5 (5 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

M5 04:05 M50

How about other alternatives? Do the specifications of the Canon M5 and the Canon M50 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the M5 or the M50 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews: Canon M5 vs M50

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon M5»+82/1004/54.5/54/5 Sep 2016 979 i i Canon M5

Canon M50«+79/100-4/53.5/5 Feb 2018 779 i i Canon M50

Canon SL3« »o79/1004/5-4/5 Apr 2019 599 i i Canon SL3

Canon T7« »o-3.5/5-3.5/5 Feb 2018 449 i i Canon T7

Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D

Canon M6« »-80/1004/54.5/54/5 Feb 2017 779 i i Canon M6

Canon M100« »+-4/5-3.5/5 Aug 2017 499 i i Canon M100

Canon SL2« »+ +78/1004.5/54.5/54.5/5 Jun 2017 549- i Canon SL2

Canon M3« »o75/1004.5/54.5/54/5 Feb 2015 679- i Canon M3

Canon M10« »---o4/5 Oct 2015 499- i Canon M10

Canon T6i« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon T6i

Canon T6s« »+77/1004.5/54.5/54.5/5 Feb 2015 649- i Canon T6s

Nikon D5500« »+79/1004.5/55/54.5/5 Jan 2015 899- i Nikon D5500
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon M5:
Check Amazon price
Canon M50:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon M5 vs Canon M50

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon M5 Canon M50
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon EF-M mount lenses Canon EF-M mount lenses
    Launch Date September 2016 February 2018
    Launch Price USD 979 USD 779
    Sensor Specs Canon M5 Canon M50
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.3 x 14.9 mm 22.3 x 14.9 mm
    Sensor Area 332.27 mm2 332.27 mm2
    Sensor Diagonal 26.8 mm 26.8 mm
    Crop Factor 1.6x 1.6x
    Sensor Resolution 24 Megapixels 24 Megapixels
    Image Resolution 6000 x 4000 pixels 6000 x 4000 pixels
    Pixel Pitch 3.72 μm 3.72 μm
    Pixel Density 7.22 MP/cm2 7.22 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 4K/24p Video
    ISO Setting 100-25600 ISO 100-25600 ISO
    ISO Boost no Enhancement 100-51200 ISO
    Image Processor DIGIC 7 DIGIC 8
    DXO Sensor Quality (score) 77 ..
    DXO Color Depth (bits) 23.4 ..
    DXO Dynamic Range (EV) 12.4 ..
    DXO Low Light (ISO) 1262 ..
    Screen Specs Canon M5 Canon M50
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification .. x ..x
    Viewfinder Resolution 2360k dots 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.2 inch 3.0 inch
    LCD Resolution 1620k dots 1040k dots
    LCD Attachment Tilting screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon M5 Canon M50
    Autofocus System On-Sensor Phase-detect On-Sensor Phase-detect
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/4000/s 1/4000/s
    Continuous Shooting 9 shutter flaps/s 10 shutter flaps/s
    Shutter Life Expectancy100 000 actuations100 000 actuations
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon M5 Canon M50
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in NFC built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon M5 Canon M50
    Battery Type LP-E17 power pack LP-E12 power pack
    Battery Life (CIPA)295 shots per charge235 shots per charge
    Body Dimensions 116 x 89 x 61 mm
    (4.6 x 3.5 x 2.4 in)
    116 x 88 x 59 mm
    (4.6 x 3.5 x 2.3 in)
    Camera Weight 427 g (15.1 oz) 390 g (13.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
