Canon G1 X Mark III vs Panasonic G5

The Canon PowerShot G1 X Mark III and the Panasonic Lumix DMC-G5 are two digital cameras that were announced, respectively, in October 2017 and July 2012. The G1X Mark III is a fixed lens compact, while the G5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (G1X Mark III) and a Four Thirds (G5) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G1 X Mark III		Panasonic G5
Fixed lens compact camera		Mirrorless system camera
24-72mm f/2.8-5.6		Micro Four Thirds lenses
24 MP – APS-C sensor		15.9 MP – Four Thirds sensor
1080/60p Video		1080/60p Video
ISO 100-25,600		ISO 160-12,800
Electronic viewfinder (2360k dots)		Electronic viewfinder (1440k dots)
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Swivel touchscreen		Swivel touchscreen
9 shutter flaps per second		6 shutter flaps per second
Weathersealed body		not weather sealed
200 shots per battery charge		320 shots per battery charge
115 x 78 x 51 mm, 399 g		120 x 83 x 71 mm, 396 g

Check G1X Mark III offers at
ebay.com
Check G5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X Mark III and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

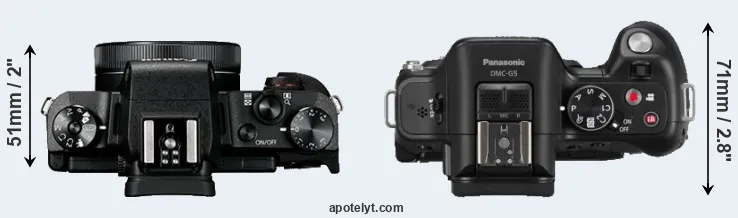

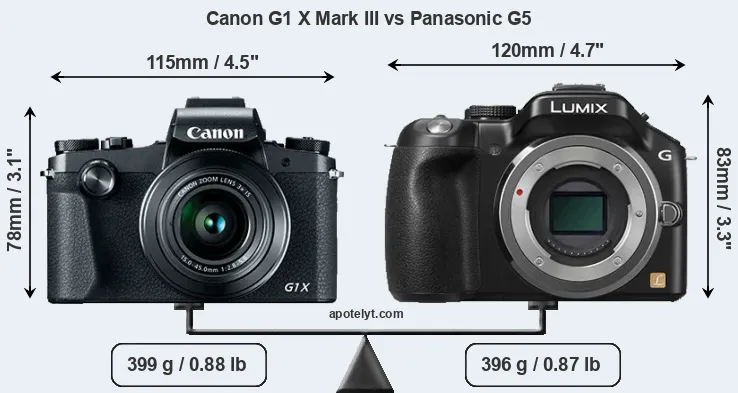

An illustration of the physical size and weight of the Canon G1 X Mark III and the Panasonic G5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The G5 can be obtained in two different colors (black, silver), while the G1X Mark III is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G5 is notably larger (11 percent) than the Canon G1 X Mark III. It is worth mentioning in this context that the G1X Mark III is splash and dust resistant, while the G5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G1X Mark III has a lens built in, whereas the G5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the G5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the G1X Mark III gets 200 shots out of its Canon NB-13L battery, while the G5 can take 320 images on a single charge of its Panasonic DMW-BLC12 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G1 X Mark III	115 mm	78 mm	51 mm	399 g	200	Y	Oct 2017	US$ 1 299	ebay.com
2.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
4.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
5.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
8.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
9.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	US$ 1 299	ebay.com
10.		Fujifilm X100V	128 mm	75 mm	53 mm	478 g	420	Y	Feb 2020	US$ 1 399	ebay.com
11.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
12.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
13.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
14.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	US$ 649	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
16.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
17.		Sony RX10 III	133 mm	94 mm	127 mm	1051 g	420	Y	Mar 2016	US$ 1 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

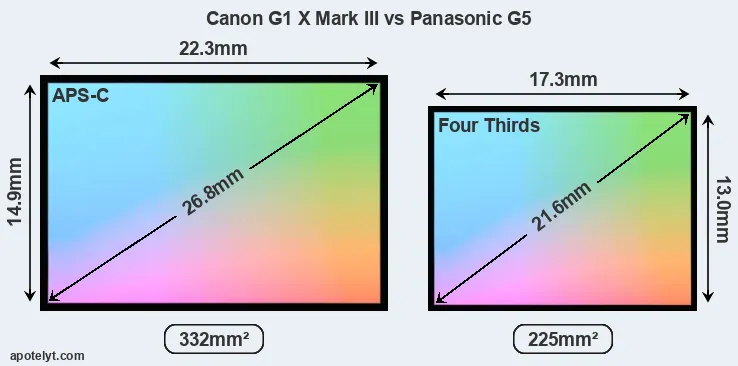

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G1 X Mark III features an APS-C sensor and the Panasonic G5 a Four Thirds sensor. The sensor area in the G5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the G1X Mark III has a native 3:2 aspect ratio, while the one in the G5 offers a 4:3 aspect.

With 24MP, the G1X Mark III offers a higher resolution than the G5 (15.9MP), but the G1X Mark III has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the G5). However, the G1X Mark III is a much more recent model (by 5 years and 2 months) than the G5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon G1 X Mark III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G1X Mark III for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic G5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The G1X Mark III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot G1 X Mark III has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G1 X Mark III	APS-C	24.0	6000	4000	1080/60p	23.8	13.2	1649	81
2.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
5.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
9.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
10.		Fujifilm X100V	APS-C	26.0	6240	4160	4K/30p	24.2	13.6	1996	84
11.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
12.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
13.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
14.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
17.		Sony RX10 III	1-inch	20.0	5472	3648	4K/30p	23.1	12.6	472	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the G1X Mark III offers a substantially higher resolution than the one in the G5 (2360k vs 1440k dots). The following table reports on some other key feature differences and similarities of the Canon G1 X Mark III, the Panasonic G5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G1 X Mark III	2360	n	3.0 / 1040	swivel	Y	1/2000s	9.0/s	Y	Y
2.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
5.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
9.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
10.		Fujifilm X100V	3690	n	3.0 / 1620	tilting	Y	1/4000s	11.0/s	n	n
11.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
12.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
13.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
14.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
17.		Sony RX10 III	2359	Y	3.0 / 1229	tilting	n	1/2000s	14.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon G1 X Mark III has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G1X Mark III and the G5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X Mark III and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G1 X Mark III	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
5.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
10.		Fujifilm X100V	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
11.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
12.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony RX10 III	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the G1X Mark III offers wifi support, while the G5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the G1X Mark III and the G5 have been discontinued, but can regularly be found used on ebay. The G5 was replaced by the Panasonic G6, while the G1X Mark III does not have a direct successor. Further information on the features and operation of the G1X Mark III and G5 can be found, respectively, in the Canon G1 X Mark III Manual (free pdf) or the online Panasonic G5 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon G1 X Mark III or the Panasonic G5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot G1 X Mark III:

• More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 1440k dots).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Faster burst: Shoots at higher frequency (9 vs 6 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the G5 requires a separate lens.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 5 years and 2 months of technical progress since the G5 launch.

Reasons to prefer the Panasonic Lumix DMC-G5:

• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (320 versus 200) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in July 2012).

If the number of relative strengths (bullet points above) is taken as a guide, the G1X Mark III is the clear winner of the match-up (17 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G1 X Mark III and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the G1X Mark III and the G5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G1 X Mark III	5/5	+	4/5	79/100	4.5/5	4.5/5	Oct 2017	US$ 1 299	ebay.com
2.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
4.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
5.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
8.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
9.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	US$ 1 299	ebay.com
10.		Fujifilm X100V	5/5	+ +	4.5/5	86/100	5/5	4.5/5	Feb 2020	US$ 1 399	ebay.com
11.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
12.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
13.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
14.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	US$ 649	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
16.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
17.		Sony RX10 III	5/5	+	..	84/100	4.5/5	4.5/5	Mar 2016	US$ 1 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
