Canon D30 vs M3
The Canon EOS-D30 and the Canon EOS M3 are two digital cameras that were revealed to the public, respectively, in May 2000 and February 2015. The D30 is a DSLR, while the M3 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The D30 has a resolution of 3.1 megapixels, whereas the M3 provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-D30 and the Canon EOS M3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

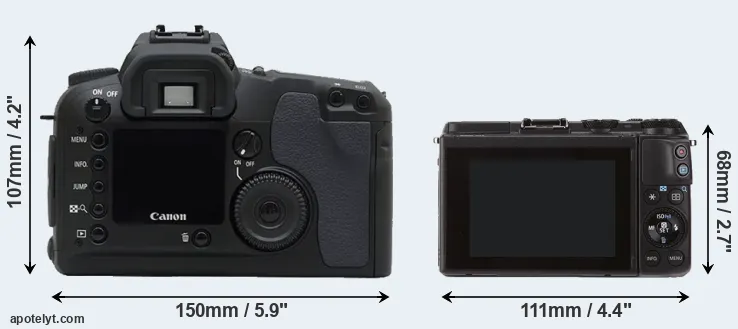

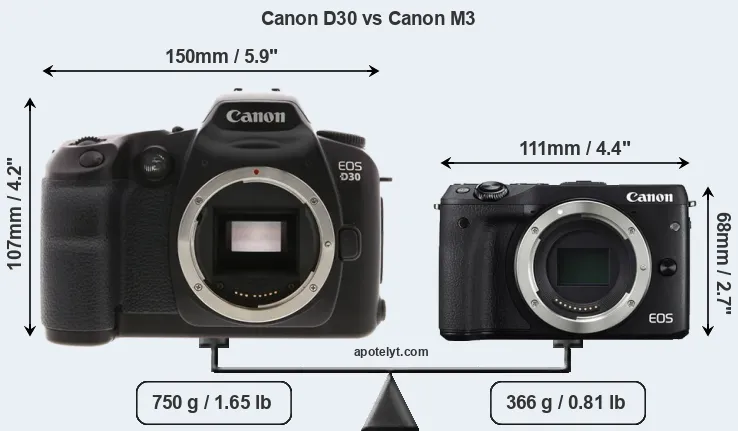

An illustration of the physical size and weight of the Canon D30 and the Canon M3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M3 can be obtained in two different colors (black, white), while the D30 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M3 is considerably smaller (53 percent) than the Canon D30. Moreover, the M3 is substantially lighter (51 percent) than the D30. In this context, it is worth noting that neither the D30 nor the M3 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon D30||150 mm||107 mm||75 mm||750 g||540||n||May 2000||2,999||ebay.com|
|2.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|5.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||ebay.com|
|6.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||amazon.com|
|7.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||ebay.com|
|8.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|9.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|10.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|11.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|12.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299||ebay.com|
|13.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399||ebay.com|
|14.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499||ebay.com|
|15.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999||ebay.com|
|16.||Canon 300D||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899||ebay.com|
|17.||Canon D60||150 mm||107 mm||75 mm||855 g||620||n||Feb 2002||2,999||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M3 was launched at a markedly lower price (by 77 percent) than the D30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

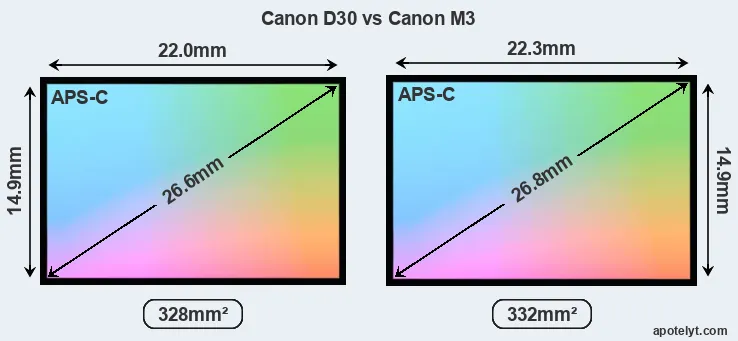

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the M3 is 1 percent bigger. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

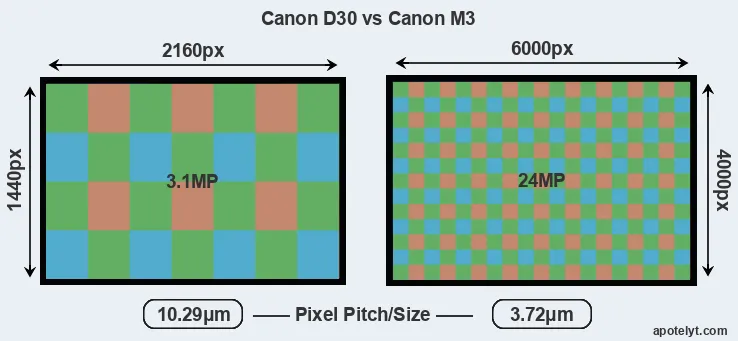

With 24MP, the M3 offers a higher resolution than the D30 (3.1MP), but the M3 has smaller individual pixels (pixel pitch of 3.72μm versus 10.29μm for the D30). Yet, the M3 is a much more recent model (by 14 years and 8 months) than the D30, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon M3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M3 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon D30 are 10.8 x 7.2 inches or 27.4 x 18.3 cm for good quality, 8.6 x 5.8 inches or 21.9 x 14.6 cm for very good quality, and 7.2 x 4.8 inches or 18.3 x 12.2 cm for excellent quality prints.
The M3 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-D30 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Canon EOS M3 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|6.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|10.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The M3 indeed provides for movie recording, while the D30 does not. The highest resolution format that the M3 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D30 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M3 relies on live view and the rear LCD for framing. That said, the M3 can be equipped with an optional viewfinder – the EVF-DC1. The following table reports on some other key feature differences and similarities of the Canon D30, the Canon M3, and comparable cameras.
|1.||Canon D30||optical||Y||1.8 / 114||fixed||n||1/4000s||3.0/s||Y||n|
|2.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|4.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|6.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0/s||n||n|
|7.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|8.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|9.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|10.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|11.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|12.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5/s||Y||n|
|13.||Canon 30D||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|14.||Canon 20D||optical||Y||1.8 / 118||fixed||n||1/8000s||5.0/s||Y||n|
|15.||Canon 10D||optical||Y||1.8 / 118||fixed||n||1/4000s||3.0/s||Y||n|
|16.||Canon 300D||optical||n||1.8 / 118||fixed||n||1/4000s||2.5/s||Y||n|
|17.||Canon D60||optical||Y||1.8 / 114||fixed||n||1/4000s||3.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the D30, but is missing on the M3 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The M3 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D30 does not have a selfie-screen.
The D30 writes its imaging data to Compact Flash cards, while the M3 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-D30 and Canon EOS M3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon D30||Y||- / -||-||-||-||1.0||-||-||-|
|2.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|7.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|8.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|9.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Canon 30D||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Canon 20D||Y||- / -||-||-||-||1.1||-||-||-|
|15.||Canon 10D||Y||- / -||-||-||-||1.1||-||-||-|
|16.||Canon 300D||Y||- / -||-||-||-||1.1||-||-||-|
|17.||Canon D60||Y||- / -||-||-||-||1.1||-||-||-|
It is notable that the M3 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D30 does not provide wifi capability.
Studio photographers will appreciate that the Canon D30 (unlike the M3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D30 and the M3 have been discontinued, but can regularly be found used on ebay. The D30 was replaced by the Canon D60, while the M3 was followed by the Canon M6. Further information on the features and operation of the D30 and M3 can be found, respectively, in the Canon D30 Manual (free pdf) or the online Canon M3 Manual.
So how do things add up? Is the Canon D30 better than the Canon M3 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS-D30:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Longer lasting: Can take more shots (540 versus 250) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in May 2000).
Reasons to prefer the Canon EOS M3:
- More detail: Has more megapixels (24 vs 3.1MP), which boosts linear resolution by 178%.
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 114k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (4.2 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x68mm vs 150x107mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 384g or 51 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
- More modern: Reflects 14 years and 8 months of technical progress since the D30 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the M3 is the clear winner of the contest (17 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon D30 and the Canon M3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D30 and the M3 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon D30||..||..||..||+ +||..||..||May 2000||2,999||ebay.com|
|2.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|4.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|5.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779||ebay.com|
|6.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499||amazon.com|
|7.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199||ebay.com|
|8.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|9.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|10.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|11.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|12.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299||ebay.com|
|13.||Canon 30D||..||+ +||..||+ +||o||..||Feb 2006||1,399||ebay.com|
|14.||Canon 20D||..||..||..||+ +||..||..||Aug 2004||1,499||ebay.com|
|15.||Canon 10D||..||..||..||+ +||..||..||Feb 2003||1,999||ebay.com|
|16.||Canon 300D||..||..||..||+ +||..||..||Aug 2003||899||ebay.com|
|17.||Canon D60||..||..||..||+ +||o||..||Feb 2002||2,999||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon D30 vs Canon M3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon D30||Canon M3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||May 2000||February 2015|
|Launch Price||USD 2,999||USD 679|
|Sensor Specs||Canon D30||Canon M3|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.0 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||327.8 mm2||332.27 mm2|
|Sensor Diagonal||26.6 mm||26.8 mm|
|Sensor Resolution||3.1 Megapixels||24 Megapixels|
|Image Resolution||2160 x 1440 pixels||6000 x 4000 pixels|
|Pixel Pitch||10.29 μm||3.72 μm|
|Pixel Density||0.95 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 12,800 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|DXO Sensor Quality (score)||..||72|
|DXO Color Depth (bits)||..||22.8|
|DXO Dynamic Range (EV)||..||11.8|
|DXO Low Light (ISO)||..||1169|
|Screen Specs||Canon D30||Canon M3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.0inch|
|LCD Resolution||114k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon D30||Canon M3|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||4.2 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon D30||Canon M3|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon D30||Canon M3|
|Battery Life (CIPA)||540 shots per charge||250 shots per charge|
150 x 107 x 75 mm
(5.9 x 4.2 x 3.0 in)
111 x 68 x 44 mm
(4.4 x 2.7 x 1.7 in)
|Camera Weight||750 g (26.5 oz)||366 g (12.9 oz)|
