Canon 90D vs SX740

The Canon EOS 90D and the Canon PowerShot SX740 HS are two digital cameras that were revealed to the public, respectively, in August 2019 and July 2018. The 90D is a DSLR, while the SX740 is a fixed lens compact. The cameras are based on an APS-C (90D) and a 1/2.3-inch (SX740) sensor. The 90D has a resolution of 32.3 megapixels, whereas the SX740 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 90D   Canon SX740
Canon 90D Canon SX740
Digital single lens reflex Fixed lens compact camera
Canon EF mount lenses 24-960mm f/3.3-6.9
32.3 MP, APS-C Sensor 20.2 MP, 1/2.3" Sensor
4K/30p Video 4K/30p Video
ISO 100-25600 (100-51200) ISO 100-3200
Optical viewfinder No viewfinder, LCD framing
3.0" LCD, 1040k dots 3.0" LCD, 922k dots
Swivel touchscreen Tilting screen (not touch-sensitive)
11 shutter flaps per second 10 shutter flaps per second
Weathersealed bodyNot weather sealed
1300 shots per battery charge265 shots per battery charge
141 x 105 x 77 mm, 701 g 110 x 64 x 40 mm, 299 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 90D and the Canon PowerShot SX740 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

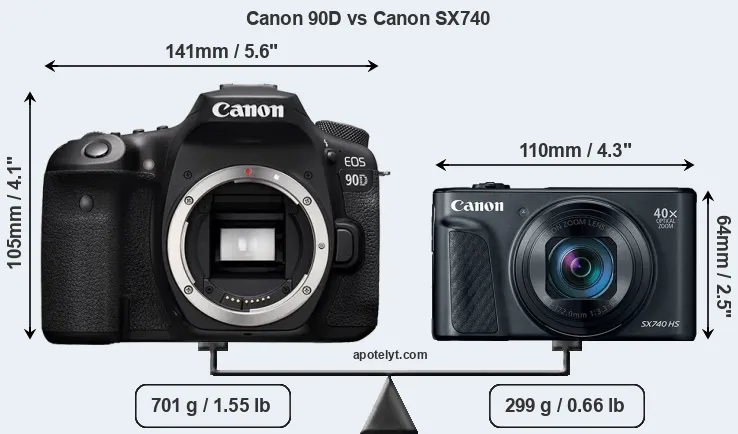

The physical size and weight of the Canon 90D and the Canon SX740 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The SX740 can be obtained in two different colors (black, silver), while the 90D is only available in black.

Size Canon 90D vs Canon SX740
Compare 90D versus SX740 top
Comparison 90D or SX740 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX740 is considerably smaller (52 percent) than the Canon 90D. It is worth mentioning in this context that the 90D is splash and dust resistant, while the SX740 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX740 has a lens built in, whereas the 90D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 90D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 90D gets 1300 shots out of its LP-E6N battery, while the SX740 can take 265 images on a single charge of its NB-13L power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 90D» 141 mm 105 mm 77 mm 701 g 1300 Y Aug 2019 1,199 i i Canon 90D

Canon SX740« 110 mm 64 mm 40 mm 299 g 265 n Jul 2018 399 i i Canon SX740

Canon G5 X Mark II« » 111 mm 61 mm 46 mm 340 g 230 n Jul 2019 899 i i Canon G5 X Mark II

Canon G7 X Mark III« » 105 mm 61 mm 41 mm 304 g 235 n Jul 2019 749 i i Canon G7 X Mark III

Canon 2000D« » 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 i i Canon 2000D

Canon R« » 139 mm 98 mm 84 mm 660 g 370 Y Sep 2018 2,299 i i Canon R

Canon SX730« » 110 mm 64 mm 40 mm 300 g 250 n Apr 2017 399- i Canon SX730

Canon 80D« » 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199- i Canon 80D

Canon G3 X« » 123 mm 77 mm 105 mm 733 g 300 Y Jun 2015 999 i i Canon G3 X

Canon 70D« » 139 mm 104 mm 79 mm 755 g 920 Y Jul 2013 1,199- i Canon 70D

Canon 60D« » 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 1,399- i Canon 60D

Canon 50D« » 146 mm 108 mm 74 mm 822 g 800 Y Aug 2008 1,299- i Canon 50D

Canon 40D« » 146 mm 108 mm 74 mm 822 g 750 n Aug 2007 1,299- i Canon 40D

Canon 30D« » 144 mm 106 mm 74 mm 785 g 750 n Feb 2006 1,399- i Canon 30D

Panasonic TZ95« » 112 mm 69 mm 42 mm 327 g 380 n Feb 2019 449 i i Panasonic TZ95

Panasonic GH5s« » 139 mm 98 mm 87 mm 660 g 440 Y Jan 2018 2,499 i i Panasonic GH5s

Panasonic TZ90« » 112 mm 67 mm 41 mm 322 g 380 n Apr 2017 449- i Panasonic TZ90
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX740 was launched at a lower price than the 90D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 90D features an APS-C sensor and the Canon SX740 a 1/2.3-inch sensor. The sensor area in the SX740 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 90D has a native 3:2 aspect ratio, while the one in the SX740 offers a 4:3 aspect.

Canon 90D and Canon SX740 sensor measures

With 32.3MP, the 90D offers a higher resolution than the SX740 (20.2MP), but the 90D nevertheless has larger individual pixels (pixel pitch of 3.23μm versus 1.18μm for the SX740) due to its larger sensor. Moreover, the 90D is a somewhat more recent model (by 1 year) than the SX740, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX740 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 90D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 90D for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inch or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inch or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inch or 58.9 x 39.3 cm. The corresponding values for the Canon SX740 are 25.9 x 19.4 inch or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inch or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inch or 43.9 x 32.9 cm for excellent quality prints.

The 90D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 90D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon PowerShot SX740 HS are ISO 100 to ISO 3200 (no boost).

90D versus SX740 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 90D» APS-C 32.3 6960 46404K/30p----Canon 90D

Canon SX740« 1/2.3 20.2 5184 38884K/30p----Canon SX740

Canon G5 X Mark II« » 1-inch 20.0 5472 36484K/30p----Canon G5 X Mark II

Canon G7 X Mark III« » 1-inch 20.0 5472 36484K/30p----Canon G7 X Mark III

Canon 2000D« » APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D

Canon R« » Full Frame 30.1 6720 44804K/30p24.513.5274289Canon R

Canon SX730« » 1/2.3 20.2 5184 38881080/60p----Canon SX730

Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D

Canon G3 X« » 1-inch 20.0 5472 36481080/60p21.412.352163Canon G3 X

Canon 70D« » APS-C 20.0 5472 36481080/30p22.511.692668Canon 70D

Canon 60D« » APS-C 17.9 5184 34561080/30p22.211.581366Canon 60D

Canon 50D« » APS-C 15.1 4752 3168-21.811.469663Canon 50D

Canon 40D« » APS-C 10.1 3888 2592-22.111.370364Canon 40D

Canon 30D« » APS-C 8.2 3504 2336-21.510.873659Canon 30D

Panasonic TZ95« » 1/2.3 20.2 5184 38884K/30p----Panasonic TZ95

Panasonic GH5s« » Four Thirds 9.9 3680 27004K/60p----Panasonic GH5s

Panasonic TZ90« » 1/2.3 20.2 5184 38884K/30p19.110.610636Panasonic TZ90

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).



Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 90D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX740 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 90D, the Canon SX740, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 90D»optical Y 3.0 1040 swivel Y 1/8000s 11 Y n Canon 90D

Canon SX740«- n 3.0 922 tilting n 1/3200s 10.0 Y Y Canon SX740

Canon G5 X Mark II« »2360 n 3.0 1040 tilting Y 1/2000s 30 Y Y Canon G5 X Mark II

Canon G7 X Mark III« »- n 3.0 1040 tilting Y 1/2000s 30 Y Y Canon G7 X Mark III

Canon 2000D« »optical n 3.0 920 fixed n 1/4000s 3.0 Y n Canon 2000D

Canon R« »3690 Y 3.2 2100 swivel Y 1/8000s 8.0 n n Canon R

Canon SX730« »- n 3.0 922 tilting n 1/3200s 5.9 Y Y Canon SX730

Canon 80D« »optical Y 3.0 1040 swivel Y 1/8000s 7.0 Y n Canon 80D

Canon G3 X« »- n 3.2 1620 tilting Y 1/2000s 5.9 Y Y Canon G3 X

Canon 70D« »optical Y 3.0 1040 swivel Y 1/8000s 7.0 Y n Canon 70D

Canon 60D« »optical Y 3.0 1040 swivel n 1/8000s 5.3 Y n Canon 60D

Canon 50D« »optical Y 3.0 920 fixed n 1/8000s 6.3 Y n Canon 50D

Canon 40D« »optical Y 3.0 230 fixed n 1/8000s 6.5 Y n Canon 40D

Canon 30D« »optical Y 2.5 230 fixed n 1/8000s 5.0 Y n Canon 30D

Panasonic TZ95« »2330 n 3.0 1040 tilting Y 1/2000s 10.0 Y Y Panasonic TZ95

Panasonic GH5s« »3680 n 3.2 1620 swivel Y 1/8000s 12.0 n n Panasonic GH5s

Panasonic TZ90« »1166 n 3.0 1040 tilting Y 1/2000s 10.0 Y Y Panasonic TZ90

One feature that is present on the 90D, but is missing on the SX740 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the 90D is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 90D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 90D and the SX740 write their files to SDXC cards. The 90D supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SX740 can use UHS-I cards (up to 104 MB/s).



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 90D and Canon PowerShot SX740 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 90D»YstereomonoYYmini2.0Y-YCanon 90D

Canon SX740«-stereomono--micro2.0YYYCanon SX740

Canon G5 X Mark II« »-stereomono--micro3.1Y-YCanon G5 X Mark II

Canon G7 X Mark III« »-stereomonoY-micro3.1Y-YCanon G7 X Mark III

Canon 2000D« »Ymonomono--mini2.0YY-Canon 2000D

Canon R« »YstereomonoY-mini3.1Y-YCanon R

Canon SX730« »-stereomono--micro2.0YYYCanon SX730

Canon 80D« »YstereomonoYYmini2.0YY-Canon 80D

Canon G3 X« »YstereomonoYYmini2.0YY-Canon G3 X

Canon 70D« »YstereomonoY-mini2.0Y--Canon 70D

Canon 60D« »YmonomonoY-mini2.0---Canon 60D

Canon 50D« »Y----mini2.0---Canon 50D

Canon 40D« »Y-----2.0---Canon 40D

Canon 30D« »Y-----2.0---Canon 30D

Panasonic TZ95« »-stereomono--micro2.0Y-YPanasonic TZ95

Panasonic GH5s« »YstereomonoYYfull3.1Y-YPanasonic GH5s

Panasonic TZ90« »-stereomono--micro2.0Y--Panasonic TZ90

It is notable that the 90D has a hotshoe, while the SX740 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 90D and the SX740 are recent models that are part of the current product line-up. The SX740 replaced the earlier Canon SX730 HS, while the 90D followed on from the Canon 80D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.


Review summary

So how do things add up? Is the Canon 90D better than the Canon SX740 or vice versa? Below is a summary of the relative strengths of each of the two contestants.


Arguments in favor of the Canon EOS 90D:

  • More detail: Offers more megapixels (32.3 vs 20.2MP) with a 29% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/3200s) to freeze action.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (1300 versus 265) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Is somewhat more recent (announced 1 year after the SX740).


Reasons to prefer the Canon PowerShot SX740 HS:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Ready to shoot: Comes with an integrated lens, while the 90D requires a separate lens.
  • More compact: Is smaller (110x64mm vs 141x105mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the 90D).
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More heavily discounted: Has been on the market for longer (launched in July 2018).

If the number of relative strengths (bullet points above) is taken as a guide, the 90D is the clear winner of the match-up (23 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

90D 23:08 SX740

How about other alternatives? Do the specifications of the Canon 90D and the Canon SX740 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 90D and the SX740 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 90D»-85/100--- Aug 2019 1,199 i i Canon 90D

Canon SX740«+-4/5-4/5 Jul 2018 399 i i Canon SX740

Canon G5 X Mark II« »+82/100--4/5 Jul 2019 899 i i Canon G5 X Mark II

Canon G7 X Mark III« »+ +-4/5-- Jul 2019 749 i i Canon G7 X Mark III

Canon 2000D« »o-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D

Canon R« »o79/1004.5/54/54/5 Sep 2018 2,299 i i Canon R

Canon SX730« »+-4/5-4/5 Apr 2017 399- i Canon SX730

Canon 80D« »+ +84/1004.5/54.5/54.5/5 Feb 2016 1,199- i Canon 80D

Canon G3 X« »+-4.5/53.5/54/5 Jun 2015 999 i i Canon G3 X

Canon 70D« »+ +83/1004.5/54.5/55/5 Jul 2013 1,199- i Canon 70D

Canon 60D« »+79/1004/55/54.5/5 Aug 2010 1,399- i Canon 60D

Canon 50D« »+ ++ +4.5/55/54.5/5 Aug 2008 1,299- i Canon 50D

Canon 40D« »+ ++ +4.5/5o4.5/5 Aug 2007 1,299- i Canon 40D

Canon 30D« »+ ++ +oo- Feb 2006 1,399- i Canon 30D

Panasonic TZ95« »--4.5/5-- Feb 2019 449 i i Panasonic TZ95

Panasonic GH5s« »-84/1004.5/55/54.5/5 Jan 2018 2,499 i i Panasonic GH5s

Panasonic TZ90« »+ +-4/5-4/5 Apr 2017 449- i Panasonic TZ90
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon 90D:
Check Amazon price
Canon SX740:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon 90D vs Canon SX740

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 90D Canon SX740
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Canon EF mount lenses 24-960mm f/3.3-6.9
    Launch Date August 2019 July 2018
    Launch Price USD 1199 USD 399
    Sensor Specs Canon 90D Canon SX740
    Sensor Technology CMOS BSI-CMOS
    Sensor Format APS-C Sensor 1/2.3" Sensor
    Sensor Size 22.5 x 15.0 mm 6.17 x 4.55 mm
    Sensor Area 337.5 mm2 28.0735 mm2
    Sensor Diagonal 27 mm 7.7 mm
    Crop Factor 1.6x 5.6x
    Sensor Resolution 32.3 Megapixels 20.2 Megapixels
    Image Resolution 6960 x 4640 pixels 5184 x 3888 pixels
    Pixel Pitch 3.23 μm 1.18 μm
    Pixel Density 9.57 MP/cm2 71.80 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 100-25600 ISO 100-3200 ISO
    ISO Boost 100-51200 ISO no Enhancement
    Image Processor DIGIC 8 DIGIC 8
    Screen Specs Canon 90D Canon SX740
    Viewfinder Type Optical viewfinder No viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.59x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.0 inch
    LCD Resolution 1040k dots 922k dots
    LCD Attachment Swivel screen Tilting screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon 90D Canon SX740
    Autofocus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 11 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterup to 1/16000sno E-Shutter
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-II UHS-I
    Connectivity Specs Canon 90D Canon SX740
    External Flash Hotshoe no Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon 90D Canon SX740
    Environmental SealingWeathersealed bodyNot weather sealed
    Battery Type LP-E6N NB-13L
    Battery Life (CIPA)1300 shots per charge265 shots per charge
    Body Dimensions 141 x 105 x 77 mm
    (5.6 x 4.1 x 3.0 in)
    110 x 64 x 40 mm
    (4.3 x 2.5 x 1.6 in)
    Camera Weight 701 g (24.7 oz) 299 g (10.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 90D vs Canon SX740
