Canon 80D vs S120

The Canon EOS 80D and the Canon PowerShot S120 are two digital cameras that were announced, respectively, in February 2016 and August 2013. The 80D is a DSLR, while the S120 is a fixed lens compact. The cameras are based on an APS-C (80D) and a 1/1.7-inch (S120) sensor. The 80D has a resolution of 24 megapixels, whereas the S120 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 80D		Canon S120
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-120mm f/1.8-5.7
24 MP – APS-C sensor		12 MP – 1/1.7" sensor
1080/60p Video		1080/60p Video
ISO 100-16,000 (100 - 25,600)		ISO 80-12,800
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 922k dots
Swivel touchscreen		Fixed touchscreen
7 shutter flaps per second		12.1 shutter flaps per second
Weathersealed body		not weather sealed
960 shots per battery charge		230 shots per battery charge
139 x 105 x 79 mm, 730 g		100 x 59 x 29 mm, 217 g

Check 80D offers at
ebay.com
Check S120 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Canon PowerShot S120? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

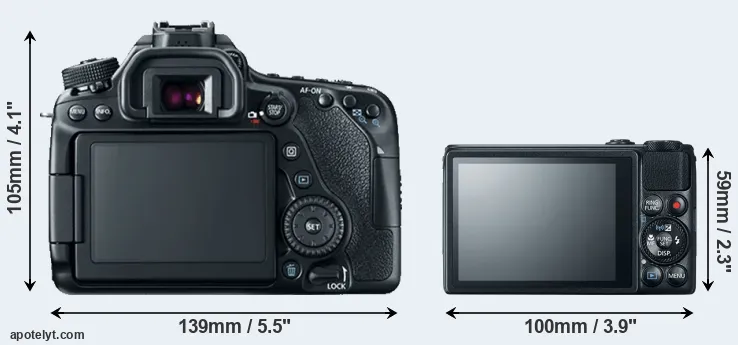

The physical size and weight of the Canon 80D and the Canon S120 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon S120 is considerably smaller (60 percent) than the Canon 80D. It is worth mentioning in this context that the 80D is splash and dust resistant, while the S120 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the S120 has a lens built in, whereas the 80D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 80D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 80D gets 960 shots out of its Canon LP-E6N battery, while the S120 can take 230 images on a single charge of its Canon NB-6LH power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
2.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
3.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
5.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
7.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
8.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	US$ 1 199	amazon.com
9.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
10.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
11.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
12.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
13.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
14.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
15.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
16.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
17.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The S120 was launched at a lower price than the 80D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 80D features an APS-C sensor and the Canon S120 a 1/1.7-inch sensor. The sensor area in the S120 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.5. The sensor in the 80D has a native 3:2 aspect ratio, while the one in the S120 offers a 4:3 aspect.

With 24MP, the 80D offers a higher resolution than the S120 (12MP), but the 80D nevertheless has larger individual pixels (pixel pitch of 3.75μm versus 1.89μm for the S120) due to its larger sensor. Moreover, the 80D is a much more recent model (by 2 years and 5 months) than the S120, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 80D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 80D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon S120 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The 80D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon PowerShot S120 are ISO 80 to ISO 12800 (no boost).

In terms of underlying technology, the 80D is build around a CMOS sensor, while the S120 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 80D provides substantially higher image quality than the S120, with an overall score that is 23 points higher. This advantage is based on 2.3 bits higher color depth, 1.3 EV in additional dynamic range, and 2.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
2.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
3.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
6.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
7.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
8.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
9.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
10.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
11.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
12.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
13.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
14.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
15.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
16.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
17.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 80D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the S120 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 80D and Canon S120 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
2.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
3.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
6.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
7.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
8.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
9.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
10.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
11.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
12.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
13.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
14.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
15.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
16.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
17.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 80D, but is missing on the S120 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 80D and the Canon S120 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 80D and the S120 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Canon PowerShot S120 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
3.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
7.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
9.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
11.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
13.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
15.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
16.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
17.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the 80D has a hotshoe, while the S120 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 80D and the S120 have been discontinued, but can regularly be found used on ebay. The 80D was replaced by the Canon 90D, while the S120 does not have a direct successor. Further information on the features and operation of the 80D and S120 can be found, respectively, in the Canon 80D Manual (free pdf) or the online Canon S120 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon 80D or the Canon S120 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 80D:

• More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
• Better image quality: Scores substantially higher (23 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2.3 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (2.2 stops ISO advantage).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (960 versus 230) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Reflects 2 years and 5 months of technical progress since the S120 launch.

Reasons to prefer the Canon PowerShot S120:

• Faster burst: Shoots at higher frequency (12.1 vs 7 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 80D requires a separate lens.
• More compact: Is smaller (100x59mm vs 139x105mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 80D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in August 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the 80D is the clear winner of the match-up (20 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 80D and the Canon S120 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 80D or the S120. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
2.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
3.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
5.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
7.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
8.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	US$ 1 199	amazon.com
9.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
10.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
11.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
12.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
13.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
14.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
15.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
16.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
17.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check 80D offers at
ebay.com
Check S120 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check 80D offers at
ebay.com
Check S120 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
