Canon 80D vs Pentax K-1
The Canon EOS 80D and the Pentax K-1 are two enthusiast cameras that were announced in February 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (80D) and a full frame (K-1) sensor. The Canon has a resolution of 24 megapixels, whereas the Pentax provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 80D||Pentax K-1|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Pentax K mount lenses|
|24 MP, APS-C Sensor||36.2 MP, Full Frame Sensor|
|1080/60p Video||1080/60i Video|
|ISO 100-16,000 (100 - 25,600)||ISO 100-204,800|
|Optical viewfinder||Optical viewfinder|
|3.0 LCD, 1040k dots||3.2 LCD, 1037k dots|
|Swivel touchscreen||Fully flexible screen (no touchscreen)|
|7 shutter flaps per second||4.4 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||Weathersealed body|
|960 shots per battery charge||760 shots per battery charge|
|139 x 105 x 79 mm, 730 g||137 x 110 x 86 mm, 1010 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Pentax K-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

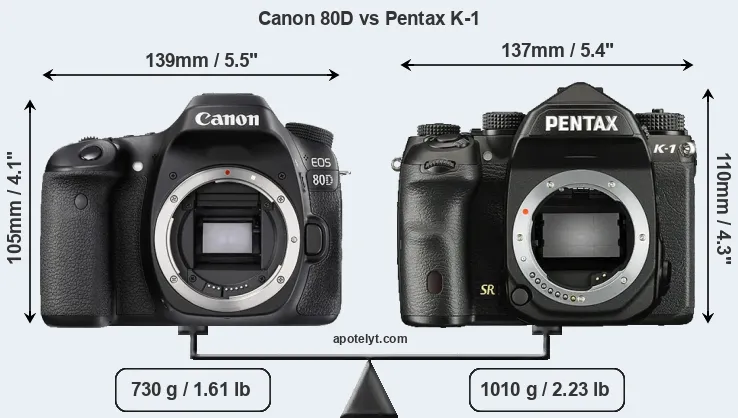

The side-by-side display below illustrates the physical size and weight of the Canon 80D and the Pentax K-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The K-1 can be obtained in two different colors (black, silver), while the 80D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-1 is somewhat larger (3 percent) than the Canon 80D. Moreover, the K-1 is substantially heavier (38 percent) than the 80D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 80D||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199|
|Pentax K-1||5.4 in||4.3 in||3.4 in||35.6 oz||760||Y||Feb 2016||1,799|
|Canon 90D||5.6 in||4.1 in||3.0 in||24.7 oz||1300||Y||Aug 2019||1,199|
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Canon G3 X||4.8 in||3.0 in||4.1 in||25.9 oz||300||Y||Jun 2015||999|
|Canon T6i||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749|
|Canon T6s||5.2 in||4.0 in||3.1 in||19.9 oz||440||n||Feb 2015||649|
|Canon 7D II||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799|
|Canon 70D||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199|
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Nikon D7500||5.4 in||4.1 in||2.9 in||25.4 oz||950||Y||Apr 2017||1,299|
|Nikon D500||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999|
|Nikon D7200||5.4 in||4.2 in||3.0 in||27.0 oz||1110||Y||Mar 2015||1,199|
|Olympus E-M1 II||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999|
|Pentax K-1 II||5.4 in||4.3 in||3.4 in||35.6 oz||670||Y||Feb 2018||1,999|
|Sony A99 II||5.6 in||4.1 in||3.0 in||29.9 oz||490||Y||Sep 2016||3,199|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 80D was launched at a markedly lower price (by 33 percent) than the K-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 80D features an APS-C sensor and the Pentax K-1 a full frame sensor. The sensor area in the K-1 is 155 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 36.2MP, the K-1 offers a higher resolution than the 80D (24MP), but the K-1 nevertheless has larger individual pixels (pixel pitch of 4.88μm versus 3.75μm for the 80D) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the K-1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-1 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon 80D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
The 80D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the 80D, the K-1 has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax K-1 are ISO 100 to ISO 204800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the K-1 offers substantially better image quality than the 80D (overall score 17 points higher). The advantage is based on 1.8 bits higher color depth, 1.4 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Pentax K-1||Full Frame||36.2||7360||4912||1080/60i||25.4||14.6||3280||96|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Pentax K-1 II||Full Frame||36.2||7360||4912||1080/60i||..||..||..||..|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 80D provides a higher frame rate than the K-1. It can shoot video footage at 1080/60p, while the Pentax is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. The 80D and the K-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the K-1 has a higher magnification than the one of the 80D (0.70x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 80D, the Pentax K-1, and comparable cameras.
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Pentax K-1 II||optical||Y||3.2||1037||full-flex||n||1/8000s||4.4||n||Y|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The 80D has one, while the K-1 does not. While the built-in flash of the 80D is not very powerful, it can at times be useful as a fill-in light.The 80D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the K-1 does not have a selfie-screen.
The Canon 80D and the Pentax K-1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 80D and the K-1 write their files to SDXC cards. The K-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 80D only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Pentax K-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Pentax K-1 II||Y||stereo||mono||Y||Y||micro||2.0||Y||-||-|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
Studio photographers will appreciate that the Pentax K-1 (unlike the 80D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the K-1 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 80D and the K-1 have been discontinued, but can regularly be found used on eBay. The K-1 was replaced by the Pentax K-1 II, while the 80D was followed by the Canon 90D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So how do things add up? Is the Canon 80D better than the Pentax K-1 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 80D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (7 vs 4.4 flaps/sec) to capture the decisive moment.
- Less heavy: Is lighter (by 280g or 28 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (960 versus 760) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
Arguments in favor of the Pentax K-1:
- More detail: Has more megapixels (36.2 vs 24MP), which boosts linear resolution by 23%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.5 stops ISO advantage).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.59x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
If the count of relative strengths (bullet points above) is taken as a measure, the K-1 emerges as the winner of the match-up (13 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 80D and the Pentax K-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 80D or the K-1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Pentax K-1||..||84/100||5/5||4.5/5||5/5||Feb 2016||1,799|
|Canon 90D||+||85/100||4.5/5||4.5/5||4.5/5||Aug 2019||1,199|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon G3 X||+||..||4.5/5||3.5/5||4/5||Jun 2015||999|
|Canon T6i||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon T6s||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Nikon D7200||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199|
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Pentax K-1 II||..||79/100||4.5/5||4.5/5||4.5/5||Feb 2018||1,999|
|Sony A99 II||..||85/100||4.5/5||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 80D vs Hasselblad X1D II
- Canon 80D vs Leica M-E Typ 240
- Canon 80D vs Leica S-E Typ 006
- Canon 80D vs Olympus E-PL3
- Canon 80D vs Panasonic FZ2000
- Canon 80D vs Panasonic G5
- Canon 80D vs Sony A6500
- Canon 80D vs Sony A7R IV
- Canon 80D vs Sony RX10 IV
- Canon 80D vs Sony RX1R II
- Canon XS vs Pentax K-1 II
- Nikon L840 vs Pentax K-1
Specifications: Canon 80D vs Pentax K-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 80D||Pentax K-1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Pentax K mount lenses|
|Launch Date||February 2016||February 2016|
|Launch Price||USD 1,199||USD 1,799|
|Sensor Specs||Canon 80D||Pentax K-1|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.5 x 15.0 mm||35.9 x 24.0 mm|
|Sensor Area||337.5 mm2||861.6 mm2|
|Sensor Diagonal||27 mm||43.2 mm|
|Sensor Resolution||24 Megapixels||36.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||7360 x 4912 pixels|
|Pixel Pitch||3.75 μm||4.88 μm|
|Pixel Density||7.11 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||1080/60i Video|
|ISO Setting||100 - 16,000 ISO||100 - 204,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 6||PRIME IV|
|DXO Sensor Quality (score)||79||96|
|DXO Color Depth (bits)||23.6||25.4|
|DXO Dynamic Range (EV)||13.2||14.6|
|DXO Low Light (ISO)||1135||3280|
|Screen Specs||Canon 80D||Pentax K-1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Swivel screen||Fully flexible screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 80D||Pentax K-1|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||7 shutter flaps/s||4.4 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||300 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 80D||Pentax K-1|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 80D||Pentax K-1|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||960 shots per charge||760 shots per charge|
139 x 105 x 79 mm
(5.5 x 4.1 x 3.1 in)
137 x 110 x 86 mm
(5.4 x 4.3 x 3.4 in)
|Camera Weight||730 g (25.8 oz)||1010 g (35.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
