Canon 800D vs Olympus E-PL10
The Canon EOS 800D (called Canon T7i in some regions) and the Olympus PEN E-PL10 are two digital cameras that were officially introduced, respectively, in February 2017 and October 2019. The 800D is a DSLR, while the E-PL10 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (800D) and a Four Thirds (E-PL10) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Olympus PEN E-PL10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

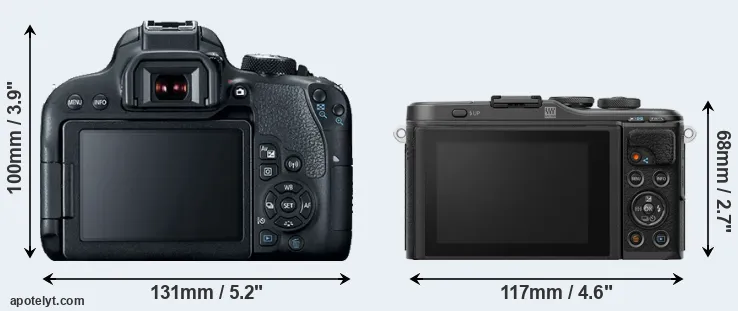

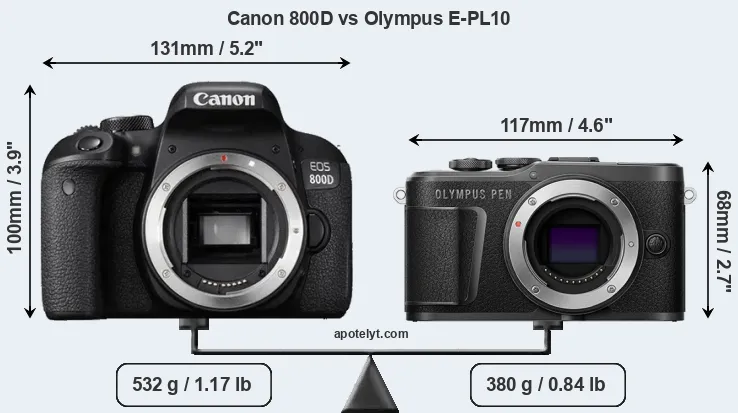

The side-by-side display below illustrates the physical size and weight of the Canon 800D and the Olympus E-PL10. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL10 can be obtained in four different colors (black, brown, blue, white), while the 800D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL10 is considerably smaller (39 percent) than the Canon 800D. Moreover, the E-PL10 is markedly lighter (29 percent) than the 800D. In this context, it is worth noting that neither the 800D nor the E-PL10 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (800D) and the Micro Four Thirds Lens Catalog (E-PL10). Mirrorless cameras, such as the E-PL10, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|2.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|3.||Canon 850D||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749|
|4.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|5.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|6.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|7.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|8.||Canon 1300D||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|9.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|10.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|11.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|12.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|13.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|14.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|15.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|16.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|17.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL10 was launched at a somewhat lower price (by 20 percent) than the 800D, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

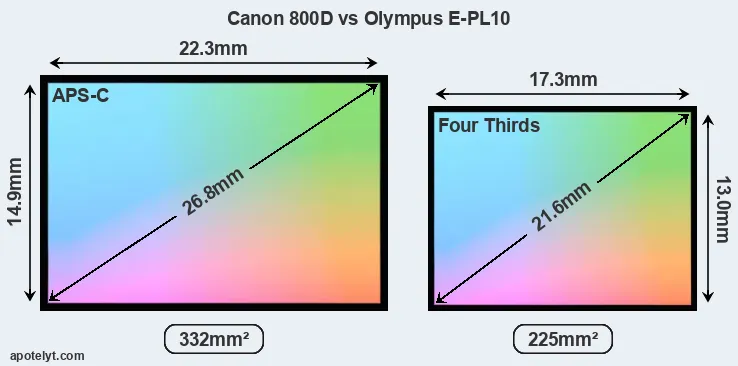

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 800D features an APS-C sensor and the Olympus E-PL10 a Four Thirds sensor. The sensor area in the E-PL10 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 800D has a native 3:2 aspect ratio, while the one in the E-PL10 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the 800D offers a higher resolution than the E-PL10 (15.9MP), but the 800D has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-PL10). Moreover, the E-PL10 is a much more recent model (by 2 years and 8 months) than the 800D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 800D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 800D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL10 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The 800D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN E-PL10 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||23.3||13.1||1324||76|
|9.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.8||11.9||260||62|
|13.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||23.1||12.8||1162||74|
|14.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||23.1||12.8||1120||74|
|15.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.6||1030||73|
|16.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|17.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-PL10 provides a better video resolution than the 800D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 800D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL10 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 800D and Olympus E-PL10 along with similar information for a selection of comparators.
|1.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|2.||Olympus E-PL10||none||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|3.||Canon 850D||optical||n||3.0 / 1040||swivel||Y||1/4000s||7.5/s||Y||n|
|4.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|6.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|7.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|8.||Canon 1300D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|9.||Canon G7 X Mark II||none||n||3.0 / 1040||tilting||Y||1/2000s||8.0/s||Y||Y|
|10.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|13.||Olympus E-PL9||none||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|14.||Olympus E-M10 III||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|15.||Olympus E-PL8||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||n||Y|
|16.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|17.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that differentiates the E-PL10 and the 800D is in-body image stabilization (IBIS). The E-PL10 reduces the risk of handshake-induced blur with all attached lenses, while the 800D offers no blur reduction with lenses that themselves do not provide optical image stabilization.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL10 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-PL10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 800D and the E-PL10 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Olympus PEN E-PL10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Olympus E-PL10||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|3.||Canon 850D||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon 1300D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|9.||Canon G7 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|10.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|13.||Olympus E-PL9||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|14.||Olympus E-M10 III||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus E-PL8||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
It is notable that the 800D has a microphone port, which is missing on the E-PL10. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
The E-PL10 is a recent model that features in the current product line-up of Olympus. In contrast, the 800D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 800D was succeeded by the Canon 850D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon 800D and the Olympus E-PL10? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 800D:
- More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Longer lasting: Can take more shots (600 versus 350) on a single battery charge.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been available for much longer (launched in February 2017).
Arguments in favor of the Olympus PEN E-PL10:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Faster burst: Shoots at higher frequency (8.6 vs 6 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (117x68mm vs 131x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 152g or 29 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was released into a lower priced segment (20 percent cheaper at launch).
- More modern: Reflects 2 years and 8 months of technical progress since the 800D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-PL10 emerges as the winner of the match-up (10 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 800D and the Olympus E-PL10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 800D and the E-PL10 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|2.||Olympus E-PL10||..||..||4/5||77/100||..||4/5||Oct 2019||599|
|3.||Canon 850D||4/5||+||3/5||80/100||4/5||3.5/5||Feb 2020||749|
|4.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|5.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|6.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|7.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779|
|8.||Canon 1300D||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449|
|9.||Canon G7 X Mark II||4.5/5||+ +||..||81/100||4.5/5||4.5/5||Feb 2016||699|
|10.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|11.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|12.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|13.||Olympus E-PL9||..||+||..||..||4.5/5||4/5||Feb 2018||599|
|14.||Olympus E-M10 III||..||+||5/5||80/100||4.5/5||4.5/5||Aug 2017||649|
|15.||Olympus E-PL8||..||..||..||..||4.5/5||4/5||Sep 2016||549|
|16.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649|
|17.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 800D vs Canon 90D
- Canon 800D vs Fujifilm X-S10
- Canon 800D vs Fujifilm X10
- Canon 800D vs Panasonic LX7
- Canon 800D vs Pentax 645D
- Canon 800D vs Sony A1
- Canon G7 X vs Olympus E-PL10
- Nikon D3000 vs Olympus E-PL10
- Nikon Z fc vs Olympus E-PL10
- Olympus E-PL10 vs Panasonic G90
- Olympus E-PL10 vs Sony A7R III
- Olympus E-PL10 vs Sony RX0
Specifications: Canon 800D vs Olympus E-PL10
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 800D||Olympus E-PL10|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2017||October 2019|
|Launch Price||USD 749||USD 599|
|Sensor Specs||Canon 800D||Olympus E-PL10|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.72 μm||3.76 μm|
|Pixel Density||7.22 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 7||TruePic VIII|
|Screen Specs||Canon 800D||Olympus E-PL10|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon 800D||Olympus E-PL10|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||6 shutter flaps/s||8.6 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 800D||Olympus E-PL10|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon 800D||Olympus E-PL10|
|Battery Life (CIPA)||600 shots per charge||350 shots per charge|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
117 x 68 x 39 mm
(4.6 x 2.7 x 1.5 in)
|Camera Weight||532 g (18.8 oz)||380 g (13.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
