Canon 800D vs Leica T

The Canon EOS 800D (called Canon T7i in some regions) and the Leica T (Typ 701) are two digital cameras that were officially introduced, respectively, in February 2017 and April 2014. The 800D is a DSLR, while the T Typ 701 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Leica provides 16.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 800D		Leica T
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Leica T mount lenses
24 MP – APS-C sensor		16.2 MP – APS-C sensor
1080/60p Video		1080/30p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-12,500
Optical viewfinder		Viewfinder optional
3.0" LCD – 1040k dots		3.7" LCD – 1230k dots
Swivel touchscreen		Fixed touchscreen
6 shutter flaps per second		5 shutter flaps per second
600 shots per battery charge		400 shots per battery charge
131 x 100 x 76 mm, 532 g		134 x 69 x 33 mm, 384 g

Check 800D offers at
ebay.com
Check T Typ 701 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Leica T (Typ 701)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

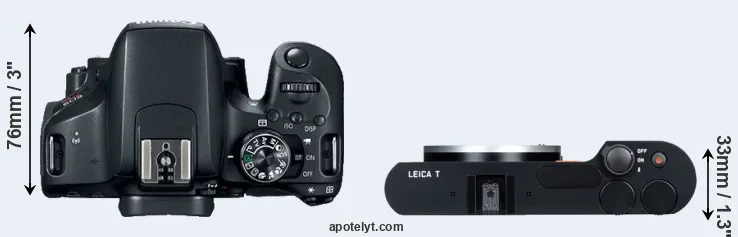

Body comparison

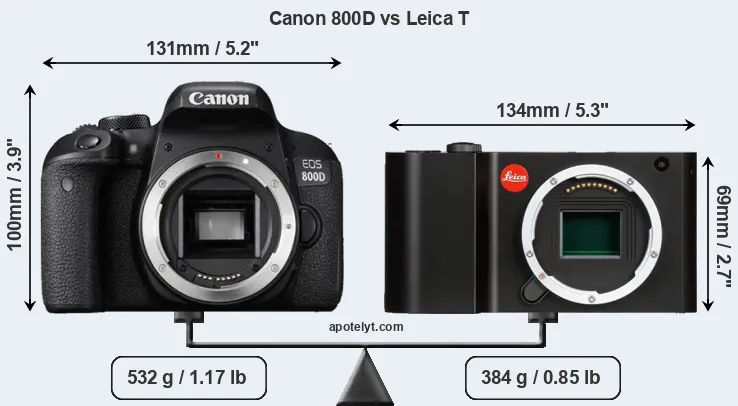

The physical size and weight of the Canon 800D and the Leica T are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The T Typ 701 can be obtained in two different colors (black, silver), while the 800D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica T is notably smaller (29 percent) than the Canon 800D. Moreover, the T Typ 701 is markedly lighter (28 percent) than the 800D. In this context, it is worth noting that neither the 800D nor the T Typ 701 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 800D gets 600 shots out of its Canon LP-E17 battery, while the T Typ 701 can take 400 images on a single charge of its Leica BP-DC13 power pack. The power pack in the T Typ 701 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 800D	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	US$ 749	ebay.com
2.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
5.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
6.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
7.		Canon 850D	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	US$ 749	ebay.com
8.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
9.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
10.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
11.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
12.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
13.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
14.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	US$ 1 695	ebay.com
15.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
16.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
17.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 800D was launched at a markedly lower price (by 59 percent) than the T Typ 701, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the T Typ 701 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (800D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon 800D offers a higher resolution of 24 megapixels, compared with 16.2 MP of the Leica T. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.79μm for the T Typ 701). However, it should be noted that the 800D is much more recent (by 2 years and 9 months) than the T Typ 701, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the T Typ 701 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 800D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 800D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Leica T are 24.7 x 16.4 inches or 62.8 x 41.6 cm for good quality, 19.8 x 13.1 inches or 50.2 x 33.3 cm for very good quality, and 16.5 x 10.9 inches or 41.9 x 27.8 cm for excellent quality prints.

The 800D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Leica T (Typ 701) are ISO 100 to ISO 12500 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 800D	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
2.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
6.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
7.		Canon 850D	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
8.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
9.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
10.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
11.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
12.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
13.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
14.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
15.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
16.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
17.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 800D provides a higher frame rate than the T Typ 701. It can shoot video footage at 1080/60p, while the Leica is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 800D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the T Typ 701 relies on live view and the rear LCD for framing. That said, the T Typ 701 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Canon 800D and Leica T in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 800D	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
2.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 850D	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
8.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
11.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
12.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
13.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
14.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
15.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
16.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
17.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the 800D and the T Typ 701 write their files to SDXC cards. The 800D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T Typ 701 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Leica T (Typ 701) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 800D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon 850D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
8.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
14.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
16.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
17.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the 800D has a microphone port, which is missing on the T Typ 701. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the 800D and the T Typ 701 have been discontinued, but can regularly be found used on ebay. The T Typ 701 was replaced by the Leica TL, while the 800D was followed by the Canon 850D. Further information on the features and operation of the 800D and T Typ 701 can be found, respectively, in the Canon 800D Manual (free pdf) or the online Leica T Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 800D and the Leica T? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS 800D:

• More detail: Offers more megapixels (24 vs 16.2MP) with a 22% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (600 versus 400) on a single battery charge.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (59 percent cheaper at launch).
• More modern: Reflects 2 years and 9 months of technical progress since the T Typ 701 launch.

Reasons to prefer the Leica T (Typ 701):

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 1040k dots).
• More compact: Is smaller (134x69mm vs 131x100mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 148g or 28 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in April 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the 800D is the clear winner of the match-up (15 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 800D and the Leica T place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 800D or the T Typ 701 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 800D	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	US$ 749	ebay.com
2.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
5.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
6.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
7.		Canon 850D	4/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	US$ 749	ebay.com
8.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
9.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
10.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
11.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
12.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
13.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
14.		Leica TL	..	..	..	..	..	4/5	Nov 2016	US$ 1 695	ebay.com
15.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
16.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
17.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
