Canon 7D vs Olympus E-PL7
The Canon EOS 7D and the Olympus PEN E-PL7 are two digital cameras that were announced, respectively, in September 2009 and August 2014. The 7D is a DSLR, while the E-PL7 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (7D) and a Four Thirds (E-PL7) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 7D and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

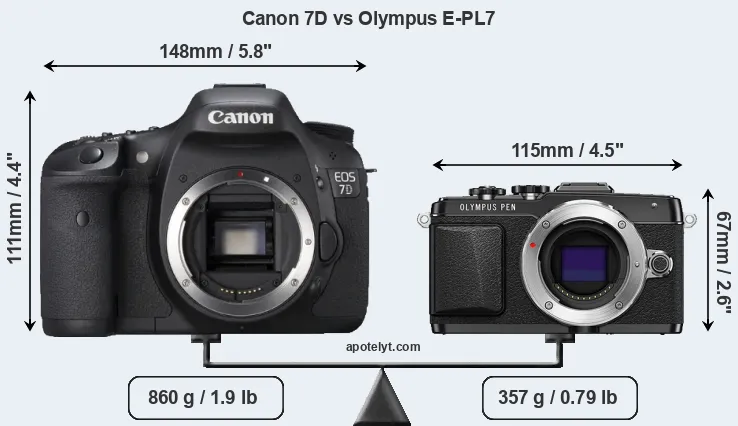

An illustration of the physical size and weight of the Canon 7D and the Olympus E-PL7 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL7 can be obtained in two different colors (black, silver), while the 7D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is considerably smaller (53 percent) than the Canon 7D. Moreover, the E-PL7 is substantially lighter (58 percent) than the 7D. It is worth mentioning in this context that the 7D is splash and dust resistant, while the E-PL7 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (7D) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the E-PL7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|2.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|3.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|4.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|5.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|6.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|7.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|8.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|9.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|10.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|11.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|12.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|13.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|14.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|15.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|16.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|17.||Sony RX10 III||133 mm||94 mm||127 mm||1051 g||420||Y||Mar 2016||1,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL7 was launched at a markedly lower price (by 65 percent) than the 7D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 7D features an APS-C sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 7D has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.

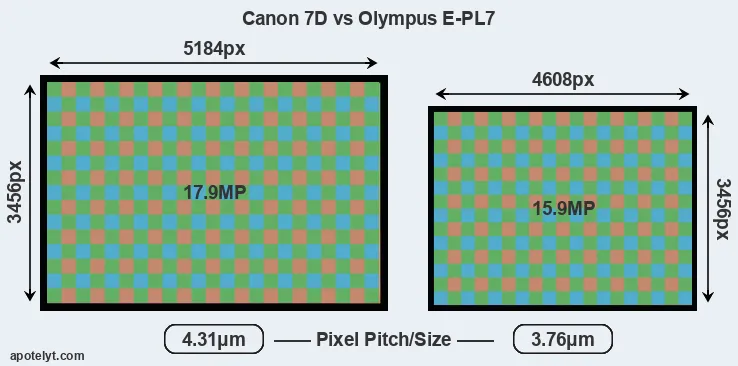

With 17.9MP, the 7D offers a higher resolution than the E-PL7 (15.9MP), but the 7D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 3.76μm for the E-PL7) due to its larger sensor. However, the E-PL7 is a much more recent model (by 4 years and 11 months) than the 7D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 7D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 7D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-PL7 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon EOS 7D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-PL7 has a markedly higher DXO score than the 7D (overall score 6 points higher), which will translate into better image quality. The advantage is based on 0.7 bits higher color depth, 0.7 EV in additional dynamic range, and -0 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|4.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|5.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|8.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|9.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|12.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|13.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|14.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|15.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|16.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|17.||Sony RX10 III||1-inch||20.0||5472||3648||4K/30p||23.1||12.6||472||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 7D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL7 relies on live view and the rear LCD for framing. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Canon 7D and Olympus E-PL7 along with similar information for a selection of comparators.
|4.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|5.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|8.||Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|9.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|13.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|17.||Sony RX10 III||2359||Y||3.0||1229||tilting||n||1/2000s||14.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The 7D has one, while the E-PL7 does not. While the built-in flash of the 7D is not very powerful, it can at times be useful as a fill-in light.The E-PL7 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 7D does not have a selfie-screen.
The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 7D writes its imaging data to Compact Flash cards, while the E-PL7 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 7D and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|5.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|8.||Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|9.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|13.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|17.||Sony RX10 III||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the 7D has a microphone port, which is missing on the E-PL7. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 7D (unlike the E-PL7) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 7D and the E-PL7 have been discontinued, but can regularly be found used on eBay. The 7D was replaced by the Canon 7D Mark II, while the E-PL7 was followed by the Olympus E-PL8. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon 7D and the Olympus E-PL7? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 7D:
- More detail: Offers more megapixels (17.9 vs 15.9MP) with a 8% higher linear resolution.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (800 versus 350) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2009).
Advantages of the Olympus PEN E-PL7:
- Better image quality: Scores markedly higher (6 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (0.7 EV of extra DR).
- More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (115x67mm vs 148x111mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 503g or 58 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
- More modern: Reflects 4 years and 11 months of technical progress since the 7D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-PL7 is the clear winner of the contest (14 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 7D and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 7D or the E-PL7 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|2.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|3.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|4.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|5.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|6.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|7.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|8.||Canon 1D Mark IV||5/5||..||89/100||..||..||Oct 2009||4,999|
|9.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|10.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|11.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|12.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|13.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|14.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|15.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|16.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|17.||Sony RX10 III||5/5||+||84/100||4.5/5||4.5/5||Mar 2016||1,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 7D vs Olympus E-PL7
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 7D||Olympus E-PL7|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||September 2009||August 2014|
|Launch Price||USD 1,699||USD 599|
|Sensor Specs||Canon 7D||Olympus E-PL7|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||15.9 Megapixels|
|Image Resolution||5184 x 3456 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.31 μm||3.76 μm|
|Pixel Density||5.39 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 4 (Dual)||TruePic VII|
|DXO Sensor Quality (score)||66||72|
|DXO Color Depth (bits)||22.0||22.7|
|DXO Dynamic Range (EV)||11.7||12.4|
|DXO Low Light (ISO)||854||873|
|Screen Specs||Canon 7D||Olympus E-PL7|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 7D||Olympus E-PL7|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||8 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 7D||Olympus E-PL7|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 7D||Olympus E-PL7|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||800 shots per charge||350 shots per charge|
148 x 111 x 74 mm
(5.8 x 4.4 x 2.9 in)
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
|Camera Weight||860 g (30.3 oz)||357 g (12.6 oz)|
