Canon 760D vs Sony A6300
The Canon EOS 760D (called Canon T6s in some regions) and the Sony Alpha A6300 are two digital cameras that were announced, respectively, in February 2015 and February 2016. The 760D is a DSLR, while the A6300 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 760D and the Sony Alpha A6300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

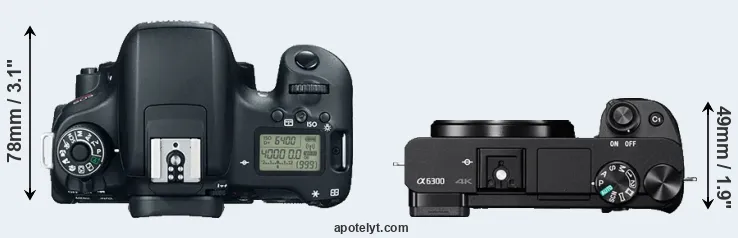

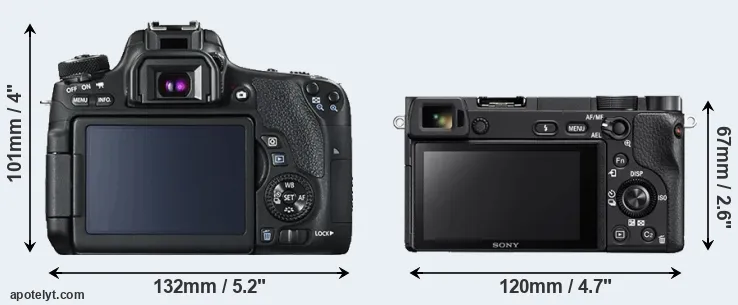

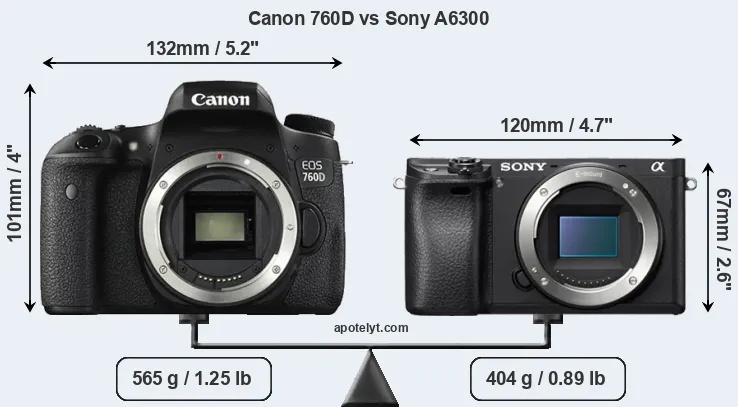

An illustration of the physical size and weight of the Canon 760D and the Sony A6300 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The A6300 can be obtained in two different colors (black, silver), while the 760D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A6300 is considerably smaller (40 percent) than the Canon 760D. Moreover, the A6300 is markedly lighter (28 percent) than the 760D. It is noteworthy in this context that the A6300 is splash and dust-proof, while the 760D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (760D) and the Sony E-Mount Lens Catalog (A6300). Mirrorless cameras, such as the A6300, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 760D gets 440 shots out of its LP-E17 battery, while the A6300 can take 400 images on a single charge of its NP-FW50 power pack. The power pack in the A6300 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|2.||Sony A6300||120 mm||67 mm||49 mm||404 g||400||Y||Feb 2016||999||ebay.com|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|6.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|7.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|8.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|9.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799||ebay.com|
|10.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|11.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|12.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|13.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|14.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199||ebay.com|
|15.||Sony A6500||120 mm||67 mm||53 mm||453 g||350||Y||Oct 2016||1,399||ebay.com|
|16.||Sony A6000||120 mm||67 mm||45 mm||344 g||360||n||Feb 2014||599||ebay.com|
|17.||Sony A3000||128 mm||91 mm||85 mm||411 g||470||n||Aug 2013||329||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 760D was launched at a markedly lower price (by 35 percent) than the A6300, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the A6300 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (760D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

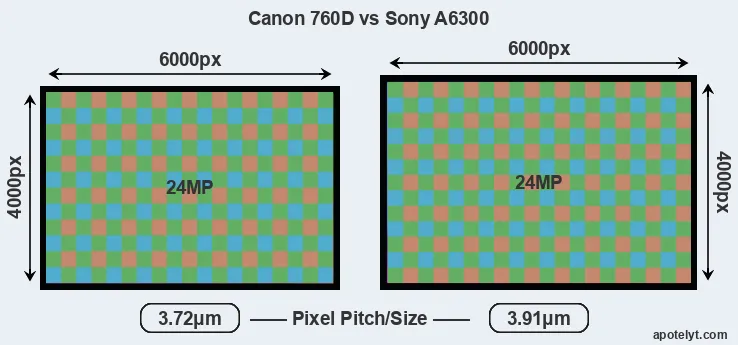

Even though the A6300 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the A6300 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.91μm versus 3.72μm for the 760D), which gives it a potential advantage in terms of light gathering capacity. In addition, the A6300 is a somewhat more recent model (by 11 months) than the 760D, and its sensor might have benefitted from technological advances during this time.
The Canon EOS 760D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha A6300 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the A6300 offers substantially better image quality than the 760D (overall score 15 points higher). The advantage is based on 1.8 bits higher color depth, 1.7 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|9.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|10.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the A6300 provides a better video resolution than the 760D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the A6300 has an electronic viewfinder (2359k dots), while the 760D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the A6300 offers a wider field of view (100%) than the one in the 760D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the A6300 has a higher magnification (0.70x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 760D, the Sony A6300, and comparable cameras.
|1.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Sony A6300||2359||n||3.0 / 922||tilting||n||1/4000s||11.0/s||Y||n|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|5.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|6.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|7.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|9.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2/s||Y||Y|
|10.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|11.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|13.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|14.||Nikon D7200||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0/s||Y||n|
|15.||Sony A6500||2359||n||3.0 / 922||tilting||Y||1/4000s||11.0/s||Y||Y|
|16.||Sony A6000||1440||n||3.0 / 922||tilting||n||1/4000s||11.0/s||Y||n|
|17.||Sony A3000||202||n||3.0 / 230||fixed||n||1/4000s||2.5/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the 760D, but is missing on the A6300 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 760D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the A6300 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the A6300 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The 760D writes its imaging data to SDXC cards, while the A6300 uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and Sony Alpha A6300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Sony A6300||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|13.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|14.||Nikon D7200||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|15.||Sony A6500||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
|16.||Sony A6000||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|17.||Sony A3000||Y||stereo / mono||-||-||mini||2.0||-||-||-|
Both the 760D and the A6300 have been discontinued, but can regularly be found used on ebay. The 760D was replaced by the Canon 77D, while the A6300 was followed by the Sony A6500. Further information on the features and operation of the 760D and A6300 can be found, respectively, in the Canon 760D Manual (free pdf) or the online Sony A6300 Manual.
So what conclusions can be drawn? Which of the two cameras – the Canon 760D or the Sony A6300 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 760D:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More affordable: Was introduced into a lower priced category (35 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in February 2015).
Reasons to prefer the Sony Alpha A6300:
- Better image quality: Scores substantially higher (15 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.7 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.51x).
- Faster burst: Shoots at higher frequency (11 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (120x67mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 161g or 28 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More modern: Was introduced somewhat (11 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the A6300 is the clear winner of the contest (16 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 760D and the Sony A6300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 760D and the A6300 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|2.||Sony A6300||4.5/5||+||..||85/100||5/5||5/5||Feb 2016||999||ebay.com|
|3.||Canon 2000D||3/5||o||3.5/5||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|5.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|6.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|7.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|8.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|9.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799||ebay.com|
|10.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|11.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|12.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|13.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|14.||Nikon D7200||4/5||+ +||..||84/100||4.5/5||4.5/5||Mar 2015||1,199||ebay.com|
|15.||Sony A6500||5/5||+ +||3.5/5||85/100||4.5/5||4.5/5||Oct 2016||1,399||ebay.com|
|16.||Sony A6000||5/5||+||4.5/5||80/100||4.5/5||5/5||Feb 2014||599||ebay.com|
|17.||Sony A3000||3/5||+||..||..||4/5||4/5||Aug 2013||329||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 760D vs Sony A6300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 760D||Sony A6300|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||February 2015||February 2016|
|Launch Price||USD 649||USD 999|
|Sensor Specs||Canon 760D||Sony A6300|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||24 Megapixels||24 Megapixels|
|Image Resolution||6000 x 4000 pixels||6000 x 4000 pixels|
|Pixel Pitch||3.72 μm||3.91 μm|
|Pixel Density||7.22 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 6||BIONZ X|
|DXO Sensor Quality (score)||70||85|
|DXO Color Depth (bits)||22.6||24.4|
|DXO Dynamic Range (EV)||12.0||13.7|
|DXO Low Light (ISO)||915||1437|
|Screen Specs||Canon 760D||Sony A6300|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2359k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||922k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 760D||Sony A6300|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||11 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Electronic Shutter||no E-Shutter||YES|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 760D||Sony A6300|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||NFC built-in|
|Body Specs||Canon 760D||Sony A6300|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||440 shots per charge||400 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
120 x 67 x 49 mm
(4.7 x 2.6 x 1.9 in)
|Camera Weight||565 g (19.9 oz)||404 g (14.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
