Canon 750D versus Olympus E-M10

The Canon EOS 750D (called Canon T6i in some regions) and the Olympus OM-D E-M10 are two digital cameras that were officially introduced, respectively, in February 2015 and January 2014. The 750D is a DSLR, while the E-M10 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (750D) and a Four Thirds (E-M10) sensor. The Canon has a resolution of 24 megapixel, whereas the Olympus provides 15.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 750D vs Olympus E-M10

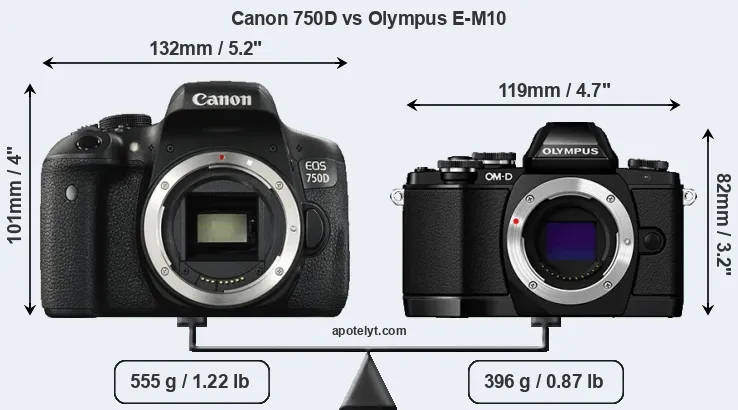

An illustration of the physical size and weight of the Canon 750D and the Olympus E-M10 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left side – the 750D – represents the basis for the calculations across all the size and weight measures).

Compare Canon 750D vs Olympus E-M10

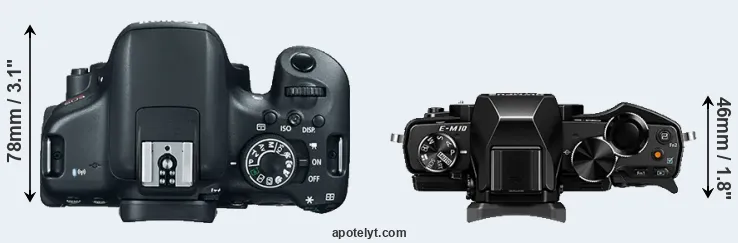

Compare 750D versus E-M10 top

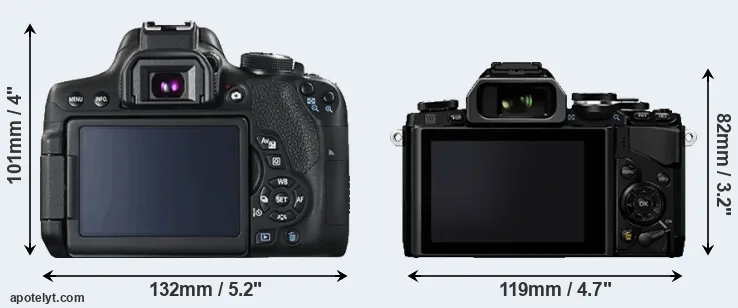

Compare 750D and E-M10 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 is notably smaller (27 percent) than the Canon 750D. Moreover, the E-M10 is markedly lighter (29 percent) than the 750D. In this context, it is worth noting that neither the 750D nor the E-M10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Canon EF Lens Catalog (750D) and the Micro Four Thirds Lens Catalog (E-M10). Mirrorless cameras, such as the E-M10, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 750D gets 440 shots out of its LP-E17 battery, while the E-M10 can take 320 images on a single charge of its BLS-5 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 750D» 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon 750D
Olympus E-M10« 4.7 in 3.2 in 1.8 in 14.0 oz 320 n Jan 2014 699- i Olympus E-M10
Canon 2000D« » 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i i Canon 2000D
Canon 77D« » 5.2 in 3.9 in 3.0 in 19.0 oz 600 n Feb 2017 899 i i Canon 77D
Canon 800D« » 5.2 in 3.9 in 3.0 in 18.8 oz 600 n Feb 2017 749 i i Canon 800D
Canon 760D« » 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 849- i Canon 760D
Canon M3« » 4.4 in 2.7 in 1.7 in 12.9 oz 250 n Feb 2015 679- i Canon M3
Canon 1200D« » 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449- i Canon 1200D
Canon G7 X« » 4.1 in 2.4 in 1.6 in 10.7 oz 210 n Sep 2014 699- i Canon G7 X
Canon 700D« » 5.2 in 3.9 in 3.1 in 20.5 oz 440 n Mar 2013 649- i Canon 700D
Canon 650D« » 5.2 in 3.9 in 3.1 in 20.3 oz 440 n Jun 2012 849- i Canon 650D
Nikon D5600« » 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i i Nikon D5600
Olympus E-M10 II« » 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 799- i Olympus E-M10 II
Olympus E-PL7« » 4.5 in 2.6 in 1.5 in 12.6 oz 350 n Aug 2014 599- i Olympus E-PL7
Olympus E-P5« » 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5
Olympus E-PL6« » 4.4 in 2.5 in 1.5 in 11.5 oz 360 n May 2013 599- i Olympus E-PL6
Olympus E-PL5« » 4.4 in 2.5 in 1.5 in 11.5 oz 360 n Sep 2012 599- i Olympus E-PL5

The camera’s price is obviously a critical decision-making factor. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M10 was somewhat cheaper (by 7 percent) than the 750D at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 750D vs Olympus E-M10

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 750D features an APS-C sensor and the Olympus E-M10 a Four Thirds sensor. The sensor area in the E-M10 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 750D has a native 3:2 aspect ratio, while the one in the E-M10 offers a 4:3 aspect.

In terms of underlying technology, both cameras are build around CMOS sensors.

Canon 750D and Olympus E-M10 sensor measures

With 24MP, the 750D offers a higher resolution than the E-M10 (15.9MP), but the 750D has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-M10). However, the 750D is a somewhat more recent model (by 1 year) than the E-M10, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The 750D has on-sensor phase detect pixels, which results in relatively fast and reliable autofocus acquisition during video recording.

750D versus E-M10 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar image quality. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 750D» APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D
Olympus E-M10« Four Thirds 15.9 4608 34561080/30p22.812.388472Olympus E-M10
Canon 2000D« » APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D
Canon 77D« » APS-C 24.0 6000 40001080/60p23.613.397178Canon 77D
Canon 800D« » APS-C 24.0 6000 40001080/60p----Canon 800D
Canon 760D« » APS-C 24.0 6000 40001080/30p22.612.091570Canon 760D
Canon M3« » APS-C 24.0 6000 40001080/30p22.811.8116972Canon M3
Canon 1200D« » APS-C 17.9 5184 34561080/30p21.911.372463Canon 1200D
Canon G7 X« » 1-inch 20.0 5472 36481080/60p23.012.755671Canon G7 X
Canon 700D« » APS-C 17.9 5184 34561080/30p21.711.268161Canon 700D
Canon 650D« » APS-C 17.9 5184 34561080/30p21.711.272262Canon 650D
Nikon D5600« » APS-C 24.0 6000 40001080/60p24.114.0130684Nikon D5600
Olympus E-M10 II« » Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II
Olympus E-PL7« » Four Thirds 15.9 4608 34561080/30p22.712.487372Olympus E-PL7
Olympus E-P5« » Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5
Olympus E-PL6« » Four Thirds 15.9 4608 34561080/30p----Olympus E-PL6
Olympus E-PL5« » Four Thirds 15.9 4608 34561080/30p22.812.388972Olympus E-PL5

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 750D provides a higher frame rate than the E-M10. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.



Feature comparison: Canon 750D vs Olympus E-M10

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M10 has an electronic viewfinder (1440k dots), while the 750D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon 750D, the Olympus E-M10, and comparable cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 750D»optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 750D
Olympus E-M10«1440 n 3.0 1037 tilting Y 4000 8.0 Y Y Olympus E-M10
Canon 2000D« »optical n 3.0 920 fixed n 4000 3.0 Y n Canon 2000D
Canon 77D« »optical Y 3.0 1040 swivel Y 4000 6.0 Y n Canon 77D
Canon 800D« »optical n 3.0 1040 swivel Y 4000 6.0 Y n Canon 800D
Canon 760D« »optical Y 3.0 1040 swivel Y 4000 5.0 Y n Canon 760D
Canon M3« »- n 3.0 1040 tilting Y 4000 4.2 Y n Canon M3
Canon 1200D« »optical n 3.0 460 fixed n 4000 3.0 Y n Canon 1200D
Canon G7 X« »- n 3.0 1040 tilting Y 2000 6.5 Y Y Canon G7 X
Canon 700D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 700D
Canon 650D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 650D
Nikon D5600« »optical n 3.2 1037 swivel Y 4000 5.0 Y n Nikon D5600
Olympus E-M10 II« »2360 n 3.0 1040 tilting Y 4000 8.0 Y Y Olympus E-M10 II
Olympus E-PL7« »- n 3.0 1037 tilting Y 4000 8.0 n Y Olympus E-PL7
Olympus E-P5« »- n 3.0 1037 tilting Y 8000 9.0 Y Y Olympus E-P5
Olympus E-PL6« »- n 3.0 460 tilting Y 4000 8.0 n Y Olympus E-PL6
Olympus E-PL5« »- n 3.0 460 tilting Y 4000 8.0 n Y Olympus E-PL5

One feature that differentiates the E-M10 and the 750D is in-body image stabilization (IBIS). The E-M10 reduces the risk of handshake-induced blur with all attached lenses, while the 750D has to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.

Both the 750D and the E-M10 write their imaging data to SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 750D»YstereomonoY-mini2.0YY-Canon 750D
Olympus E-M10«Ystereomono--micro2.0Y--Olympus E-M10
Canon 2000D« »Ymonomono--mini2.0YY-Canon 2000D
Canon 77D« »YstereomonoY-mini2.0YYYCanon 77D
Canon 800D« »YstereomonoY-mini2.0YYYCanon 800D
Canon 760D« »YstereomonoY-mini2.0YY-Canon 760D
Canon M3« »YstereomonoY-mini2.0YY-Canon M3
Canon 1200D« »Ymonomono--mini2.0---Canon 1200D
Canon G7 X« »-stereomono--micro2.0YY-Canon G7 X
Canon 700D« »YstereomonoY-mini2.0---Canon 700D
Canon 650D« »YstereomonoY-mini2.0---Canon 650D
Nikon D5600« »YstereomonoY-mini2.0YYYNikon D5600
Olympus E-M10 II« »Ystereomono--micro2.0Y--Olympus E-M10 II
Olympus E-PL7« »Ystereomono--micro2.0Y--Olympus E-PL7
Olympus E-P5« »Ystereomono--micro2.0Y--Olympus E-P5
Olympus E-PL6« »Ystereomono--mini2.0---Olympus E-PL6
Olympus E-PL5« »Ystereomono--mini2.0---Olympus E-PL5

Both the 750D and the E-M10 have been discontinued, but can regularly be found used on eBay. The E-M10 was replaced by the Olympus E-M10 II, while the 750D was followed by the Canon 800D.

Review summary: Canon 750D vs Olympus E-M10

So what is the bottom line? Is the Canon 750D better than the Olympus E-M10 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon EOS 750D:

  • More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Longer lasting: Can take more shots (440 versus 320) on a single battery charge.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More modern: Is somewhat more recent (announced 1 year after the E-M10).

ilogo

Arguments in favor of the Olympus OM-D E-M10:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (119x82mm vs 132x101mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 159g or 29 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More heavily discounted: Has been on the market for longer (launched in January 2014).

If the count of relative strengths (bullet points above) is taken as a measure, the 750D emerges as the winner of the contest (10 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

750D 10:08 E-M10

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 750D and the E-M10 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 750D»-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D
Olympus E-M10«-80/1005/54.5/55/5 Jan 2014 699- i Olympus E-M10
Canon 2000D« »rev-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D
Canon 77D« »-82/1004.5/54.5/54/5 Feb 2017 899 i i Canon 77D
Canon 800D« »-80/1004.5/54/54/5 Feb 2017 749 i i Canon 800D
Canon 760D« »Rec77/1004.5/54.5/54.5/5 Feb 2015 849- i Canon 760D
Canon M3« »rev75/1004.5/54.5/54/5 Feb 2015 679- i Canon M3
Canon 1200D« »Rec-4/54/54.5/5 Feb 2014 449- i Canon 1200D
Canon G7 X« »HiRec77/1004.5/53.5/54.5/5 Sep 2014 699- i Canon G7 X
Canon 700D« »-76/1004.5/54.5/54.5/5 Mar 2013 649- i Canon 700D
Canon 650D« »HiRec77/1004.5/54.5/54.5/5 Jun 2012 849- i Canon 650D
Nikon D5600« »-79/1004.5/54.5/54/5 Nov 2016 699 i i Nikon D5600
Olympus E-M10 II« »HiRec80/1005/55/55/5 Aug 2015 799- i Olympus E-M10 II
Olympus E-PL7« »Rec-5/54.5/54/5 Aug 2014 599- i Olympus E-PL7
Olympus E-P5« »HiRec78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5
Olympus E-PL6« »----- May 2013 599- i Olympus E-PL6
Olympus E-PL5« »HiRec-4.5/54.5/54.5/5 Sep 2012 599- i Olympus E-PL5

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.



Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored. If you do not see the camera that you are looking for, kindly get in touch, and I will try to add information on that model to the database.

~
