Canon 750D vs Fujifilm X-M1
The Canon EOS 750D (called Canon T6i in some regions) and the Fujifilm X-M1 are two digital cameras that were revealed to the public, respectively, in February 2015 and June 2013. The 750D is a DSLR, while the X-M1 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 750D and the Fujifilm X-M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

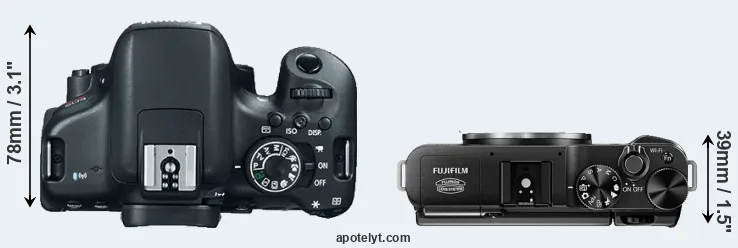

The physical size and weight of the Canon 750D and the Fujifilm X-M1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The X-M1 can be obtained in three different colors (black, silver, brown), while the 750D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-M1 is considerably smaller (41 percent) than the Canon 750D. Moreover, the X-M1 is substantially lighter (41 percent) than the 750D. In this context, it is worth noting that neither the 750D nor the X-M1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (750D) and the Fujinon X Lens Catalog (X-M1). Mirrorless cameras, such as the X-M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|2.||Fujifilm X-M1||117 mm||67 mm||39 mm||330 g||350||n||Jun 2013||699||ebay.com|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|6.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|7.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|8.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|9.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|10.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|11.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|12.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699||ebay.com|
|13.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799||ebay.com|
|14.||Fujifilm X-A1||117 mm||67 mm||39 mm||330 g||350||n||Sep 2013||399||ebay.com|
|15.||Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999||ebay.com|
|16.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699||ebay.com|
|17.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-M1 was somewhat cheaper (by 7 percent) than the 750D at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-M1 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (750D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

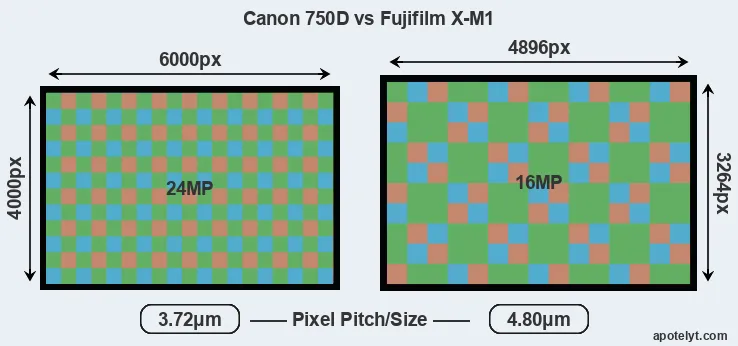

Despite having a smaller sensor, the Canon 750D offers a higher resolution of 24 megapixels, compared with 16 MP of the Fujifilm X-M1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.80μm for the X-M1). However, it should be noted that the 750D is a somewhat more recent model (by 1 year and 7 months) than the X-M1, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 750D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 750D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Fujifilm X-M1 are 24.5 x 16.3 inches or 62.2 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.7 x 33.2 cm for very good quality, and 16.3 x 10.9 inches or 41.5 x 27.6 cm for excellent quality prints.
The 750D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 750D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Fujifilm X-M1 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Like most digital cameras, the 750D uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-M1 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|9.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 750D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-M1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 750D and Fujifilm X-M1 along with similar information for a selection of comparators.
|1.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Fujifilm X-M1||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|5.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|6.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|7.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|8.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|9.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|10.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Fujifilm X-E2S||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0/s||Y||n|
|13.||Fujifilm X-T10||2360||n||3.0 / 920||tilting||n||1/4000s||8.0/s||Y||n|
|14.||Fujifilm X-A1||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|15.||Fujifilm X-E2||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0/s||Y||n|
|16.||Fujifilm X-Pro1||1440||n||3.0 / 1230||fixed||n||1/4000s||6.0/s||n||n|
|17.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 750D has a touchscreen, while the X-M1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 750D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the X-M1 does not have a selfie-screen.
Concerning the storage of imaging data, both the 750D and the X-M1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 750D and Fujifilm X-M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Fujifilm X-M1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|7.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|10.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Fujifilm X-E2S||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|13.||Fujifilm X-T10||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|14.||Fujifilm X-A1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|15.||Fujifilm X-E2||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|16.||Fujifilm X-Pro1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
It is notable that the 750D has a microphone port, which is missing on the X-M1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 750D and the X-M1 have been discontinued, but can regularly be found used on ebay. The 750D was replaced by the Canon 800D, while the X-M1 does not have a direct successor. Further information on the features and operation of the 750D and X-M1 can be found, respectively, in the Canon 750D Manual (free pdf) or the online Fujifilm X-M1 Manual.
So how do things add up? Is there a clear favorite between the Canon 750D and the Fujifilm X-M1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 750D:
- More detail: Offers more megapixels (24 vs 16MP) with a 23% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Longer lasting: Can take more shots (440 versus 350) on a single battery charge.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Is somewhat more recent (announced 1 year and 7 months after the X-M1).
Advantages of the Fujifilm X-M1:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Faster burst: Shoots at higher frequency (5.6 vs 5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (117x67mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 225g or 41 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More heavily discounted: Has been on the market for longer (launched in June 2013).
If the count of individual advantages (bullet points above) is taken as a guide, the 750D is the clear winner of the match-up (12 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 750D and the Fujifilm X-M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 750D or the X-M1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|2.||Fujifilm X-M1||3/5||+||..||77/100||4.5/5||4.5/5||Jun 2013||699||ebay.com|
|3.||Canon 2000D||3/5||o||3.5/5||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|5.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|6.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|7.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|8.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|9.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|10.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|11.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|12.||Fujifilm X-E2S||4.5/5||..||..||77/100||4.5/5||4.5/5||Jan 2016||699||ebay.com|
|13.||Fujifilm X-T10||4.5/5||+ +||..||80/100||5/5||5/5||May 2015||799||ebay.com|
|14.||Fujifilm X-A1||..||..||..||..||4.5/5||4.5/5||Sep 2013||399||ebay.com|
|15.||Fujifilm X-E2||4/5||..||..||80/100||4.5/5||5/5||Oct 2013||999||ebay.com|
|16.||Fujifilm X-Pro1||5/5||+ +||..||79/100||4.5/5||4.5/5||Jan 2012||1,699||ebay.com|
|17.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D X Mark II vs Fujifilm X-M1
- Canon 5D Mark II vs Fujifilm X-M1
- Canon 750D vs Canon D30
- Canon 750D vs Canon M50
- Canon 750D vs Canon SX70
- Canon 750D vs Panasonic GF1
- Canon 750D vs Sony A7 III
- Canon 750D vs Sony RX0 II
- Fujifilm X-M1 vs Nikon 1 J5
- Fujifilm X-M1 vs Panasonic GF1
- Fujifilm X-M1 vs Pentax K-3 II
- Fujifilm X-M1 vs Ricoh GR II
Specifications: Canon 750D vs Fujifilm X-M1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 750D||Fujifilm X-M1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||February 2015||June 2013|
|Launch Price||USD 749||USD 699|
|Sensor Specs||Canon 750D||Fujifilm X-M1|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.6 mm|
|Sensor Area||332.27 mm2||368.16 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||24 Megapixels||16 Megapixels|
|Image Resolution||6000 x 4000 pixels||4896 x 3264 pixels|
|Pixel Pitch||3.72 μm||4.80 μm|
|Pixel Density||7.22 MP/cm2||4.34 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 12,800 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6||EXR Processor II|
|DXO Sensor Quality (score)||71||..|
|DXO Color Depth (bits)||22.7||..|
|DXO Dynamic Range (EV)||12.0||..|
|DXO Low Light (ISO)||919||..|
|Screen Specs||Canon 750D||Fujifilm X-M1|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 750D||Fujifilm X-M1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||5.6 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 750D||Fujifilm X-M1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 750D||Fujifilm X-M1|
|Battery Life (CIPA)||440 shots per charge||350 shots per charge|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
117 x 67 x 39 mm
(4.6 x 2.6 x 1.5 in)
|Camera Weight||555 g (19.6 oz)||330 g (11.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
