Canon 70D vs Fujifilm X-M1
The Canon EOS 70D and the Fujifilm X-M1 are two digital cameras that were officially introduced, respectively, in July 2013 and June 2013. The 70D is a DSLR, while the X-M1 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 20 megapixels, whereas the Fujifilm provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 70D and the Fujifilm X-M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

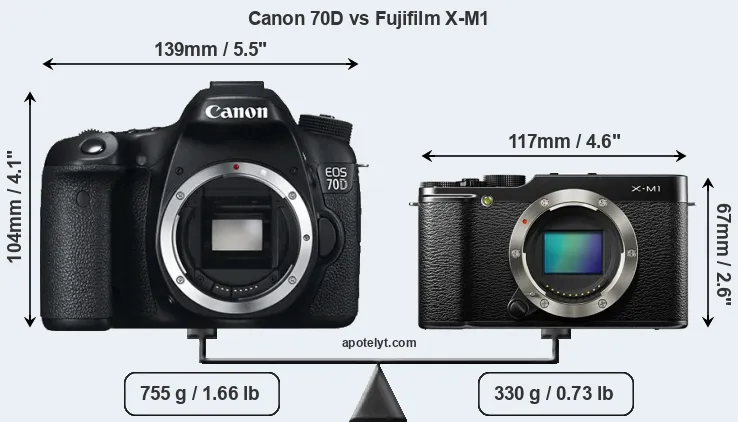

An illustration of the physical size and weight of the Canon 70D and the Fujifilm X-M1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The X-M1 can be obtained in three different colors (black, silver, brown), while the 70D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-M1 is considerably smaller (46 percent) than the Canon 70D. Moreover, the X-M1 is substantially lighter (56 percent) than the 70D. It is worth mentioning in this context that the 70D is splash and dust resistant, while the X-M1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (70D) and the Fujinon X Lens Catalog (X-M1). Mirrorless cameras, such as the X-M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|2.||Fujifilm X-M1||117 mm||67 mm||39 mm||330 g||350||n||Jun 2013||699|
|3.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|4.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|5.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|6.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|7.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|8.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|9.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|10.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|11.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|12.||Fujifilm X-A1||117 mm||67 mm||39 mm||330 g||350||n||Sep 2013||399|
|13.||Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999|
|14.||Fujifilm X-E1||129 mm||75 mm||38 mm||350 g||350||n||Sep 2012||999|
|15.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|16.||Sony RX10 II||129 mm||88 mm||102 mm||813 g||400||Y||Jun 2015||1,299|
|17.||Sony RX10||129 mm||88 mm||102 mm||813 g||420||Y||Oct 2013||1,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X-M1 was launched at a markedly lower price (by 42 percent) than the 70D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

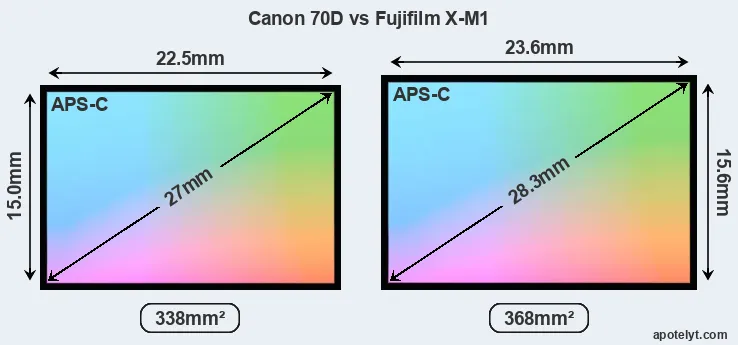

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-M1 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (70D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

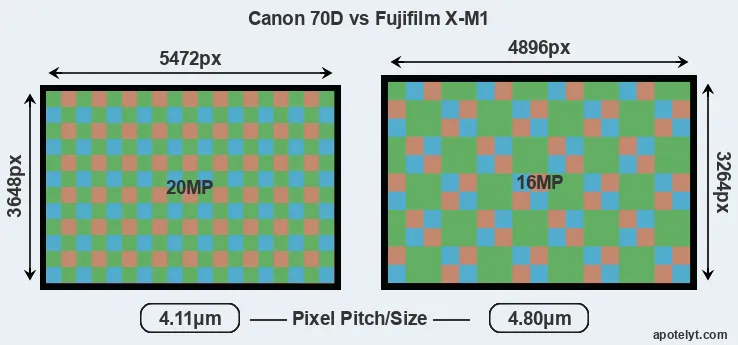

Despite having a smaller sensor, the Canon 70D offers a higher resolution of 20 megapixels, compared with 16 MP of the Fujifilm X-M1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.11μm versus 4.80μm for the X-M1). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 70D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 70D for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Fujifilm X-M1 are 24.5 x 16.3 inches or 62.2 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.7 x 33.2 cm for very good quality, and 16.3 x 10.9 inches or 41.5 x 27.6 cm for excellent quality prints.
The 70D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 70D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Fujifilm X-M1 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|4.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|5.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|6.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|16.||Sony RX10 II||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 70D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-M1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 70D and Fujifilm X-M1 along with similar information for a selection of comparators.
|4.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|5.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|16.||Sony RX10 II||2359||Y||3.0||1229||tilting||n||1/3200s||14.0||Y||Y|
One feature that is present on the 70D, but is missing on the X-M1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 70D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the X-M1 does not have a selfie-screen.
Concerning the storage of imaging data, both the 70D and the X-M1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 70D and Fujifilm X-M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|5.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|16.||Sony RX10 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the 70D has a microphone port, which is missing on the X-M1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 70D and the X-M1 have been discontinued, but can regularly be found used on eBay. The 70D was replaced by the Canon 80D, while the X-M1 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So what is the bottom line? Is the Canon 70D better than the Fujifilm X-M1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 70D:
- More detail: Offers more megapixels (20 vs 16MP) with a 12% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 5.6 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (920 versus 350) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
Advantages of the Fujifilm X-M1:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More compact: Is smaller (117x67mm vs 139x104mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 425g or 56 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
If the number of relative strengths (bullet points above) is taken as a guide, the 70D is the clear winner of the match-up (14 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 70D and the Fujifilm X-M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 70D or the X-M1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|2.||Fujifilm X-M1||3/5||+||77/100||4.5/5||4.5/5||Jun 2013||699|
|3.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|4.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|5.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|6.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|7.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|8.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|9.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|10.||Fujifilm X-E2S||4.5/5||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|11.||Fujifilm X-T10||4.5/5||+ +||80/100||5/5||5/5||May 2015||799|
|12.||Fujifilm X-A1||..||..||..||4.5/5||4.5/5||Sep 2013||399|
|13.||Fujifilm X-E2||4/5||..||80/100||4.5/5||5/5||Oct 2013||999|
|14.||Fujifilm X-E1||4/5||+ +||79/100||4.5/5||4.5/5||Sep 2012||999|
|15.||Nikon D7100||5/5||+ +||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|16.||Sony RX10 II||5/5||+ +||82/100||4.5/5||4/5||Jun 2015||1,299|
|17.||Sony RX10||5/5||+||80/100||4.5/5||4.5/5||Oct 2013||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 70D vs Fujifilm X-M1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 70D||Fujifilm X-M1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||July 2013||June 2013|
|Launch Price||USD 1,199||USD 699|
|Sensor Specs||Canon 70D||Fujifilm X-M1|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.5 x 15.0 mm||23.6 x 15.6 mm|
|Sensor Area||337.5 mm2||368.16 mm2|
|Sensor Diagonal||27 mm||28.3 mm|
|Sensor Resolution||20 Megapixels||16 Megapixels|
|Image Resolution||5472 x 3648 pixels||4896 x 3264 pixels|
|Pixel Pitch||4.11 μm||4.80 μm|
|Pixel Density||5.91 MP/cm2||4.34 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 12,800 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 5+||EXR Processor II|
|DXO Sensor Quality (score)||68||..|
|DXO Color Depth (bits)||22.5||..|
|DXO Dynamic Range (EV)||11.6||..|
|DXO Low Light (ISO)||926||..|
|Screen Specs||Canon 70D||Fujifilm X-M1|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||98%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 70D||Fujifilm X-M1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||7 shutter flaps/s||5.6 shutter flaps/s|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 70D||Fujifilm X-M1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Canon 70D||Fujifilm X-M1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||920 shots per charge||350 shots per charge|
139 x 104 x 79 mm
(5.5 x 4.1 x 3.1 in)
117 x 67 x 39 mm
(4.6 x 2.6 x 1.5 in)
|Camera Weight||755 g (26.6 oz)||330 g (11.6 oz)|
