Canon 600D vs Olympus E-M10 II
The Canon EOS 600D (called Canon T3i in some regions) and the Olympus OM-D E-M10 Mark II are two digital cameras that were officially introduced, respectively, in February 2011 and August 2015. The 600D is a DSLR, while the E-M10 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (600D) and a Four Thirds (E-M10 II) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 600D and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 600D and the Olympus E-M10 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-M10 II can be obtained in three different colors (black, silver, brown), while the 600D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is notably smaller (25 percent) than the Canon 600D. Moreover, the E-M10 II is markedly lighter (32 percent) than the 600D. In this context, it is worth noting that neither the 600D nor the E-M10 II are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (600D) and the Micro Four Thirds Lens Catalog (E-M10 II). Mirrorless cameras, such as the E-M10 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 600D||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|2.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|6.||Canon 100D||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|7.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|8.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|9.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|10.||Canon 1100D||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|11.||Canon 550D||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|12.||Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|13.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|14.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|17.||Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 600D was somewhat cheaper (by 8 percent) than the E-M10 II at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

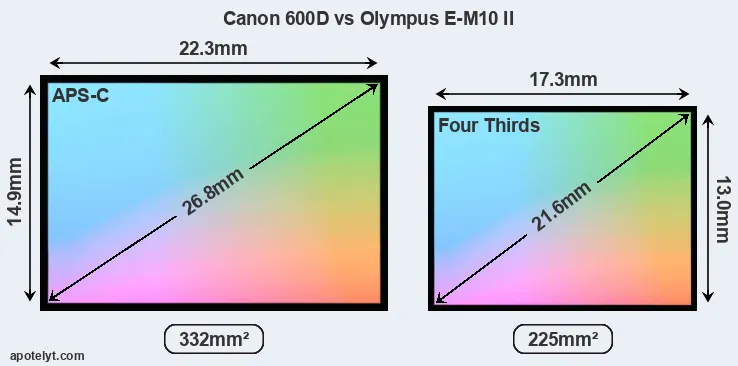

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 600D features an APS-C sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 600D has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 17.9MP, the 600D offers a higher resolution than the E-M10 II (15.9MP), but the 600D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 3.76μm for the E-M10 II) due to its larger sensor. However, the E-M10 II is a much more recent model (by 4 years and 6 months) than the 600D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 600D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 600D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-M10 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon EOS 600D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-M10 II has a markedly higher DXO score than the 600D (overall score 8 points higher), which will translate into better image quality. The advantage is based on 1 bits higher color depth, 1 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|13.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|14.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|17.||Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-M10 II provides a faster frame rate than the 600D. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), while the 600D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M10 II offers a wider field of view (100%) than the one in the 600D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M10 II has a higher magnification (0.62x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 600D, the Olympus E-M10 II, and comparable cameras.
|2.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|13.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|14.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M10 II has a touchscreen, while the 600D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 600D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-M10 II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M10 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 600D and the E-M10 II write their files to SDXC cards. The E-M10 II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 600D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 600D and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|13.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|14.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
It is notable that the 600D has a microphone port, which is missing on the E-M10 II. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 600D and the E-M10 II have been discontinued, but can regularly be found used on eBay. The 600D was replaced by the Canon 650D, while the E-M10 II was followed by the Olympus E-M10 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is the Canon 600D better than the Olympus E-M10 II or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 600D:
- More detail: Offers more megapixels (17.9 vs 15.9MP) with a 8% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Longer lasting: Can take more shots (440 versus 320) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in February 2011).
Advantages of the Olympus OM-D E-M10 Mark II:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores markedly higher (8 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1 EV of extra DR).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.53x).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 3.7 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (120x83mm vs 133x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 180g or 32 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 4 years and 6 months of technical progress since the 600D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-M10 II is the clear winner of the contest (18 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 600D and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 600D or the E-M10 II perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 600D||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|2.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|3.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon 760D||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon 1200D||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|6.||Canon 100D||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|7.||Canon 700D||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|8.||Canon 650D||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|9.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|10.||Canon 1100D||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|11.||Canon 550D||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|12.||Canon 500D||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|13.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|14.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|15.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|17.||Panasonic GX80||4.5/5||+ +||82/100||5/5||5/5||Apr 2016||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 600D vs Olympus E-M10 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 600D||Olympus E-M10 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2011||August 2015|
|Launch Price||USD 599||USD 649|
|Sensor Specs||Canon 600D||Olympus E-M10 II|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||15.9 Megapixels|
|Image Resolution||5184 x 3456 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.31 μm||3.76 μm|
|Pixel Density||5.39 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 4||TruePic VII|
|DXO Sensor Quality (score)||65||73|
|DXO Color Depth (bits)||22.1||23.1|
|DXO Dynamic Range (EV)||11.5||12.5|
|DXO Low Light (ISO)||793||842|
|Screen Specs||Canon 600D||Olympus E-M10 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 600D||Olympus E-M10 II|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3.7 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 600D||Olympus E-M10 II|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 600D||Olympus E-M10 II|
|Battery Life (CIPA)||440 shots per charge||320 shots per charge|
133 x 100 x 80 mm
(5.2 x 3.9 x 3.1 in)
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
|Camera Weight||570 g (20.1 oz)||390 g (13.8 oz)|
